Filter Valves
Specification:
Brand
Type: two two direct-acting valve
Shell material: flame retardant ABS plastic
Manual test button ( switch )

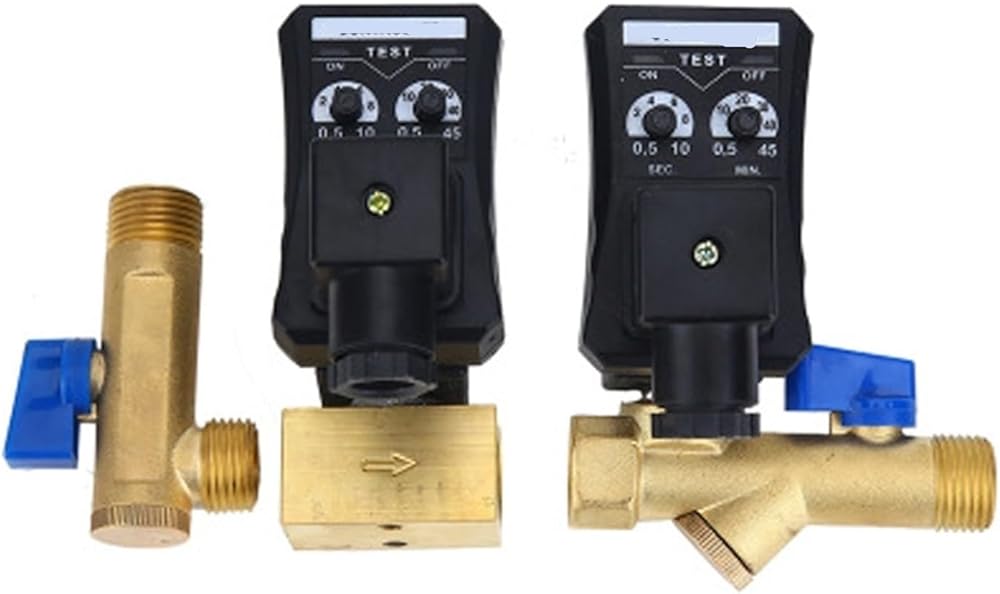

Size: as picture shown
Voltage: DC12V/DC24V/AC110V/AC220V
Time interval (OFF): 0.5--45 minutes
Discharge time (ON): 0.5--10 seconds
Ambient temperature: -40°C to 60°C
connection: DIN43650A
Interface: G1 / 2" internal thread
The current consumption of the largest 4mA
Maximum working pressure: 1.6Mpa
Maximum temperature: 90°C
Forging brass valve, flow aperture of 5 mm
Insulation class: H level
Protection grade: IP65
Voltage range: ±10%
Feature:
drain valve to solid-state timer and solenoid valve to match the time to achieve automatic discharge of compressed air condensate.
Discharge time and interval time can be adjusted according to different needs.
Easy to install, fully automatic operation.
Durable in use.
Used in filters, oil-water separator, refrigerated dryers, cold and dry machines, air compressors, air cylinders, dripping feet and other compressed air system components.
Package list:
Drain Valve * 1set
Note:
Please allow 1-5mm errors due to manual measurement.
Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
