Filter Valves
Q61F-25C-DN40 G1/4in Single Thread Welding Ball Valve Integral Welded Anti-Corrosion Connector

Feature:
1. The valve has good sealing performance, simple operation, fast opening and closing.
2. The direction of the medium is not restricted by the installation direction.

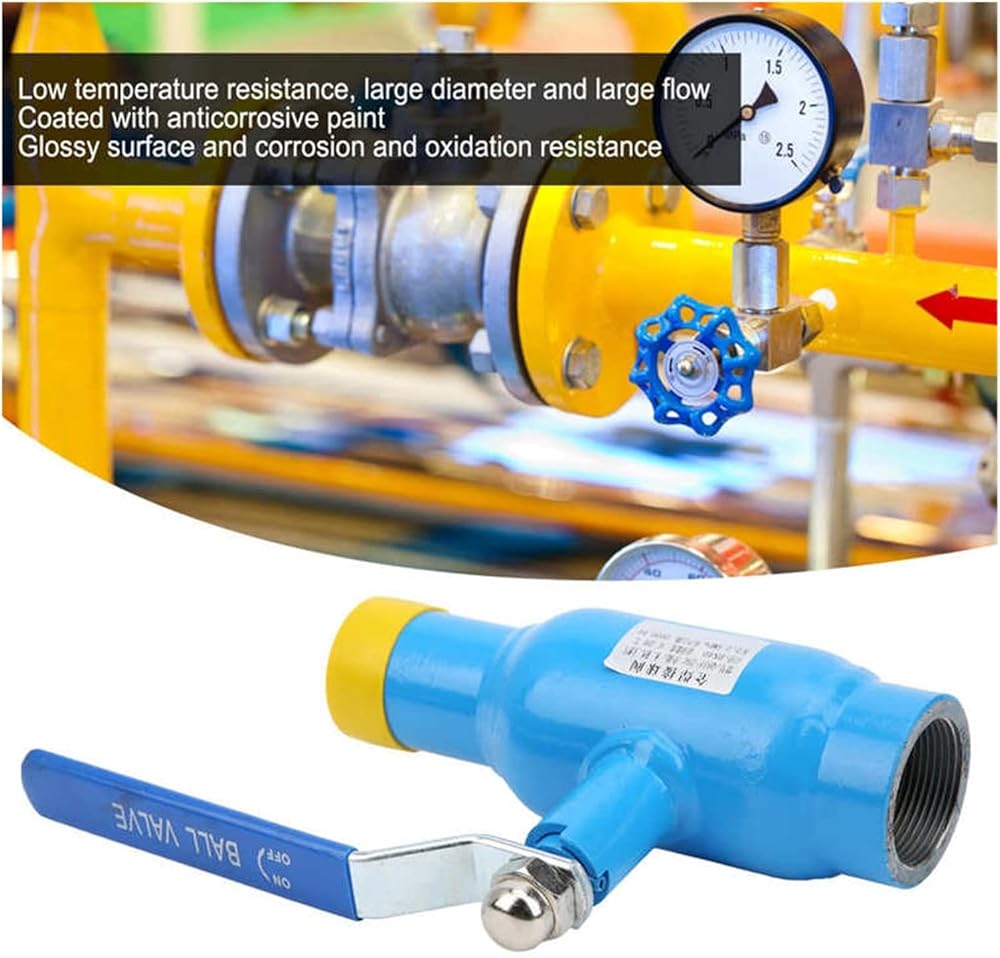

3. Large diameter and large , greatly improving the scope of application, and low temperature resistance.
4. Long service life, coated with anticorrosive paint, with glossy , corrosion and oxidation resistance.
5. With great workmanship, this valve can perfect replacement for the old one.
Specification:
Item Type: Single Thread Ball Valve
Material: 20# steel pipe
Model: Q61F-25C-DN40
Thread: G1/4in
Medium: Water, steam

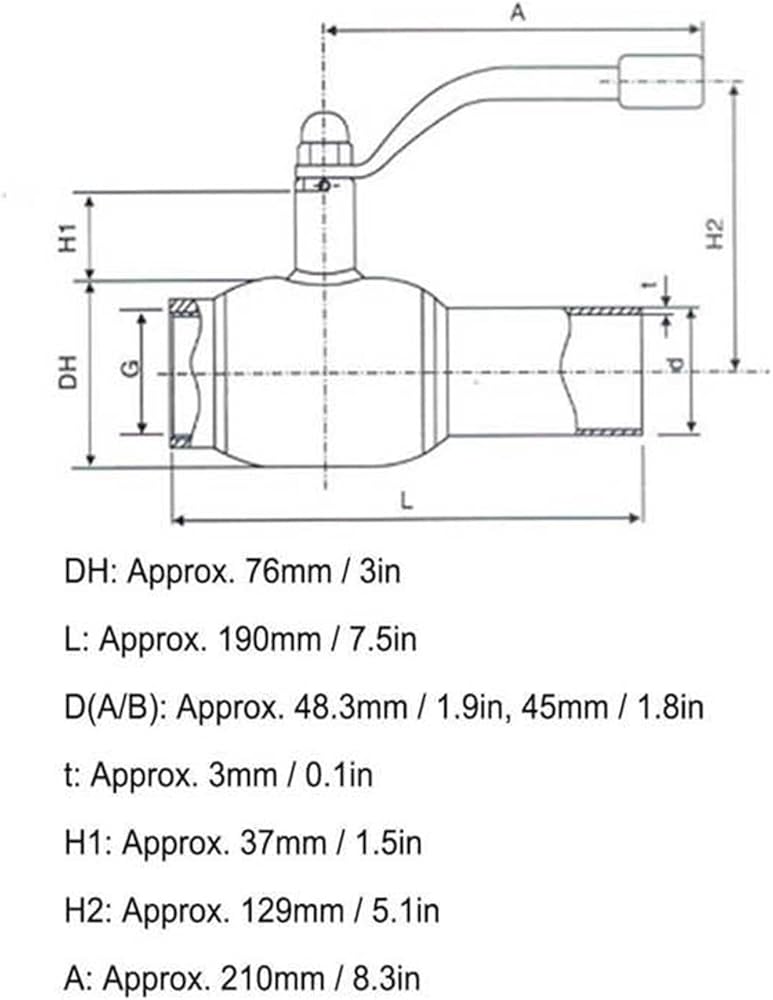

DH: Approx. 76mm / 3in
L: Approx. 190mm / 7.5in
D(A/B): Approx. 48.3mm / 1.9in, 45mm / 1.8in
T: Approx. 3mm / 0.1in
: Approx. 37mm / 1.5in
H2: Approx. 129mm / 5.1in
A: Approx. 210mm / 8.3in
Package List:
1 x Valve
1 x Handle
