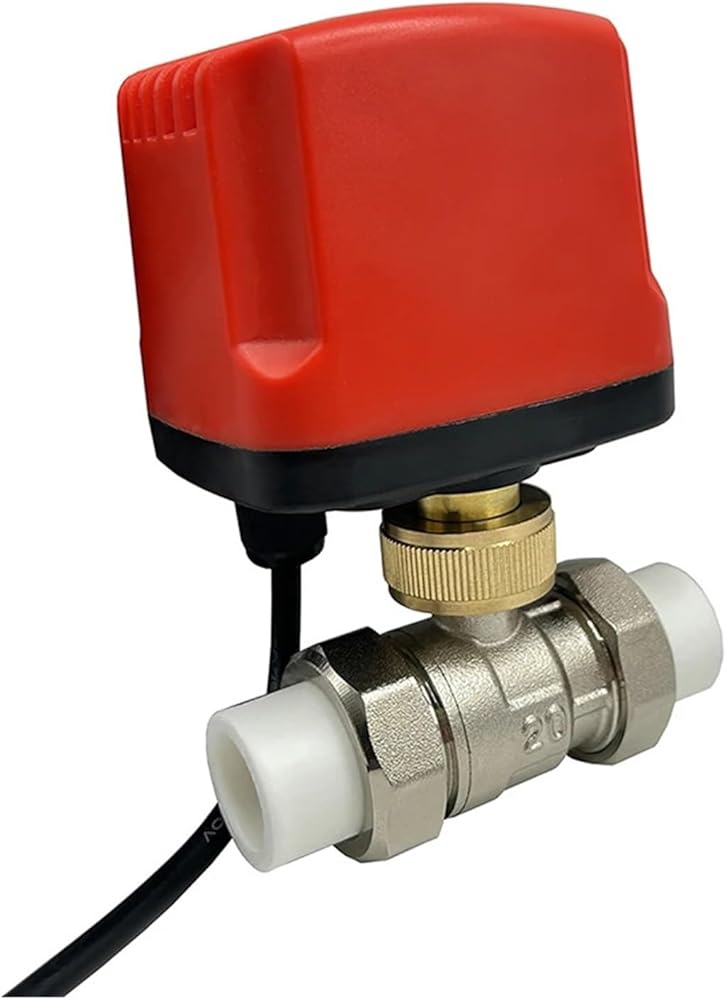

Filter Valves
Applicable medium: cold, hot water or 50% ethylene glycol solution
Material: brass, flame retardant PC material
Control mode: CR02 (three lines and two controls), CR03 (three lines and one control), CR04 (two lines power off reset)
Method: Two ways
Drive voltage: AC220V, DC24V, DC12V, 50/60Hz
Power: 6W (only when the valve is open and closed)
Waterproof grade: IP65
Driving torque: AC220V 8 Nm, DC12/24V 6 Nm
Running time: 5-15 seconds
Nominal pressure: 1.6MPa
Applicable medium temperature: 0-95
Applicable ambient temperature: 0-65
Lead length: 30CM
Connection method: hot melt connection
Hot melt temperature: 260℃
