Filter Valves
Specification
Medium: cold water, hot water or 50% ethylene glycol solution
Body material: brass
Wiring mode: 2 wires, power off reset
Working form: Normally closed/normally open
Driving voltage: 220VAC, 110VAC, 24VAC, 24VDC, 12VDC
Power consumption: 6W (only when the valve is open and closed)
Applicable medium temperature: 0-90℃
Action time: 5-15S
Nominal pressure: 1.6Mpa
Lead length: 30CM

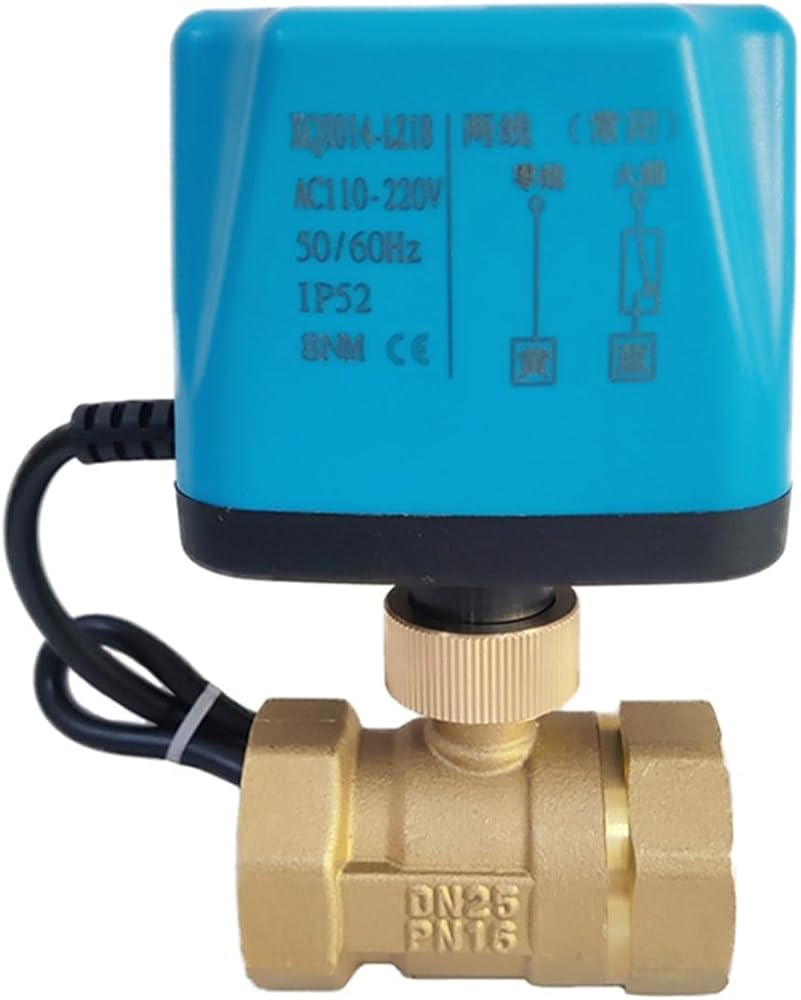

The "AC110-220V" marked on the ball valve can be connected to 110V and 220V voltage, and the "DC12V-24V" can be connected to 12V and 24V voltage.
