Main features:
1. Ultra-Wide input voltage range
2. Multiple on/off mode selection
3. Standard output voltage
4. Overvoltage protection
5. Under voltage protection
6. Overload alarm
7. Overload protection
8. Over temperature protection
9. Multi select power control mode
10. Buzzer status alarm and protection
11. LED input voltage digital display
12. LED output voltage digital display
13. LED load usage percentage digital display
14. LED status display
15. LED protection information display
16. LED delay , timing , counting display
17. LED Program control conversion 7 color bright type display
18. Multi-state alarm indication
Function Introduction:
Output delay time
5 seconds delay /255 seconds
Output overload alarm
Exceeding 100% of the rated output capacity
Output overload protection
Exceeding 120% of the rated output capacity
Output overvoltage protection:> AC244±4V
Output undervoltage protection:Optional
Overheat protection
Transformer coil temperature:120±5
LED input display range
0-450V (overflow range display: Err)
LED output display range
0- 450V (overflow range display: 000)
LED load display range
000-119% (overflow range display: OVL)
LED status display:Delay, Normal, Protection
LED protection information display
Overvoltage, under voltage, over load, overfill
LED backlight
Program-controlled transformation 7 color
font/fixed 7 color in a certain color
LED viewing angle
Traditional ON/OFF, New Self-Lock ON/OFF, New touch ON/SHOT
Delay display
5 seconds /255 seconds countdow
Product name
Model:TKR1500VA
Rated output capacity(VA):1500
Rated output current(A):7.0A
Rated Intput voltage(V):AC105-270V
Output voltage(V):220-V±4%

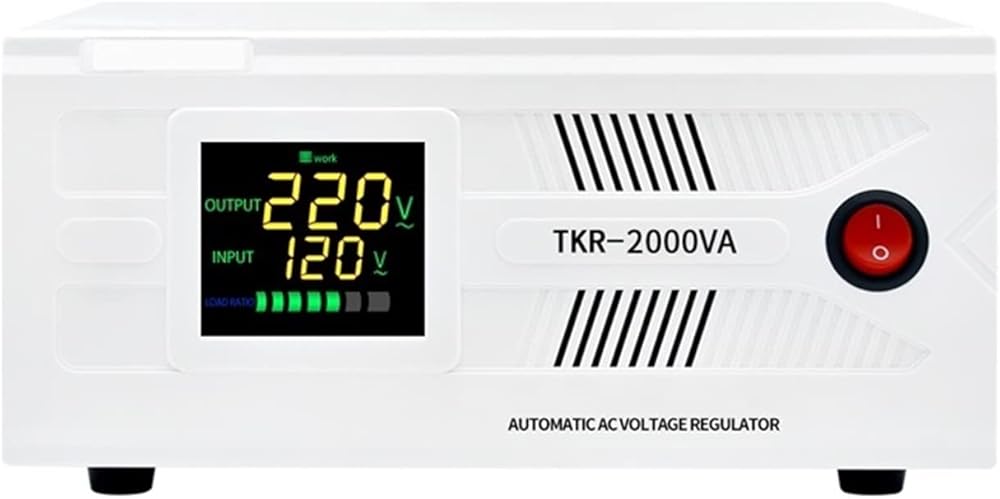

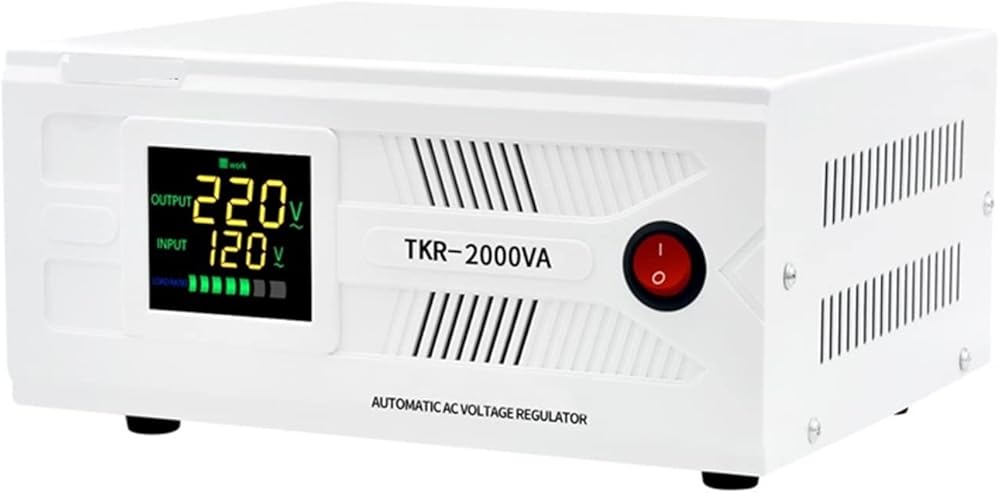

Relay type automatic AC Voltage stabilizer
(Input voltage:AC105-270V)
