Filter Valves
ball valves are important equipment in many applications. The model opens and closes in 3-5 seconds and remains in position without consuming any energy. This is the main difference between ball valves and many solenoid valves. While most solenoid valves are continuously energized when in position, ball valves only consume energy when changing from open to closed or vice versa.
The 3-wire model is ideal for situations where two points of control are required. Two of the wires can be connected directly to the toggle switch, and the third wire can be connected to the second control point. This can allow operation with an on/off switch, while a second control point allows for automation. All models come with instructions and wiring diagrams so you can use your valve with complete confidence.

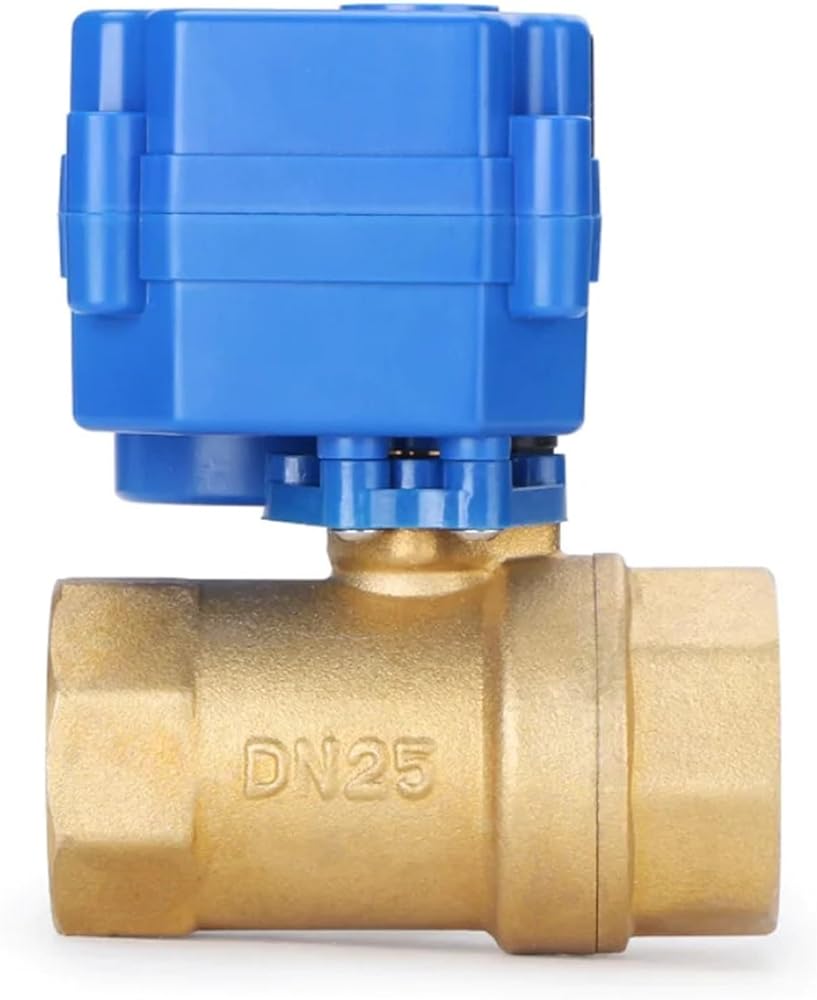

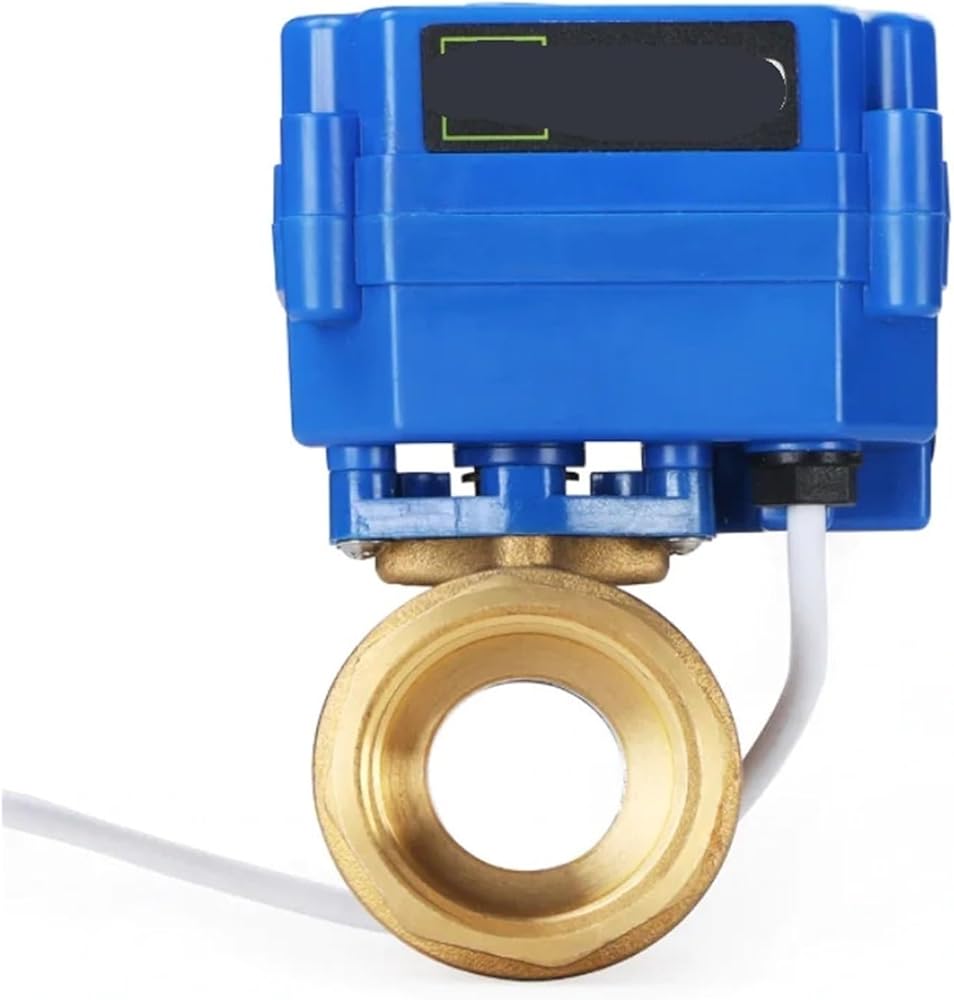

Physical model: USS-MSV00075 (normally open version: USS-MSV00017)
Valve material: brass
Ball seal: PTFE
Operation time: 3-5 seconds
Working voltage: 9-24V AC/DC
Maximum power: 5W
Maximum torque: 2 N·m
Maximum medium pressure: 1.0 Mpa
Flow medium temperature range: 0°C to 90°C
Ambient temperature range: -10°C to 40°C
Shell protection grade: IP65
Life expectancy: 80,000 to 100,000 cycles
Bore type: Standard
Thread type: NPT
Wiring type: 2-wire automatic return to normally open
