Digital Tensiometer, Belt Tension Test Testing Measuring Gauge, with LCD Backlit Display, Range 10~500HZ, Automatic Shutdown Function, Metric/Inch Conversion, for Belt Tension Testing in Kuwait Digital Tensiometer, Belt Tension Test Testing Measuring Gauge, with LCD Backlit Display, Range 10~500HZ, Automatic Shutdown Function, Metric/Inch Conversion, for Belt Tension Testing in Kuwait Digital Tensiometer, Belt Tension Test Testing Measuring Gauge, with LCD Backlit Display, Range 10~500HZ, Automatic Shutdown Function, Metric/Inch Conversion, for Belt Tension Testing in Kuwait Digital Tensiometer, Belt Tension Test Testing Measuring Gauge, with LCD Backlit Display, Range 10~500HZ, Automatic Shutdown Function, Metric/Inch Conversion, for Belt Tension Testing in Kuwait Digital Tensiometer, Belt Tension Test Testing Measuring Gauge, with LCD Backlit Display, Range 10~500HZ, Automatic Shutdown Function, Metric/Inch Conversion, for Belt Tension Testing in Kuwait Digital Tensiometer, Belt Tension Test Testing Measuring Gauge, with LCD Backlit Display, Range 10~500HZ, Automatic Shutdown Function, Metric/Inch Conversion, for Belt Tension Testing in Kuwait

Digital Tensiometer, Belt Tension Test Testing Measuring Gauge, with LCD Backlit Display, Range 10~500HZ, Automatic Shutdown Function, Metric/Inch Conversion, for Belt Tension Testing

KWD 257
– 1 +

Special Features

  • 【Belt Tension Meter】Measure the natural vibration frequency of the belt, and then calculate the belt tension value by combining the input belt mass and free belt length.

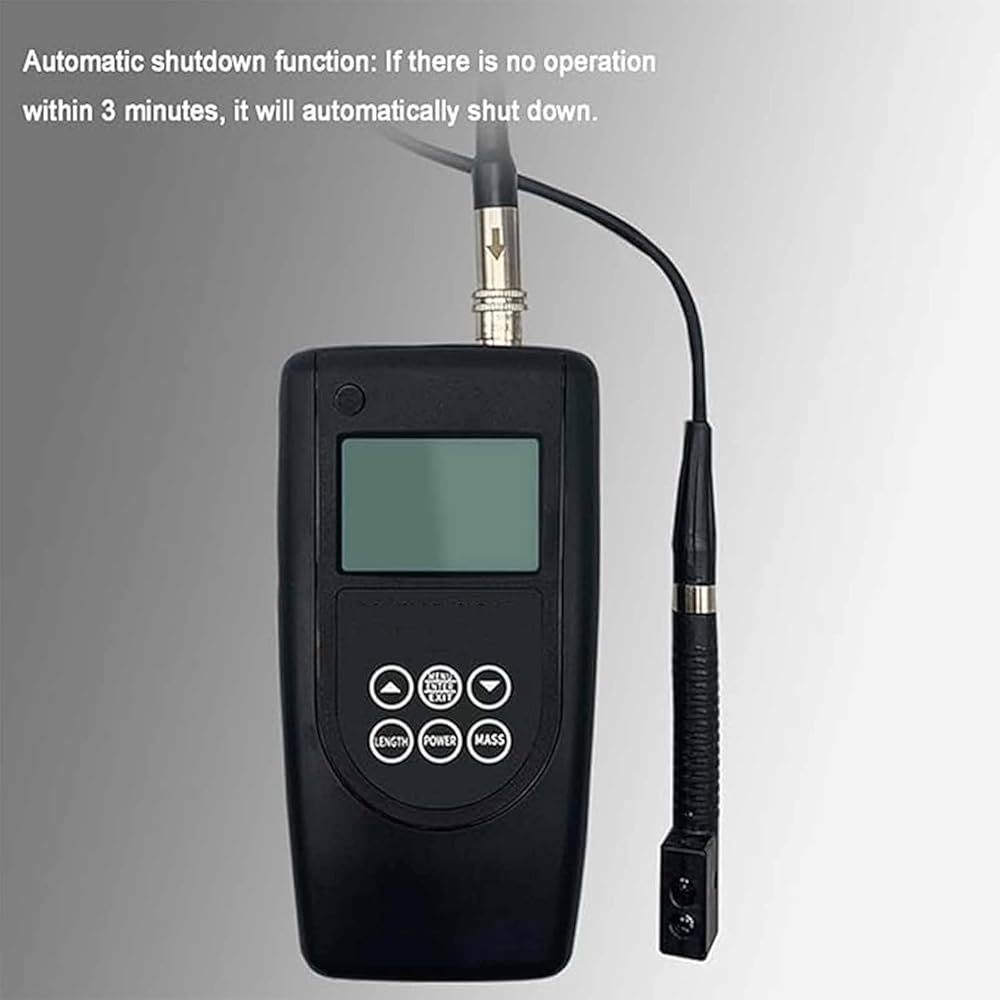

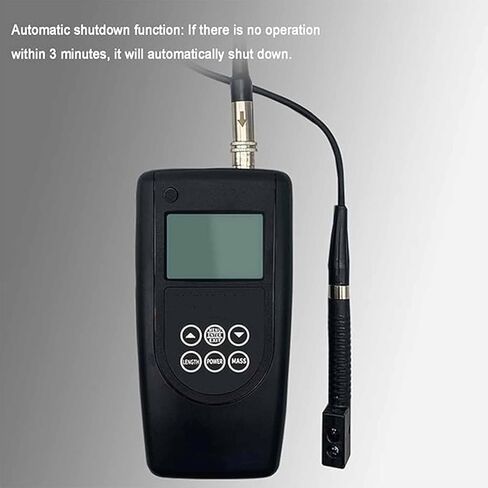

  • 【Automatic Shutdown Function】If there is no operation within 3 min, the instrument will automatically shut down. To shut down manually, press and hold the power button for about 5 s.

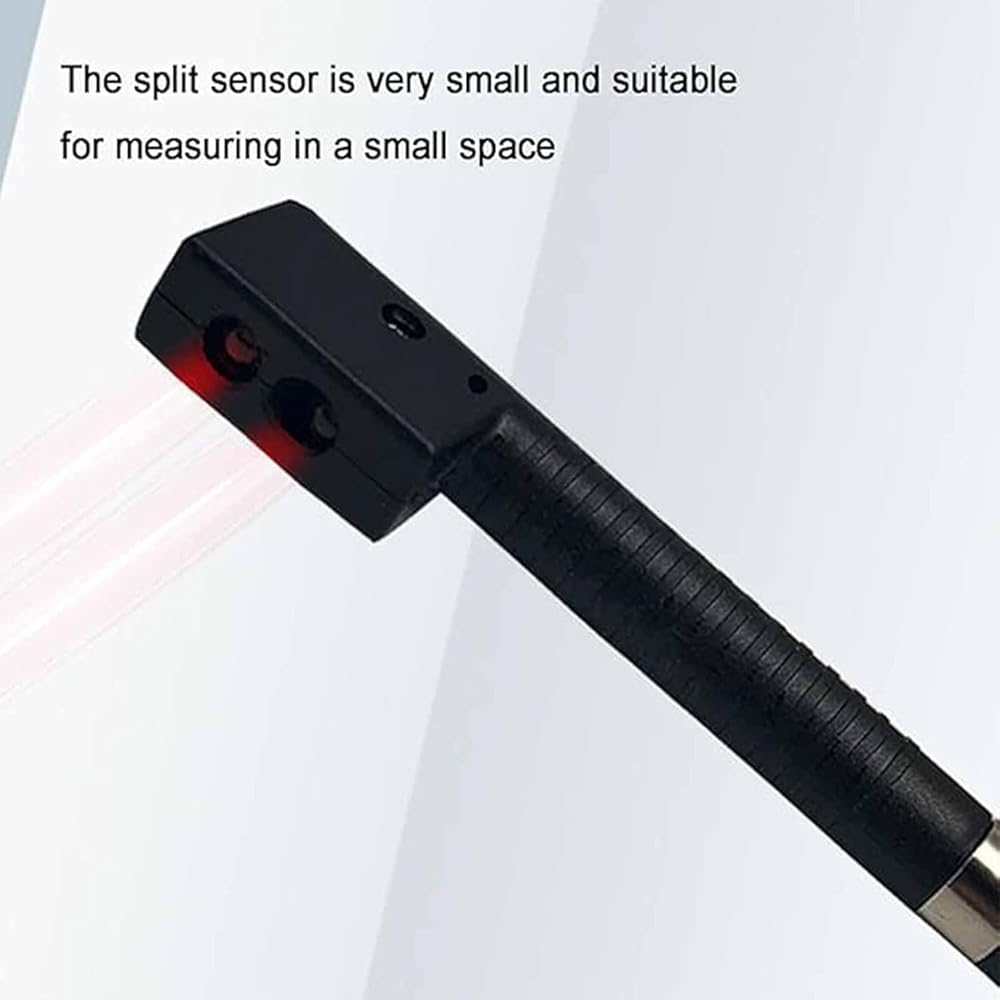

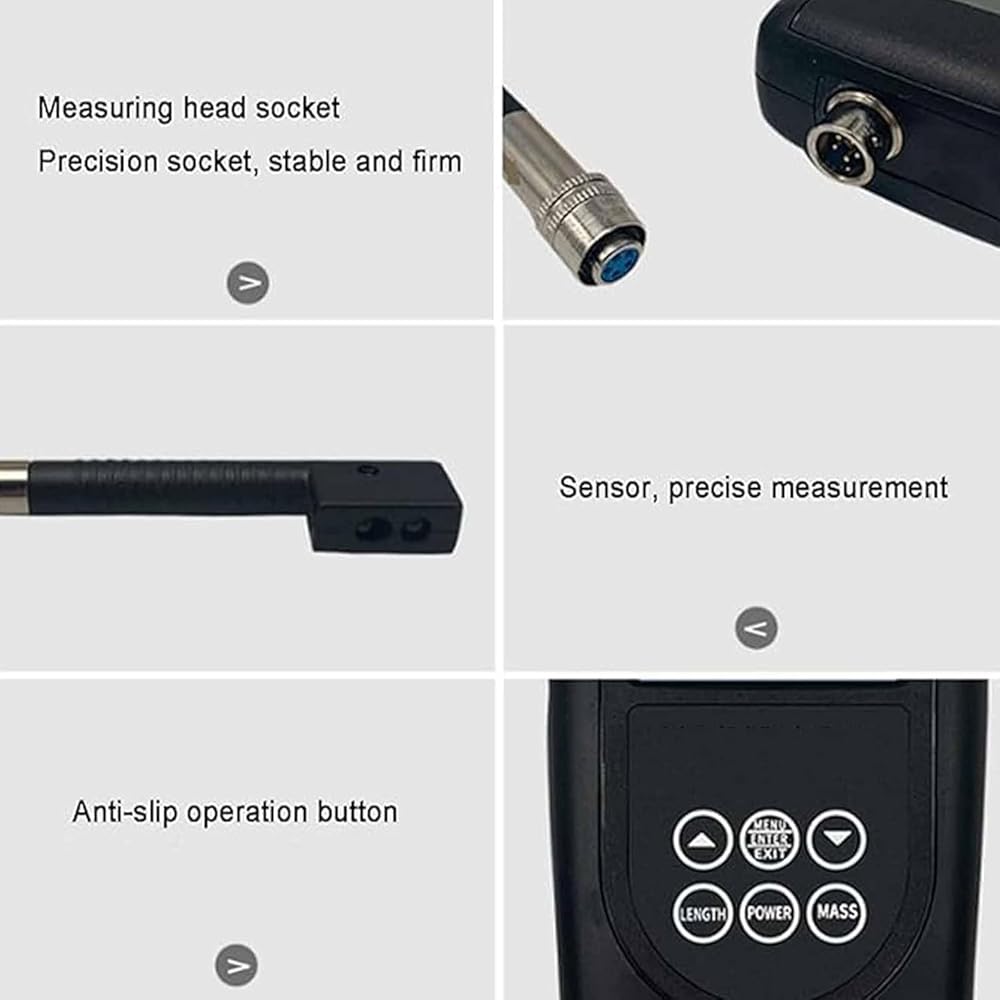

  • 【Accurate Metric】Using infrared sensors, direct measurement, the split sensor has a small size, suitable for measurement in narrow spaces.
  • 【Unit of Measurement】Tension can be displayed in various standard units. Metric: m, kg/m, N; imperial: inch, lbs/foot, lbf.
  • 【Application】Widely used in automotive, textile, plastic film, paper and other industries. This belt tension tester allows you to quickly, easily, and accurately measure the belt tension.

Description

Product description

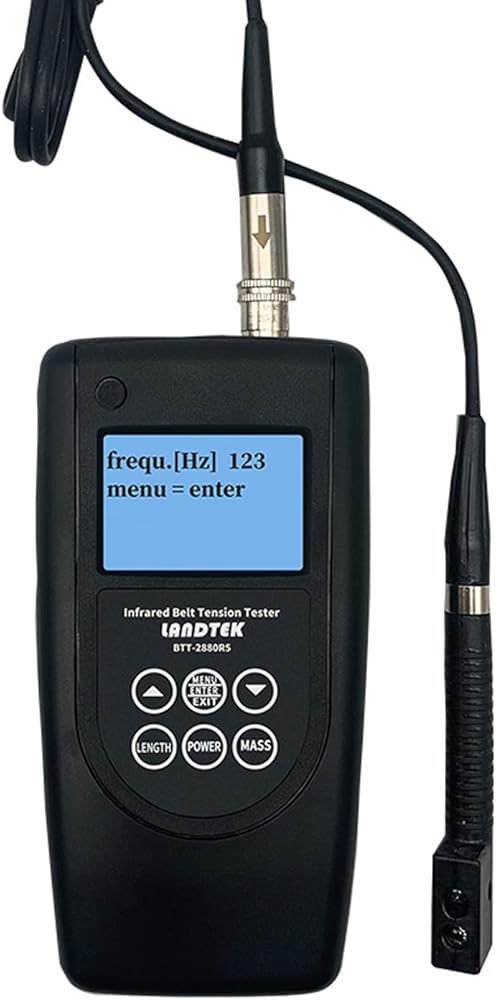

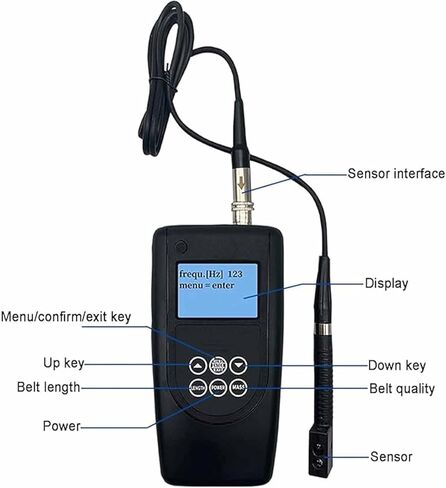

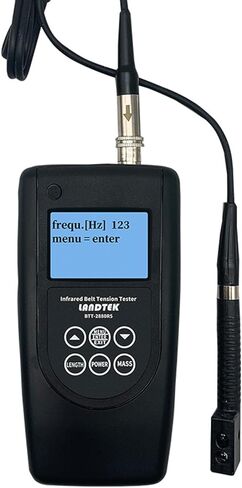

It can be used to measure and adjust the tension of timing and auxiliary belts fitted to motor vehicles and other machines.

Specifications:
Measuring range: 10~500Hz
Input range: Max 99.99m
Belt mass: Max 9.999kg/m
Digital sampling error: Display error: ±1Hz

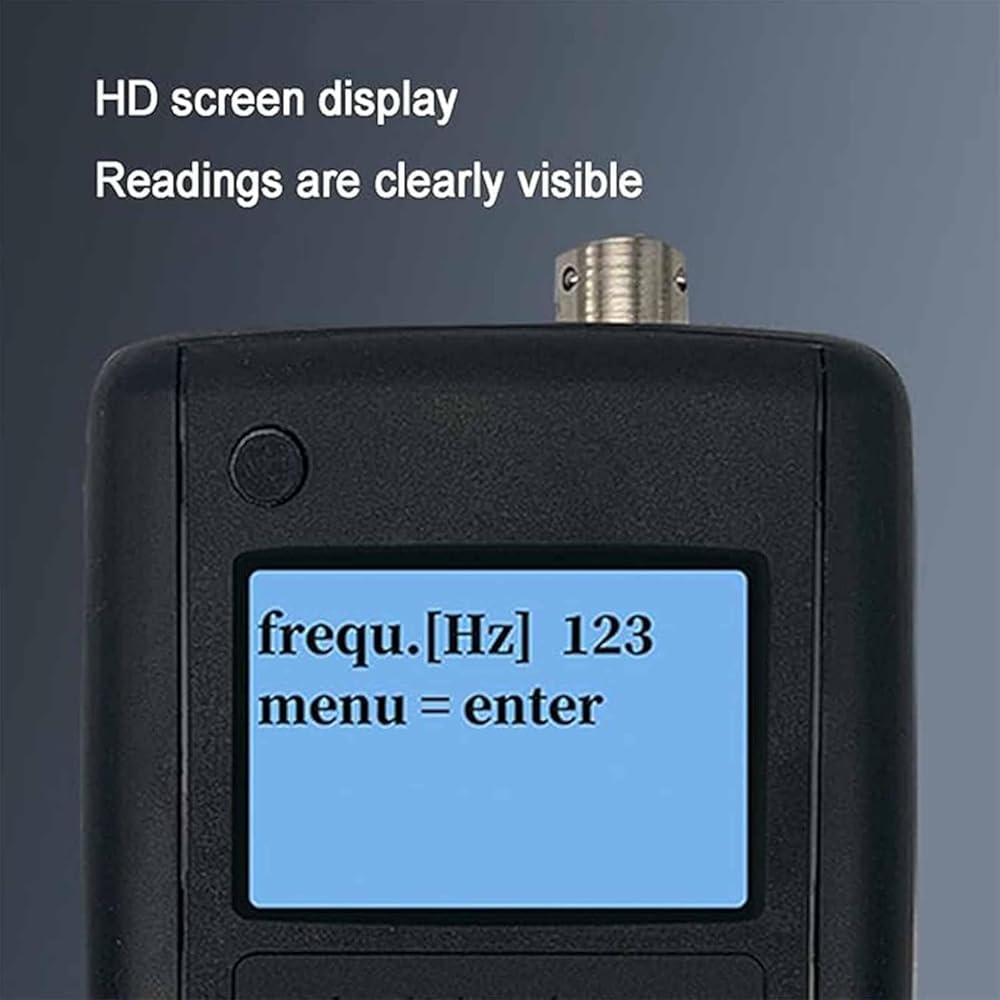

Display: LCD
Measurement physical unit: Metric: m, kg/m, N, Imperial: inch, lbs/foot, lbf
Optical path measurement distance: 3~20mm
Sensor penetration depth: about 66mm
Power Source: 4 AA batteries (not included)
Dimensions: Host: 178x72x34mm
Sensor: 124x21x12mm

Product includes:
1*Belt Tension Meter（Batteries not included）
