1PCS 4 20mA PT100 Signal Isolator Dual Channels Temperature Signal Transmitter(Two in Two Out,-50~800) in Kuwait

One in one out -50~600

KWD 30
Brand
ZREVSB
Weight
202 g
ColorOne in One Out
Size-50~600
– 1 +

Special Features

  • The signal isolator has good low temperature resistance, superior insulation, moisture, leakage, shock, corrosions, anti-aging and other properties.
  • Better stability, higher isolation voltage, faster transmission speed, faster response, high signally fidelity, high power carrying capacity and long service life.
  • Our signal conditioner is built-in multi types of security protection functions, safe to use.
  • Compact Design:Space-saving design for easy installation in various settings.
  • Reliable Performance:Guarantees stable signal transmission with a robust build.

Description

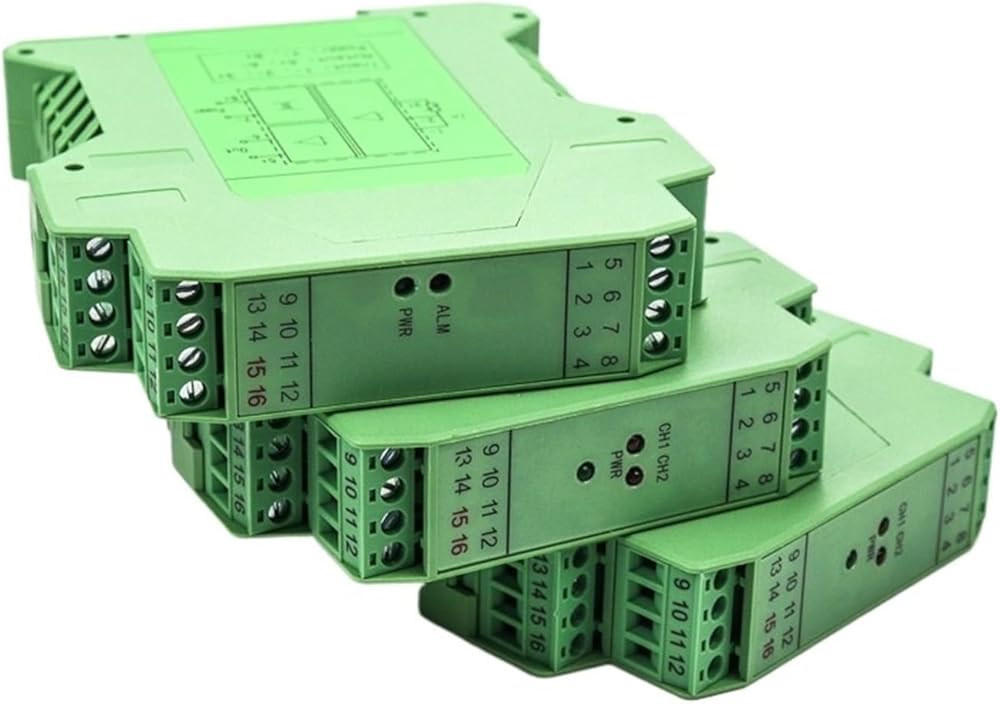

1PCS 4 20mA PT100 signal isolator Dual channels temperature signal transmitter
Battery Included : No
Hign-concerned Chemical : None
Measure Type : PT100
Screw : M12*1.5
Cable Length : 1m
Theory : Temperature Transmitter
Display Type : analog
Power Type : Charger
Certification : CE
Max Measuring Temperature : 120°C & Above
Style : Embedded
Use : Industrial
Display Size : 1.9 Inches & Under
Channels : one in one out, one in two out, two in two out
Power supply : DC24V, DC12V, 85-265VDC/AC
Installation : 35mm DIN rail
Accuracy : 0.1%
Linearity : 0.1%
Insulation Intensity : 2KV/50HZ, 1 Min
Temperature drift : 100ppm/Deg.C
Full-load Consumption : 2 W
Load capacity : 500
Response time : 200MS
Working temperature : -20-60Deg.C
Charecteristics : isolate & output two road temperature signals
