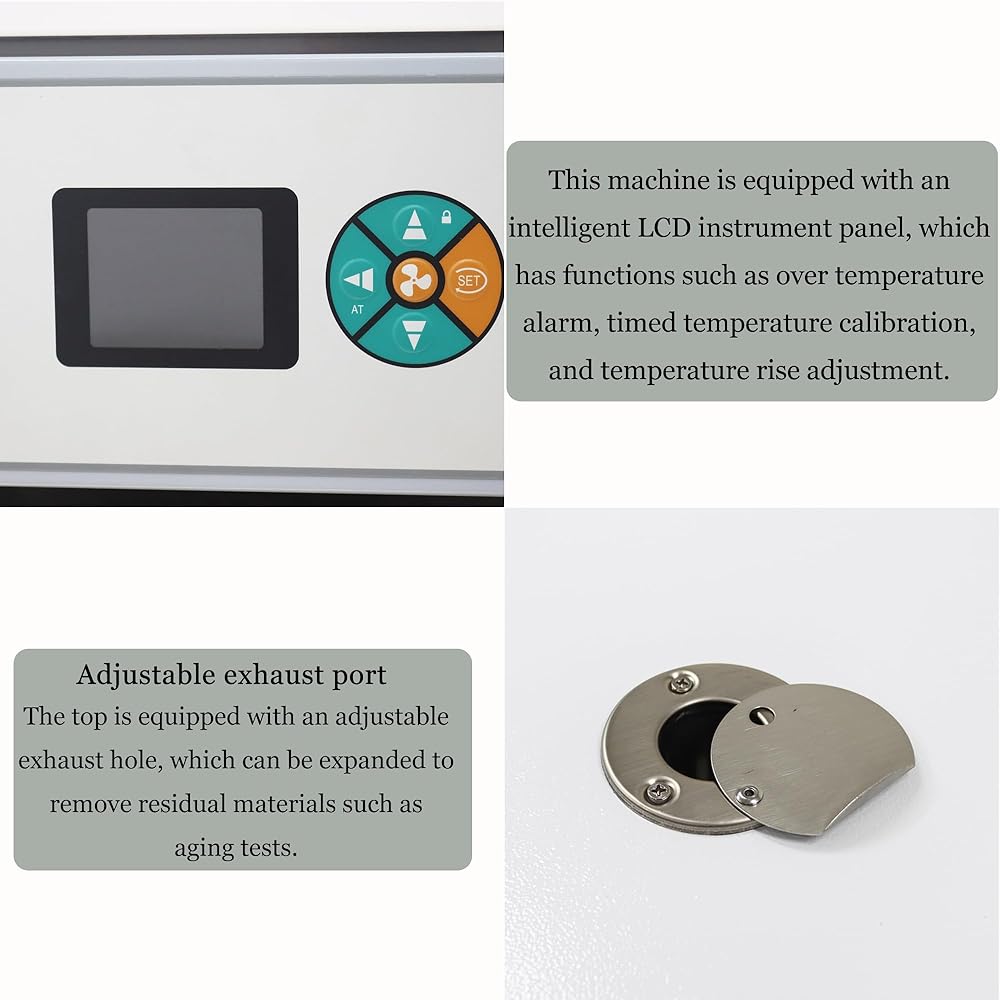

[Temp-controlling System]: The machine is equipped with an intelligent LCD instrument panel, which has functions such as over temperature alarm, timed temperature calibration, and temperature rise adjustment. The range of drying temperature control is RT+10-300℃.
[Hot Air Circulation System]: Hot air circulation system adopts the double air duct circulation of high temperature resistant and low noise fan, ensuring that the fan service life is longer and the temperature in the box is more uniform.

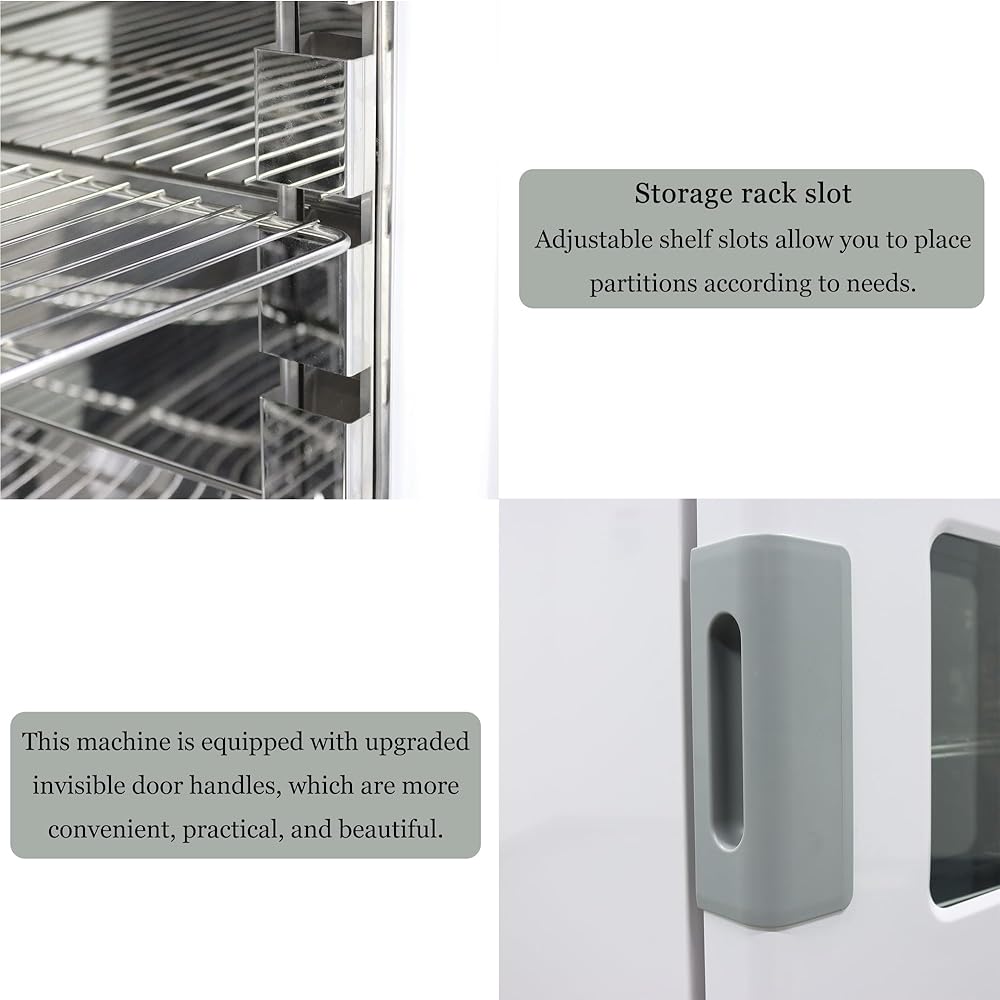

[Stainless Steel Working Chamber]: Inner chamber is made of easy-to-clean 304 stainless steel, 210L large inner chamber. Adjustable shelf slots allow you to place partitions according to needs.
[High Quality Drying Oven]: The shell is made of high quality cold-rolled steel plate, surface electrostatic spraying. Adopt new type synthetic silicone seal with good sealing effect, can run at high temperature for long period of time.
[Visible Window]: Large double layer toughened glass window is convenient to observe the changes of contents in the box.
Description
* Working environment:Temperature 5-40℃, Relative humidity <90%.
Product Parameters:
Voltage: AC220V Single-phase electricity
Drying temperature control range: RT+10-300℃
Temperature fluctuations during the operation of the drying oven:±1℃
Power: 3KW

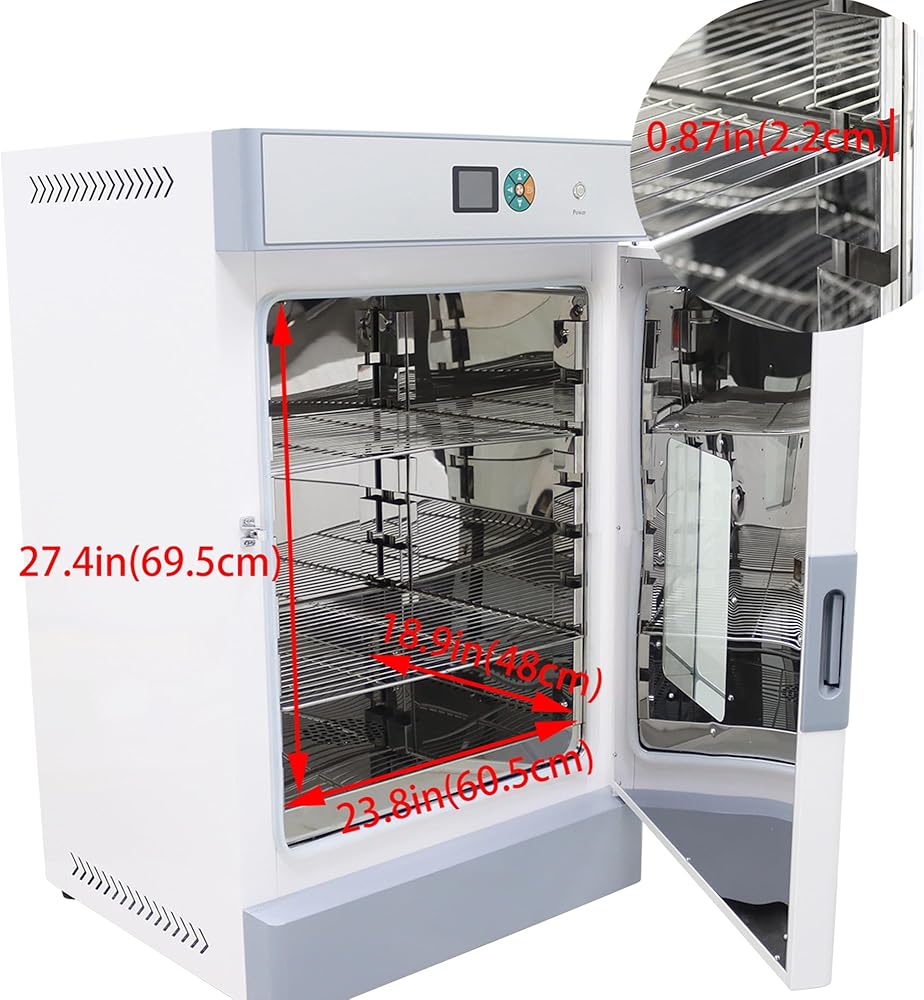

Inner chamber size (D×W×H): 48*60.5*69.5cm /18.9*23.8*27.4inch

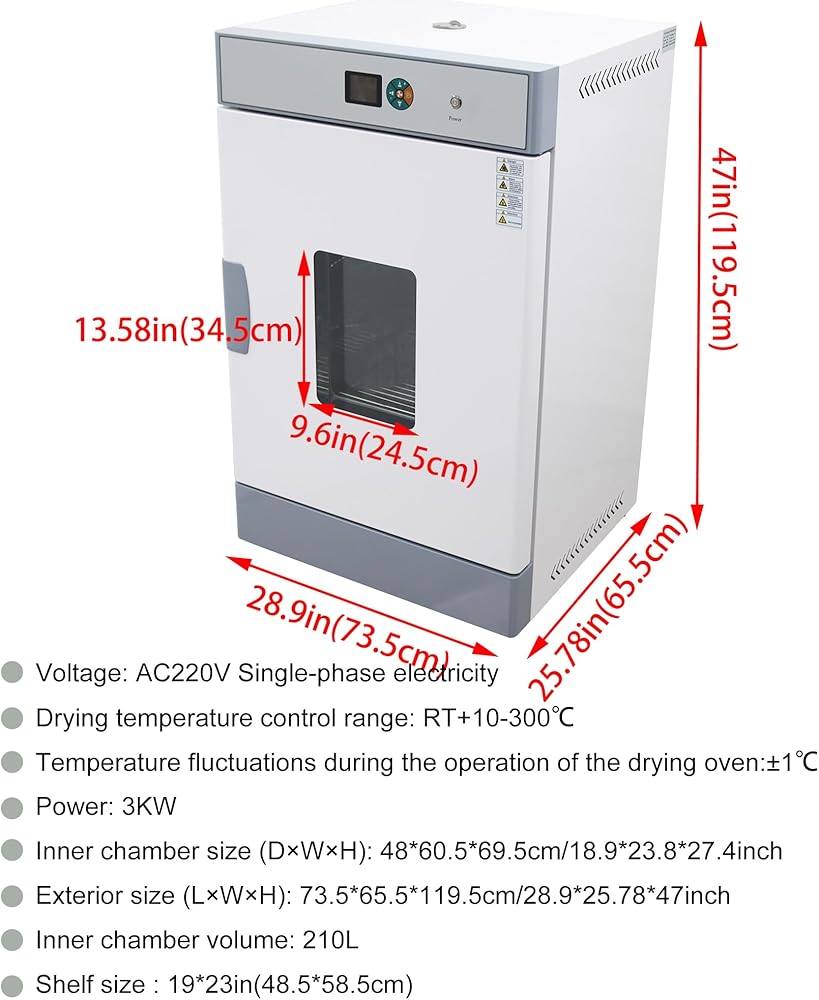

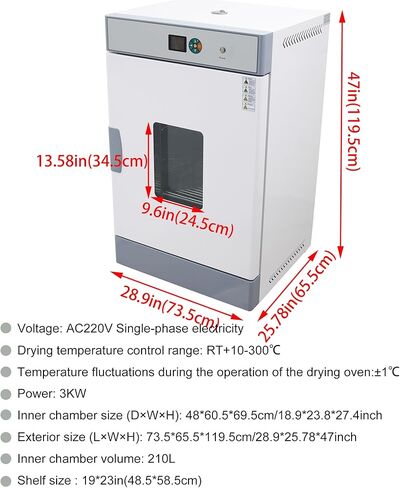

Exterior size (L×W×H): 73.5*65.5*119.5cm/28.9*25.78*47inch
Inner chamber volume: 210L

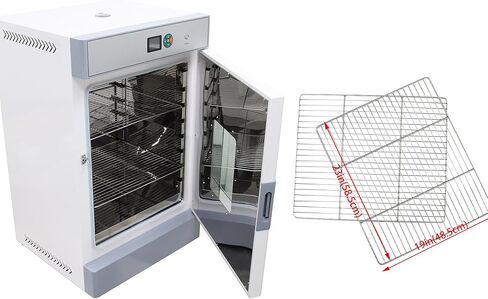

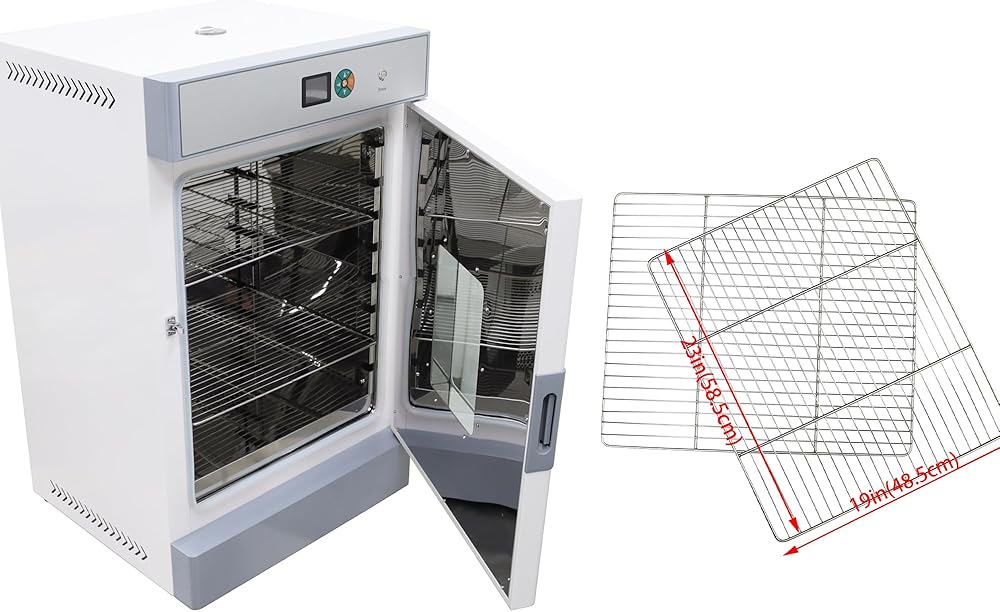

Shelf size : 19*23in(48.5*58.5cm)
Note:
1. The equipment is strictly prohibited from being used for experiments on flammable, explosive, and corrosive materials.
2. Place the equipment on a dry platform or ground, maintaining a distance of>50CM from the wall.
