Special Features

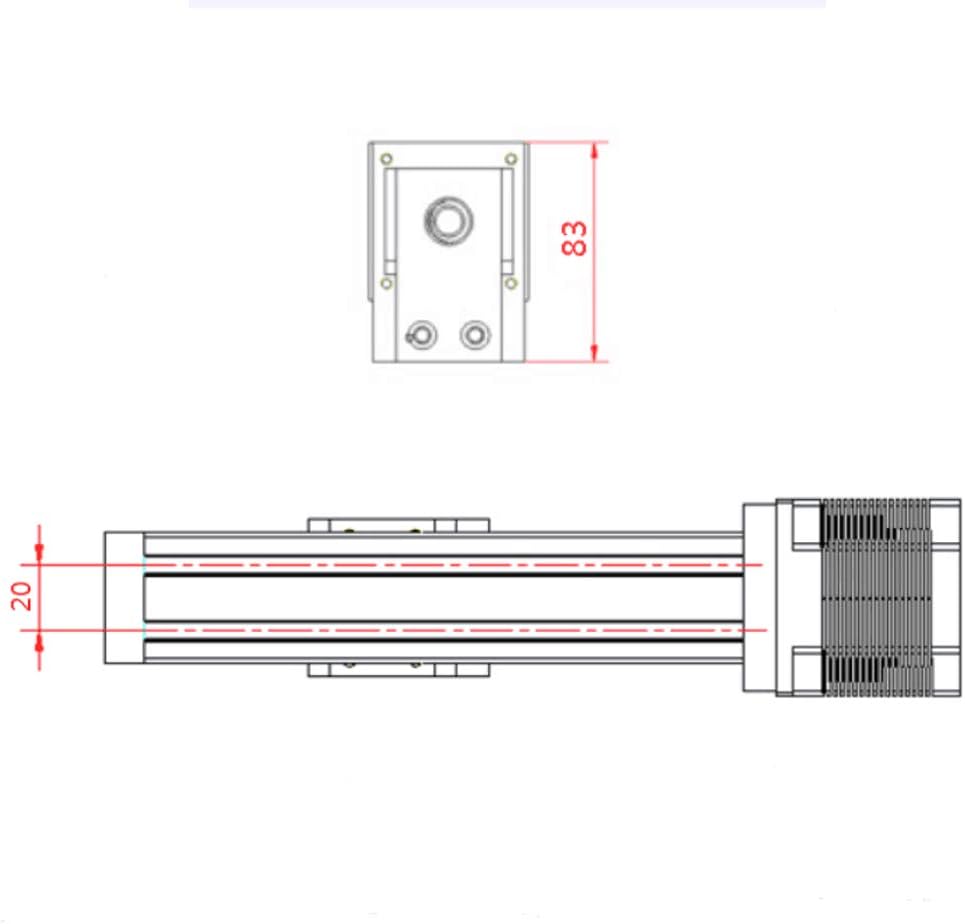

【Main Performance】Stroke: 200mm; Aluminum Profile (width * height): 40x20mm; Panel Size (width * length): 48x45mm; Front Panel Height: 83mm; Rear Panel Height: 73mm; Repeat Positioning Accuracy: ±0.02mm

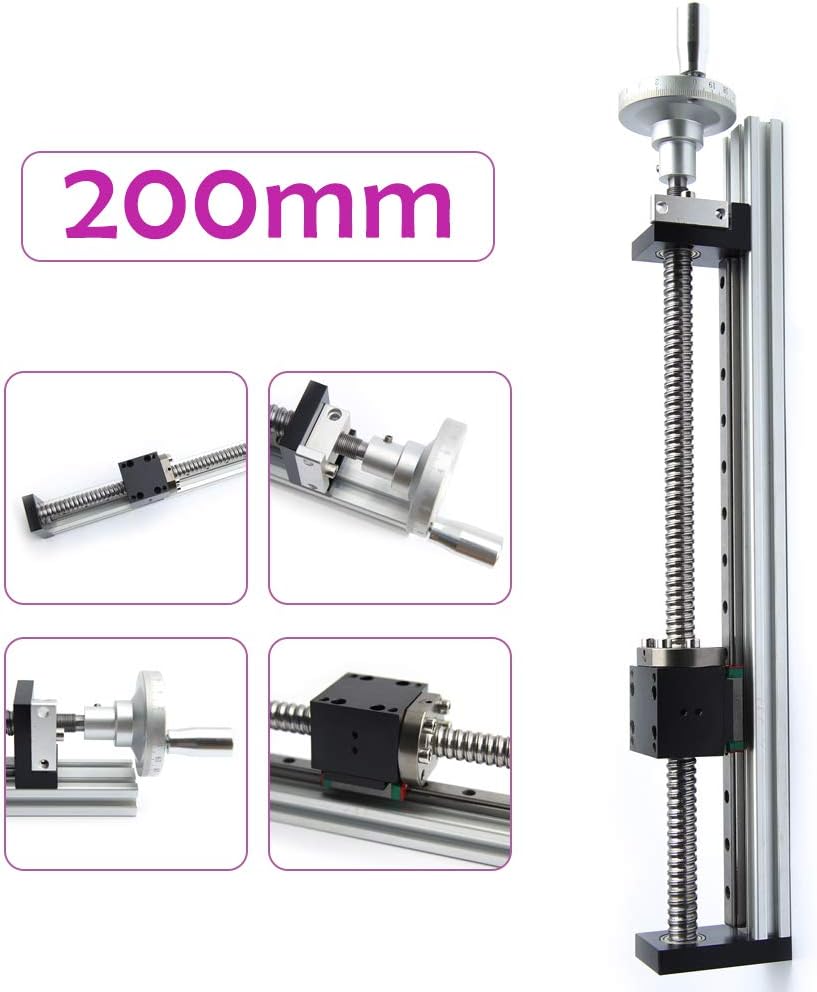

【200mm Stroke】The effective stroke of this product is 200mm, and it is used with 86 stepper motor and servo motor (not included). As much as possible to meet your needs
【Aviation Aluminum Materials】Aviation Aluminum 6061 ensures product durability, additional support unit increases stability.cnc finishing, nut can be installed on the side of the profile

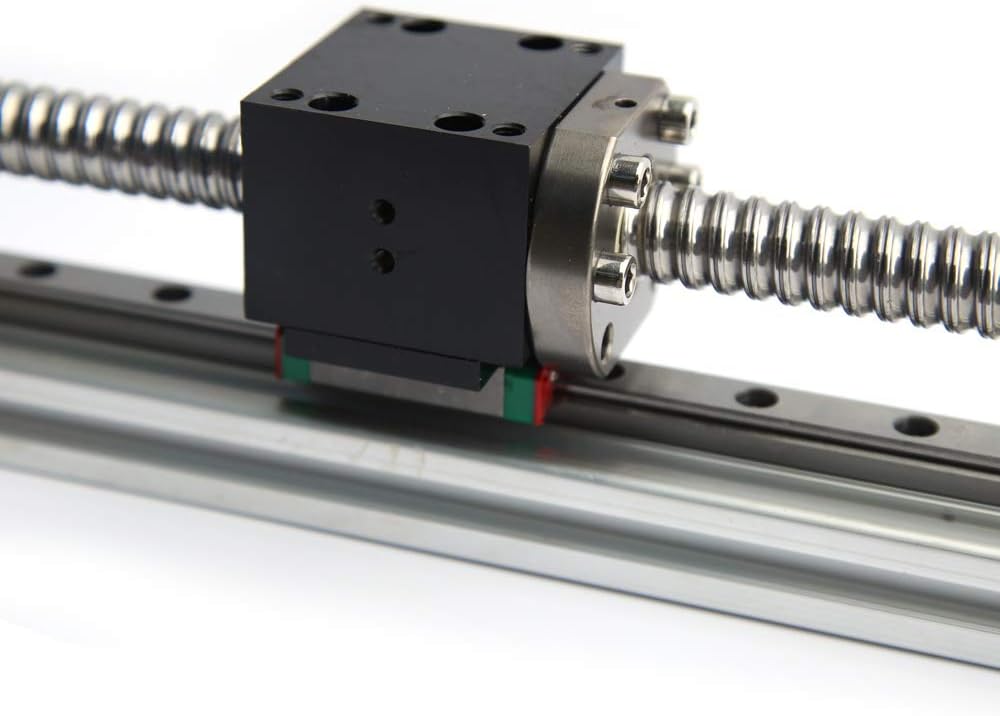

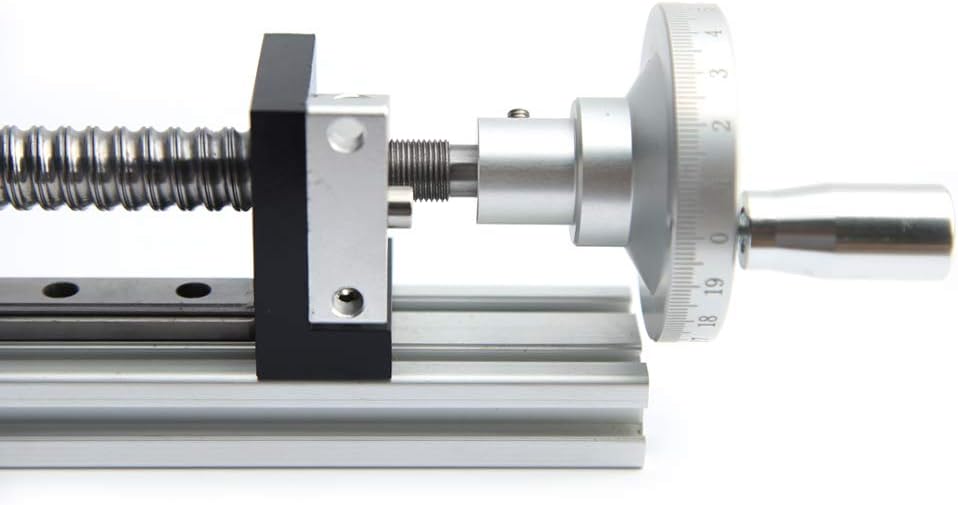

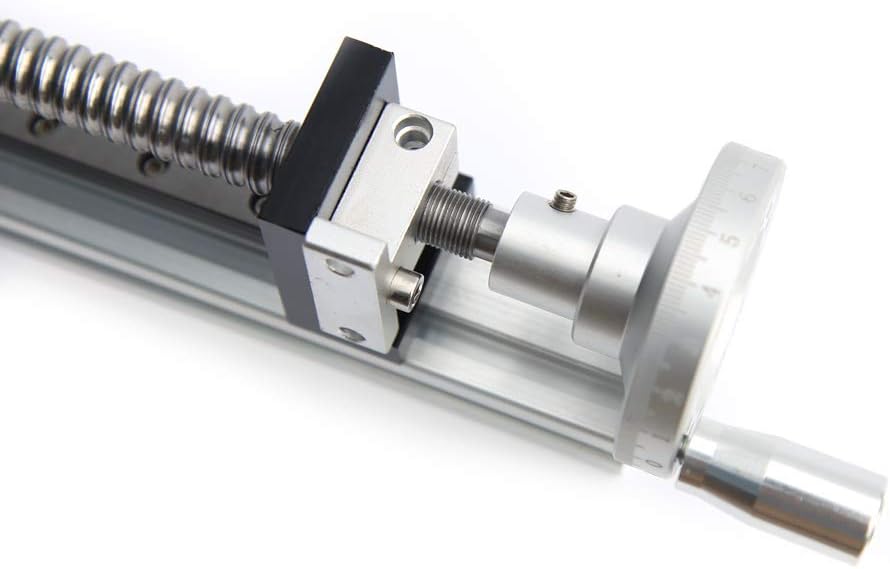

【High-Precision Sliding Table】This is a high precision ball screw with a hand wheel sliding table. The linear slide rail guide has a repeatable positioning accuracy of ±0.02mm and a ball screw accuracy of C7. It has low noise during operation and can be used to measure your daily needs
【Easy to Install】Linear slide rail guide is easy to use and durable. Nuts can be installed on the side of the product, which is very easy to install

Description

Product Description:
1. This is a excellent-quality sliding table with handwheels, which can be used to measure your daily needs.
2. The panel is cnc finishing, and the side of the profile can be installed with nuts.
3. It is easy to use and durable.

Features:

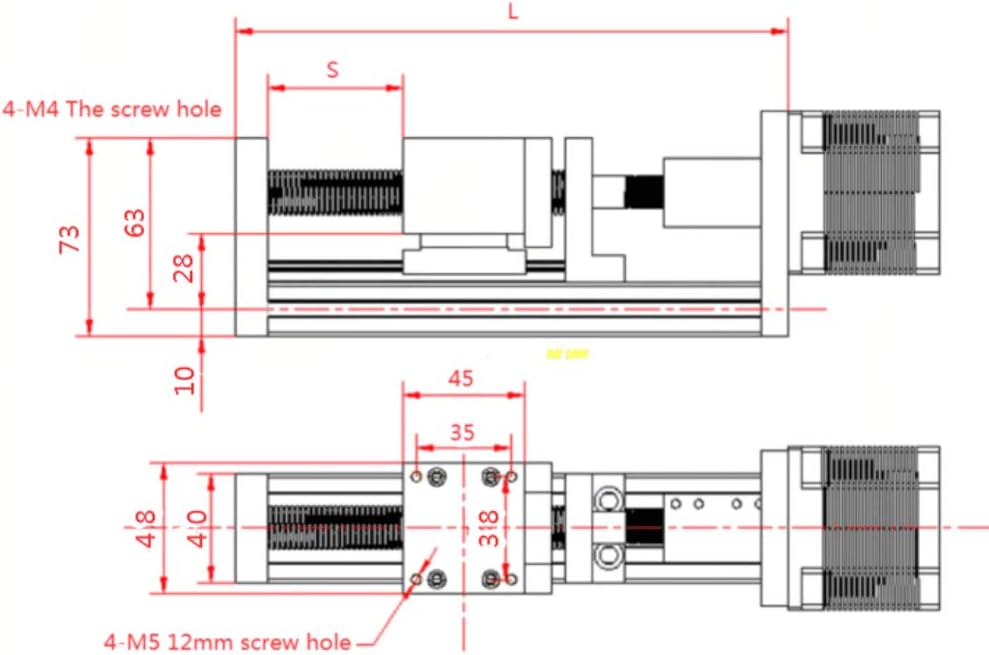

Stroke: 200mm
Aluminum Profile (width * height): 40x20mm
Panel Size (width * length): 48x45mm
Front Panel Height: 83mm
Rear Panel Height: 73mm
Ball Screw Type: 1605 (Diameter: 16mm; Lead: 5mm; 1610 Screw / 1620 Screw Can Be Replaced)
Ball Screw Accuracy: C7
Repeat Positioning Accuracy: ±0.02mm
Material: Aviation Aluminum 6061
Power Distribution: 86 Stepper Motor, Servo Motor (Flexible Configuration According to Different Needs. Not Included)

Package Includes:

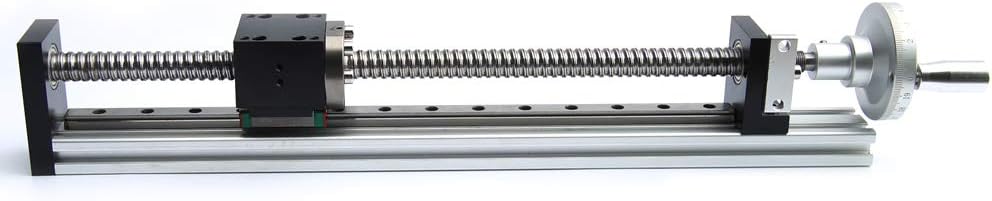

1 x Sliding Table with Handwheel
