Filter Valves

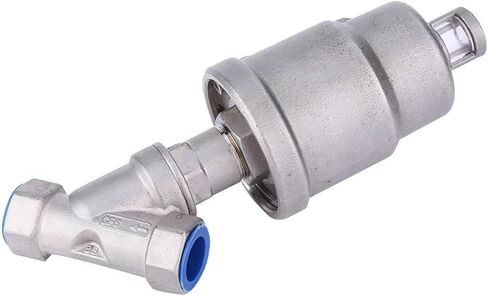

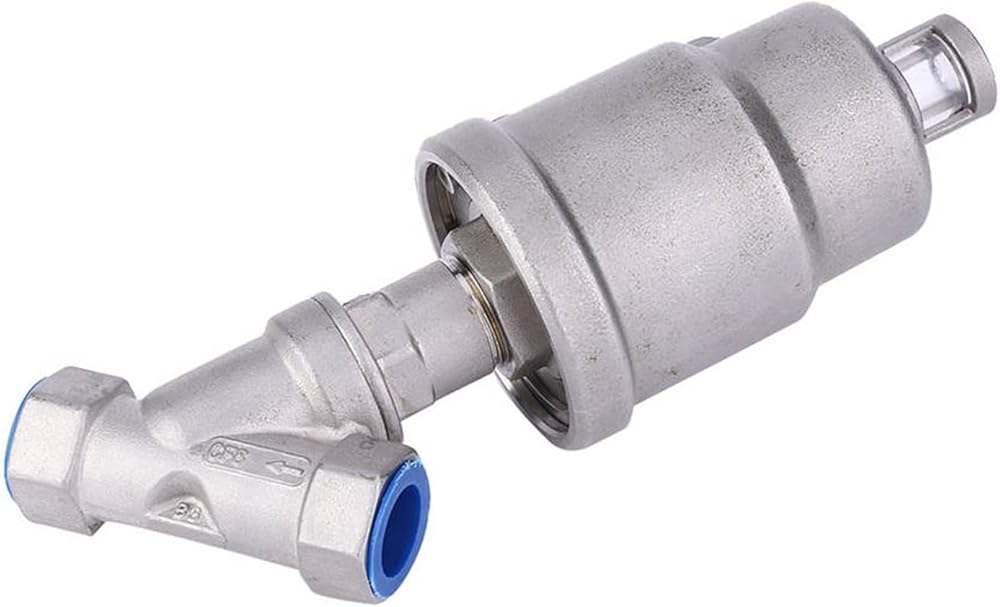

Actuator Ball Valve Stainless Steel Actuated Angle Seat Valve Female Thread Pneumatic Steam Valve Solenoid Valve Manifolds
Feature:
1. Visual position indication, can connect limit switch or emergency manual devices
2. The gas head can be rotated 360 degrees, and even the limit switch can be rotated 360 degrees. Easy to install one to two limit switches
3. Low-wear piston construction for easy operation and low consumption
4. No internal self-lubricating, maintenance-free
5. Optional smaller control head when fluid flows in from above the valve stem
6. Built-in metal connector for easy connection
7. Stem PTEE sealing to prevent dirt from being introduced
8. No water hammer, water hammer (water impact) is absorbed when fluid flows from under the valve stem
9. The flowing rate is 30% larger than the ordinary angle valve, the volume is smaller, and the fluid flowing is excellent.
Specification:
IteItem Type: Angle Valve
Material: Stainless steel
Standard(optional): DN15 (1/2in), DN20 (3/4in)
Connection Form: Thread
Pressure Environment: Atmospheric Pressure
Use: Inverting
Bore Diameter: 50mm
Spool Sealing: PTFE
Stem Sealing: PTFE/FKM
Piston Sealing: FKM/NBR
Applicable Medium: Water, Neutral Gas or Liquid, , Oil, Organic Solvent, Weak Acid or Weak Alkaline Solution Medium Temperature: PTFE: -10 ~ +180
Ambient Temperature: -10~ +60
Viscosity: Up to 600mm2;/S
Control Medium: /Neutral Gas
Control Pressure Range: 0.3-1MPa
Widely Used: Beer and beverage, textile printing and dyeing, pharmaceutical, food processing, rubber machinery, organic or inorganic chemicals, high temperature sterilization, water/sewage treatment
Package List:
1 x Angle Valve
