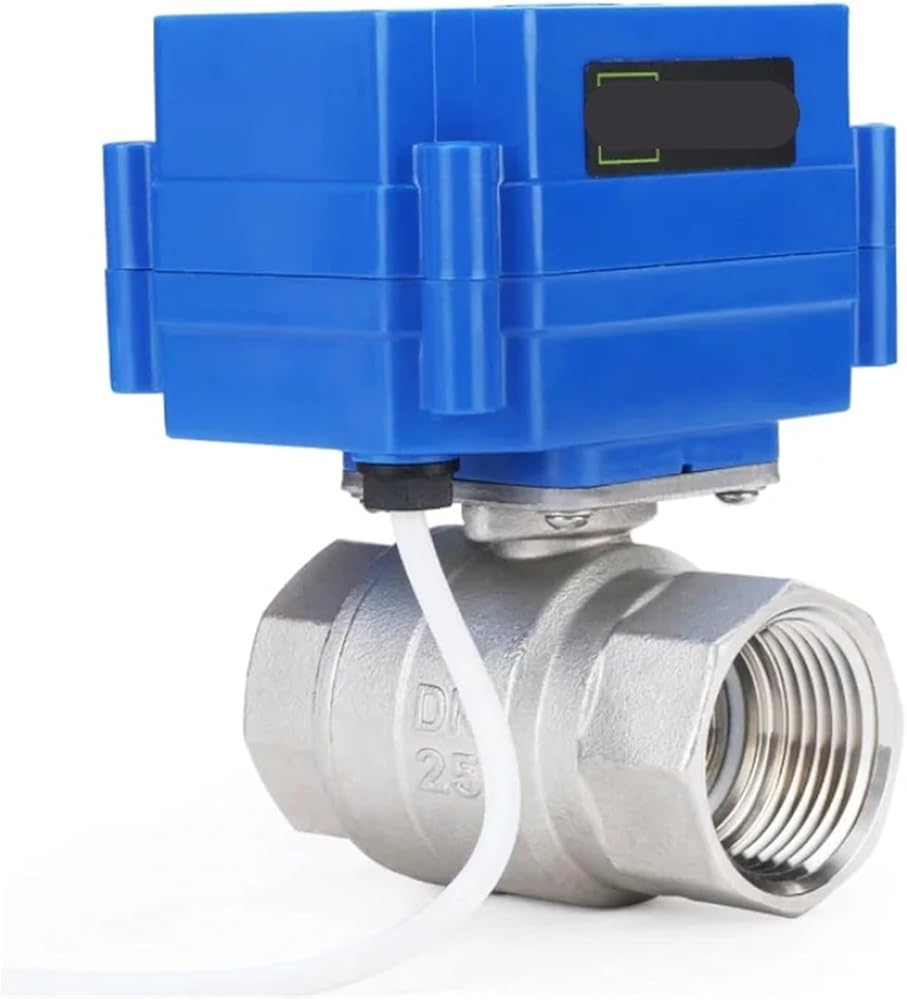

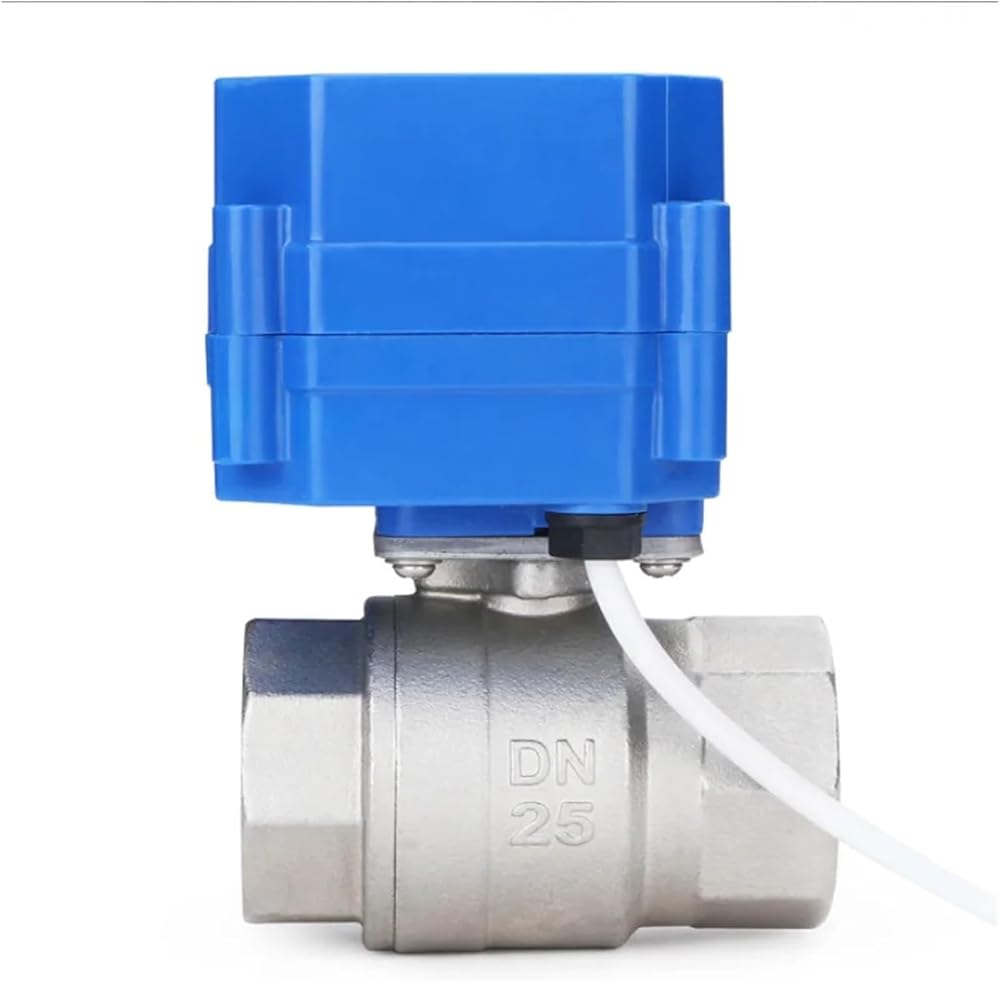

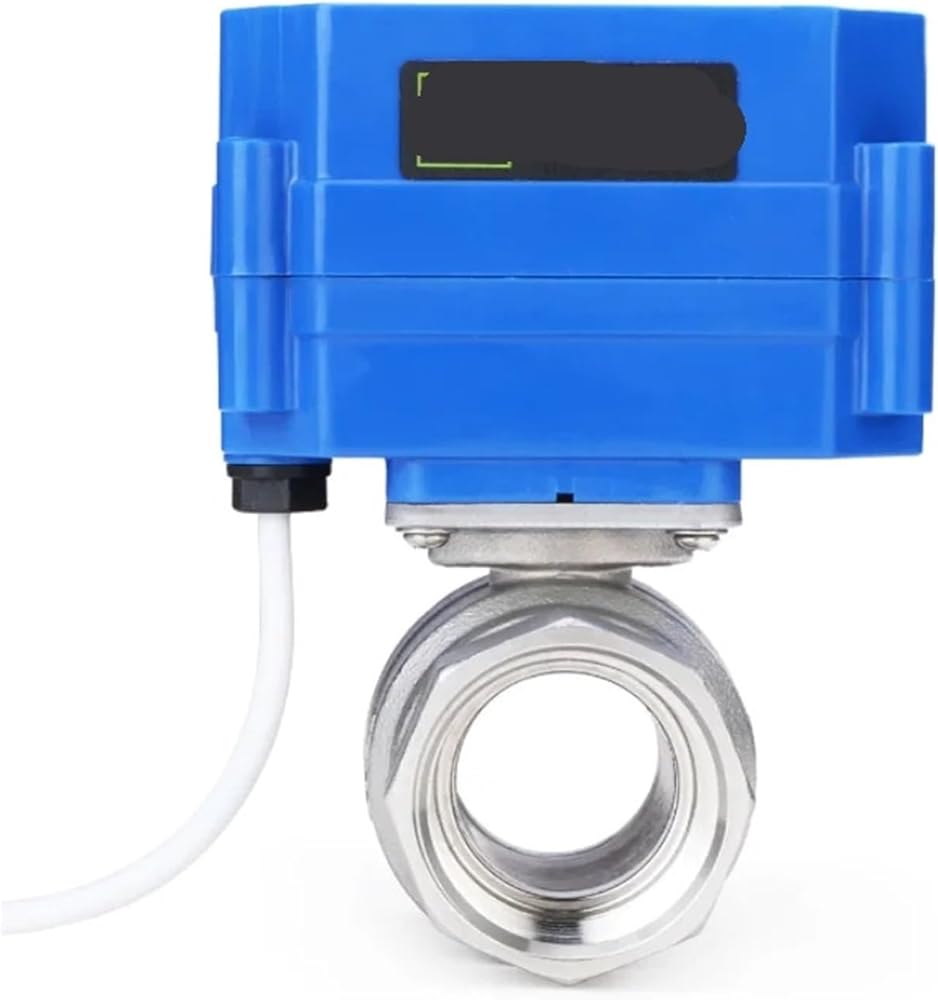

Filter Valves
Physical model: USS-MSV00052-55
Valve material: SS304
Ball seal: PTFE
Operation time: 3-5 seconds
Working voltage: 85-265V
Maximum power: 5W
Maximum torque: 6 N·m
Maximum medium pressure: 1.0 Mpa
Flow medium temperature range: 0°C to 90°C
Ambient temperature range: -5°C to 40°C
Shell protection grade: IP65
Life expectancy: 80,000 to 100,000 cycles
Bore type: full bore
(G thread is the standard interface)
Thread type: NPT or G (G thread is the standard port)
Wiring type: 2-wire automatic return
