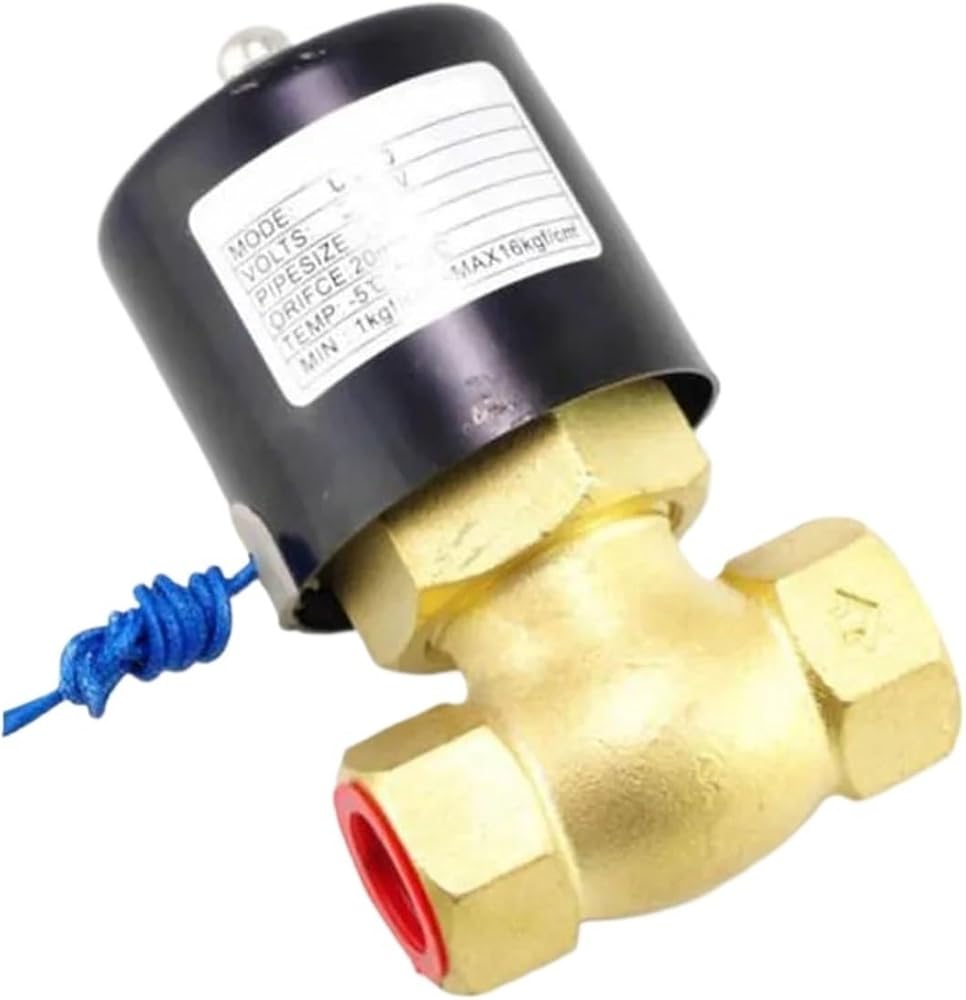

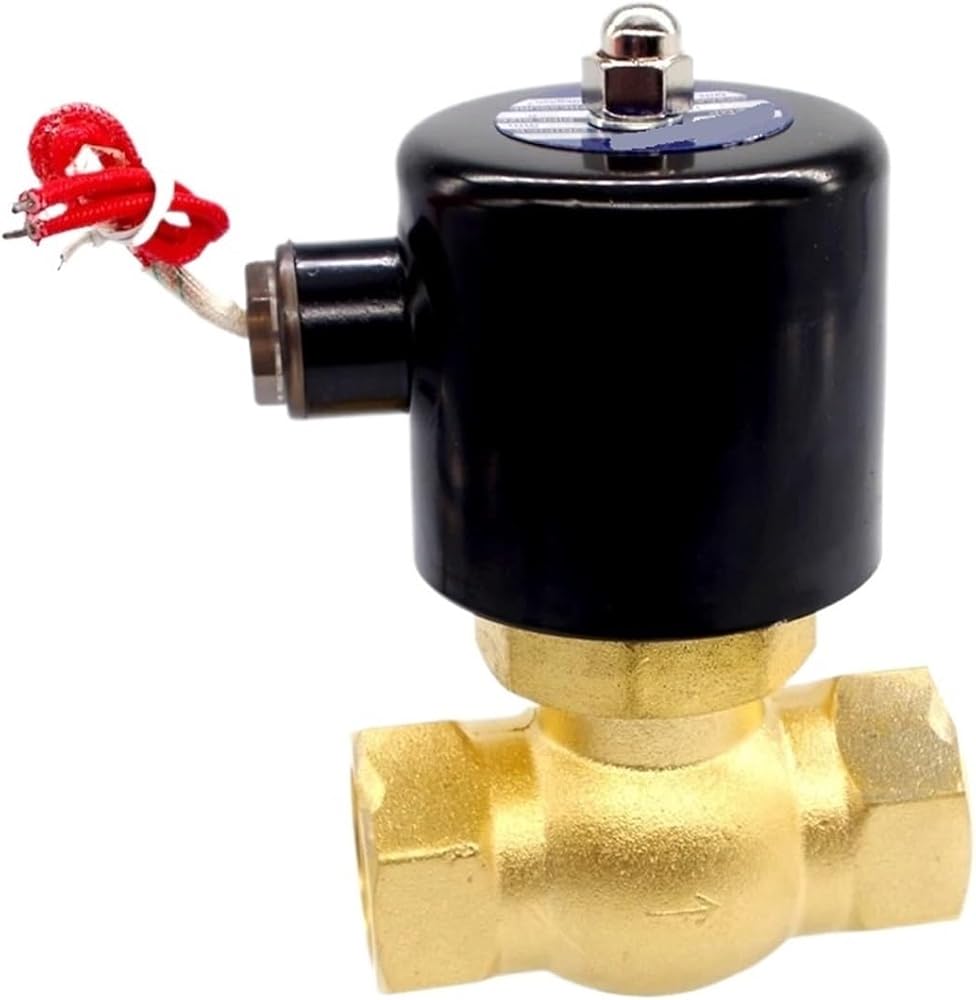

Technical parameters----Steam solenoid valve

Dimensions: 1 inch (DN25)

End connection: G thread ( thread)

maximum. Working pressure: 1.6Mpa

Working pressure range: 0.2-1.6Mpa

Medium temperature: 180

Operation mode: type

Voltage: AC380V 220V 36V/50Hz DC: 24V

Insulation level: Class B

Power supply range: -15%~+10%

Power: 36W

Response time: 2 seconds to turn on, 3 seconds to turn off

Installation method: The direction of media flow is consistent with the direction of the upward arrow. The coil is vertically upward, and the working medium is clean and of particle impurities.
