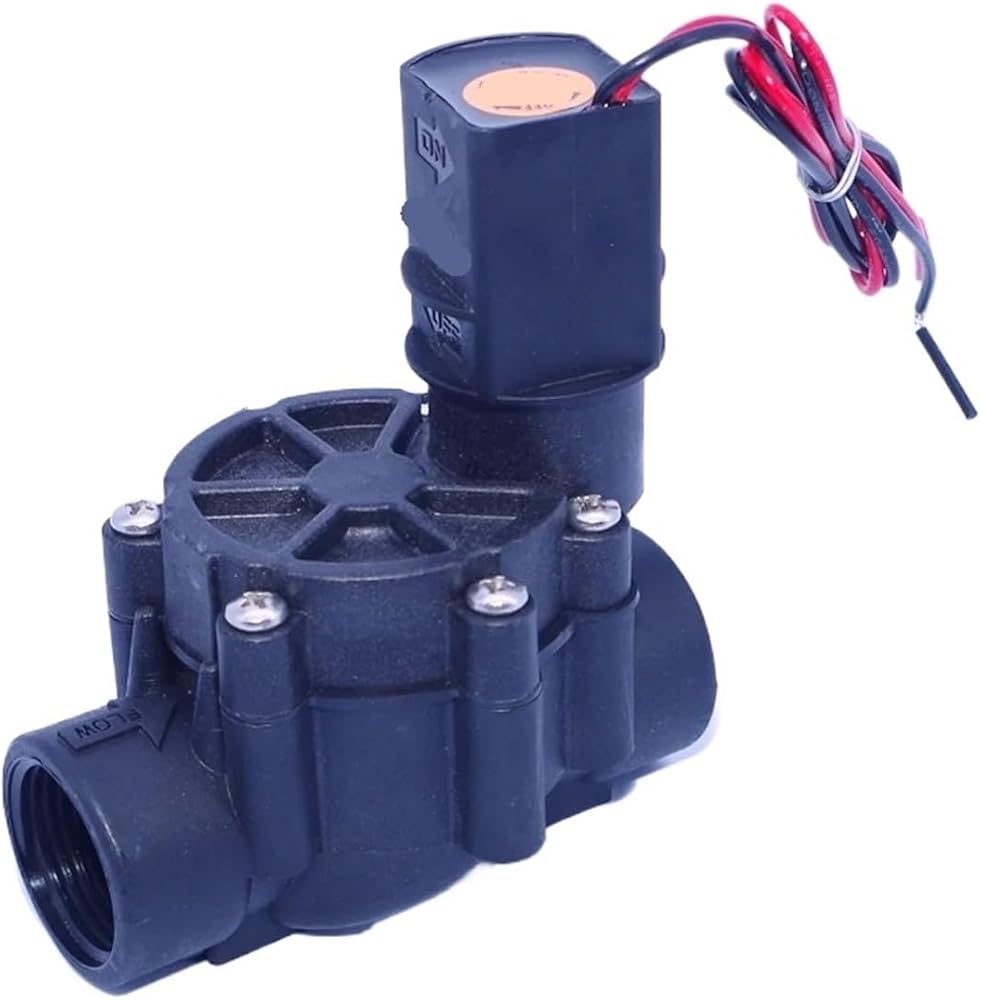

Filter Valves
parameter
Technical Parameters
Material Nylon plastic body, NBR seal
liquid
Fluid temperature 43°C
Ambient temperature 52℃
Use voltage 6-20VDC (self-locking coil can be customized), 24VAC, 24VDC, 110VAC, 220VAC
Pulse width 20-500mSec (only applicable to latch type)
Coil resistance 6
Capacitor 4700uF
Coil inductance 12mH
Connection thread
Size 075D: 3/4", 20mm ( thread)
100D: 1",25mm ( thread)
Working pressure 1", 3/4": 1-10bar
Flow rate 1", 3/4": 5 cubic meters/hour
Operation mode: spool lock position, valve open, release position, valve closed.
