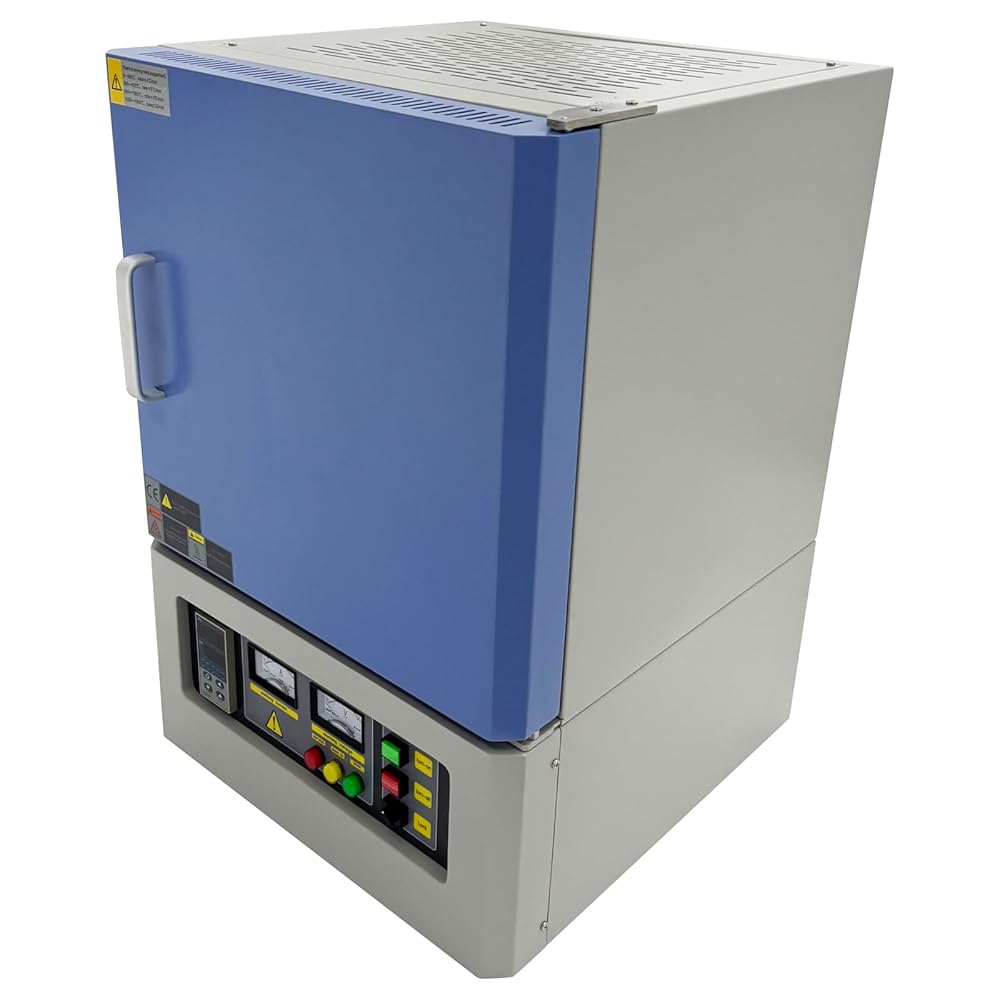

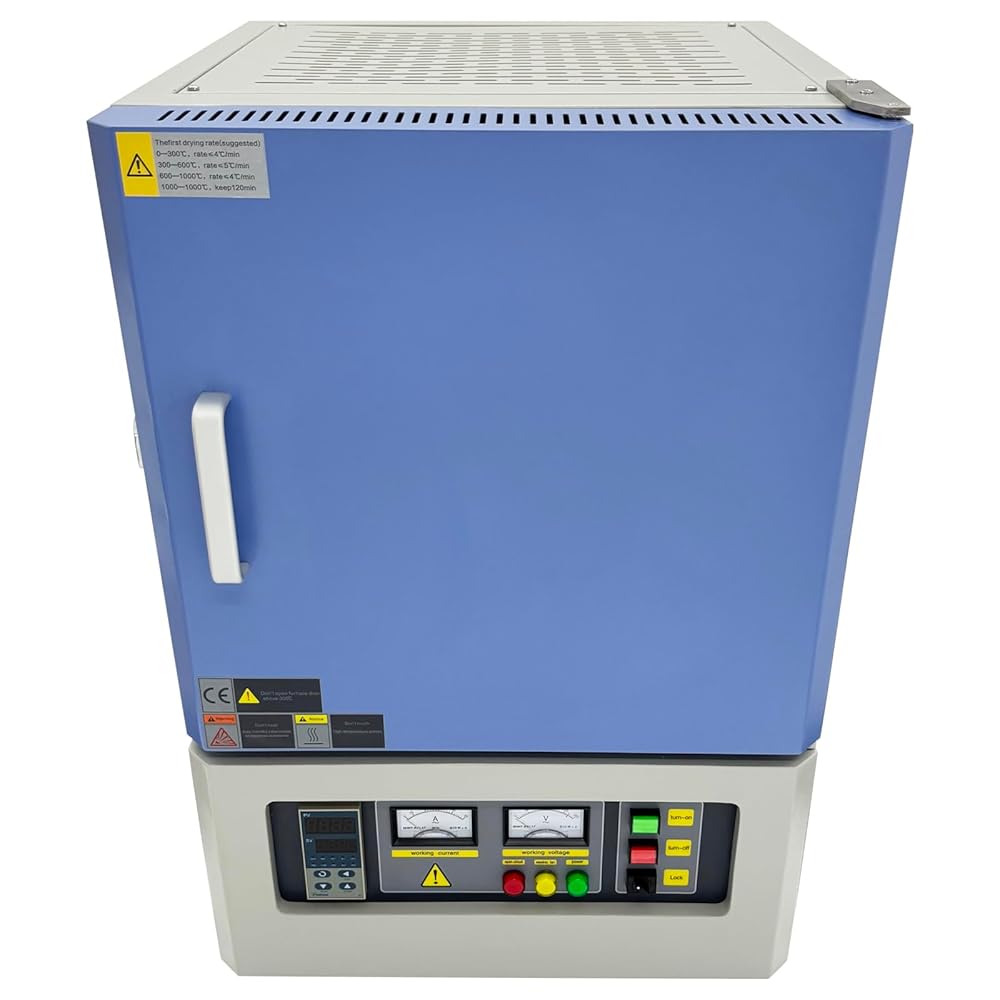

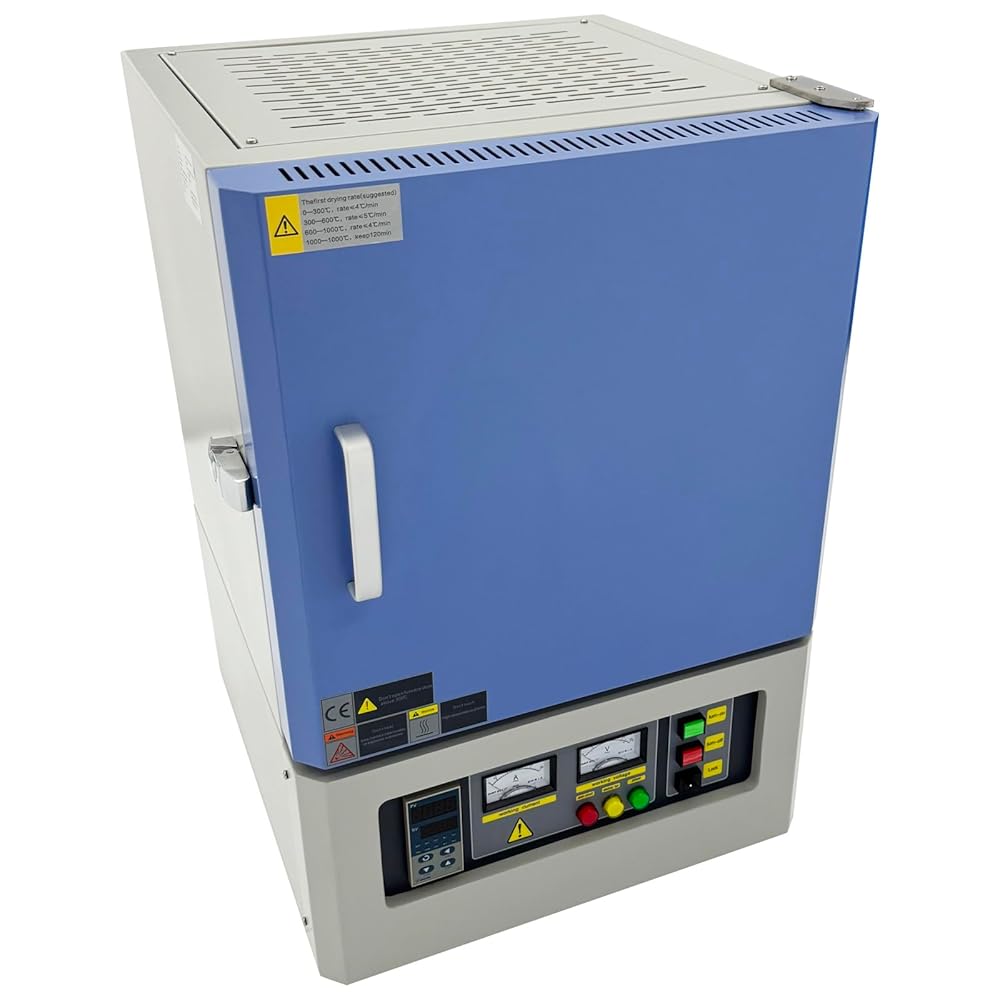

Programmable Muffle Furnace for Laboratory Sintering & Heat Treatment/MoSi2 Heater 110V 2.5KW

KWD 791
Brand
HQHAOTWU
Weight
97.1 kg
– 1 +

Special Features

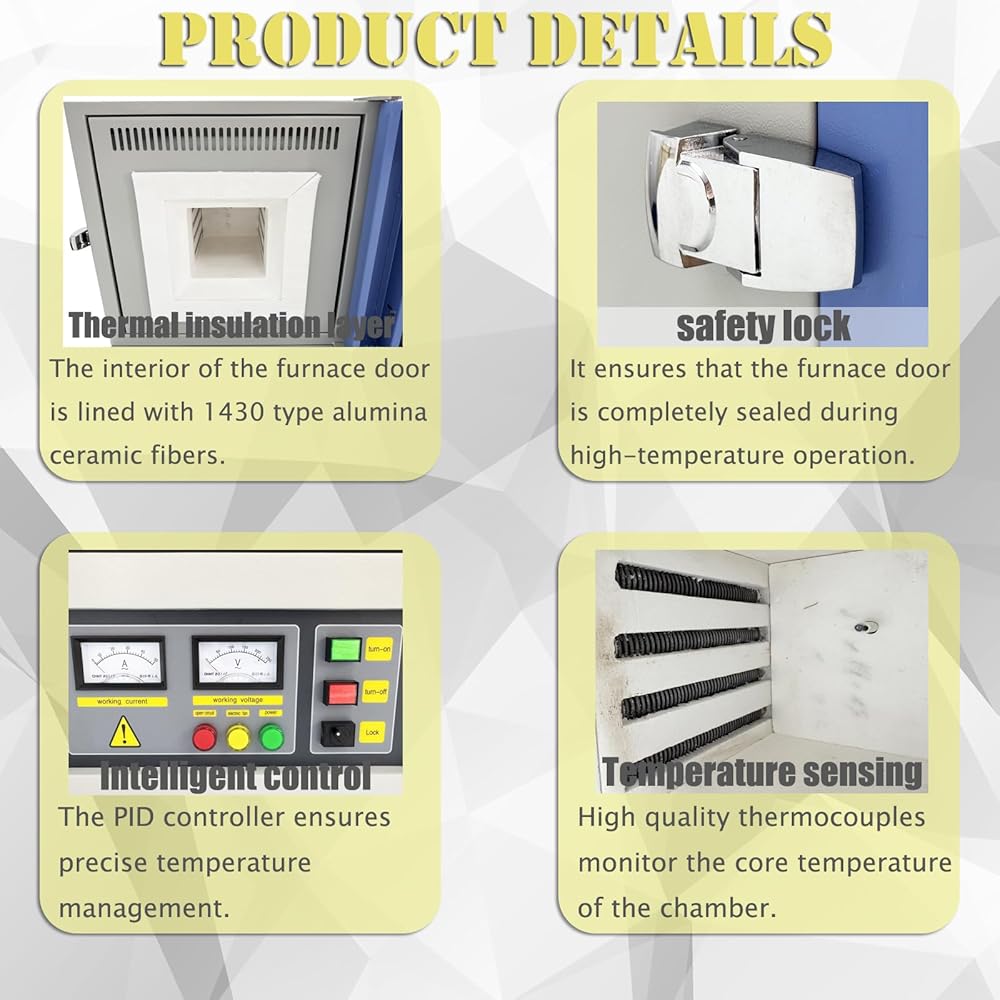

  • Excellent Performance: The furnace door lining is made of 1430 type alumina ceramic fiber, which can better resist extreme heat. Its rated continuous operating temperature is as high as 1430 ° C. The maximum temperature of this electric furnace is 1200 ° C, and it can operate stably for a long time at 1100 ° C.
  • Intelligent Programmable Control: The digital controller supports 51 program settings and can create complex temperature curves (heating, holding, and cycling) for complex sintering, heat treatment, annealing, and ashing experiments. The built-in timing function enables automated operations.
  • Precise PID Temperature Control: The machine adopts advanced PID control algorithm and is equipped with over temperature protection function to ensure excellent temperature stability and uniformity in the furnace.

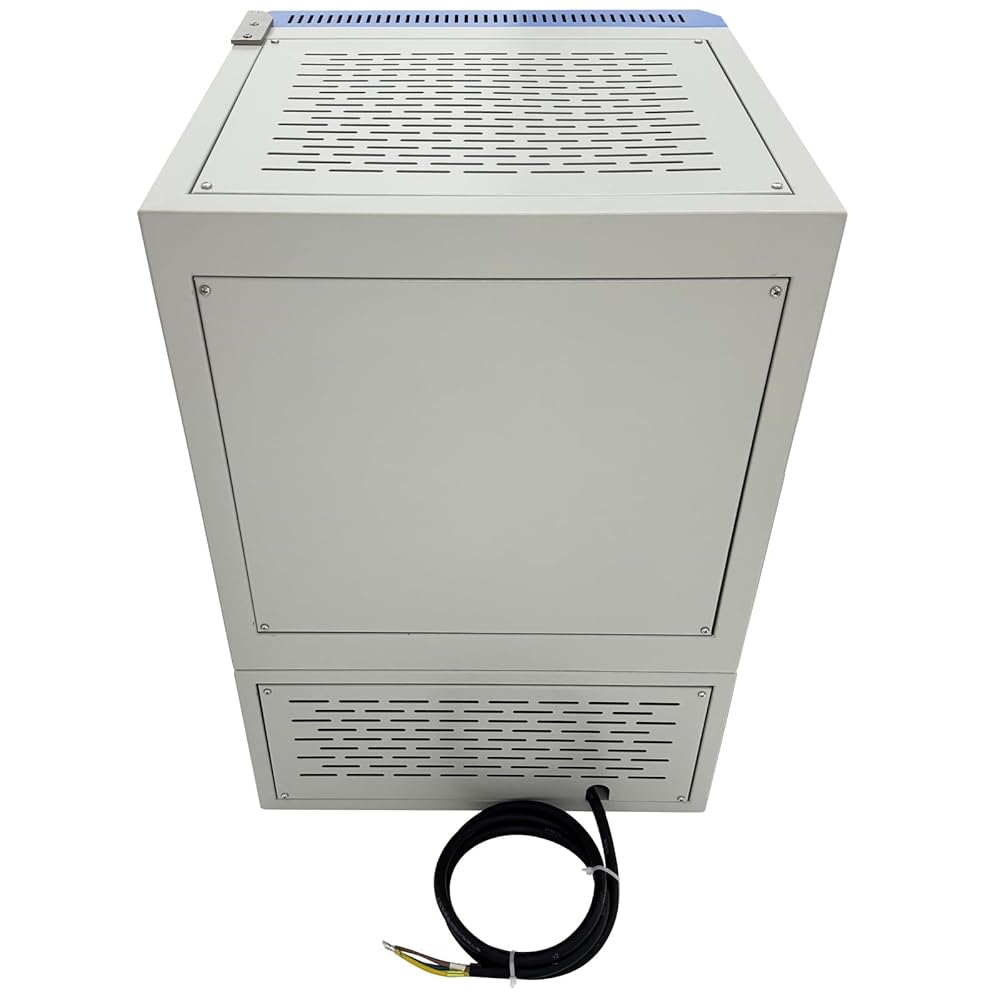

  • Scientific Structural Design: Muffle Furnace uses high-quality alumina fiber insulation material, which has excellent thermal efficiency and energy-saving effect. Multi directional ventilation design ensures stable operation even under prolonged high temperatures.
  • Wide Application: Programmable Muffle Furnace is suitable for various high-temperature processes, including sintering of ceramics and metals, heat treatment, thermocouple calibration, quantitative analysis, material research, etc.

Description

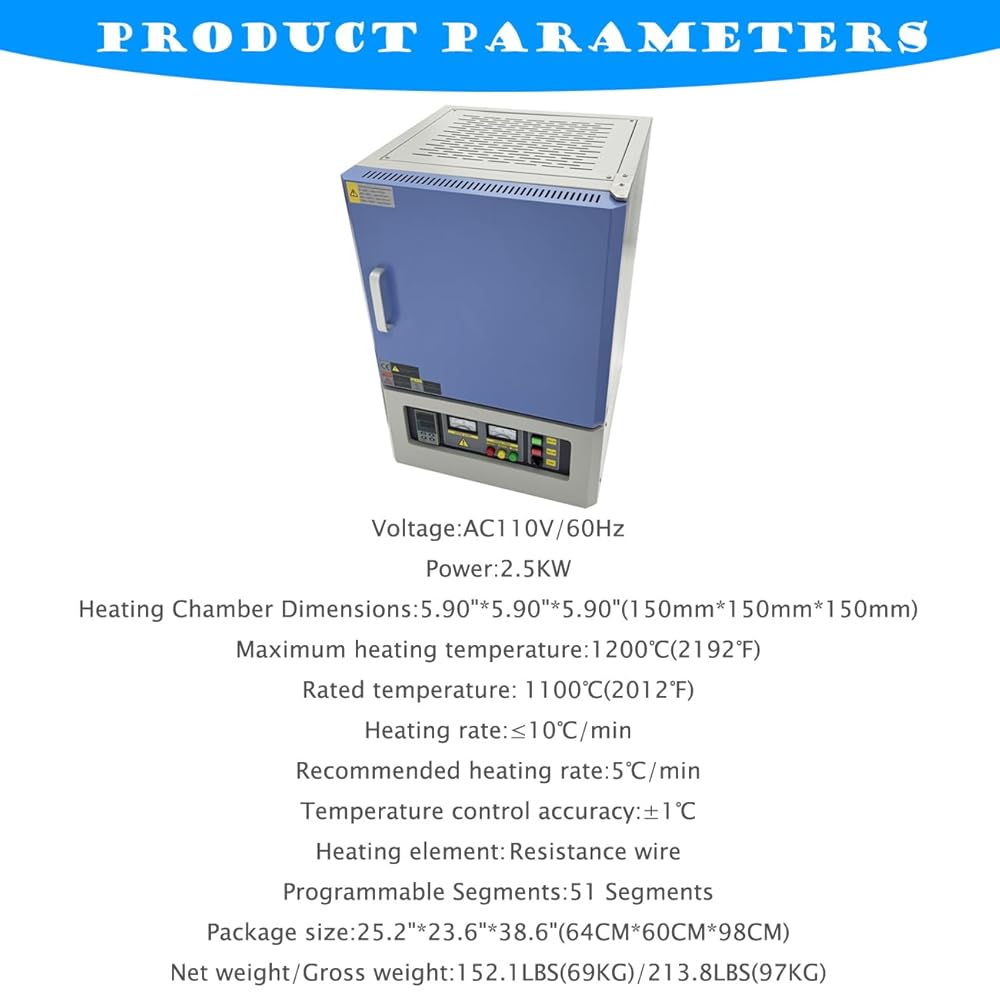

Product Parameters
Voltage: AC110V/60Hz
Power: 2.5KW
Heating Chamber Dimensions: 5.90"*5.90"*5.90"(150mm*150mm*150mm)
Maximum heating temperature: 1200℃ (2192℉)
Rated temperature: 1100℃ (2012℉)
Heating rate: ≤10℃/min
Recommended heating rate: 5℃/min
Temperature control accuracy: ±1℃
Heating element:Resistance wire
Programmable Segments: 51 Segments
Time setting: 0-9999min
Package size: 25.2"*23.6"*38.6"(64CM*60CM*98CM)
Net weight/Gross weight: 152.1LBS (69KG)/213.8LBS (97KG)
