Filter Valves

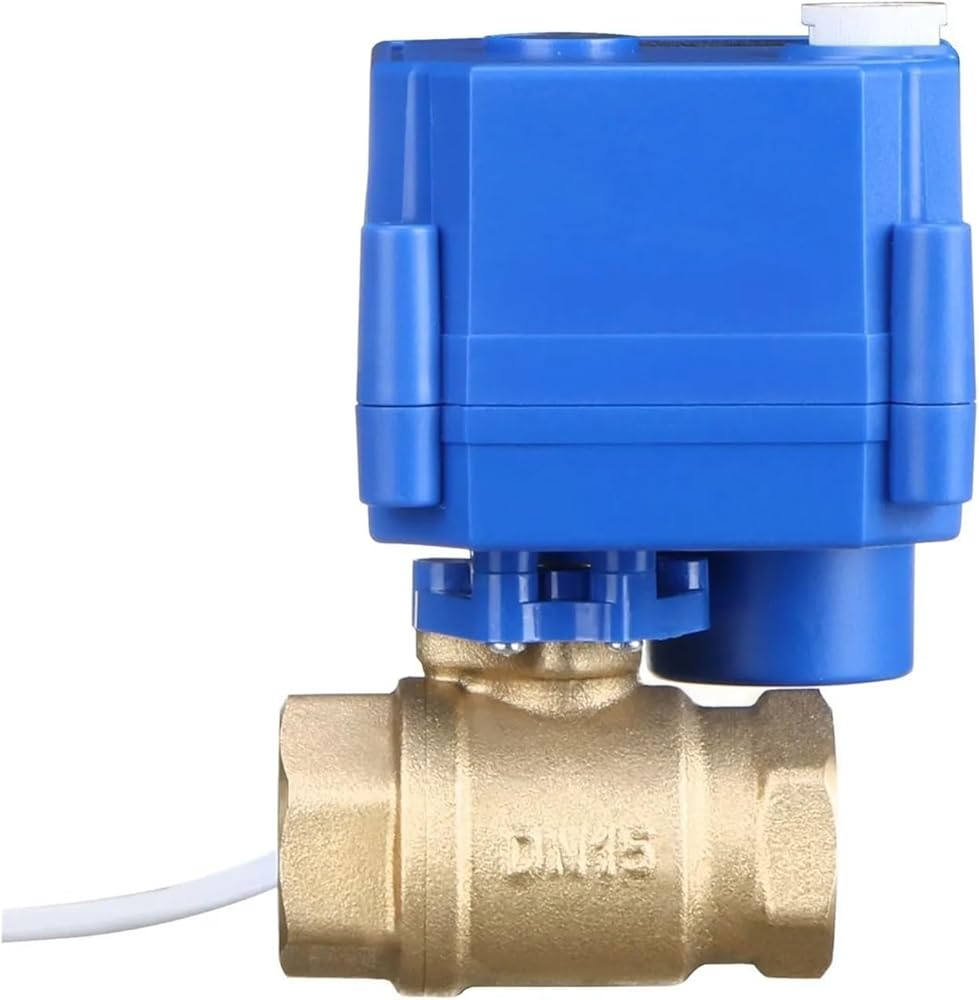

The position indicator on the top of the actuator helps you see the valve's open/closed status. In addition, the valve has a manual function and can be manually adjusted when the valve is locked. Or during a power outage, the valve can be opened manually if necessary.
Valve material: brass
Model #MSV00035
Ball seal: PTFE
Close/open time: 6~8 seconds
Working voltage: 9-24V AC/DC
Maximum power: 5W
Maximum torque: 2.5 N·m
Maximum pressure: 1.0 MPa
Flow medium temperature range: 0°C to 100°C
Ambient temperature range: -5°C to 40°C
Shell protection grade: IP65
Life expectancy: 80,000-100,000 cycles
Bore type: full bore
Thread type: NPT or G thread
