Potentiometer Assortment pre-Wired B1K B5K B10K B20K B50K B100K B250K B500K B1M (Linear) A10K A100K (Audio Log) prefabed, pre-soldered incl. Knobs, Dust Seals, 3-pin 0.1 inch Connectors, 48 pcs in Kuwait Potentiometer Assortment pre-Wired B1K B5K B10K B20K B50K B100K B250K B500K B1M (Linear) A10K A100K (Audio Log) prefabed, pre-soldered incl. Knobs, Dust Seals, 3-pin 0.1 inch Connectors, 48 pcs in Kuwait Potentiometer Assortment pre-Wired B1K B5K B10K B20K B50K B100K B250K B500K B1M (Linear) A10K A100K (Audio Log) prefabed, pre-soldered incl. Knobs, Dust Seals, 3-pin 0.1 inch Connectors, 48 pcs in Kuwait Potentiometer Assortment pre-Wired B1K B5K B10K B20K B50K B100K B250K B500K B1M (Linear) A10K A100K (Audio Log) prefabed, pre-soldered incl. Knobs, Dust Seals, 3-pin 0.1 inch Connectors, 48 pcs in Kuwait Potentiometer Assortment pre-Wired B1K B5K B10K B20K B50K B100K B250K B500K B1M (Linear) A10K A100K (Audio Log) prefabed, pre-soldered incl. Knobs, Dust Seals, 3-pin 0.1 inch Connectors, 48 pcs in Kuwait

Potentiometer Assortment pre-Wired B1K B5K B10K B20K B50K B100K B250K B500K B1M (Linear) A10K A100K (Audio Log) prefabed, pre-soldered incl. Knobs, Dust Seals, 3-pin 0.1 inch Connectors, 48 pcs

KWD 7
Weight
0.8 kg
– 1 +

Special Features

  • Contains 48 pcs and 11 different values, 9 type 'B' linear taper and 2 type 'A' logarithmic audio taper Potentiometers
  • ncluded values are: B1k (4pcs), B5k (4pcs), B10k (5cps), B20k (4pcs), B50k (4pcs), B100k (5pcs), B250k (4pcs), B500k (4pcs), B1M (4pcs), A10k (5pcs), A100k (5 pcs)
  • The Potentiometers are soldered to black AWG-22 wires with heatshrink on the solder joints. The wires have a length of 20cm (7.9 inch). On the end of the wire is a 3-pin XN-2.54 (0.1 inch) male connector.
  • Included are 50 pcs XN-2.54 (0.1 inch) female connectors, 20 pcs black KN-19 knobs and 20 pcs dust seals, nuts and washers.
  • 3 pins mono Potentiometers, horizontal terminals, 15mm (0.59 inch) axis length, 6.3mm (0.24 inch) axis diameter, no anti-rotation tab

Description

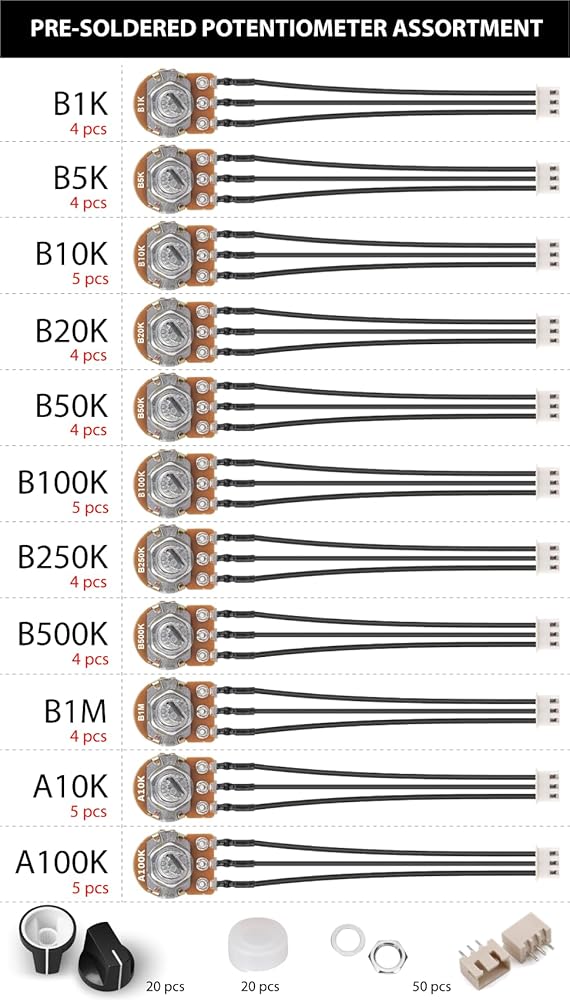

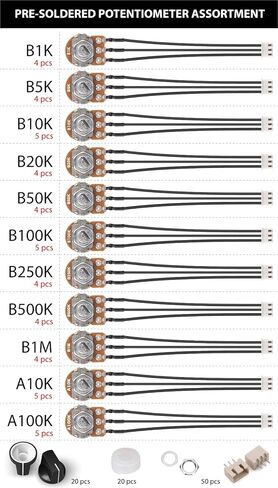

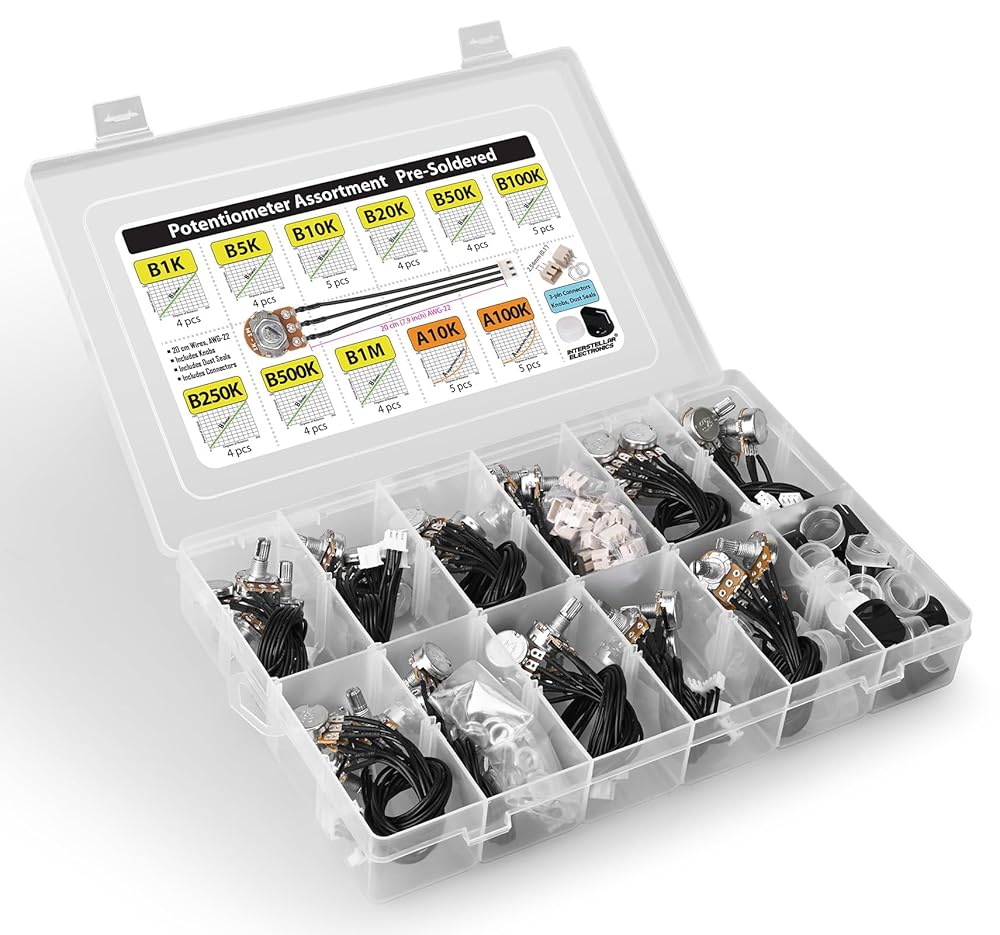

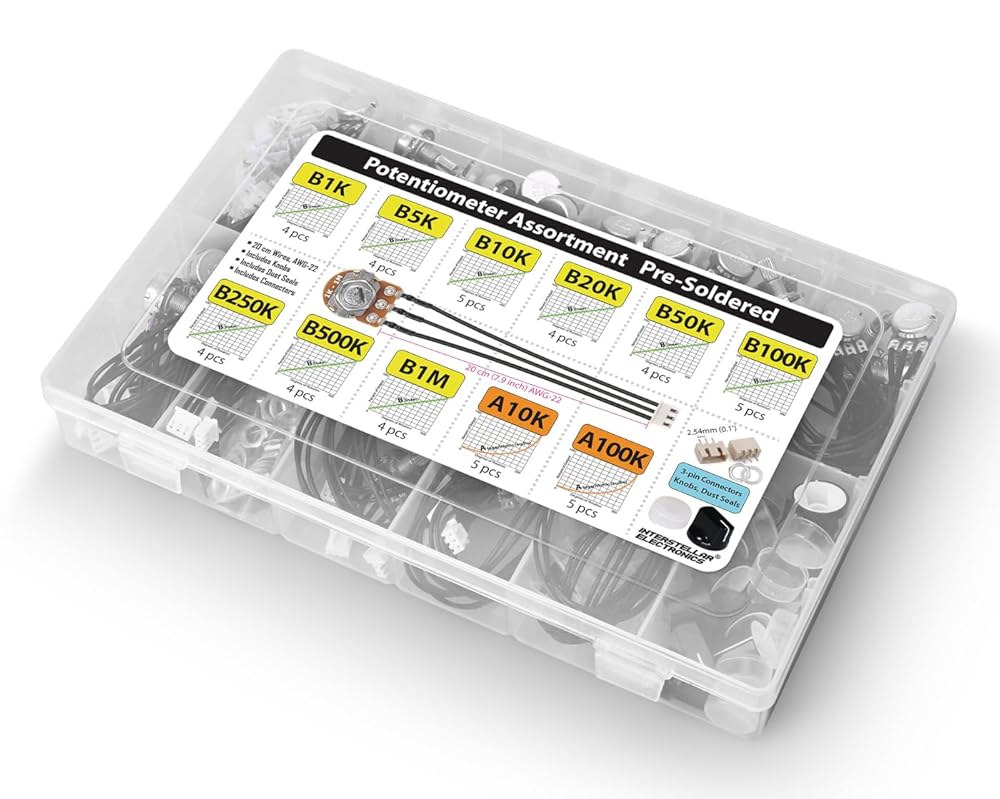

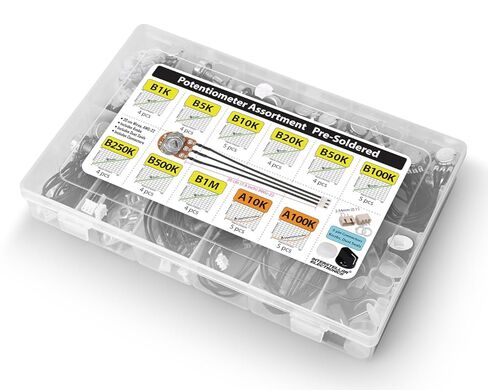

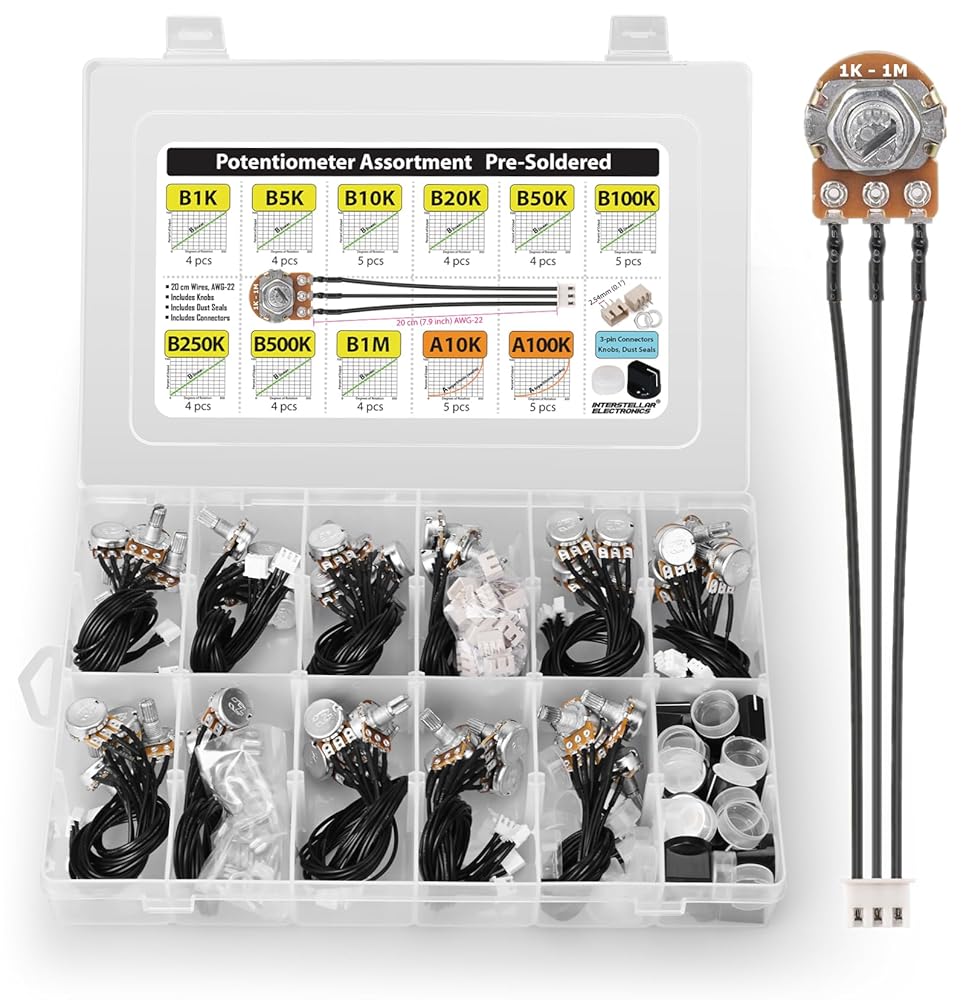

48 pcs pre-soldered Potentiometer Assortment

Contains 11 different values, 9 type 'B' linear taper and 2 type 'A' logarithmic audio taper Potentiometers:

B1K, 4 pcs
B5K, 4 pcs
B10k, 5 pcs
B20K, 4 pcs
B50K, 4 pcs
B100K, 5 pcs
B250K, 4 pcs
B500K, 4 pcs
B1M, 4 pcs
A10K, 5 pcs
A100K, 5 pcs

The Potentiometers are soldered to black AWG-22 wires with heatshrink on the solder joints. The wires have a length of 20cm (7.9 inch).
On the end of the wire is a 3-pin XN-2.54 (0.1 inch) male connector.

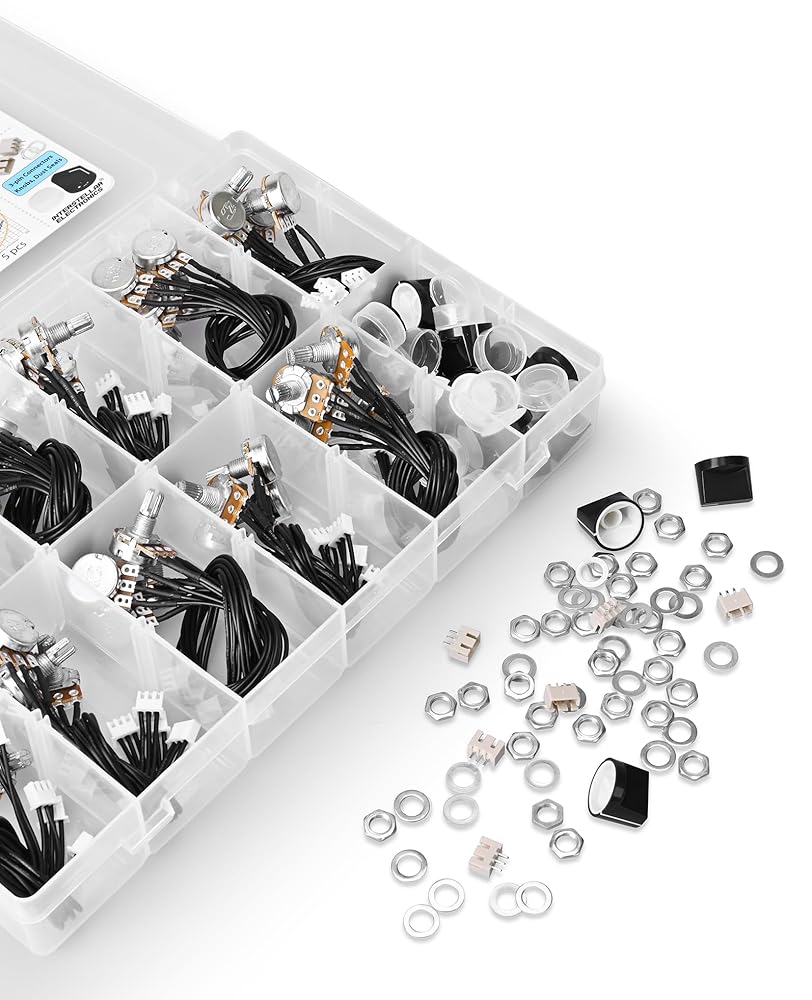

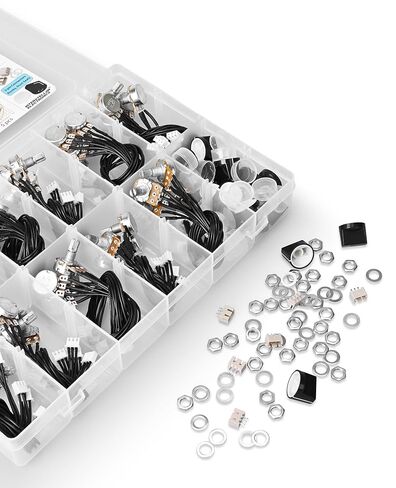

Included are 50 pcs XN-2.54 (0.1 inch) female connectors, 20 pcs black KN-19 knobs and 20 pcs dust seals.
