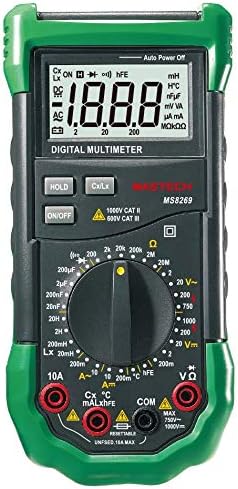

Features:
Large 2000 counts LCD display
Tests AC/DC voltage and current, resistance, frequency and capacitance
Transistor (hFE) check, diode and continuity test
Inductance measurement up to 20H
Type-k thermocouple contact temperature measurement
Data hold and display back light
Safety rating up to CAT.II 1000V/CAT.III 600V
Specification:
Surrounding conditions for operation:
600V CAT.III and1000V CAT.II
Contamination level: 2
Elevation
Temperature (humidity) at the operation site:0~40oC
(RH
Temperature (humidity) at the storage site: -10~60oC (RH
battery off).
Temp. coefficient: 0.1xAccuracy/oC(28oC).
Max. voltage allowed between the measuring end and earth:
DC 1000V or AC 750V (effective voltage)
Fuse protection:position of mA: self-recovery fuse F500mA/250V
Sampling rate: about 3 times/second.
Display: 3 ½ bit LCD . Unit will be automatically displayed according to the selected measuring function.
out of range indication :LCD will output “1"
Low voltage indication for the battery : when the battery voltage
is lower than the normal operation voltage ,” ”will be displayed on LCD .
Input polarity indication: “-” sign will be automatically displayed.
Power: DC 9V
Battery type: NEDA 1604, 6F22, or 006P.
Accuracy: ±(%reading+graduation), with one year warranty.
Standard conditions: ambient temperature 18oC to 28oC ,relative humidity not higher than 80%.
