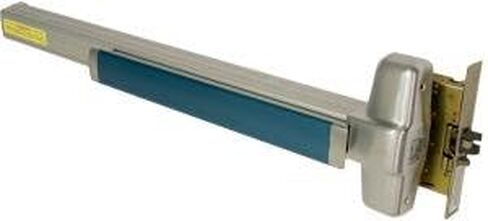

Device ships EO (Exit Only) Strikes 575 ??? Dull Black Fasteners & Includes 1-3/4" (19mm) ??? 2-1/4" (57mm) Wood & Metal Doors Sex Bolts (SNB) Optional Device Centerline from 39-5/8" (1006 mm) Center Case Dimensions 8" x 2-3/4" x 2-3/8" (203mm x 70mm x 60mm) Mechanism Case Dimensions 2-1/4" x 2-1/4" (57mm x 57mm) Projection Pushbar Neutral ??? 3-13/16" (97 mm) Pushbar Depressed ??? 3-1/16" (78 mm) Finish: Chromium, Dull US26D 626 Electric Mortise Lock Device The electric mortise lock device has all the versatility and advantages of the standard mortise lock device, plus the advantage of being electrically controlled by a remote switching device, an access control system or an automatic fire alarm system. The device features the E7500 mortise lock. The E7500 controls the locking of the outside trim. When unlocked, the door remains latched, preserving the fire rating of the door and making it particularly useful where codes permit locking but require unlocking during a fire emergency. Standard Features: Field reversible handing 24 VDC continuous duty solenoid Fail safe (locked when energized, unlocked when de-energized or during power failure). Specify with suffix ???FS.??? Electrical Specifications: Solenoid ?????? .30 AMPS @ 24VDC Each switch ?????? Up to 2.0 AMPS @ 24VDC Maximum The E option does not include the power transfer from door to frame, the power supply or the control operator. Note: Some Fire codes will require ???Fail Safe??? (FS) operation for stairwell doors, Be sure to specify the correct operation for your application.
