Adjustable Film Applicator Coater, 0-3500μm Wet Film Preparation Device, Coating Widths Options: 55/100/150/200/300mm, 2μm Accuracy, Magnetic Suction for Printing (300mm) in Kuwait

200mm

KWD 106
Brand
VitalisWorks
Category
Lab Supplies
Size200MM
– 1 +

Special Features

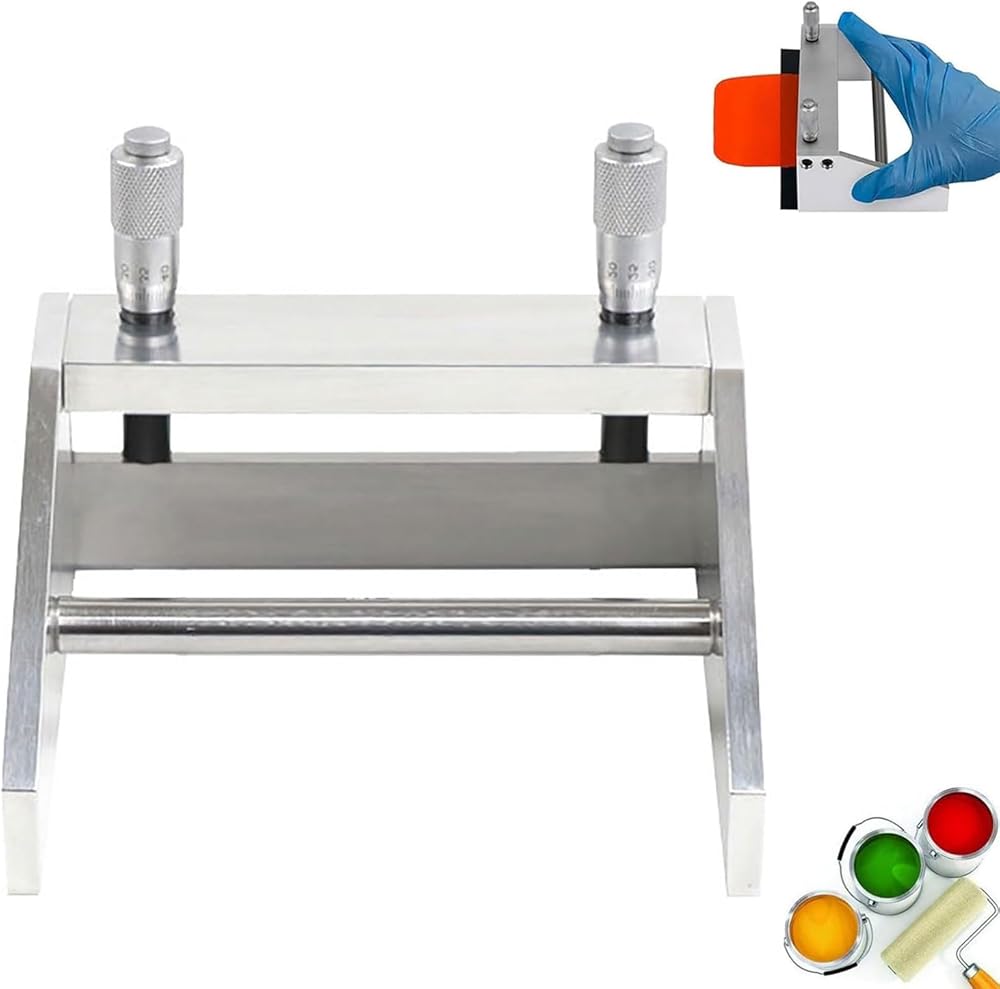

  • Film Applicator: The adjustable applicator features an innovative design that allows precise vertical adjustment of the scraper blade by modifying two differential gauges located above the application area to control the final coating thickness
  • Coating Thickness: Available film widths are 55mm, 100mm, 150mm, 200mm, and 300mm, with a film thickness range of 0 to 3500μm. The blade gaps can be adjusted in 10-micron increments, enabling precise blade coating application
  • High-Precision Film Control: Adjustable film applicators are typically equipped with a high-precision differential gauge to ensure precise control of film thickness. Accuracy: ±2µm, ensuring a smooth, even coating surfaces and reducing the risk of uneven coating
  • High-Quality Materials: The frame is made of high-quality aluminum alloy for durability; the scraper blade is made of stainless steel for rust and deformation resistance, and features a magnetic mount for easy removal and cleaning
  • Versatile Applications: Primarily used for preparing film samples of a variety of materials, including coatings, inks, paints, and slurries, making it ideal for evaluating sample coverage, assessing color, or preparing sample plates

Description

Specifications:
Name: Thin Film Coater
Material: Frame - Aluminum Alloy
Blade - Stainless Steel
Film Thickness Range: 0-3500μm (Adjustable), Squeegee Adjustment Every 10μm
Accuracy: ±2μm
Widths: 55mm, 100mm, 150mm, 200mm, 300mm

Packing List:
Film Coater *1
Storage Case *1
