Grounding Resistance Tester Ground Pile Clamp Resistance Tester Soil Resistivity Test Loop Resistance Voltage Ammeter ES3022F

KWD 455.500
Brand
ACE4U
Weight
4.6 kg
– 1 +

Special Features

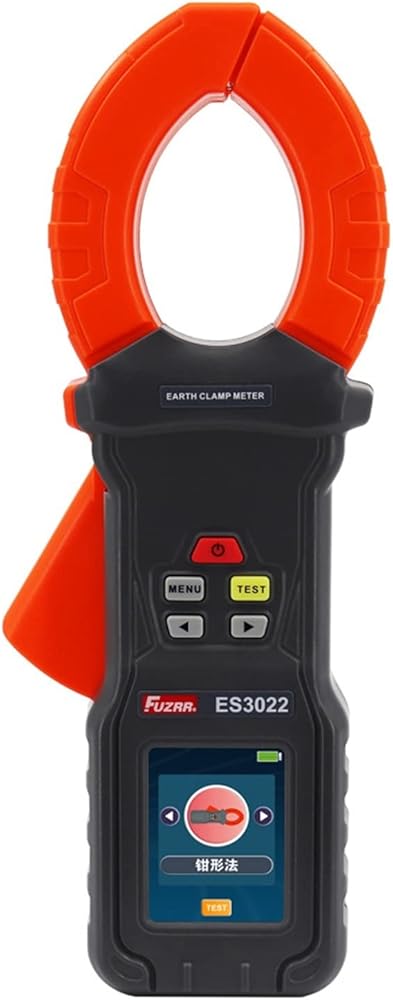

  • -Pile clamp ground resistance tester, also known as loop resistance tester, used to test ground resistance. This instrument uses a brand new 2.4-inch luxury color screen design, with clamp resistance, three-four-wire resistance, AC voltage, current measurement functions, and has data storage, data access, alarm, automatic shutdown and other functions.
  • -The whole machine is beautiful and high-grade, wide range, high resolution, easy to operate, easy to carry, accurate, reliable, stable performance, strong anti-interference ability.
  • -It also has a shock-proof, dust-proof and moisture-proof structure. It is a common and indispensable instrument for telecommunications, electric power, meteorology, computer rooms, oil fields, electromechanical installation and maintenance, and industrial enterprises that use electric power as industrial power or energy.

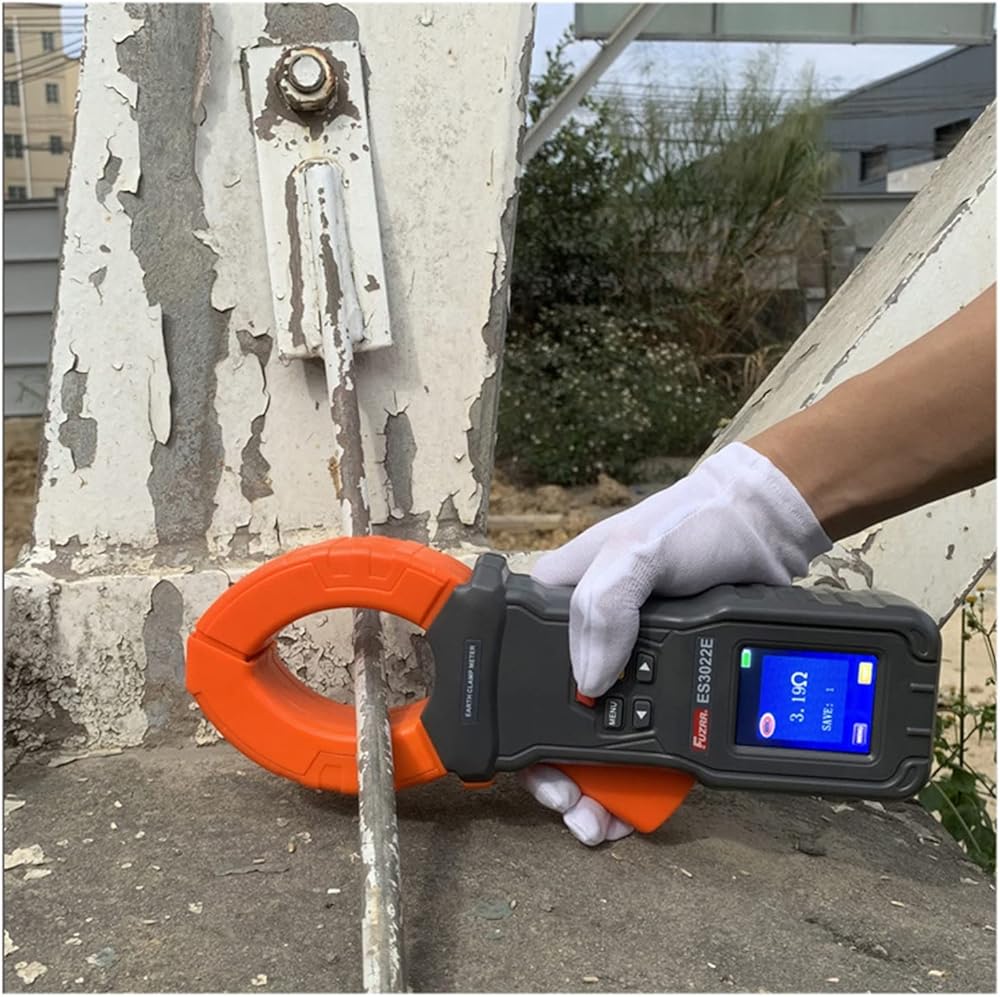

  • -Suitable for measuring the grounding resistance of various telecommunications, electricity, meteorology, computer rooms, oil fields, power distribution lines, transmission lines of iron towers, gas stations, factory grounding grids, lightning rods, etc.
  • -The ground resistance tester of the pile clamp is controlled by a microprocessor, which can accurately detect the ground resistance. It uses fast filtering technology to reduce interference. It also has data storage and data upload functions.
  • Welcome and I wish you a happy life, my friend.

Description

Specification:
Model：ES3022F(Bluetooth version)
Clamp resistance Range：0.00Ω-1500Ω 0.00Ω-1800Ω 0.00Ω-2000Ω
Leakage current range：0.000mA-40A 0.000mA-50A 0.000mA-60A
Current resolution：1uA 1uA 1uA
Three-four-wire method range：0.00Ω-3000Ω 0.00Ω-30kΩ 0.00Ω-30kΩ

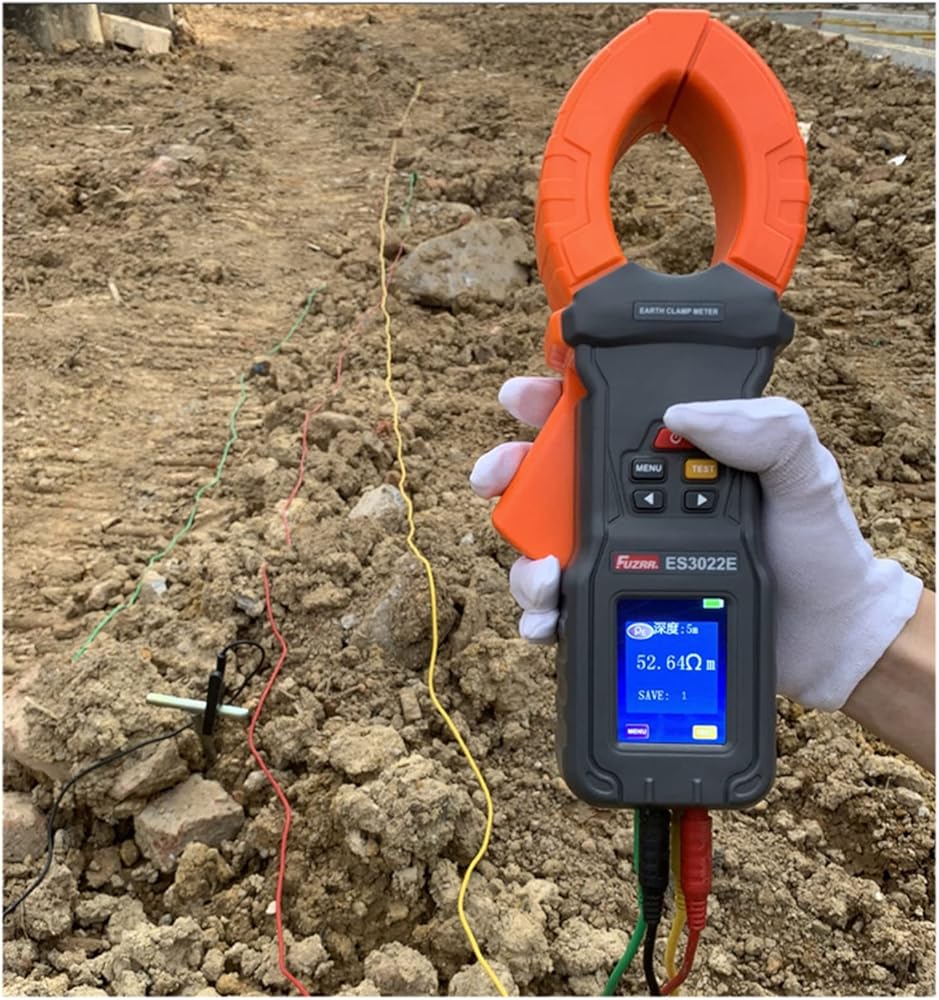

Soil resistivity range：0.00Ω-9999kΩm 0.00Ω-9999kΩm
Ground voltage range：600V 600V 600V
Bluetooth：YES
Built-in rechargeable battery:YES
TFT Color display:YES
USBData upload function:YES
data storage:YES
Real-time battery power indicator:YES
Backlight:YES
Alarm function:YES
Low battery voltage indication:YES
Overload protection:YES

Technical Specification
Function：Ground resistance test, loop resistance test, AC current test, AC voltage test
Accuracy guaranteed temperature and humidity：23℃±5℃, below 75%rh
Power Supply：DC 3.7 Vlithium battery
Resistance resolution：0.01Ω
Current resolution：0.001mA
Voltage resolution：0.01V

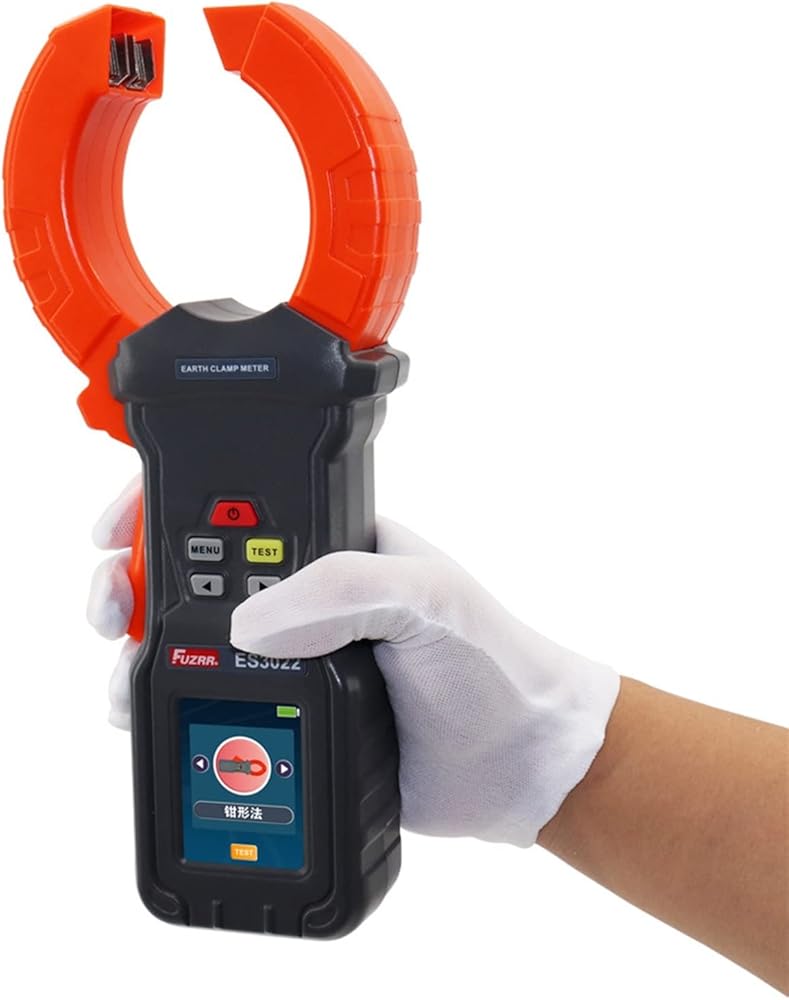

Clamp Size：68mm
Display：2.4 inch color LCD screen
LCD Size：46mm×29mm
Meter Dimension：273mm×106mm×53mm
measure time：1 time/sec

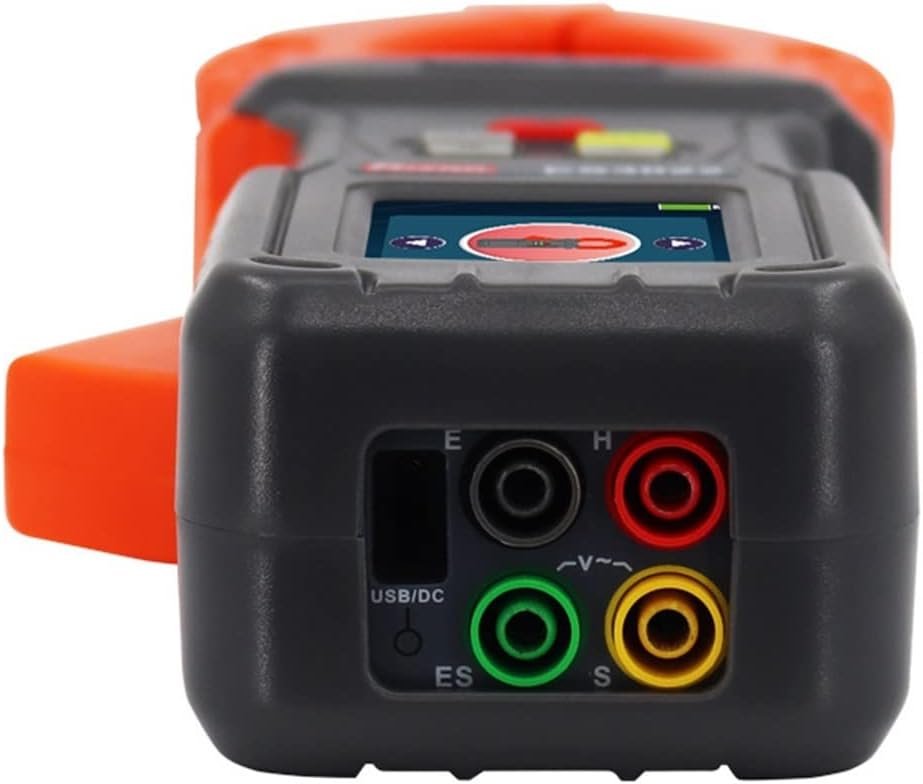

USB ：With USB interface,uploaded the data to the computer, saved and printed
Communication line：USB communication line 1
Data storage Maximum：100 groups of data, display "FULL" symbol to indicate that the storage is full
Overflow display：“OL” symbol indication when over-range overflow
Alarm function：When the measured value exceeds the alarm set value, an alarm will be issued
battery voltage：Real-time display of battery power, reminding to charge in time when battery voltage is low
Automatic shut-down Turn off automatically after 15 minutes
Power consumption：750mA MAX
Quality Meter: 975g (including battery)
Working temperature and humidity ：-20℃～50℃; Below 80%rh
Storage Temperature and Humidity：-40℃～60℃; below 70%rh
Insulation Resistance：20Ω or more (500V between circuit and outside)
Pressure Resistance：AC 3700V/rms(between circuit and outside)
External magnetic field：＜40A/m
External electric field：＜1V/m
Suitable for Safety Regulations IEC61010-1(CAT Ⅲ 300V、CAT IV 600V、Pollution Degree 2);
IEC61010-031；IEC61557-1(Ground resistance)

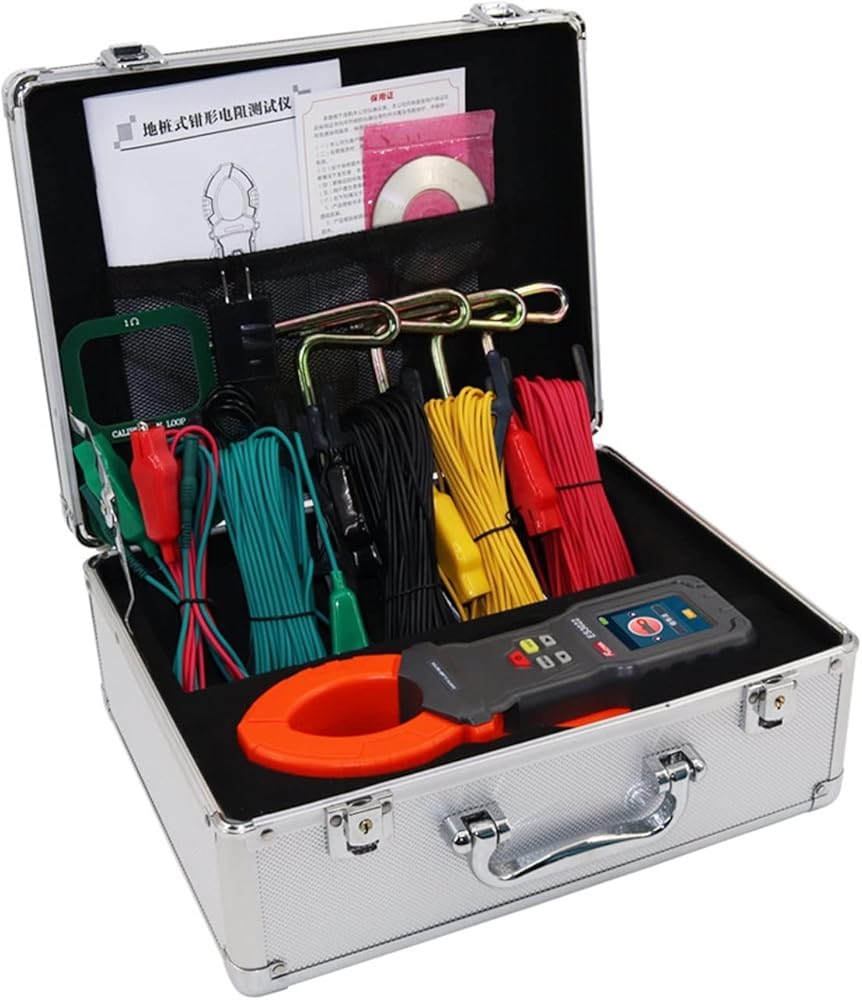

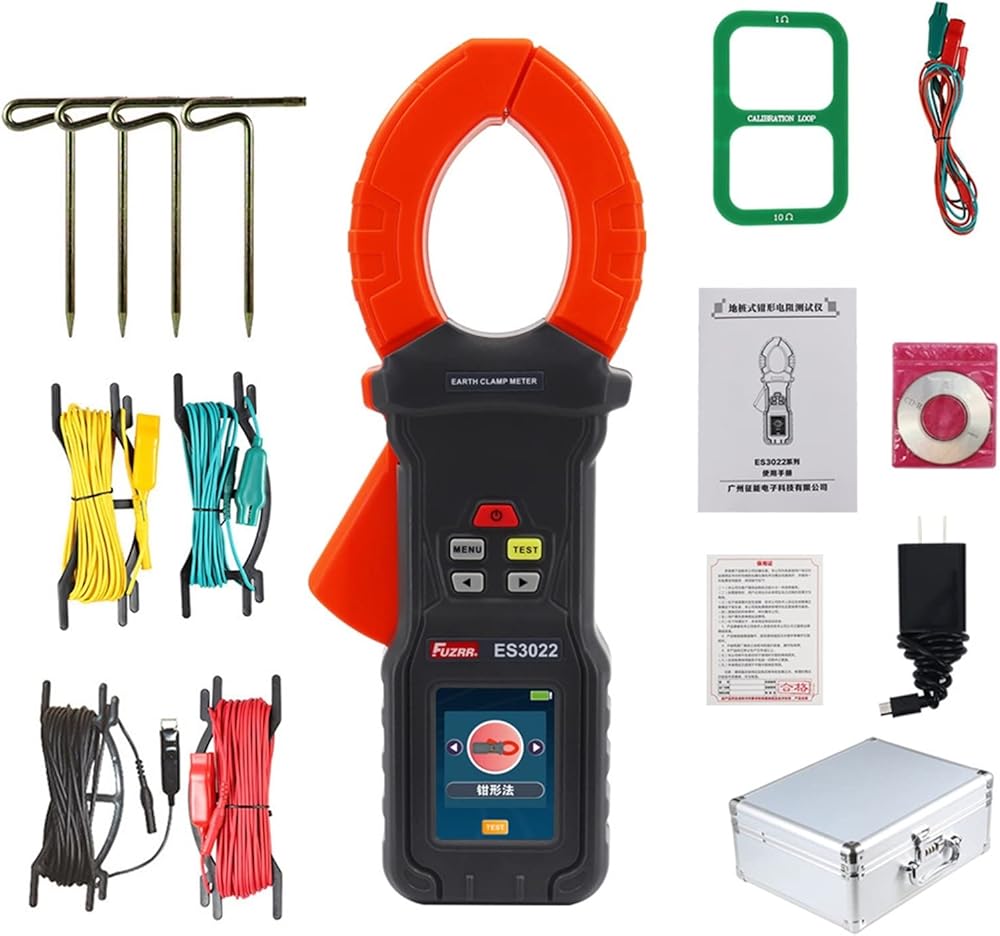

Package List:
Meter：1 pcs
Test line：4 pcs
Simple test line：2 pcs
USB communication line：1 pcs
Charger：1 pcs
Monitoring software CD：1 pcs
Instructions, warranty：1 set
Instrument box：1 pcs
