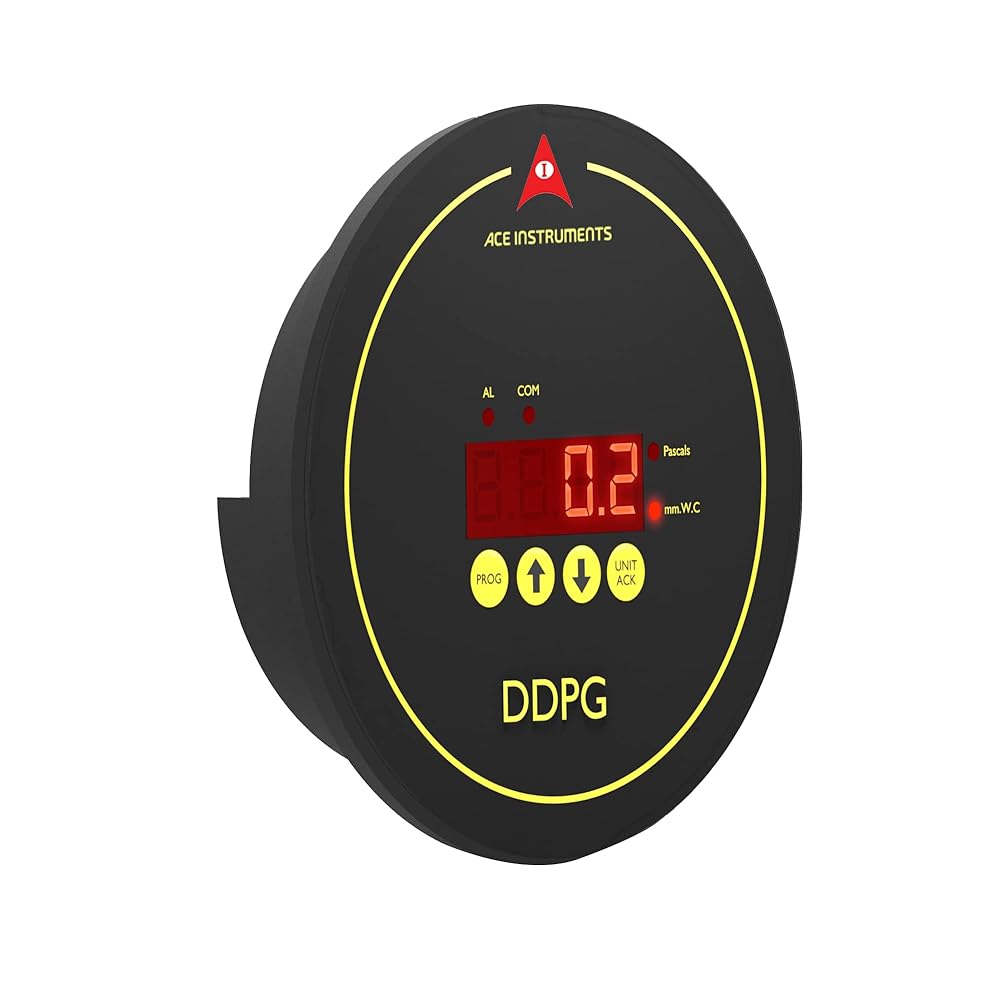

Digital Differential Pressure Gauge (Range: -100 to 100 Pascal) for Clean Rooms, Hospital OT Rooms, Laminar Cabinets, Safety Units Model: AI-DDPG in Kuwait

Range: 0 to 250 Pascals with wall mounting box

KWD 90.500
Weight
179 g
StyleRange: 0 to 250 Pascals with wall mounting box
– 1 +

Special Features

  • Measuring Parameter: Differential Pressure |Diff. Pressure Range: -100 to 100 Pascals with 4-20mA Output; Accuracy: +/- 0.5% of Full Scale; Resolution: 1 Pascals | Display: Integrated 4 Digit Red LED 7 Segment Display 0.5”
  • Maximum Over Pressure: 2 Times the rated pressure | Sensors: Integrated High Speed Differential Pressure Sensor
  • Medium: Air or Gases (Non-Corrosive) | Connection: 2 Nos. Hose Nipples of 4mm. ABS Plastic at the back | Alarm Type: Built in Buzzer Alarm for Process Violation Alert | Construction: Matte Finish ABS Plastic Enclosure |
  • Power Supply: 24 Volts D.C. Typical | Size: Standard 4 ½'' (114.3mm.) Diameter (Exact size of Dwyer Magnehelic Gauge); Depth: 30 mm. Depth | Weight: 180 Grams
  • Supply Scope: 1 Unit of Differential Pressure Gauge, 1 Pair of Wall-Mounted Hose Nipples, Silicon Tube, Mounting Screws, Instruction Manual and Calibration Certificate | Applications: Laminar Air Flow Cabinets, Clean Rooms, Bio Safety Cabinets, AHU etc.
