1. [HIGH PERFORMANCE CPU]: Equipped with a 32-bit chip for fast processing speeds, enhancing efficiency.
2. [RELIABLE COMMUNICATING]: Supports direct programming, download, debugging with GX Developer or GX Works2 software.
3. [EFFICIENT POWER SUPPLY]: Operates on DC 24V power supply with low static current, ensuring optimal energy usage.
4. [FLEXIBLE LOAD CAPACITY]: Features 5A current relays for reliable performance, with transistor drive for stable operating.
5. [VERSATILE I/O CAPABILITIES]: Includes analog inputs, outputs, counting inputs, phase inputs, and pulse outputs for diverse applications.

Specification:

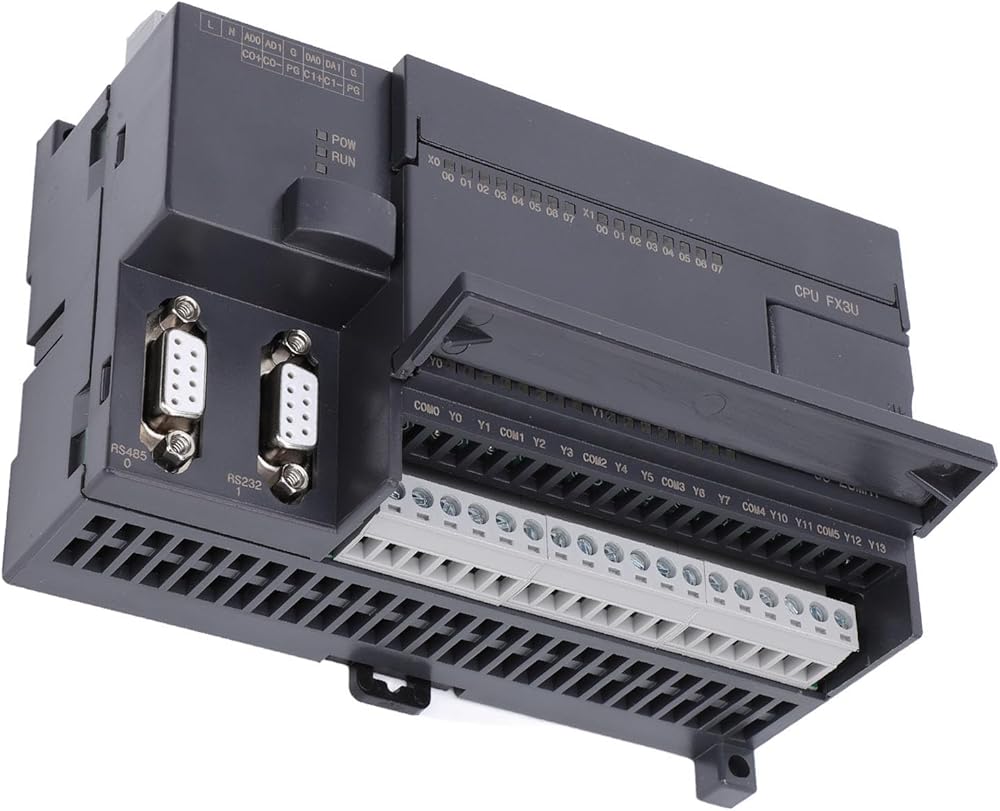

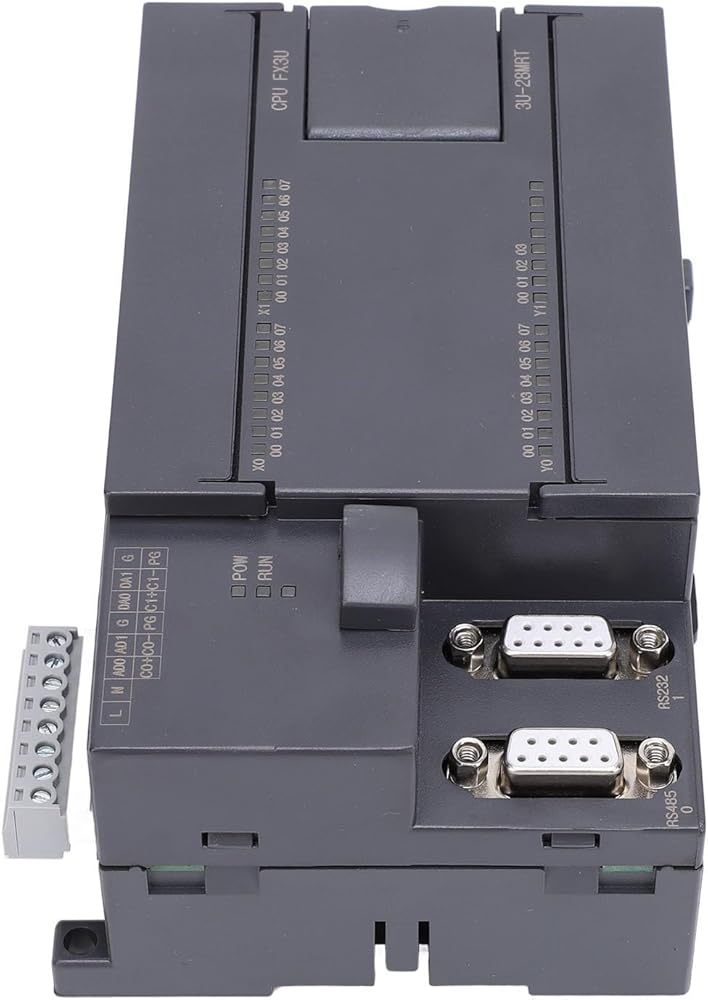

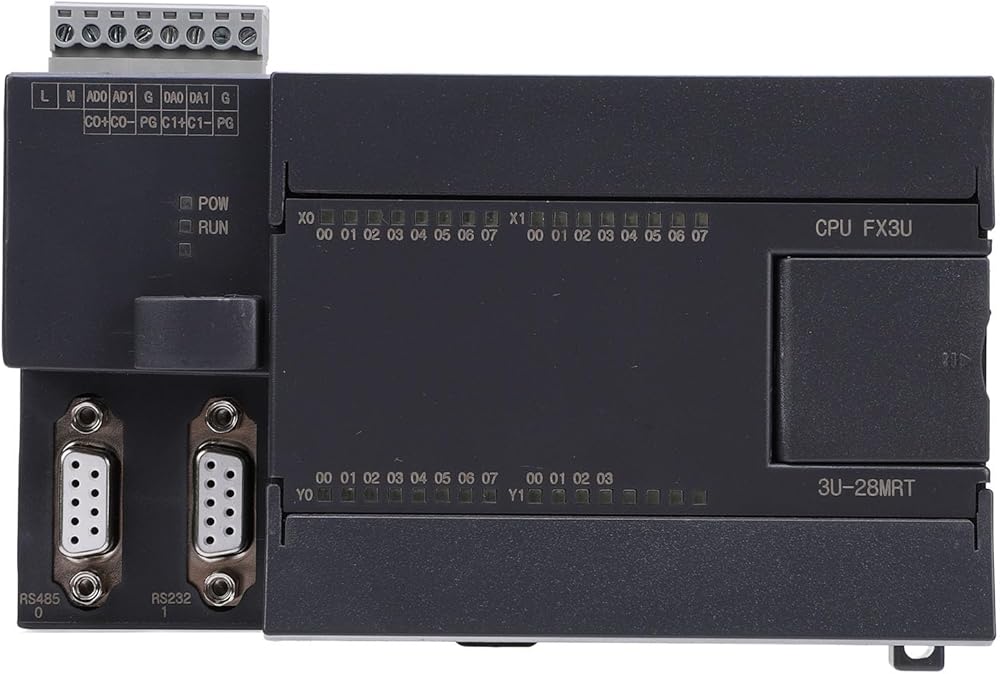

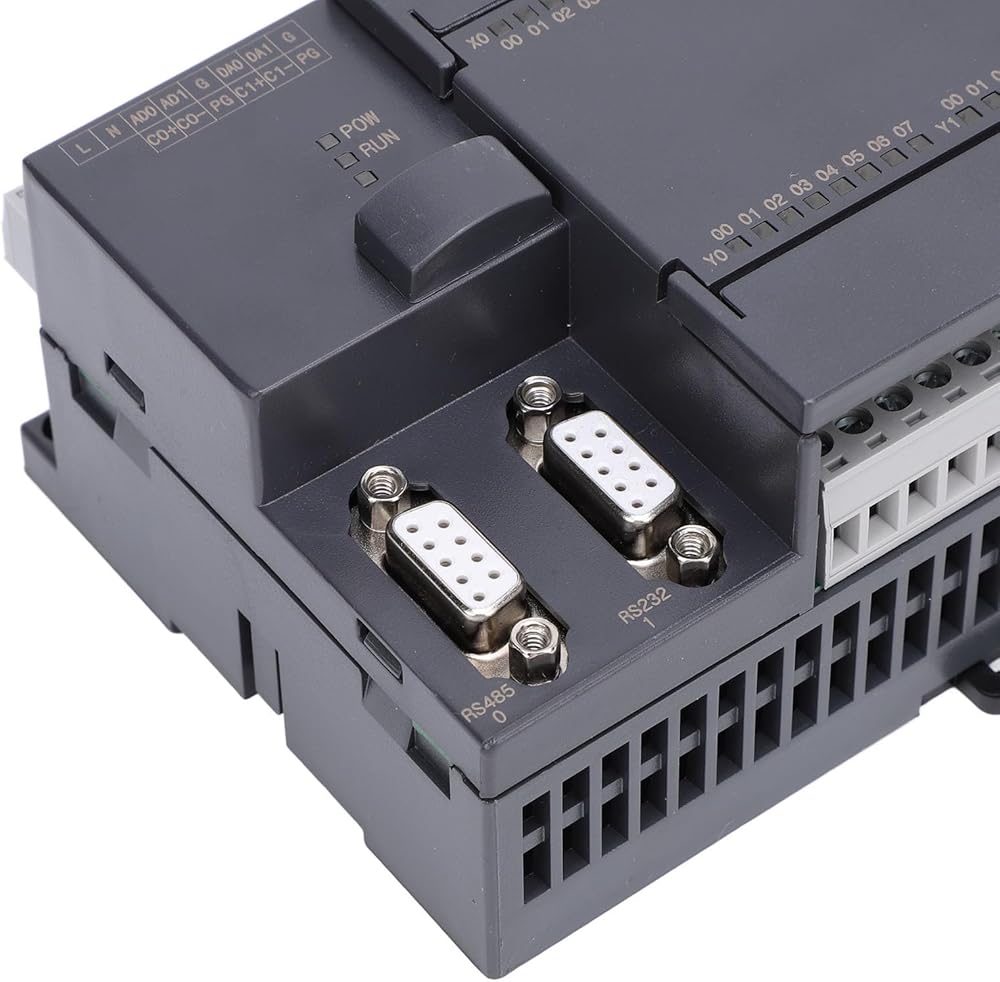

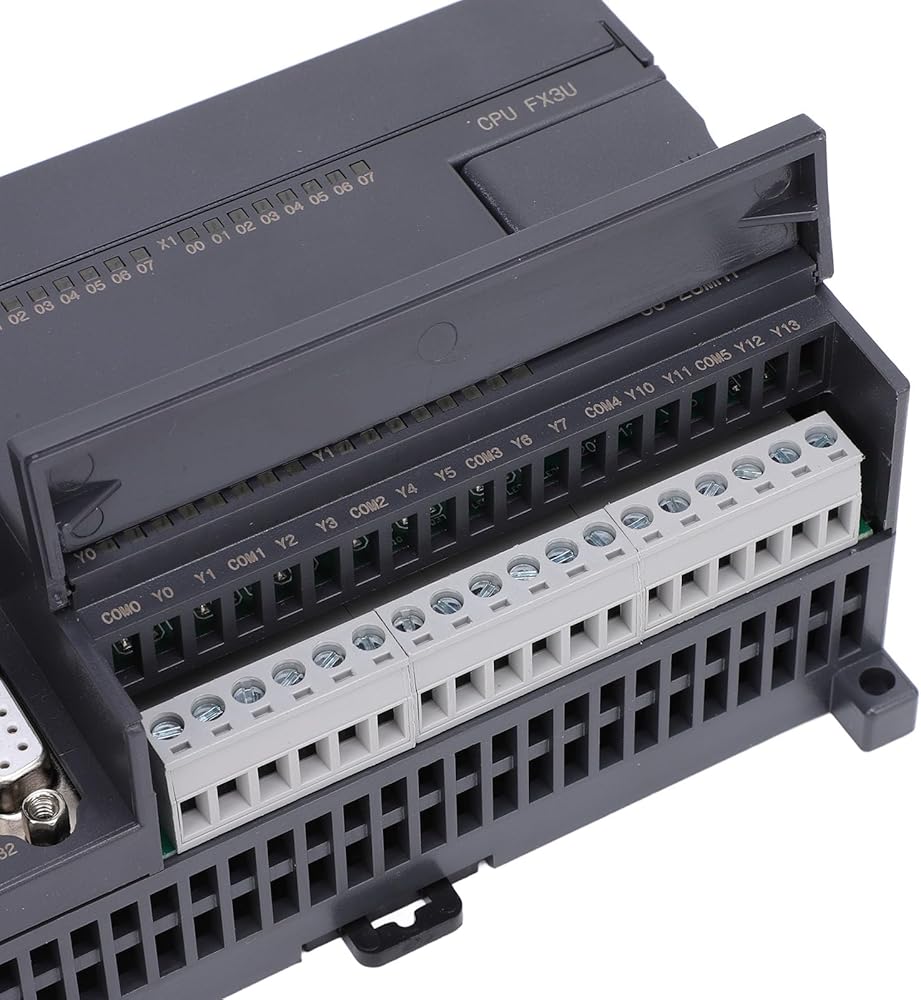

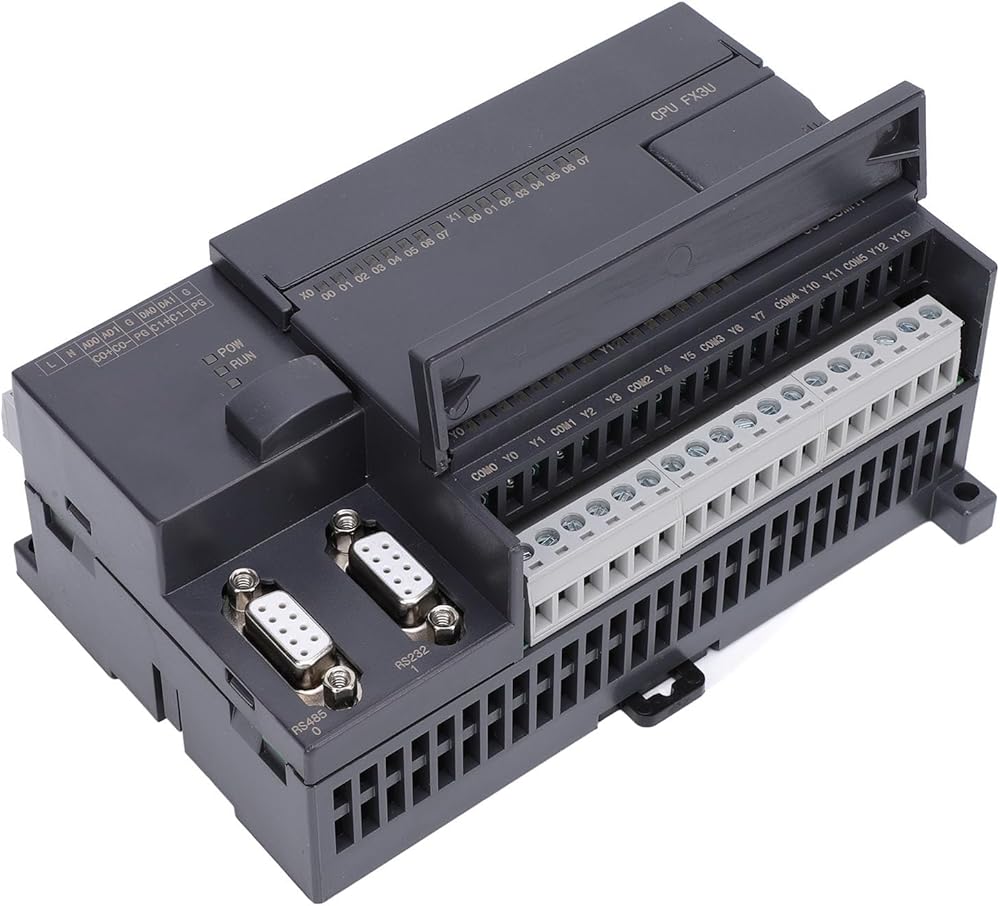

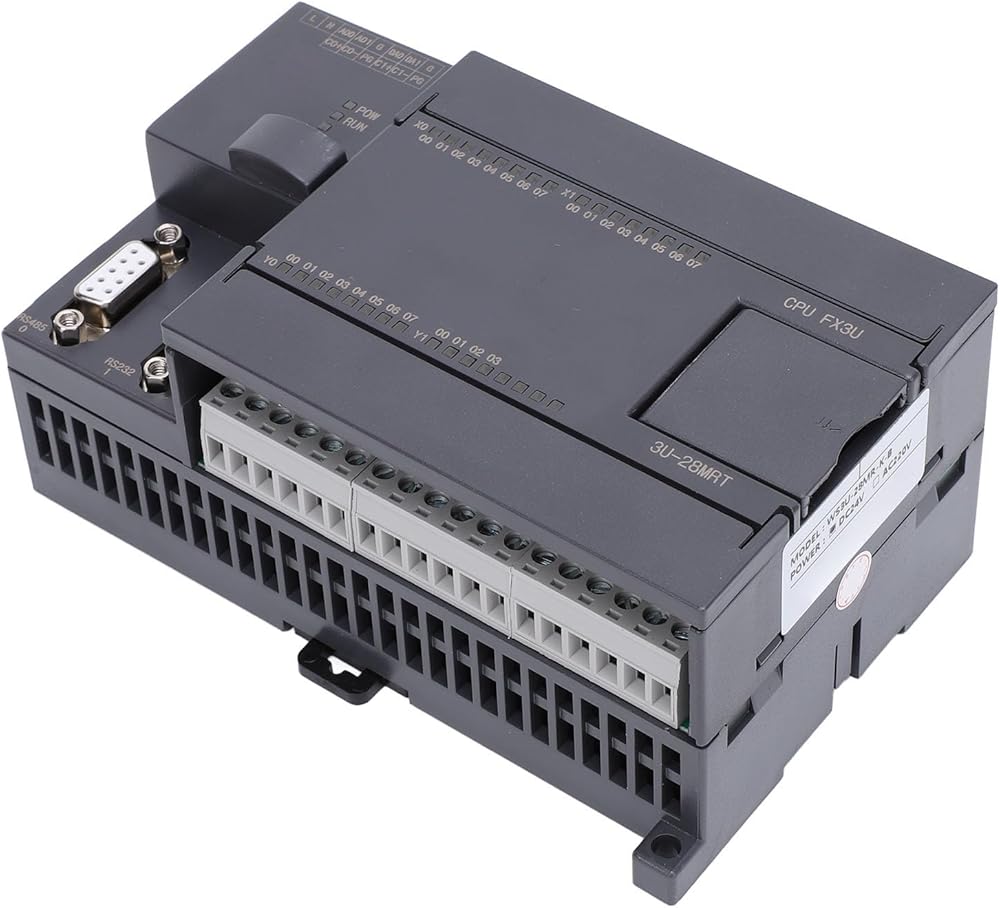

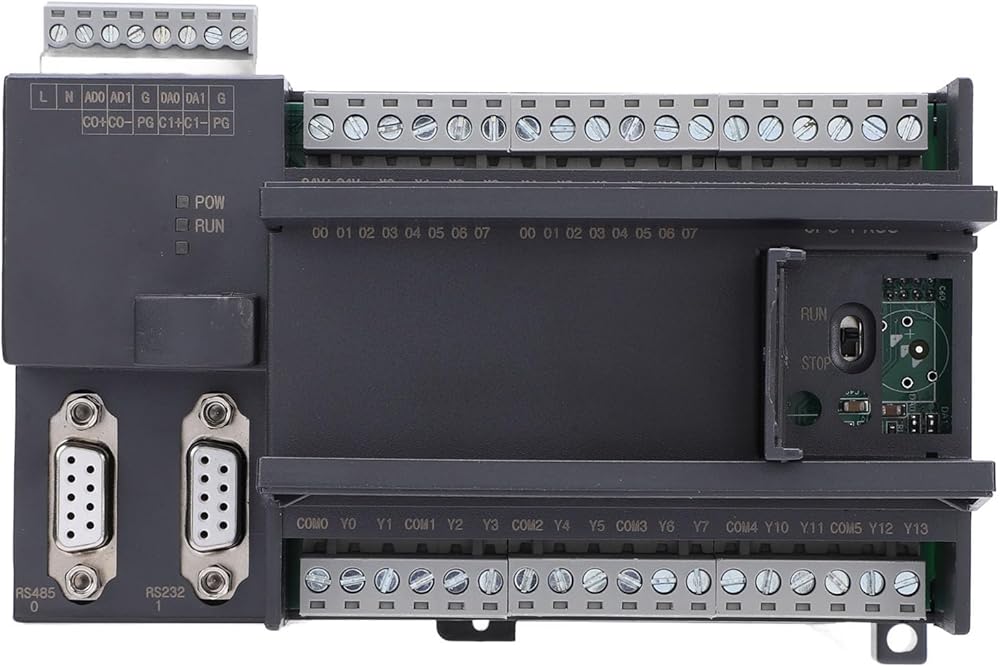

Item Type: PLC Control Board
Model: WS3U-28MR-K-B
Material: ABS
Size: Approx. 140 x 100 x 63mm / 5.51 x 3.94 x 2.48in
Download Speed: 38.4Kb
Memory Capacity: 8000
Input Points: 16
Output Points: 12
Output Type: Relay
Output Current: 5A
Load: 24V
High Speed Count: 6 Way, 3K
Analog Input, Output: Default 2AD 0-10V, Convertible to 4AD
for MODBUS: Built In

How to Use:
Follow the instructions in the electronic manual to use.

Package List:
1 x PLC Control Board

Notice:
Installation and Usage Instructions:
1. To prevent the internal temperature of the machine from getting too high, it is recommended to install it by wall hanging. Sufficient space should be left above and below for heat dissipation.
2. Leave a of at least 50mm between the programmable controller host and other equipment or structures. Keep away from high voltage lines, high voltage equipment, and power equipment as much as possible.
3. Avoid dust, oil, erosive environments, pay attention to electrostatic guard (avoid direct contacting of hands with circuit board lines).
4. Use adhesive isolation columns for fixing installation.
