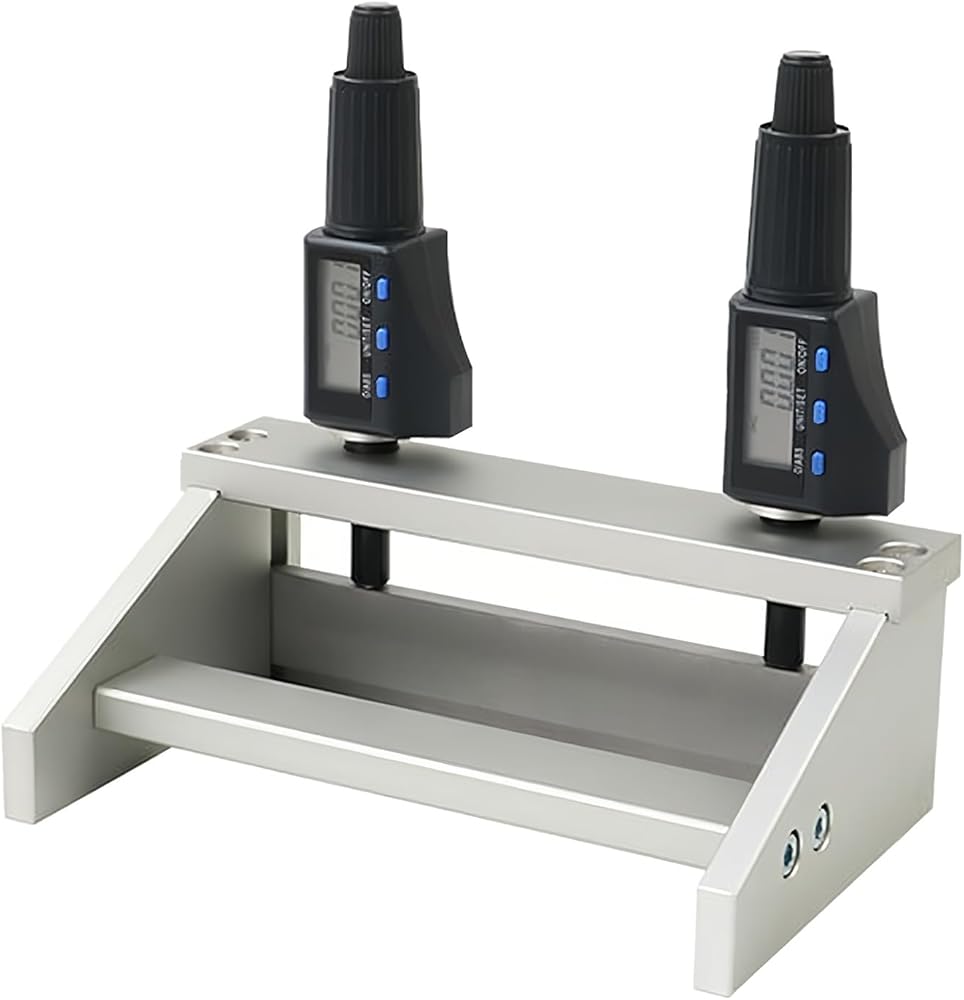

Adjustable Digital Display Film Applicator, 100mm 150mm 200mm 300mm Film Casting Doctor Blade, 1-6000μm Thickness, Wet Films Preparation Device for Printing, Paint, Coatings (200mm) in Kuwait

150mm

KWD 204
Brand
VitalisWorks
Category
Lab Supplies
Size150mm
– 1 +

Special Features

  • 【Adjustle Film Applicator】: Digitally Adjustable Film Applicator with micrometer precision, film thickness range: 0-6000μm. The scraper gap can be adjusted in units of 1 um. Used for the study of accurate evaluation of film thickness
  • 【Digital Display】: Features a digital display screen with unit conversion for real-time monitoring. The device features a simple design, easy operations and cleaning, and offers high accuracy and stability
  • 【Customisable Coating Width】: Effective film width: 100 mm/150 mm/200 mm/300 mm (optional), film thickness range: 0-6000μm. The aluminium alloy frame guarantees stability while applying films for opacity tests or colour performance measurements
  • 【Magnetic Blade Technology】: Stainless steel scraper attaches via magnetic adsorption for effortless cleaning and gap adjustments. Achieve uniform coatings in printing ink R&D or material science applications with micron-level accuracy.
  • 【Versatile Application】: This applicator is primarily used to apply wet films of specific thicknesses, such as those used to measure hiding power, color performance, or create test panels. It is suitable for coatings, printing, inks, and other research applications

Description

Stainless Steel Digital Display Film Applicator, Adjustable Film Applicator, Film Width: 100mm, 150mm, 200mm, 300mm Optional/Measuring Range: 1-6000μm / Graduation Value: 1μm, for Paint

This digitally adjustable film coater is ideal for precise film thickness assessment in research. Adjusting the two upper micro-adjustments controls the gap between the scraper and the coating, allowing precise setting of coating thickness. It can be used to determine hiding power, color rendering, or create test panels.

Specifications:
Name: Digitally Adjustable Wet Film Applicator
Coating Width (Optional): 100mm, 150mm, 200mm, 300mm
Coating Thickness: 1µm to 6000µm
Graduation: 1µm
Frame Material: Aluminum Alloy
Scraper Material: Stainless Steel
Adjustable Height: Adjustable from 1µm to 6000µm, with scraper gap adjustable in 1µm increments.

Packing List:
1 x Wet Film Applicator
3 x Coated Cardboard

Notes:
1. Due to different manual measurements, please allow a 1-2cm difference in size.
2. After receiving the goods, if you find any problems, please contact us in time and we will help you solve it as soon as possible!
