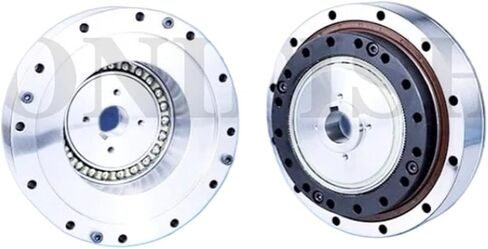

speed reducer
Gearboxes Gearheads & Speed Reducers
ZXF1430
Reduction ratio 30
Rated Tq when inputting 2000r/min: 4.0 Nm(0.41 kgfm)
Allowable peak Tq when starting and stopping: 9 Nm(0.92 kgfm)
Allowable maximum value of average load Tq: 6.8 Nm(0.69 kgfm)
Momentary allowable maximum Tq: 17 Nm(1.7 kgfm)
Allowable maximum input speed: 8500 r/min
Allowable average input speed: 3500 r/min
Backlash: 10 Aresec
ZXF14-50
Reduction ratio: 50
Rated Tq when inputting 2000r/min: 7.0 Nm(0.7 kgfm)
Allowable peak Tq when starting and stopping: 23 Nm(2.3 kgfm)
Allowable maximum value of average load Tq: 9 Nm(0.9 kgfm)
Momentary allowable maximum Tq: 46 Nm(4.7 kgfm)
Allowable maximum input speed: 8500 r/min
Allowable average input speed: 3500 r/min
Backlash: 10 Aresec
ZXF14-80
Reduction ratio: 80
Rated Tq when inputting 2000r/min: 10 Nm(1 kgfm)
Allowable peak Tq when starting and stopping: 30 Nm(2.3 kgfm)
Allowable maximum value of average load Tq: 1.4 Nm(1.4 kgfm)
Momentary allowable maximum Tq: 61 Nm(6.2 kgfm)
Allowable maximum input speed: 8500 r/min
Allowable average input speed: 3500 r/min
Backlash: 10 Aresec
ZXF14-100
Reduction ratio: 100
Rated Tq when inputting 2000r/min: 10 Nm(1 kgfm)
Allowable peak Tq when starting and stopping: 36 Nm(3.7 kgfm)
Allowable maximum value of average load Tq: 14 Nm(1.4 kgfm)
Momentary allowable maximum Tq: 70 Nm(7.2 kgfm)
Allowable maximum input speed: 8500 r/min
Allowable average input speed: 3500 r/min
Backlash: 10 Aresec
