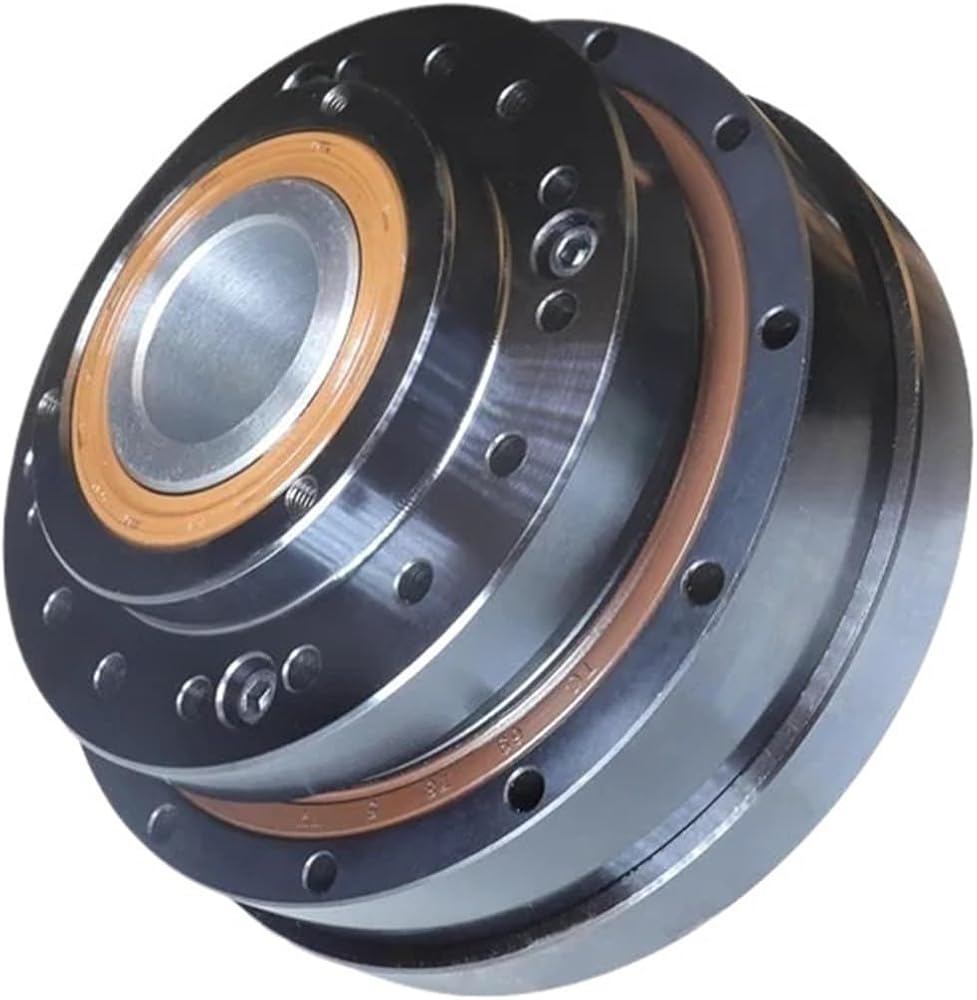

speed reducer
Gearboxes Gearheads & Speed Reducers
Note Different product models have different appearance size and weight parameters
K14-30
Reduction ratio: 30
Rated Tq when inputting 2000r/min: 4 Nm(0.7kgfm)
Allowable peak Tq when starting and stopping: 9 Nm(0.92kgfm)
Allowable maximum value of average load Tq: 6.8 Nm(0.69kgfm)
Instantaneous maximum allowable Tq: 17 Nm(1.7kgfm)
Allowable maximum input speed: 8500
Allowable average input speed: 3500
Backlash: 20 Arcsec
K14-50
Reduction ratio: 50
Rated Tq when inputting 2000r/min: 7 Nm(0.7kgfm)
Allowable peak Tq when starting and stopping: 23 Nm(2.3kgfm)
Allowable maximum value of average load Tq: 9 Nm(0.9kgfm)
Instantaneous maximum allowable Tq: 46 Nm(4.7kgfm)
Allowable maximum input speed: 8500
Allowable average input speed: 3500
Backlash: 20 Arcsec
K14-80
Reduction ratio: 80
Rated Tq when inputting 2000r/min: 10 Nm(1kgfm)
Allowable peak Tq when starting and stopping: 30 Nm(3.1kgfm)
Allowable maximum value of average load Tq:14 Nm(1.4kgfm)
Instantaneous maximum allowable Tq: 61 Nm(6.2kgfm)
Allowable maximum input speed: 8500
Allowable average input speed: 3500
Backlash: 10 Arcsec
K14-100
Reduction ratio: 100
Rated Tq when inputting 2000r/min: 10 Nm(1kgfm)
Allowable peak Tq when starting and stopping: 36 Nm(3.7kgfm)
Allowable maximum value of average load Tq:14 Nm(1.4kgfm)
Instantaneous maximum allowable Tq: 70 Nm(7.2kgfm)
Allowable maximum input speed: 8500
Allowable average input speed: 3500
Backlash: 10 Arcsec
