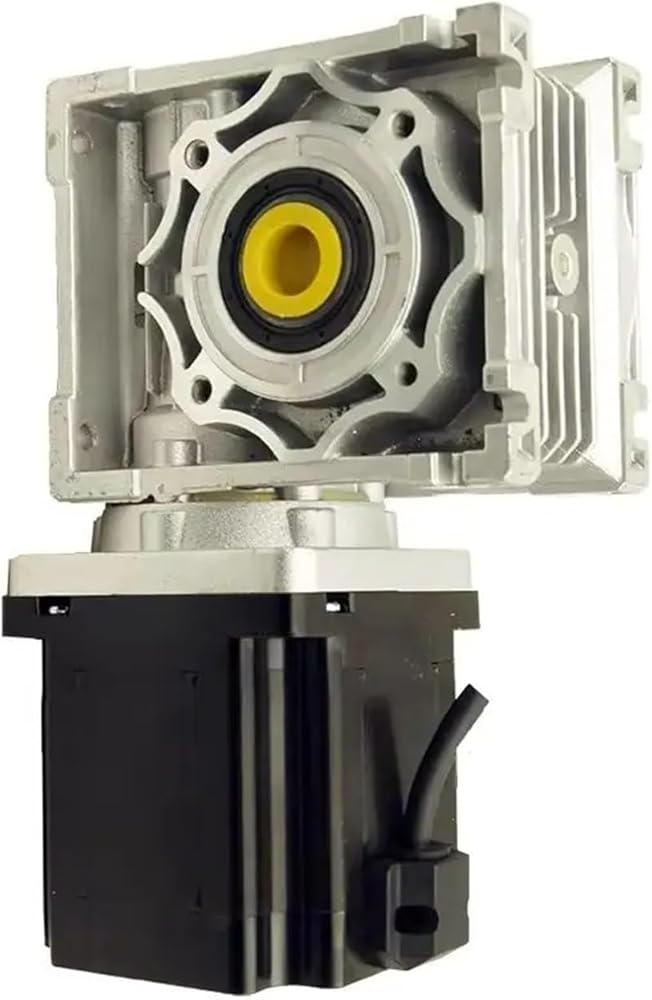

Worm geared 45NM NEMA34 stepper motor gearbox 51/7.5:1/15:1/20:1/30:1/40:1/50:1/60:1 reducer
Specifications
Model
Motor
Step
Angle (°)
Length
L(mm)
Motor
Holding
Tq (N.m)
Current
(A/Phase)
Resistance ()
Inductance (mH)
Motor
Rotor
Inertia
(g.cm2)
Weight
(kg)
Gear
Ratio
Matched
driver
86HSWG65A442
1.8
185
3.3
4.2
1.4
3.9
1000
4.3
5:1
7.5:1
10:1
15:1
20:1
25:1
30:1
40:1
50:1
60:1
80:1
100:1
JB860C
JB2811M
JB2522M
86HSWG80A460
200
4.5
6.0
0.8
3.4
1400
4.9
86HSWG118A460
238
8.5
6.0
1.2
6.0
2700
6.4
86HSWG156A460
276
12
6.0
1.25
8.0
4000
8.0
