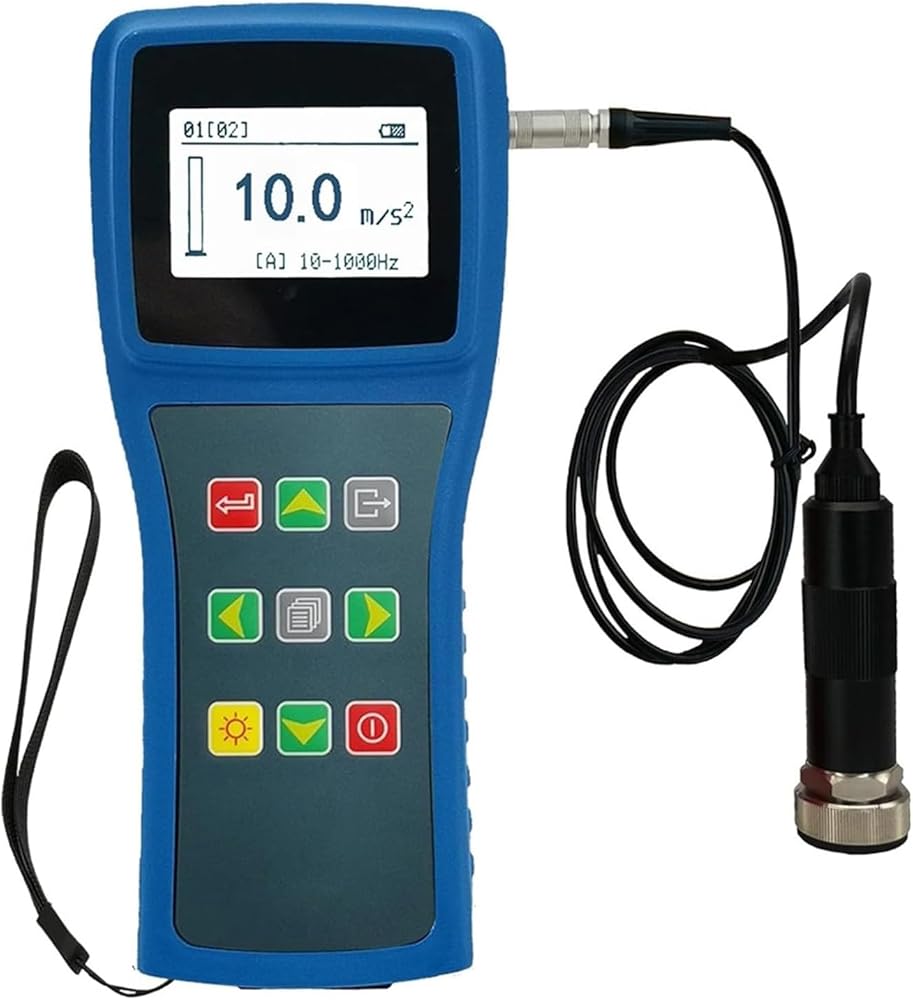

Portable Digital Vibration Meter, Mechanical Vibrometer Analyzer, with Split Sensor, Measurement Range 0.01~199.9mm/s, Data Storage, for Motors, Engines, Generator

KWD 378
– 1 +

Special Features

  • 【Vibration Testing】Vibration measurement in reciprocating machinery uses a piezoelectric accelerometer to convert vibration signals into electrical signals. The signals are processed, analyzed, and displayed to show acceleration, velocity, and displacement values
  • 【Measurement Range】Wide acceleration measurement range: 0.1~199.9 m/s² (peak); velocity measurement range: 0.1~199.9 mm/s; displacement measurement range: 0.001~1.999 mm. Backlight automatically turns on upon power-on

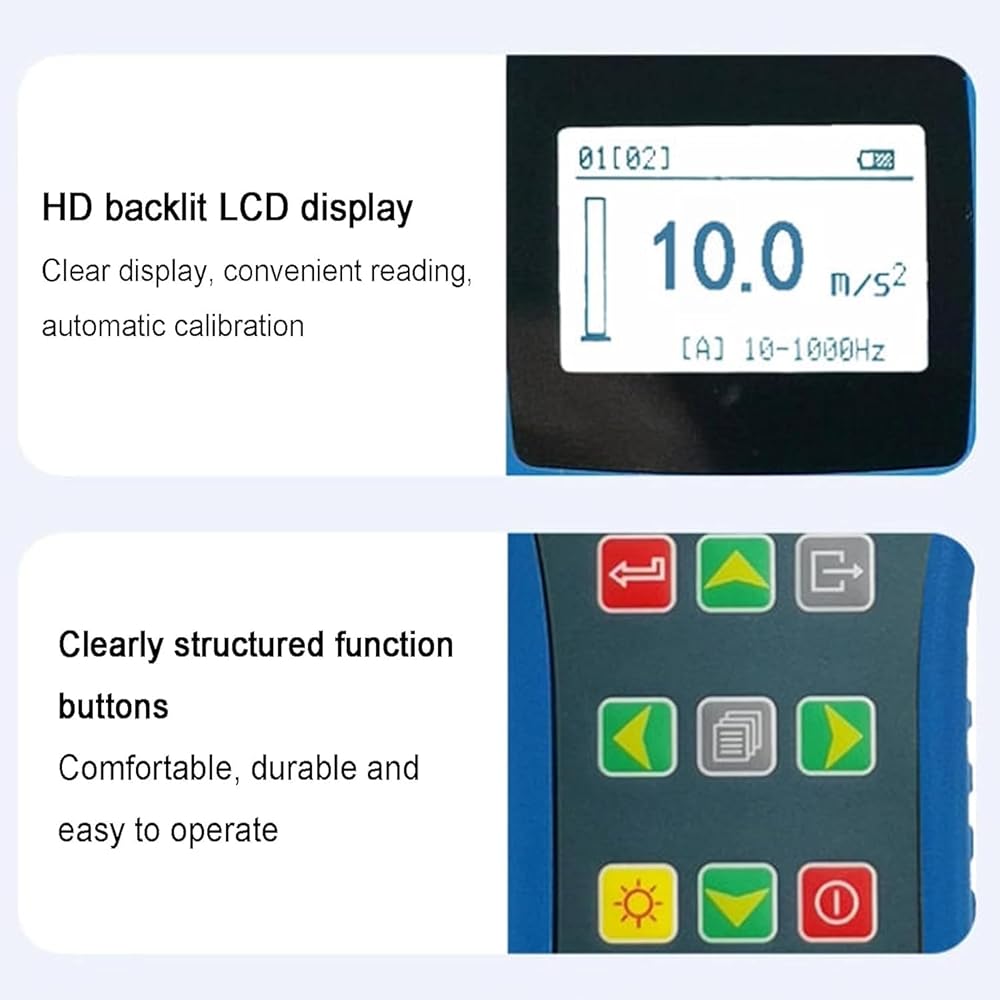

  • 【LCD Display】This vibration meter is equipped with a backlit LCD display. Measurement results and status are directly displayed. Built-in lithium battery and charging control circuitry provide extended working and standby time
  • 【Data Storage】It can measure peak acceleration, effective velocity (RMS) values, and peak-to-peak displacement values. A dynamic measurement histogram is displayed in real time. It can store 100 sets of single measurements (10 points per set) and measurement times
  • 【Applications】Suitable for measuring the routine vibration of mechanical equipment. Upper limit warning values ​​can be set. It is widely used in machinery manufacturing, power, chemical industry, aerospace and other fields

Description

Product description
Specifications:
Vibration Acquisition: Piezoelectric sensor
Measurement Range and Frequency
Acceleration: 0.1~199.9m/s (peak)/10Hz~1000Hz (L0), 1KHz~10KHz (HI)
Velocity: 0.1~199.9mm/s (RMS)/10Hz~1000Hz
Displacement: 0.001~1.999mm (peak-to-peak)/10Hz~500Hz
Display: 128x64 graphic dot matrix LCD, LED backlight
Data Storage: 10x10 measurement values
Power Supply: Lithium battery
Charging Power: 5VDC
Automatic Power Off Function: Automatic power off after 5 minutes of inactivity

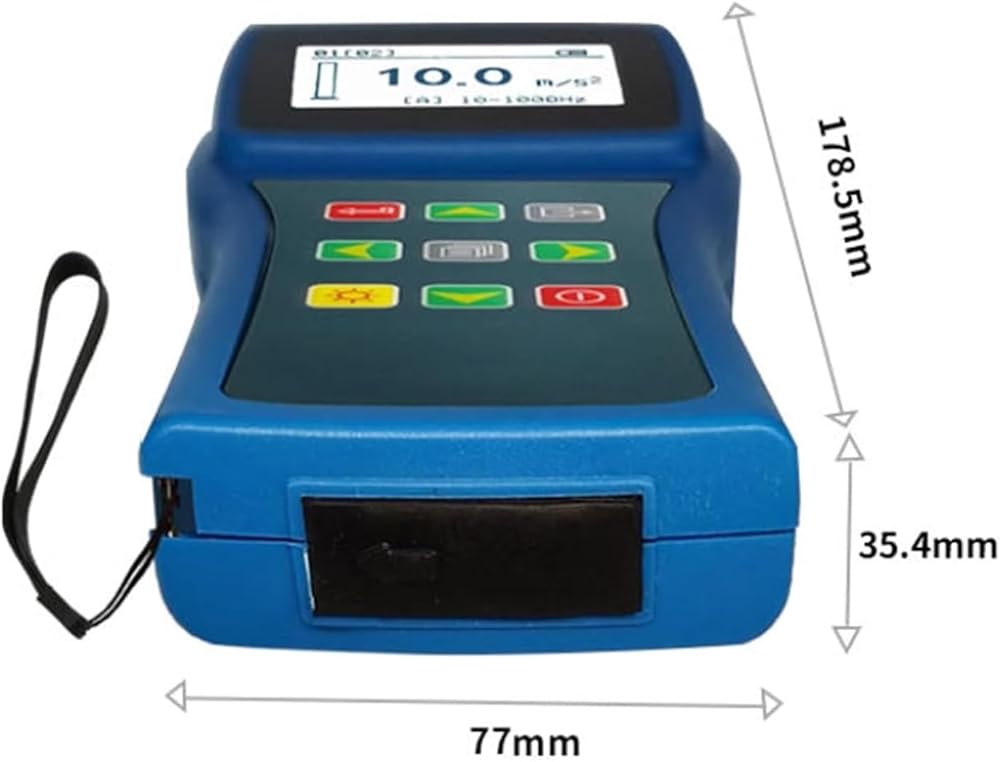

Product Dimensions: 179mm x 77mm x 35mm

Product Includes:
1*Digital Vibration Meter
