Specification

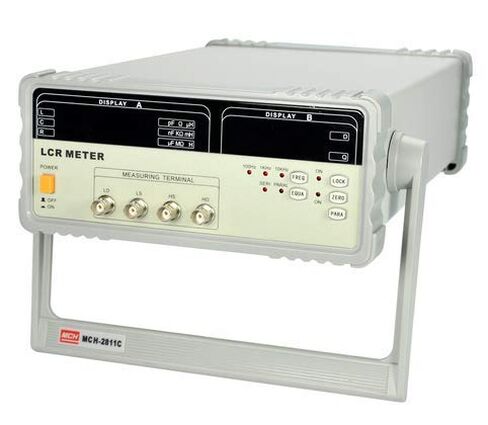

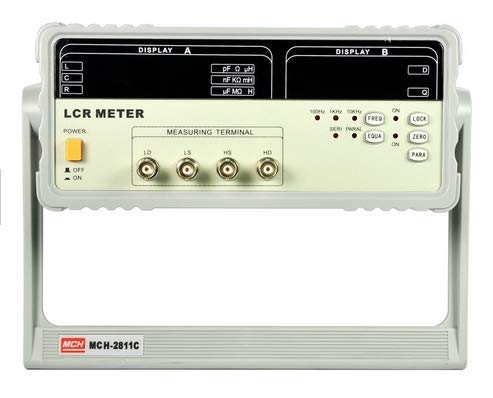

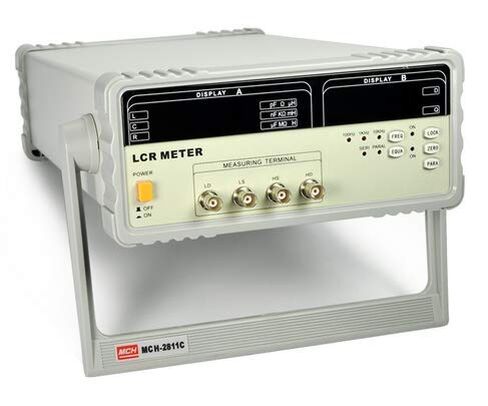

Model: 2811C
Measuring Parameters: L-Q, C-D, R-Q
Test Frequency: 100 Hz, 1 kHz, 10 kHz
Test Level: 0.3Vrms
Basic Accuracy: 0.25%
Display Range
R 0.0001 Ω-99.99 MΩ
C 0.01 pF -19999 µF
L 0.01 µH -9999 H
D 0.0001 - 9.999
Q 0.01 - 9999
Sampling Rate: 5 times/sec.
Equivalent Circuit: Series, Parallel
Test Mode: Auto, Hold
Calibration: Open circuit, Short circuit and Zeroing
Test Ports: 5 terminals
Display Mode: Direct readout
Operating Ambient: 0C° - 40C°, =90% RH

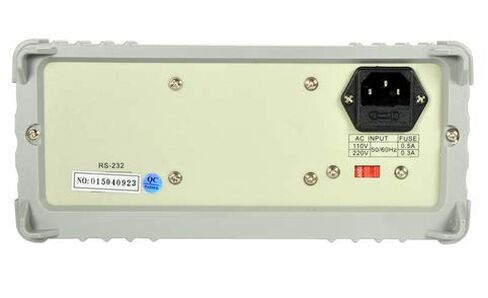

Power: AC110V or 220V ± 10% , 50/60Hz
Power Consumption: =20VA
Dimension: 350 mm × 110 mm × 340 mm
Weight: Approx. 3.5kg
