speed reducer
Gearboxes Gearheads & Speed Reducers
Note The actual pictures vary depending on the product model

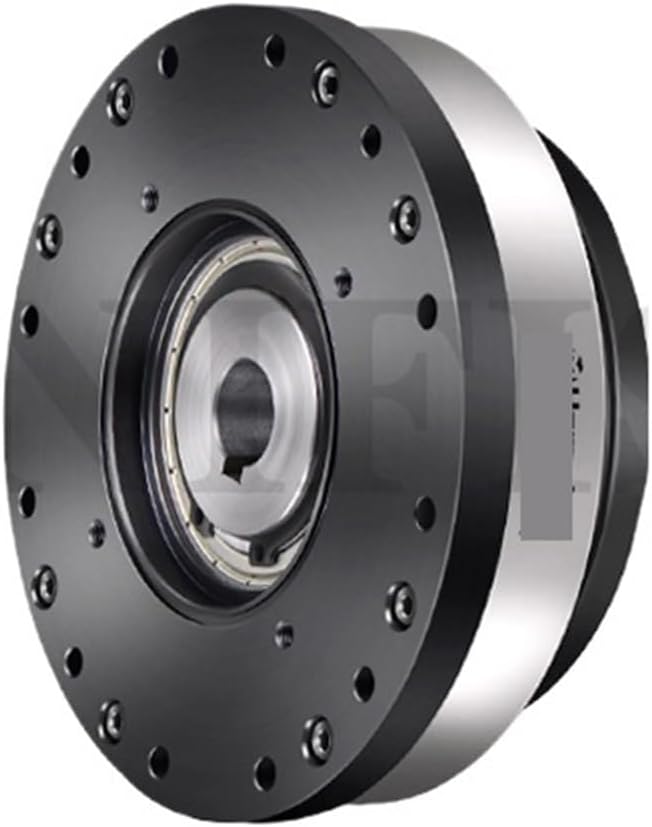

Renderings:
The motor in the picture is just for display.
The transported reducer does not include this motor.
HYT-32-50
Reduction ratio: 50
Rated Tq at input 2000r/min: 76Nm
Allowable peak Tq when starting and stopping: 216Nm
Allowable maximum average load Tq:108Nm
Instantaneous maximum allowable Tq: 382Nm
Allowable maximum input speed: 4800r/min
Allowable average input speed: 3500r/min
Backlash: 20Arcsec
HYT-32-80
Reduction ratio: 80
Rated Tq at input 2000r/min: 118Nm
Allowable peak Tq when starting and stopping: 304Nm
Allowable maximum average load Tq: 167Nm
Instantaneous maximum allowable Tq: 568Nm
Allowable maximum input speed: 4800r/min
Allowable average input speed: 3500r/min
Backlash: 20Arcsec
HYT-32-100
Reduction ratio: 100
Rated Tq at input 2000r/min: 137Nm
Allowable peak Tq when starting and stopping: 333Nm
Allowable maximum average load Tq: 216Nm
Instantaneous maximum allowable Tq: 647Nm
Allowable maximum input speed: 4800r/min
Allowable average input speed: 3500r/min
Backlash: 20Arcsec
HYT-32-120
Reduction ratio: 120
Rated Tq at input 2000r/min: 137Nm
Allowable peak Tq when starting and stopping: 353Nm
Allowable maximum average load Tq: 216Nm
Instantaneous maximum allowable Tq: 686Nm
Allowable maximum input speed: 4800r/min
Allowable average input speed: 3500r/min
Backlash: 20Arcsec
