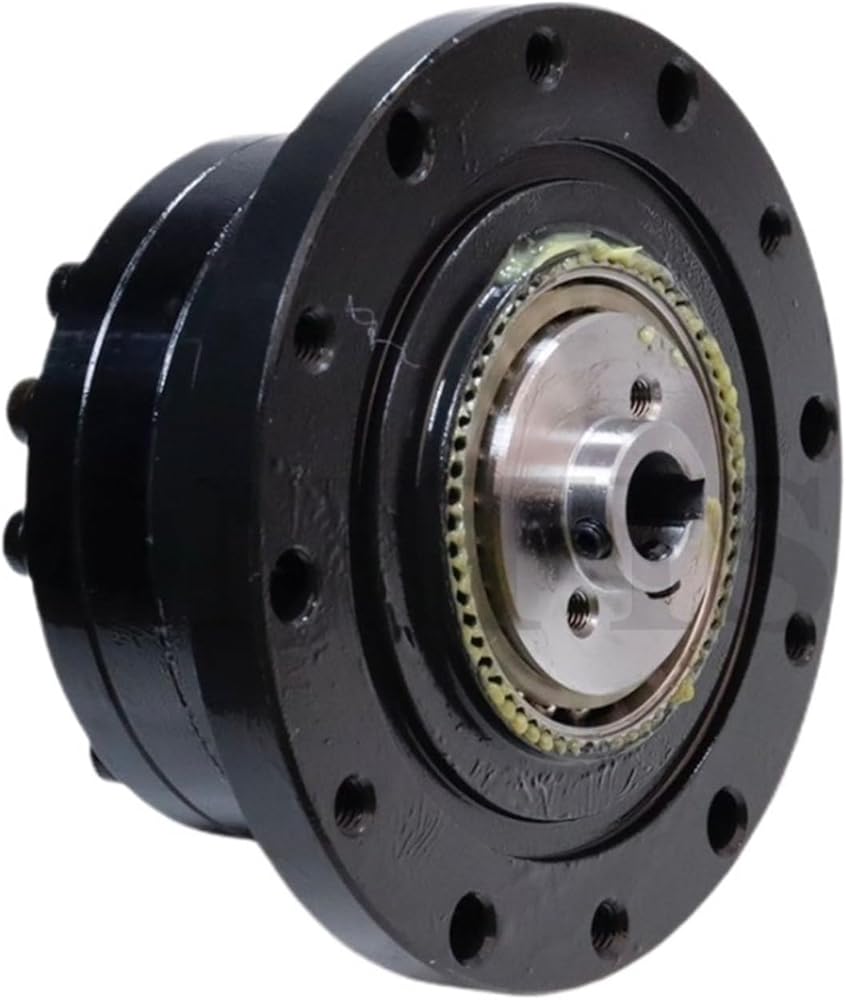

speed reducer
Gearboxes Gearheads & Speed Reducers
Note Different product models have different appearance size and weight parameters
XZS40-50
Reduction ratio: 50
Rated Tq when inputting 2000r/min: 178 Nm(18 kgfm)
Allowable peak Tq when starting and stopping: 523 Nm(53 kgfm)
Allowable maximum value of average load Tq: 255 Nm(26 kgfm)
Momentary allowable maximum Tq: 892 Nm(91 kgfm)
Allowable maximum input speed: 4000 r/min
Allowable average input speed: 3000 r/min
Backlash: 10 Aresec
XZS40-80
Reduction ratio: 80
Rated Tq when inputting 2000r/min: 268 Nm(27 kgfm)
Allowable peak Tq when starting and stopping: 675 Nm(69 kgfm)
Allowable maximum value of average load Tq: 369 Nm(38 kgfm)
Momentary allowable maximum Tq: 1270 Nm(130 kgfm)
Allowable maximum input speed: 4000 r/min
Allowable average input speed: 3000 r/min
Backlash: 10 Aresec
XZS40-100
Reduction ratio: 100
Rated Tq when inputting 2000r/min: 345 Nm(35 kgfm)
Allowable peak Tq when starting and stopping: 738 Nm(75 kgfm)
Allowable maximum value of average load Tq: 484 Nm(49 kgfm)
Momentary allowable maximum Tq: 1400 Nm(143 kgfm)
Allowable maximum input speed: 4000 r/min
Allowable average input speed: 3000 r/min
Backlash: 10 Aresec
XZS40-120
Reduction ratio: 120
Rated Tq when inputting 2000r/min: 382 Nm(39 kgfm)
Allowable peak Tq when starting and stopping: 802 Nm(82 kgfm)
Allowable maximum value of average load Tq: 586 Nm(60 kgfm)
Momentary allowable maximum Tq: 1530 Nm(156 kgfm)
Allowable maximum input speed: 4000 r/min
Allowable average input speed: 3000 r/min
Backlash: 10 Aresec
XZS40-160
Reduction ratio: 160
Rated Tq when inputting 2000r/min: 382 Nm(39 kgfm)
Allowable peak Tq when starting and stopping: 841 Nm(86 kgfm)
Allowable maximum value of average load Tq: 586 Nm(30 kgfm)
Momentary allowable maximum Tq: 1530 Nm(156 kgfm)
Allowable maximum input speed: 4000 r/min
Allowable average input speed: 3000 r/min
Backlash: 10 Aresec
the product does not include lubricant.
