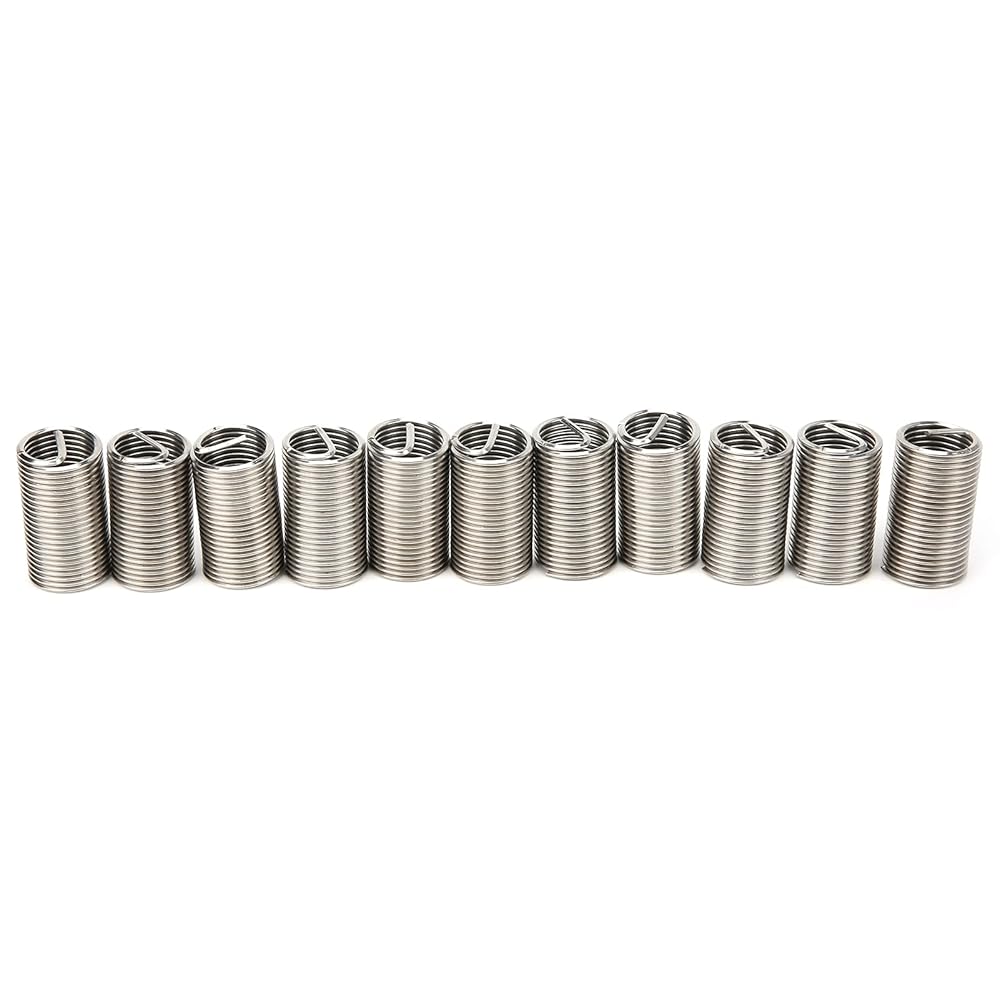

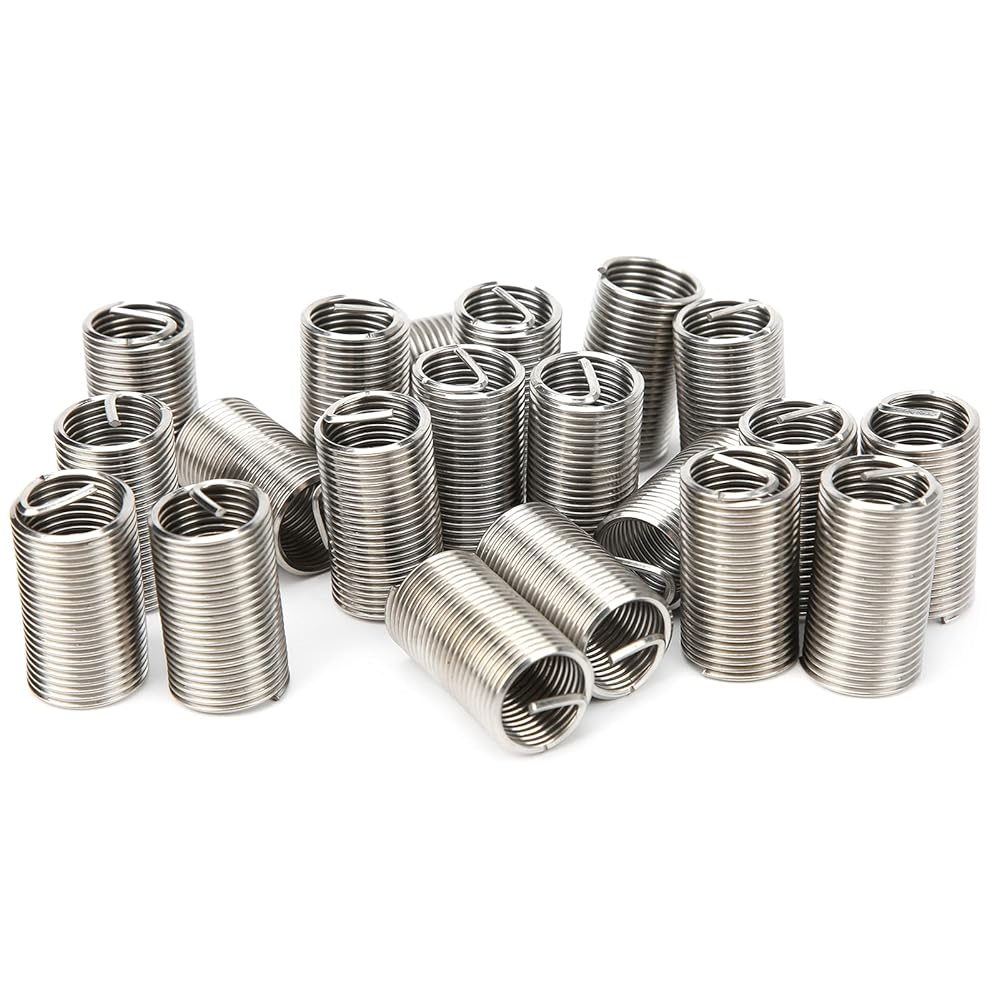

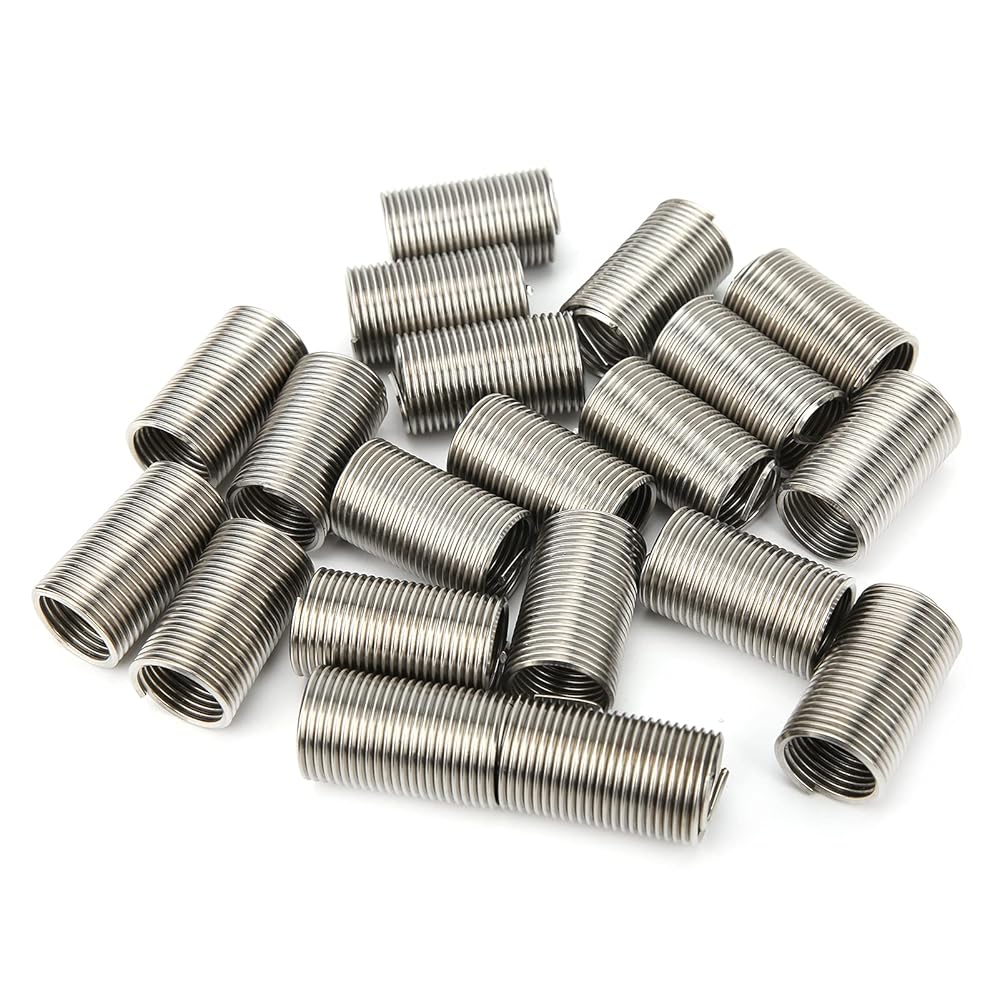

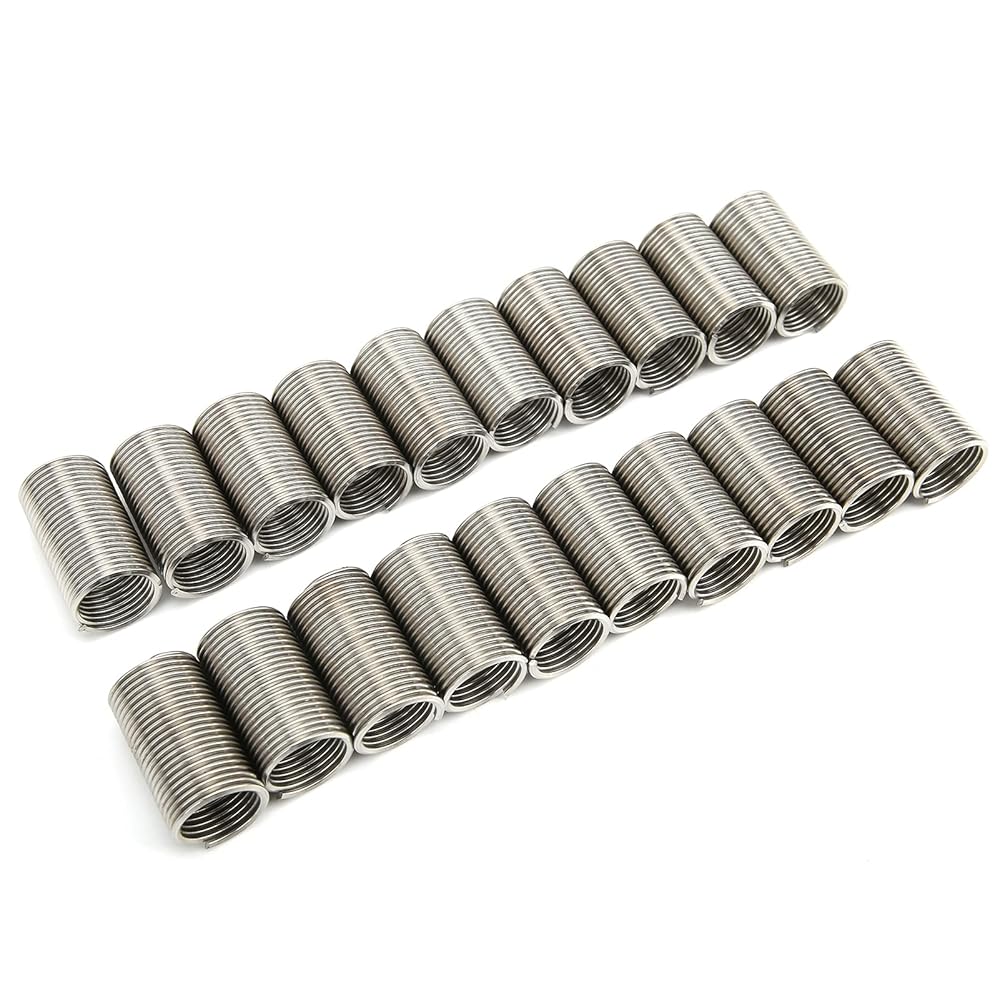

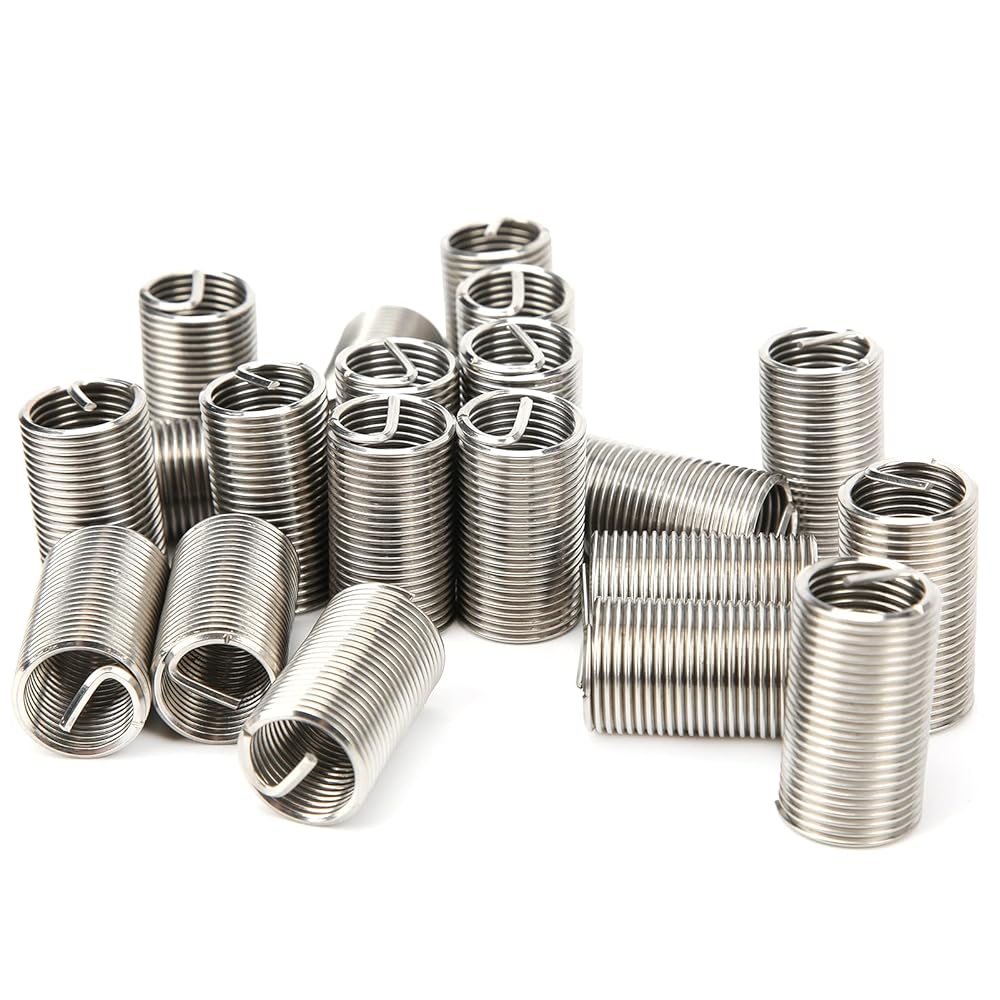

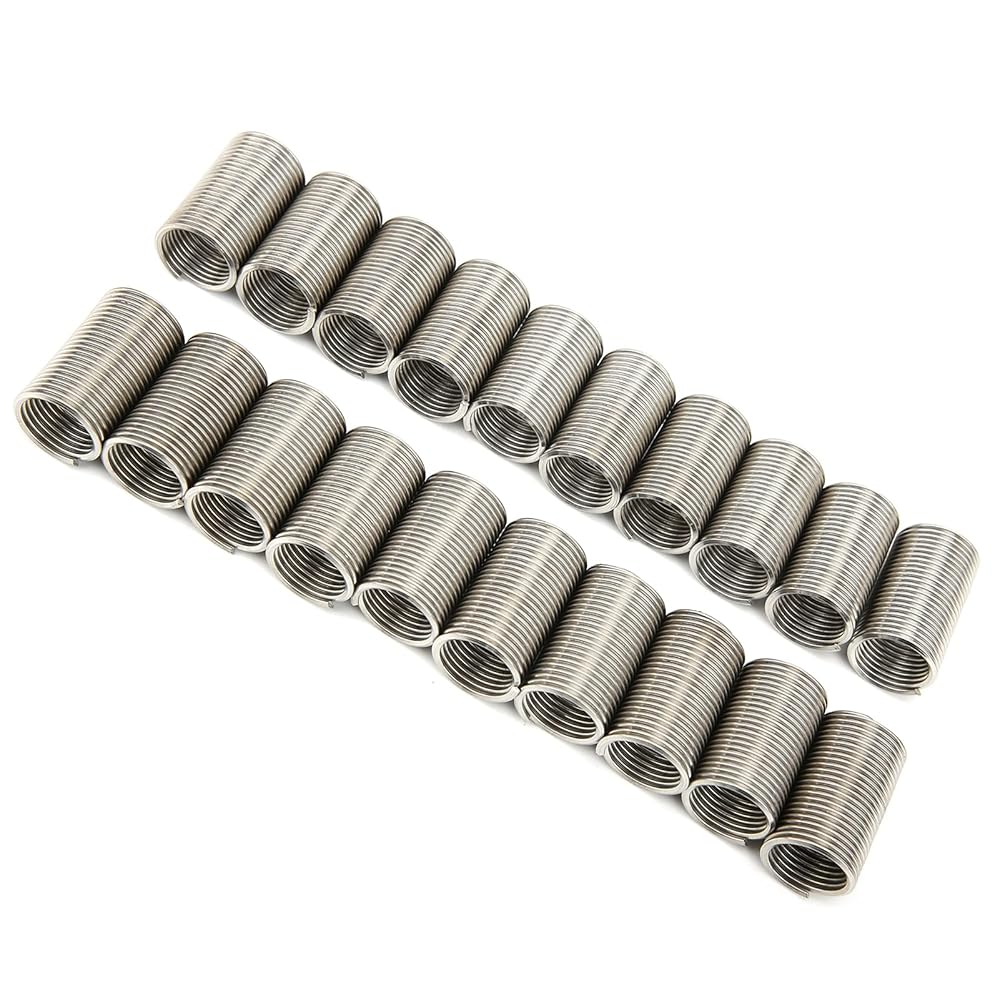

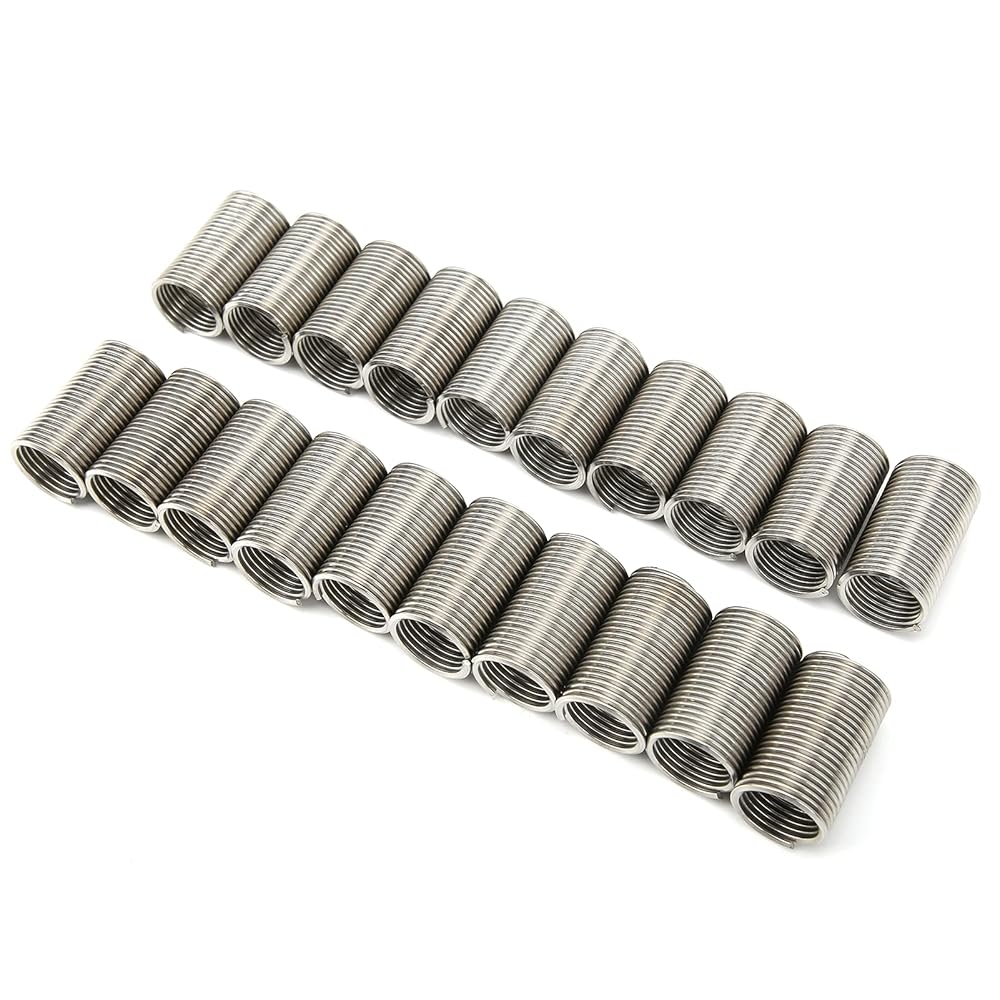

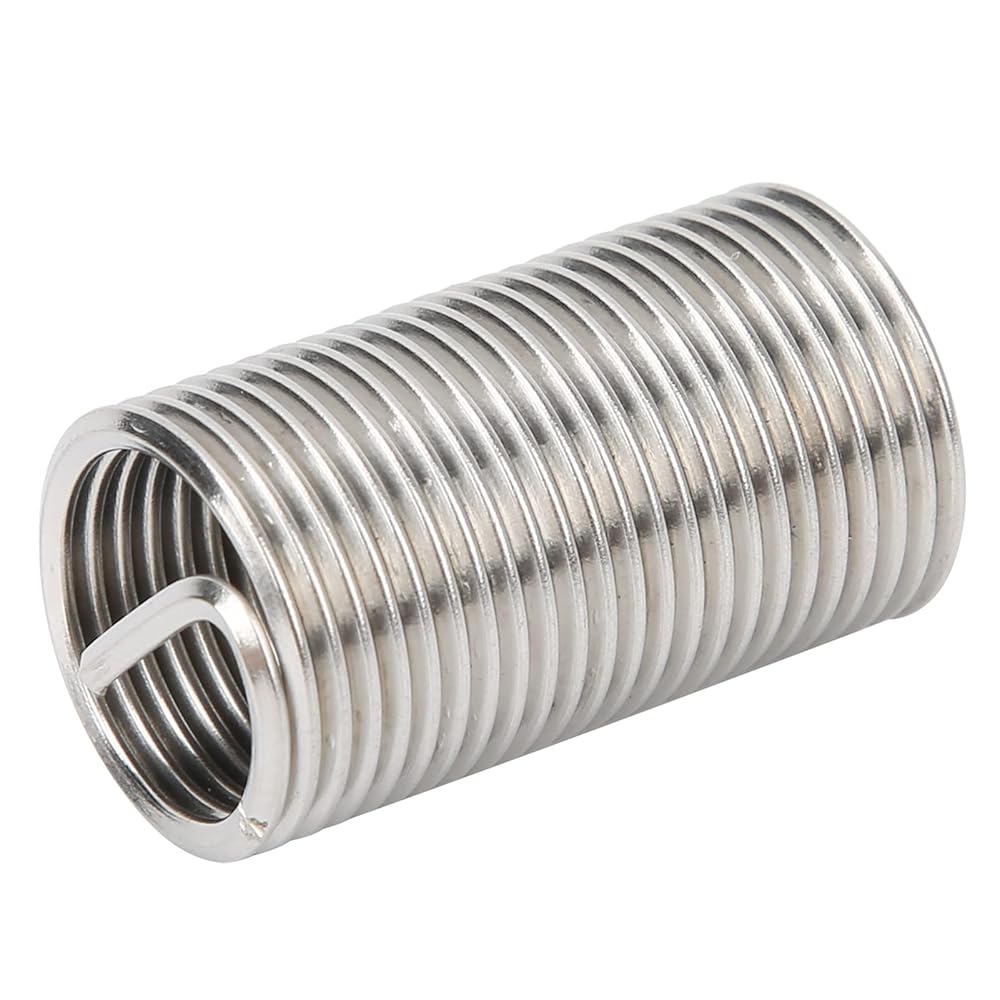

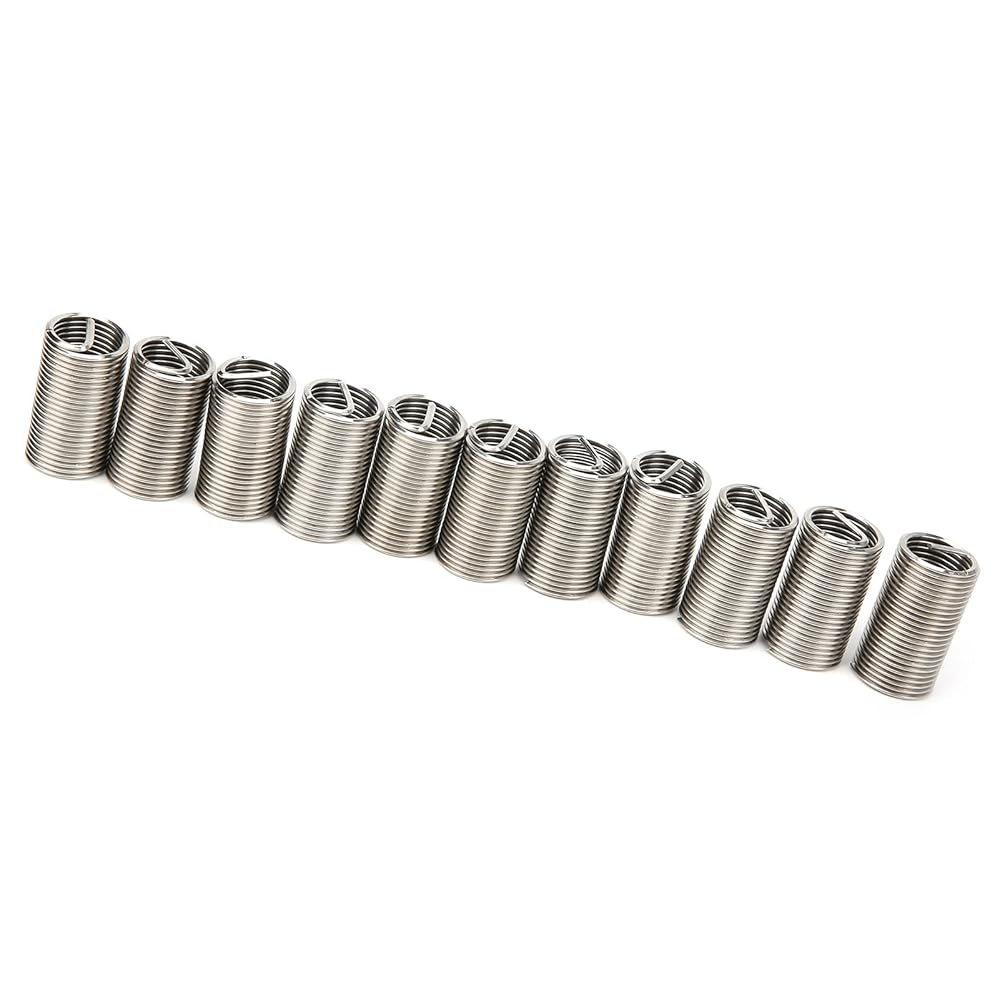

Item Type: Wire Thread Inserts
Material: SUS304
Model: M14 x 1.5 x 3D
Thread Specification: Approx. M14 x 1.5mm/M0.55 x 0.06in
Length After Installation: Approx. 42mm/1.65in
Number of Laps Before Installation: 23
Outside Diameter Before Installation: Approx. 16.7-17.2mm/0.66 x 0.68in
Diameter of Drilling Drill Bit for Installation: Approx. 14.4mm/0.6in
Thread protective sleeve model specification description: For example: M3 x 0.5 x 1.5D, which means that after the screw is set, the internal thread is M3, the pitch is 0.5, and the length is 1.5D (length is 1.5 times the diameter, that is, 1.5 x 3 = 4.5mm/0.18in), the length here refers to the length after installation.
Wire thread inserts are also called threaded sheaths, stainless steel threaded sleeves, wire sleeves, and braces. They are a new type of internal threaded fasteners made of high-strength, high-precision -shaped cross-section steel wire; in aluminum alloy, zinc The application of low-strength engineering materials such as alloys, magnesium alloys, copper, plastics, and synthesis board can significantly improve thread strength and wear .

Package List：
20 x Screw
