Roller Tables

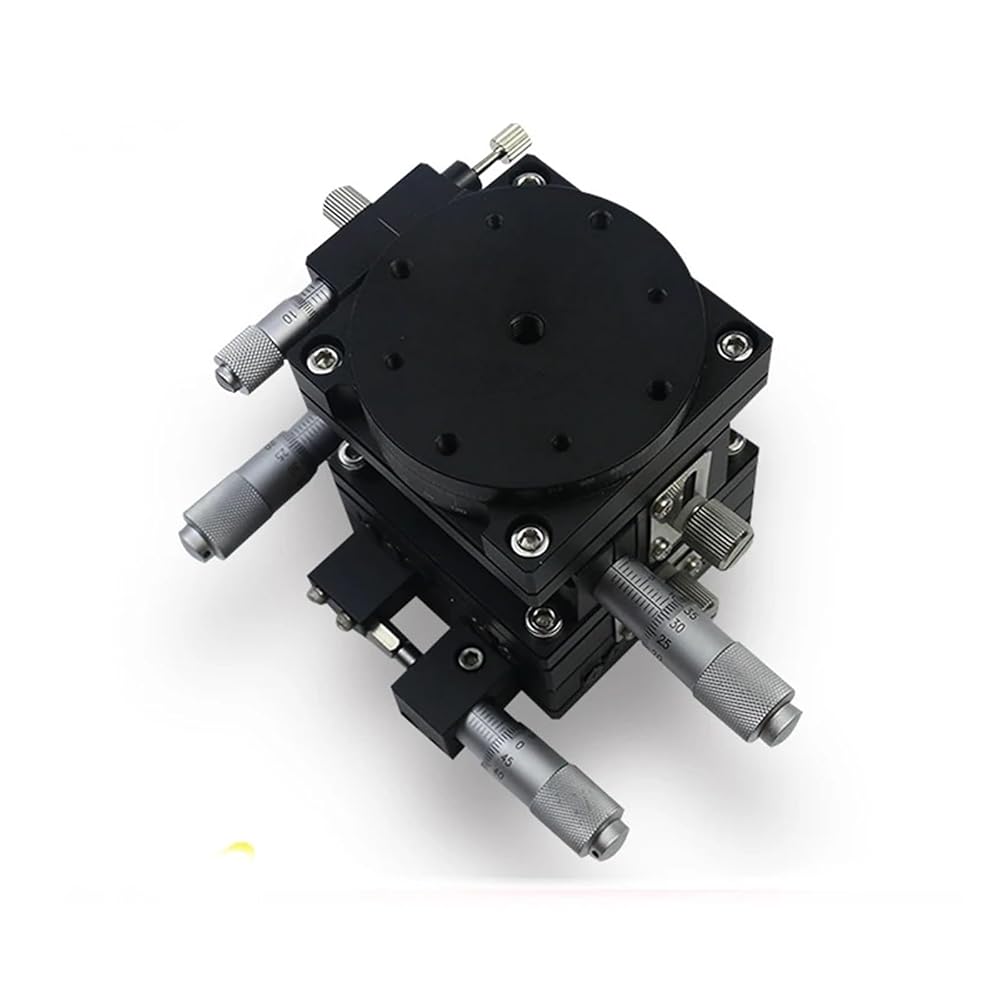

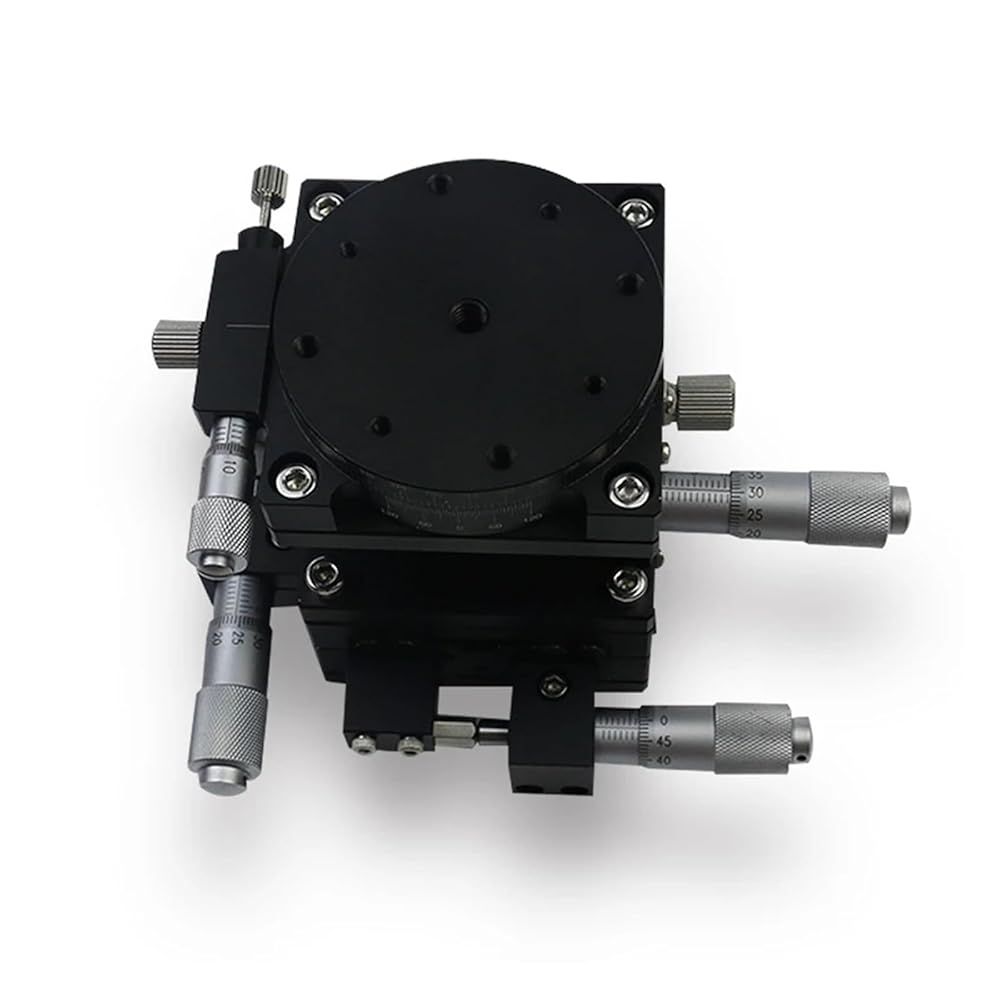

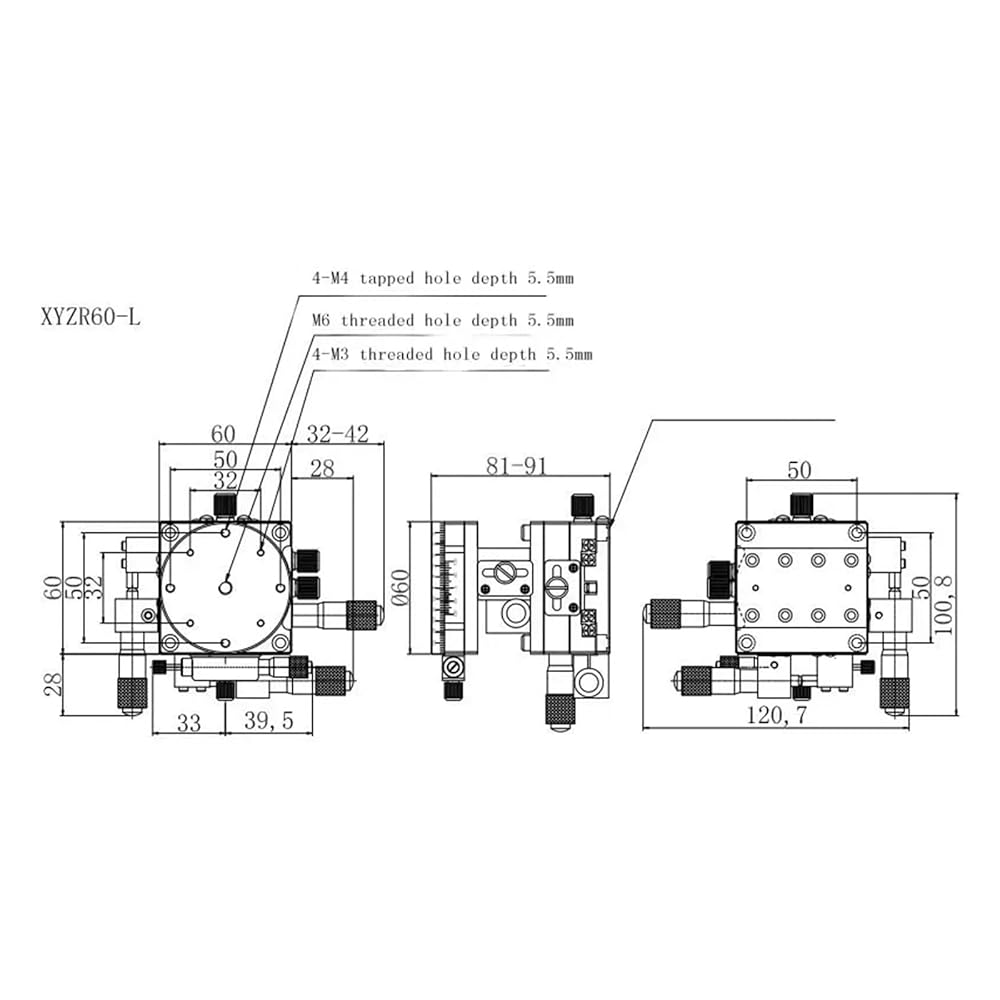

Product model specifications: XYZR60-L
Movement direction: four directions of XYZR axis
Achievable: forward, backward, left, right, lifting, fine-tuning
Material: Aluminum alloy (surface black anodized)
Workbench size: 60mm×60mm
Guide rail type: V-type precision crossed roller guide rail
Movement amount: XY axis ±6.5mm, Z axis 10mm
R axis: coarse adjustment 360° rotation, fine adjustment ±5°
Minimum reading of micrometer knob: 10um/scale
Load: 29.4N (3kgf)
Accuracy: 10um
Straightness: 5um
Weight: 0.96KG
