Handheld Digital Vibration Analyer Tester, W/LCD Display, Measuring Range 0.1-199.9m/s2, Speed Measurement 180rpm-60000rpm, Portable Digital Vibration Meter, Sensitive Probe

KWD 321
– 1 +

Special Features

  • Portable Vibration Meter: Utilizes piezoelectric accelerometers to convert vibration signals into electrical signals, providing precise analysis of acceleration and vibration changes, ensuring reliable performance

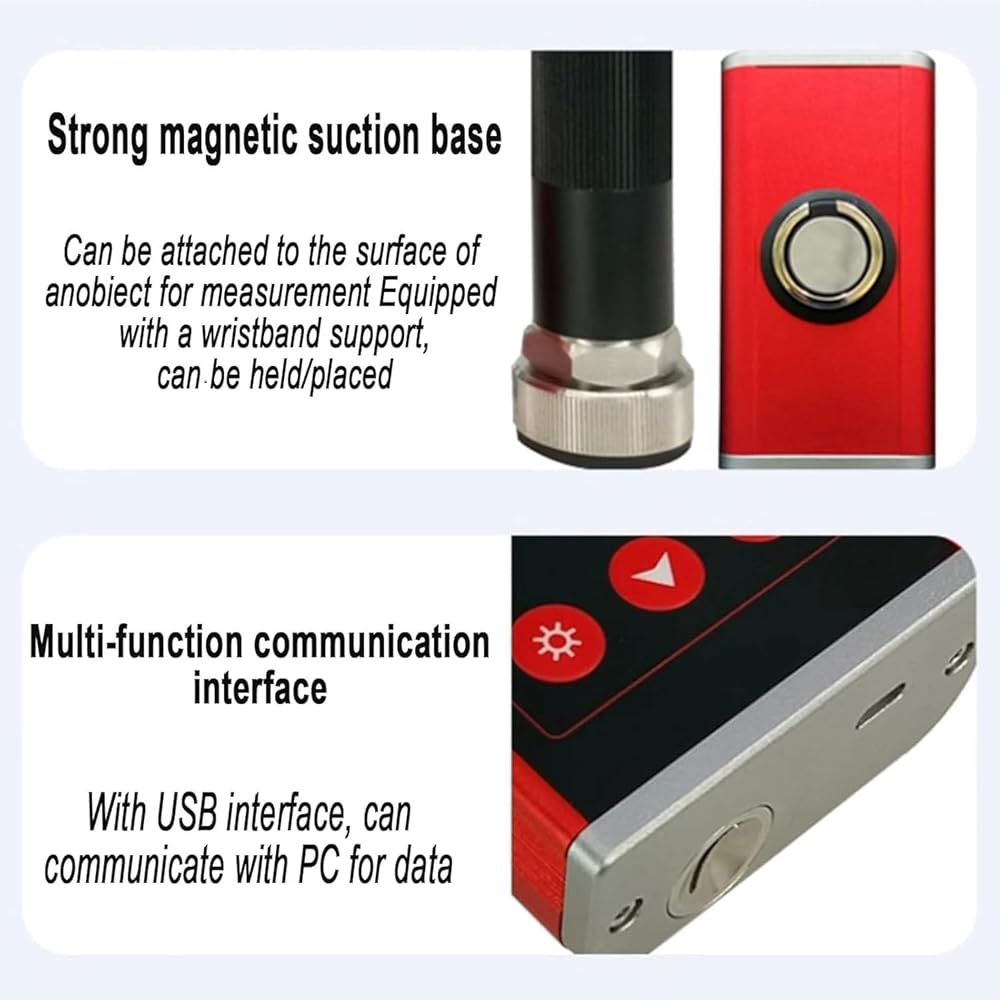

  • Sensitive Probe: The vibration tester features a split probe design with a strong magnetic base that attaches to the surfaces for measurement
  • Comprehensive Measurement: Accurately measures acceleration (m/s2 peak), velocity (mm/s RMS), and displacement (mm peak-to-peak), making it suitable for a variety of industrial applications

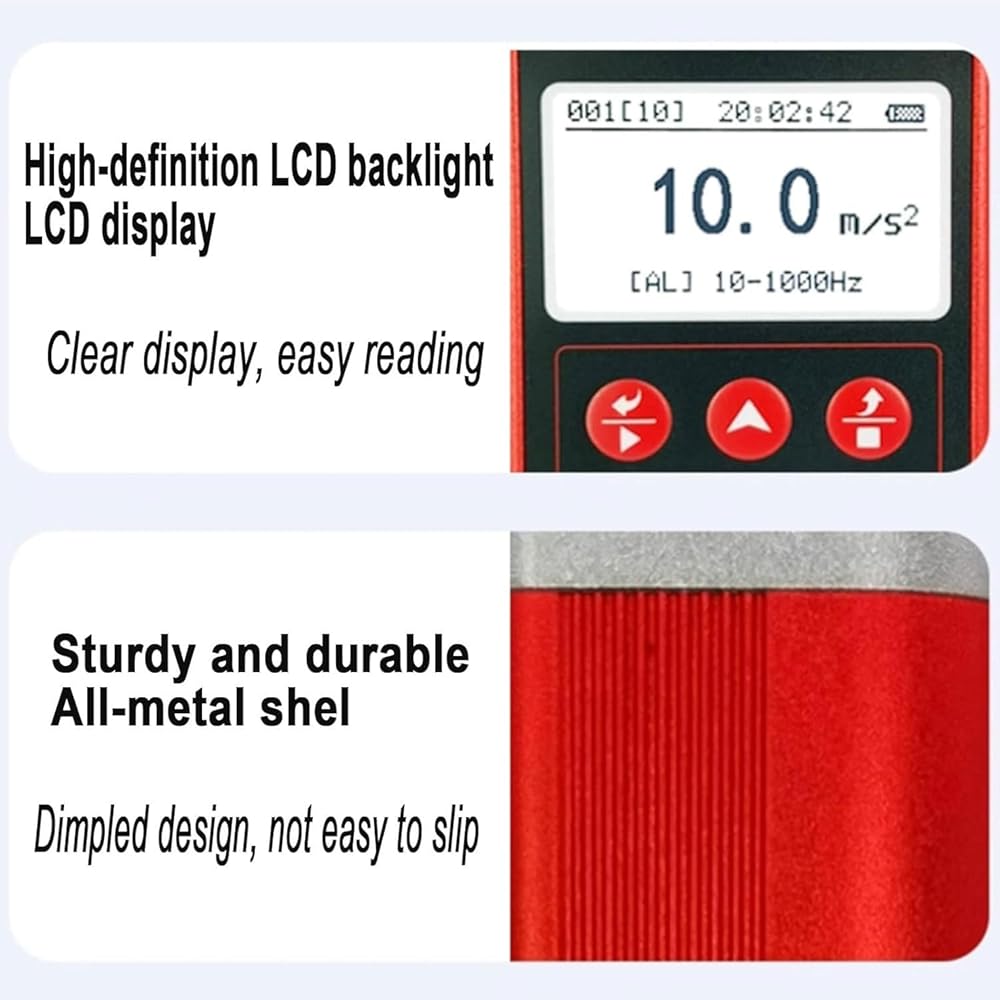

  • User-Friendly LCD Display: The easy-to-read LCD directly displays measurement results and status, with a selectable backlight for low-light environments
  • Wide Applications: This vibration meter is an ideal tool for measuring vibration. It is widely used in power generation, machinery manufacturing, metallurgy, vehicles, and other fields

Description

Specification
Product Name: Portable Vibration Meter
Product Function: Vibration Measurement

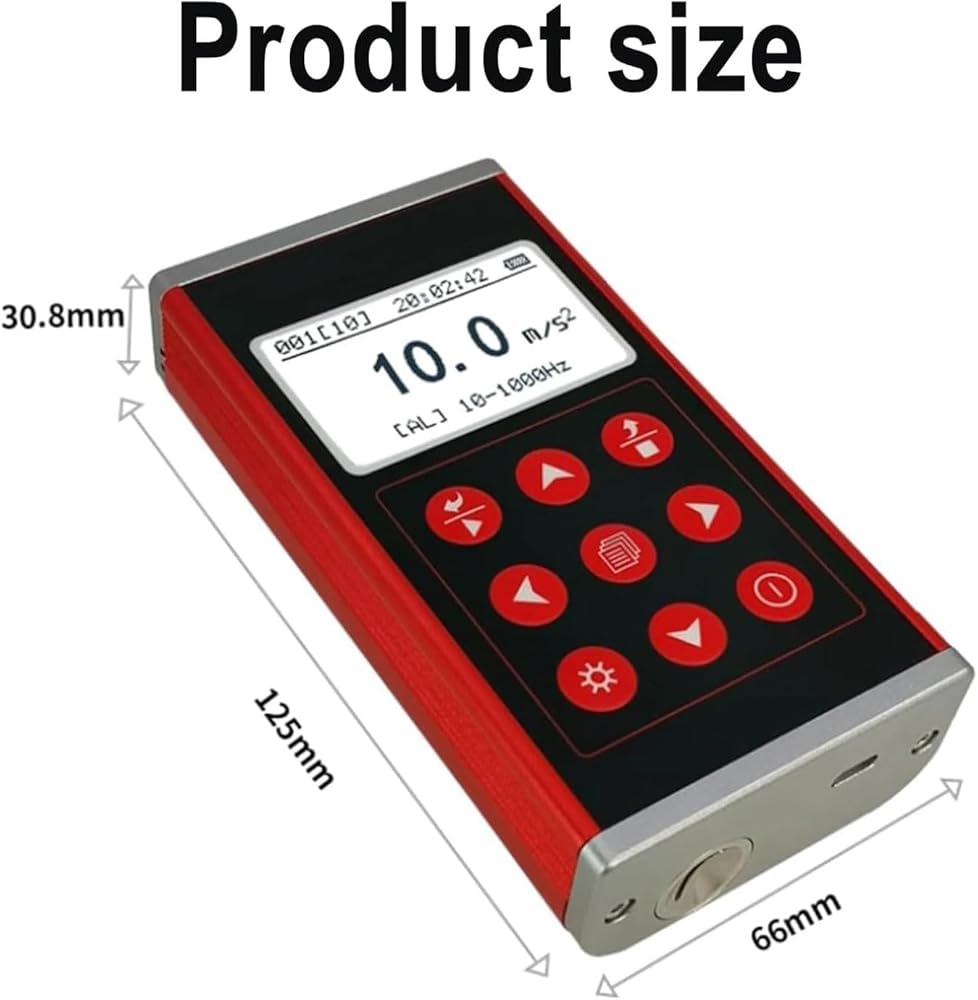

Product size: 125mmx66mmx30.8mm
Vibration measurement range:
Acceleration: 0.1m/s2~199.9m/s2 (peak)
Speed: 0.1mm/s~199.9mm/s (effective value)
Displacement: 0.001mm~1.999mm (peak to peak)
Frequency range:
Acceleration L: 10Hz~1kHz
Acceleration H: 1kHz~10kHz
Speed: 10Hz~1kHz
Displacement: 10Hz~500Hz
Frequency measurement range: 3Hz~10KHz
Speed measurement range: 180rpm~60000rpm
Allowable error: ± 5%
Temperature range: 0 ° C~40 ° C
Temperature range: ≤ 80% RH
Display: LCD, 128x64 graphic dot matrix LCD, LED backlight
Data storage: 100x10 measurement values
Over limit alarm: Yes

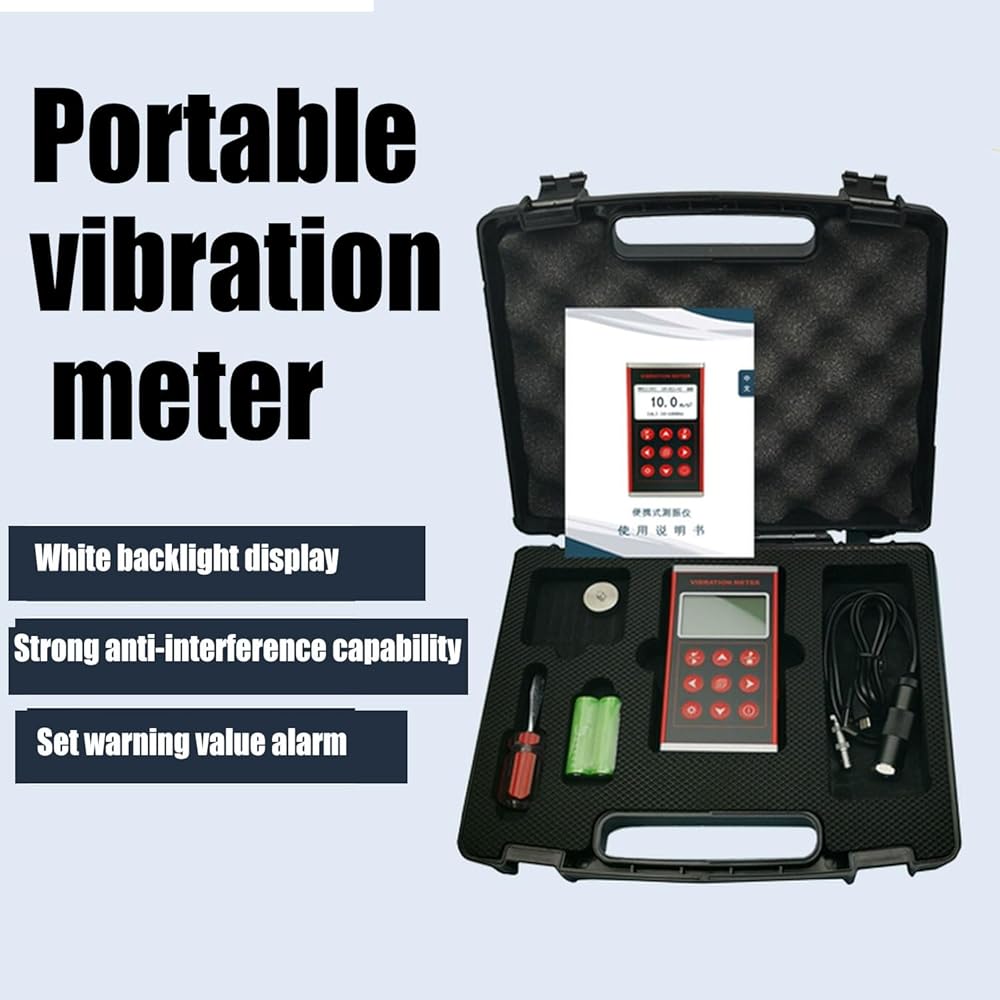

Product List:
1x portable vibration meter
