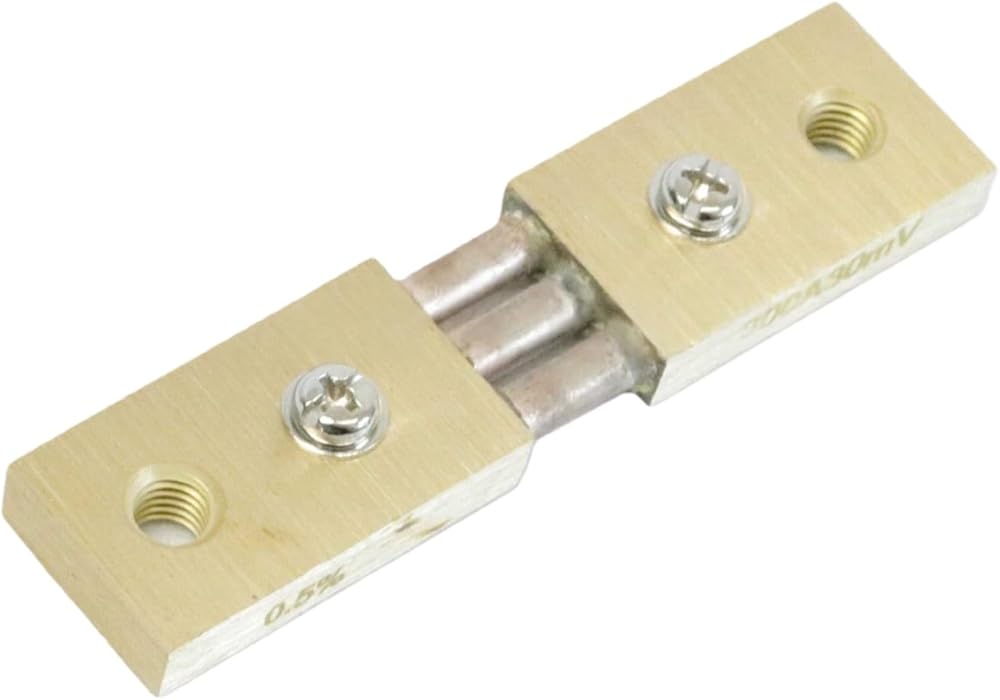

FL-TS 300A 30MV Current Shunt DC Shunt
Product Name: Shunt
Environmental Conditions: -40℃ to 60℃

Model: FL-2
Accuracy Level: 0.5 level for 1–4000A; 1 level for 5000–15000A

Overload Capability: 120% of rated current
Relative Humidity: ≤95% (at 35℃)

Voltage Drop: 30mV
Overload Performance: 120% of rated current for 2 hours

Notes:
No artificial contact resistance is allowed at the connection points between the primary circuit cable (or copper busbar) and the shunt. The secondary voltage sampling point must not be taken from non-sampling points.
It is recommended that the actual operating current (for extended periods) should not exceed 80% of the rated current.

Heat Rise Under Load:
After temperature stabilizes:

For rated currents up to 50A, temperature shall not exceed 80℃.

For rated currents above 50A, temperature shall not exceed 120℃.

Secondary Voltage Drop Options:
50mV, 60mV, 75mV, 100mV, 150mV, 200mV, 300mV, etc. Default is 30mV.
