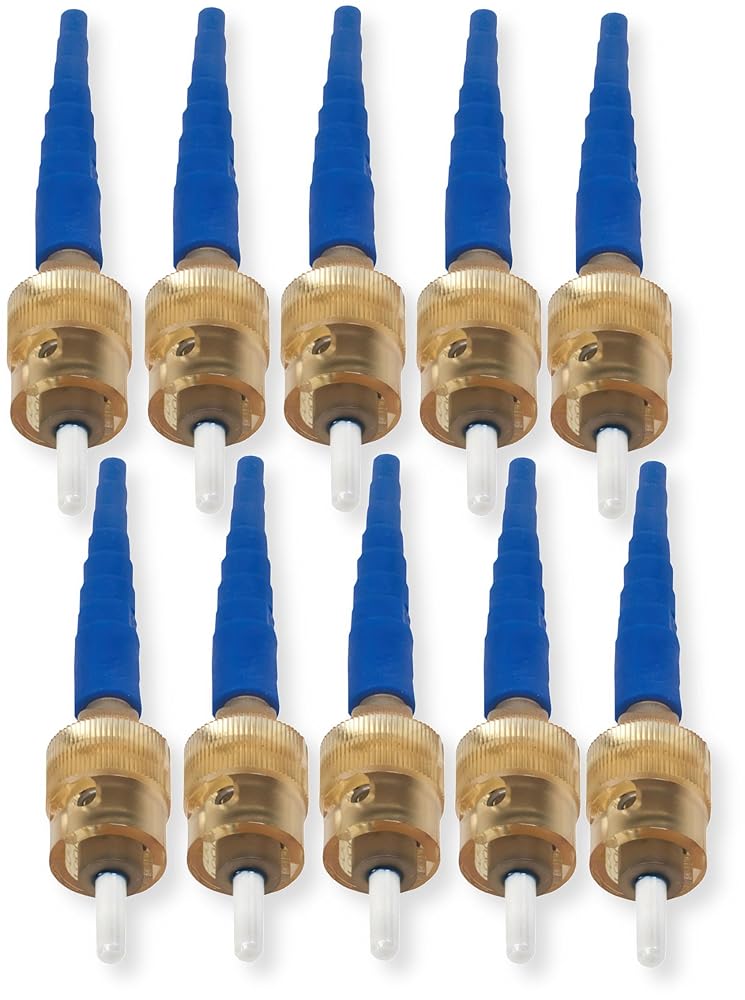

Corning 95-200-51 UniCam Connectors, ST compatible; Single-mode OS2 Pretium Fiber Optic Connector; Amber Housing, Blue Boot; Field-Installable; Corning Logo
The Corning UniCam 95-200-51 ST Compatible Single Mode Fiber Optic Connector is a high-performance, field-installable solution designed for fast and reliable fiber optic network terminations. With no epoxy or polishing required, this connector offers a quick, cost-effective installation process while maintaining exceptional optical performance. Its durable design and wide operating temperature range make it ideal for various applications, ensuring long-lasting reliability and efficiency
No epoxy or polishing required for installation
ST-compatible design for universal application
Insertion loss typical at 0.2 dB, maximum at 0.5 dB
Reflectance less than -55 dB for high signal quality
Durable with up to 500 rematings without significant loss
Operates in temperatures from -40°F to 167°F (-40°C to 75°C)
RoHS compliant
Lightweight and portable for easy handling in the field
Includes crimp band and boots for secure connections
Fiber Category: Single-mode (OS2)
Corning Logo: Yes
Technology: No-Epoxy/No-Polish
Temperature Range, Operation: -40C to 75C (-40F to 167F)
Connector Type: ST-compatible
Housing Color: Amber
Boot Color: Blue
Tensile Strength 900 µm Cable: 4.9 N (1.1 lb) change, less than or equal to 0.2 dB, FOTP-6
Pulling Force: 125 lbs
Insertion Loss, Max.: 0.5 dB
Insertion Loss, Typical: 0.2 dB
Package Contents: Connector, crimp band, boot (900 µm), boot (3.0 mm)
