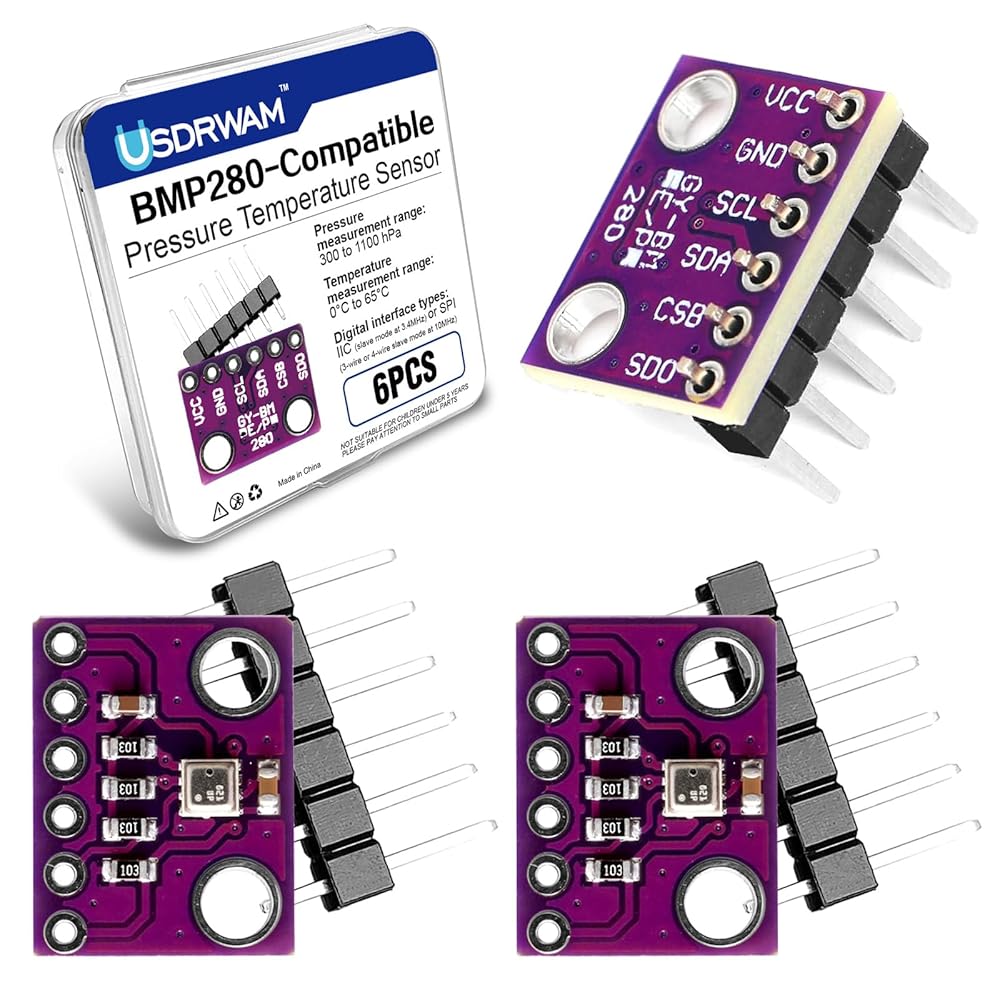

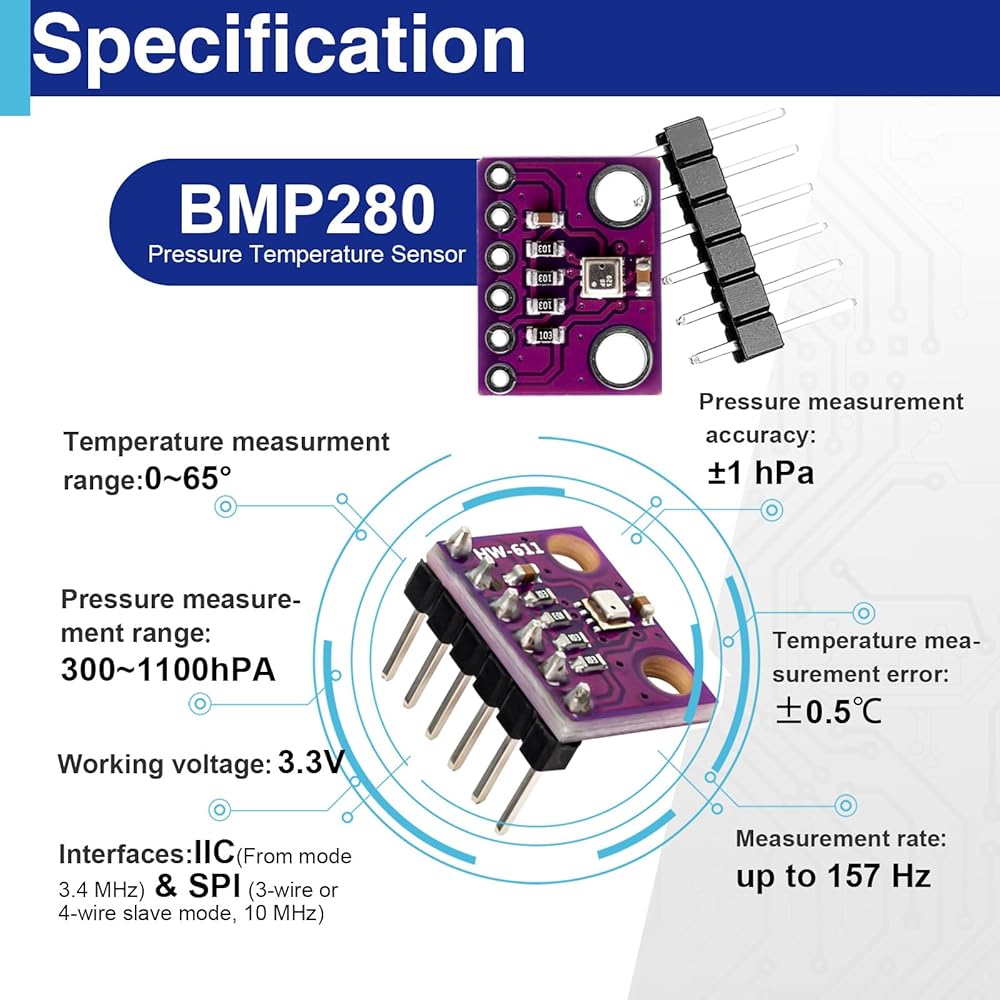

Quality & Precision: This module is built around the Bosch BMP280 digital barometric pressure & temperature sensor, delivering industry-grade measurements: atmospheric pressure from 300–1100 hPa with ±1 hPa (typ.) accuracy, and temperature from −40 °C to 85 °C with ±1 °C (typ.) resolution. Note: the BMP280 does not include a humidity sensor.

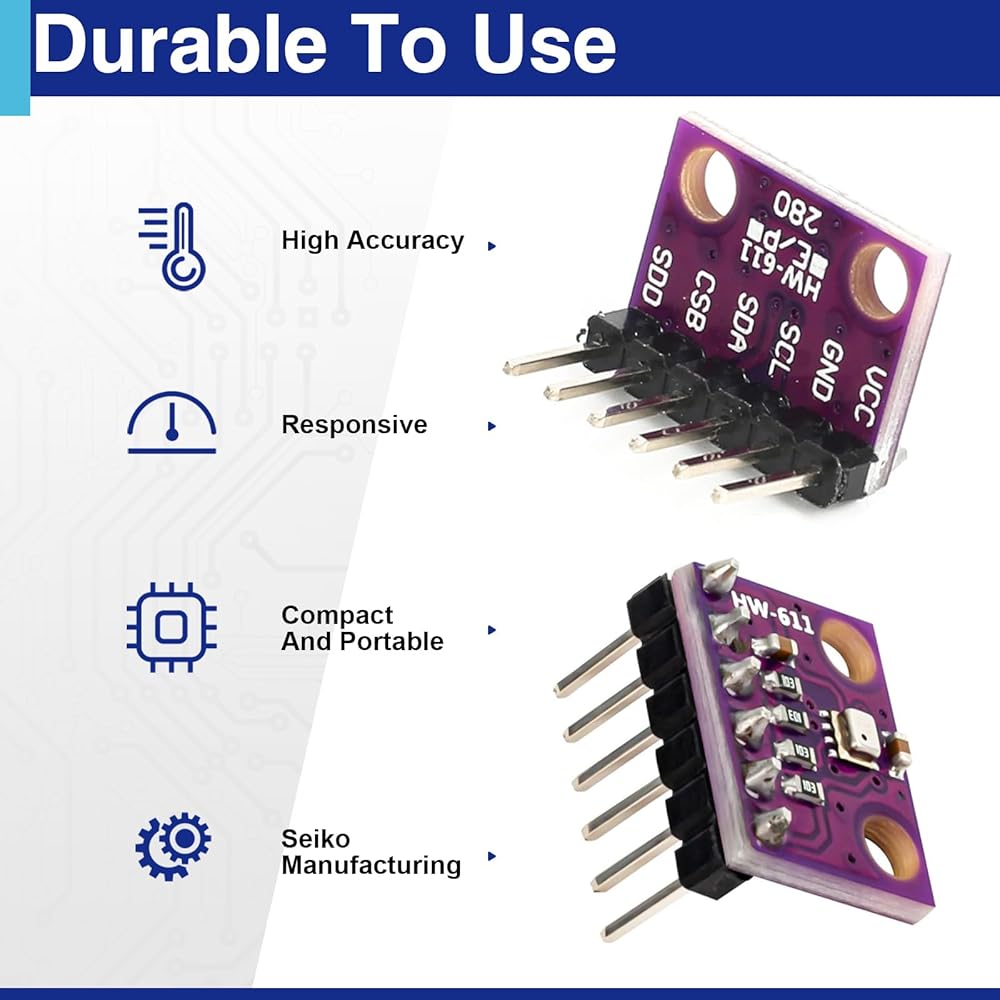

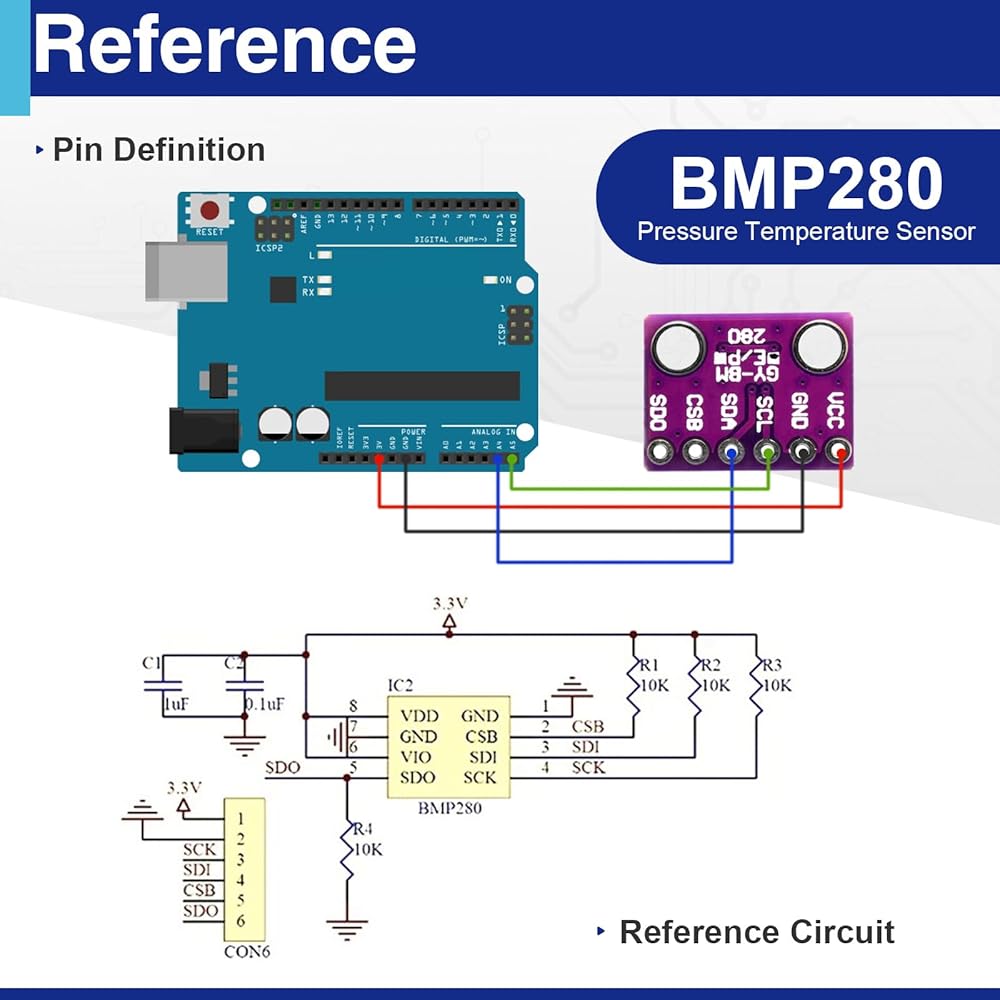

Reliable & Easy Integration: Equipped with Bosch's high-performance MEMS sensor and onboard signal-conditioning circuitry, the module offers excellent long-term stability, fast response, and strong anti-interference capability. A standardized 6-pin layout (VCC, GND, SCL/SCK, SDA/SDI) simplifies wiring to Arduino, Raspberry Pi, ESP32, and other microcontrollers for plug-and-play integration.
Versatile Power & Interface: Operates from a single 3.3 V supply (logic-level safe) and supports both I²C (up to 3.4 MHz) and SPI (up to 10 MHz) digital interfaces. All required pull-up resistors are included onboard—simply connect VCC, GND, SCL/SCK, and SDA/SDI and you're ready to read pressure and temperature.

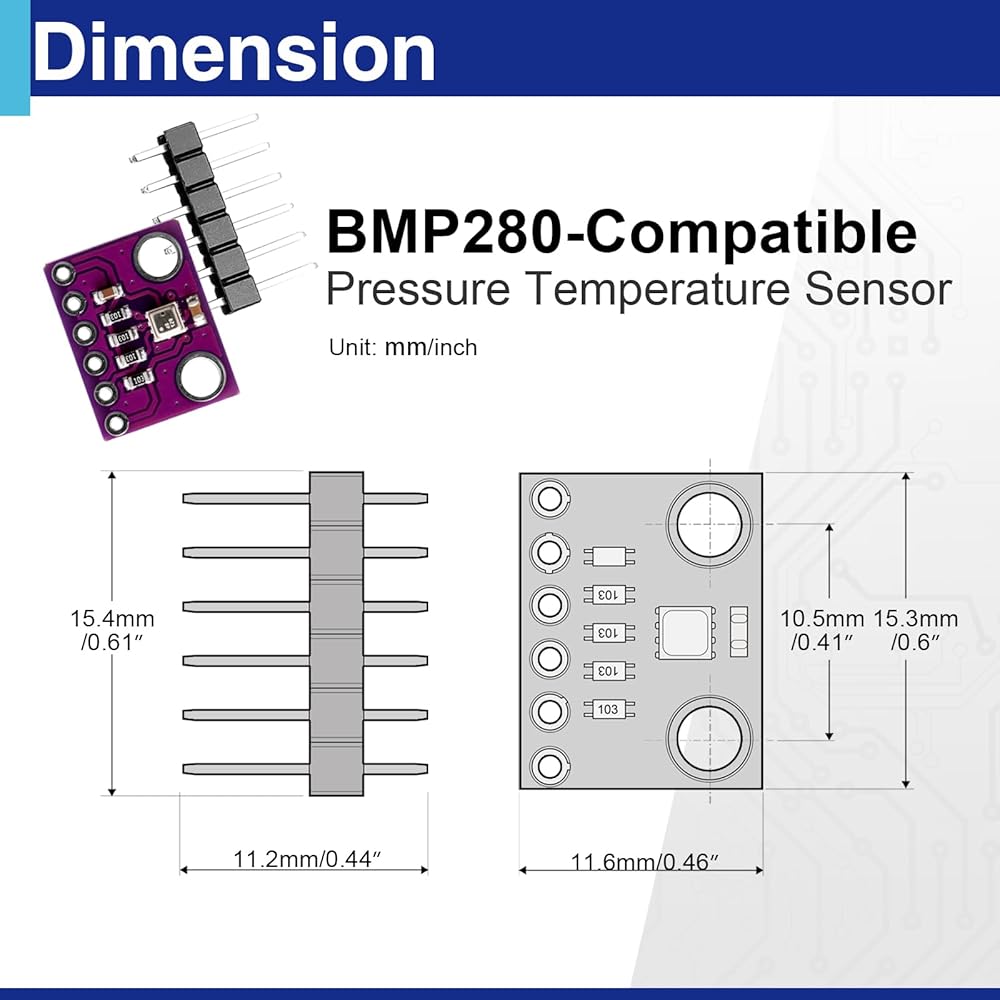

Compact & User-Friendly: Slim 15.3 × 11.6 mm footprint and lightweight (~8 g) design make this module easy to fit into weather stations, drone altimeters, HVAC systems, portable data loggers, and IoT projects. A ~2.6 mm mounting hole provides convenient, secure installation and makes status monitoring effortless.

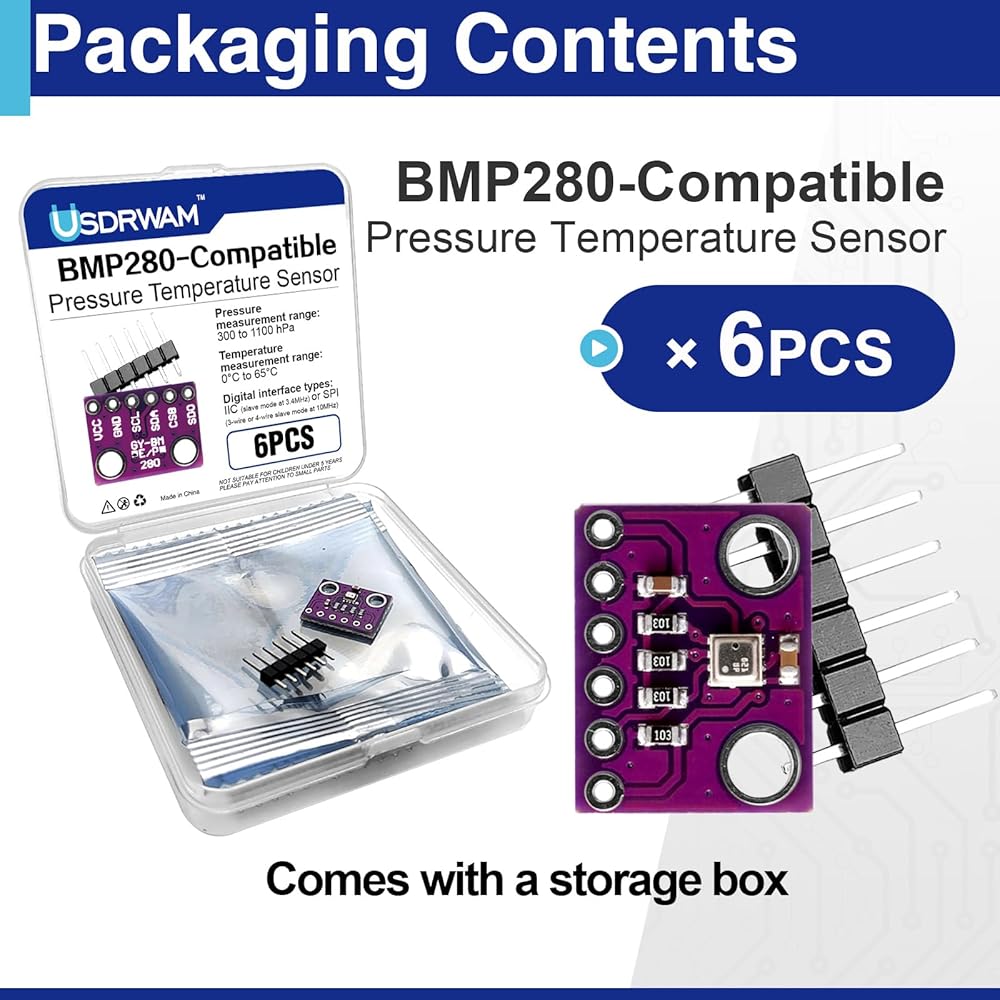

Quality Assurance & Service:Each module undergoes strict factory calibration and individual testing, then ships in protective packaging. We stand behind our product—if you encounter any issues, please contact our support team for prompt assistance.
