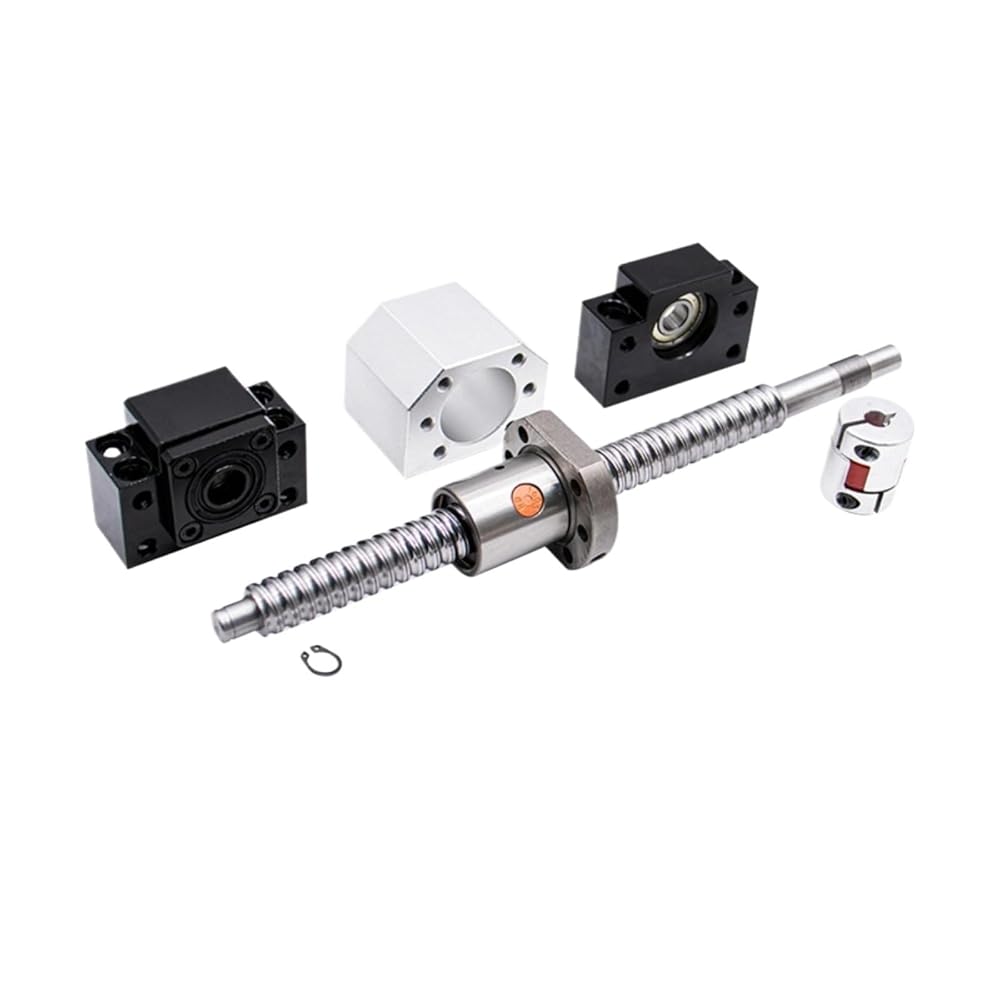

1 set SFU3205 32mm C7 Rolled Ball Screw Set With BK25 BF25 Support Machined + DSG32H Nut Housing + D40 L66 Coupling
Recommended length: the longer the length, the smaller the diameter, the easier it is to bend
1.100-1000mm Recommended SFU1204/SFU1605/SFU2005/SFU2505/SFU3205
2.1000-1600mm Recommended SFU1605/SFU2005/SFU2505/SFU3205
3.1600-2000mm Recommended SFU2005/SFU2505/SFU3205
4.2000-2500mm Recommended SFU2505/SFU3205
5.2500mm+ Recommend SFU3205
1* 32mm Ball screw rod with nut
1* BKBF25 support seat
1* DSG32H Nut seat
1* D40 L66 - 14mm X20mm Coupling
1.G10 grade GCR15 steel ball
2.High speed and low noise
3.Super wear-resistant
Nut
Dust ring
GCR15 Steel ball
Circular reverser
Waist metal inverter
Stepper Motor
Motor Integrated
Seat
Model Number : SFU3205
Guide Width or Diameter : 32mm
Condition : New,unused,unopened, undamaged item in its original packaging
Accuracy class : C7
Screw pitch (lead) : 5mm
Nut : single nut SFU3205-4
Direction of helix : right
Support : BKBF25
Nut Housing : DSG32H
Coupling : D40 L65- 14*20
