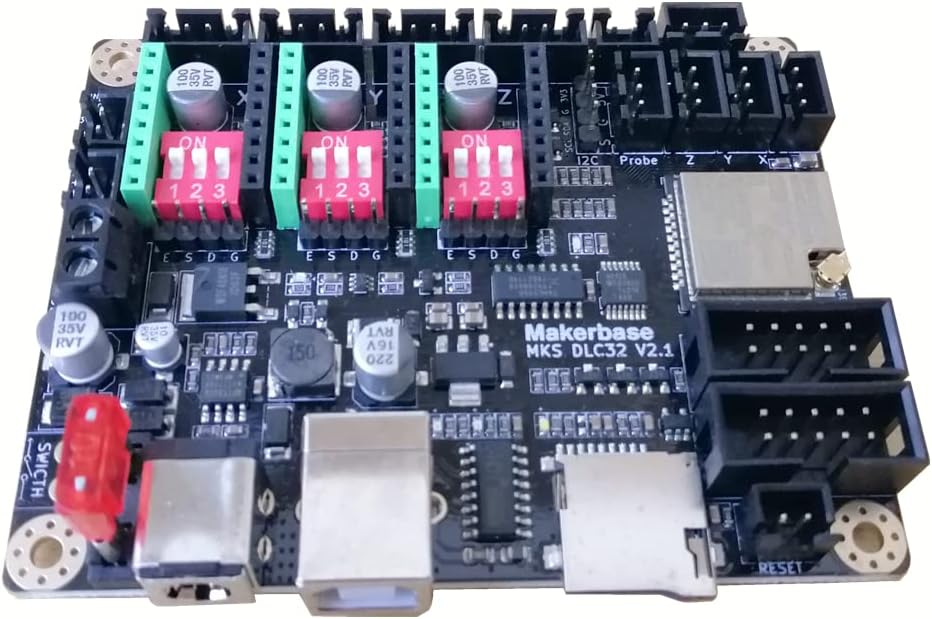

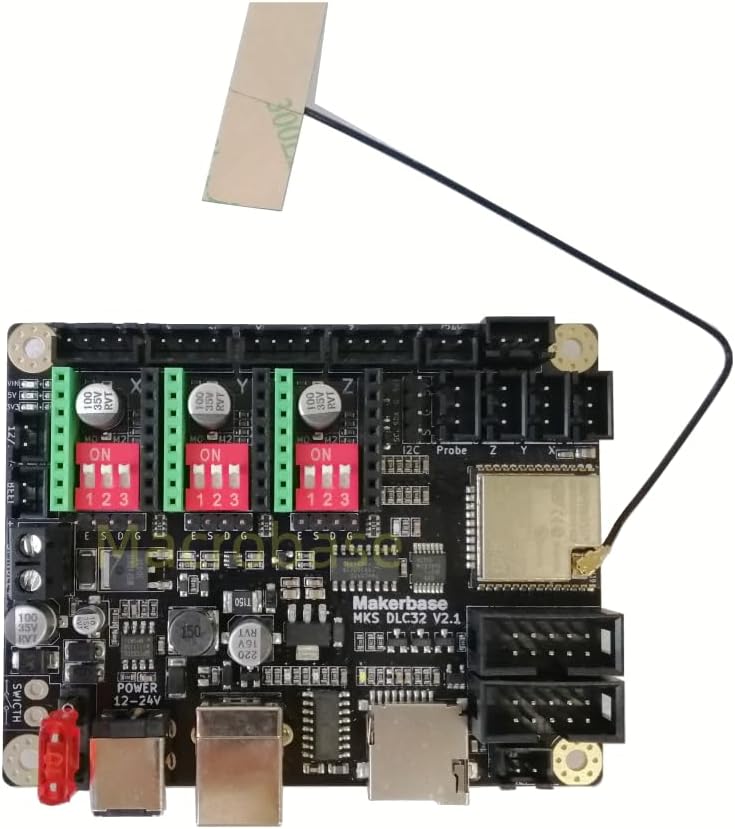

MKS DLC32 is a 32-bit high speed control board for desktop cnc laser engraving machine.In-built WIFI chip and support Web/APP control.Directly drives MKS TS2.4 inches touch screen.

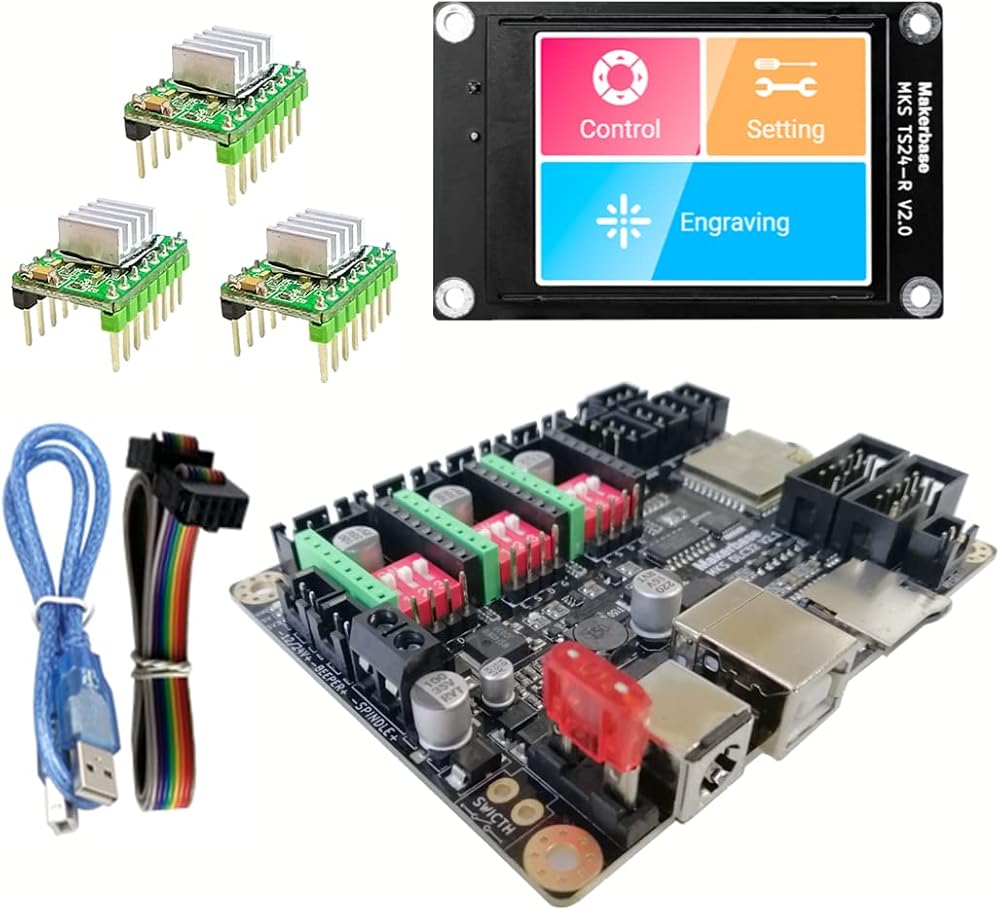

Packing list
1 x MKS DLC32 Card

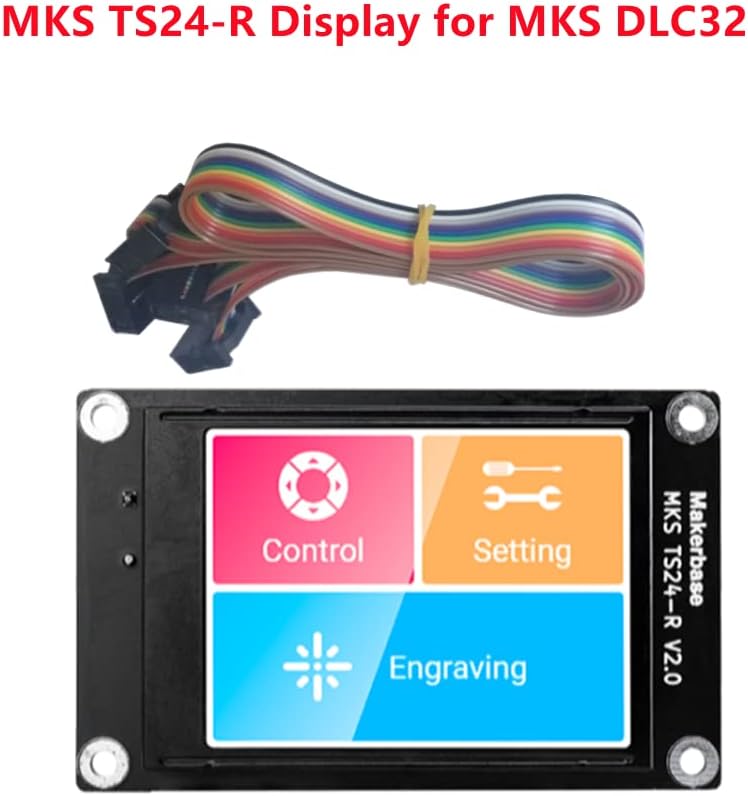

1 x TS24-R Touch screen
3 x 4988 Drivers 3 x Endstops
USB/10pin cable
Firmware Update
github.com/Macrobase-tech/MKS-DLC32

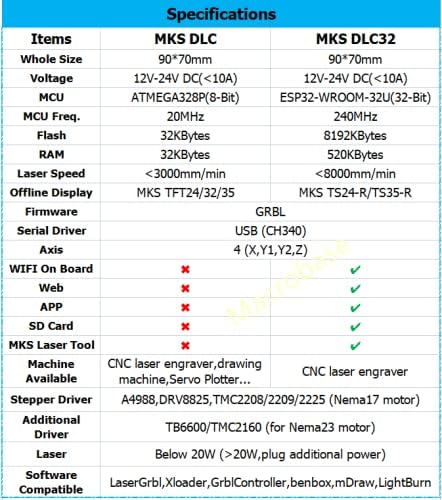

Features
32 bit ESP32 MCU,WIFI inbuilt
Compatible GRBL
Web,APP control
2.4inch touchscreen offline control.
SD card reader on board
X,Y1,Y2,Z axis
Support TTL and PWM
Support stepper drivers,a4988,drv8825,tmc2208/2209/2225/2226. And TB6600 and TMC2160 external high current drivers
Power DC 12-24V
Caution!
Please mind the power polarity and drivers direction.
Please don't put the drivers or motors on/off when power on.
Please disconnect all motors when adjust driver current.
