Twist Shutoff - Straight to Cone in excess of 100 degrees spray angle
Maximum operating pressure - 175 psi
Manufacturers Rated PSI - 60 @ 100 psi
UL and ULC approved
Closed Height - 3 3/8"
Open Height - 3 7/8"
Not for electrical fires

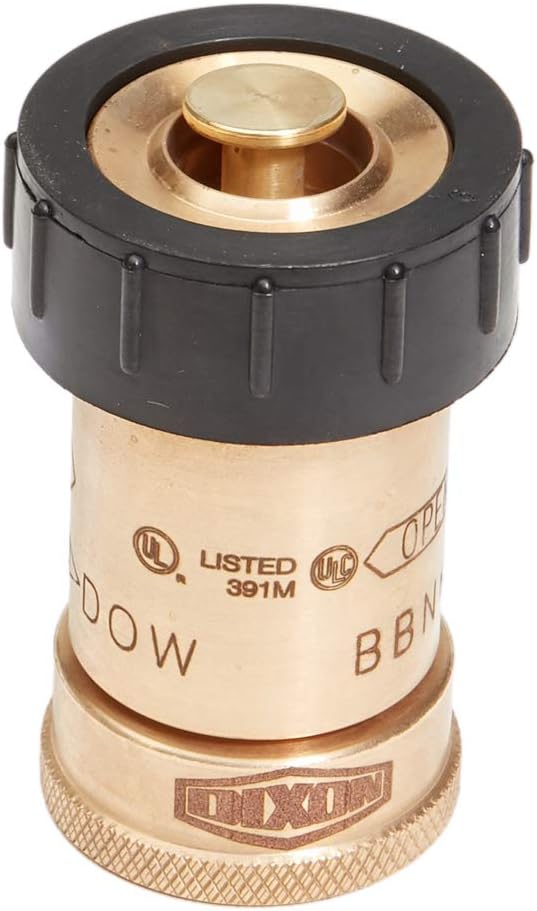

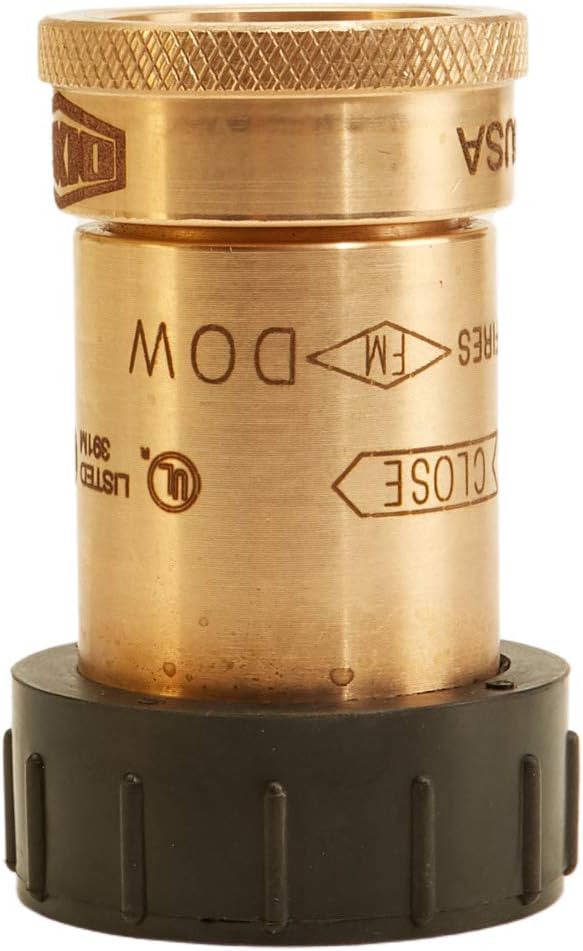

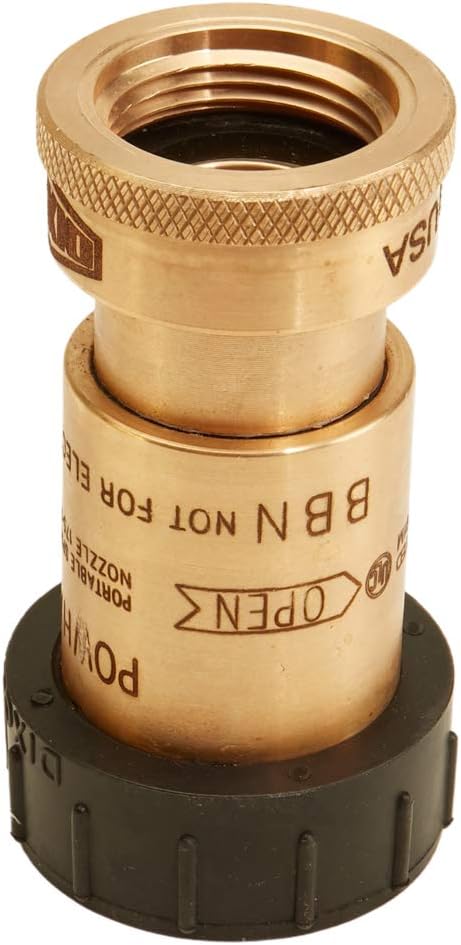

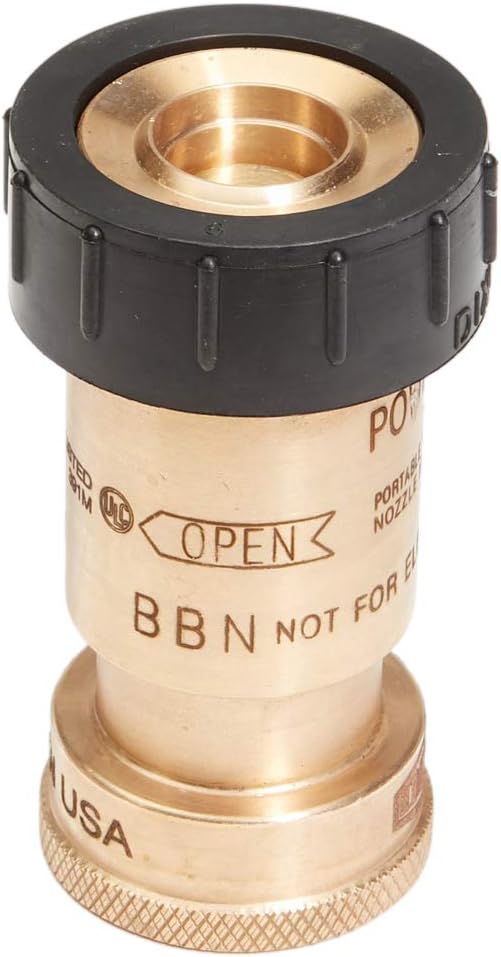

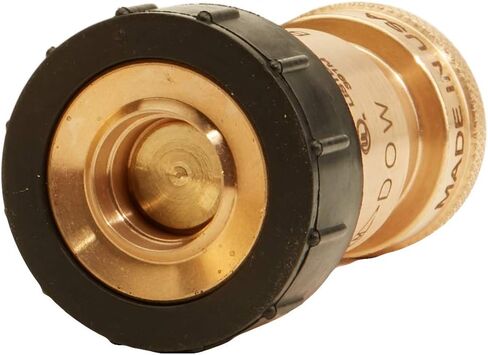

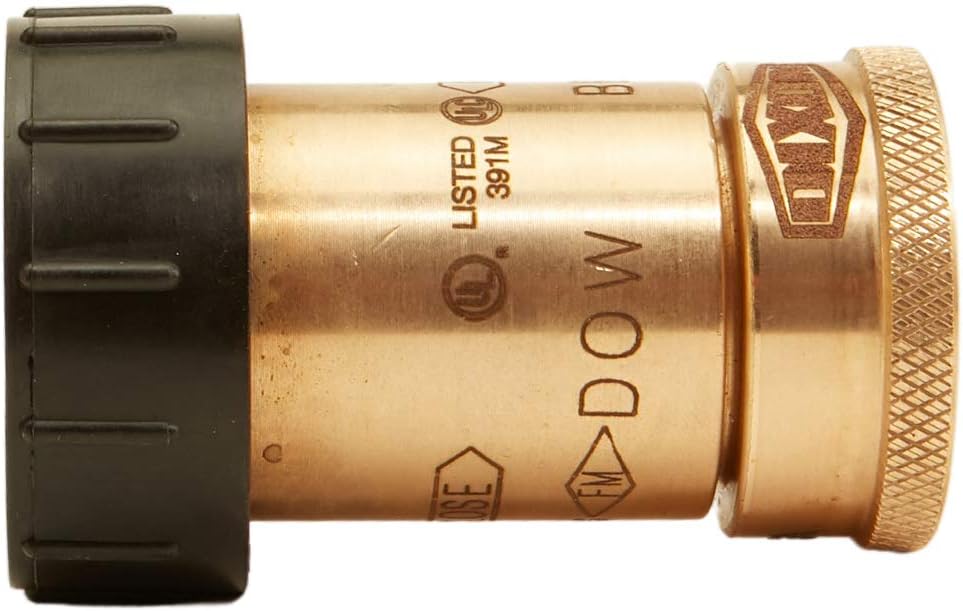

1 inch industrial combination nozzle has the option of either a fog pattern or a straight stream (Water only).
NPSH and NPT are more common in industrial applications.
WARNING: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.
How we conducted our nozzle testing.
We used a self-priming water pump with a two inch inlet and a two inch outlet that produces 135 gallons per minute (GPM). The nozzle was attached to a fifty foot 1 inch fire hose. The pump pressure was approximately 60 psi. Gallons per minute was calculated by measuring the number of gallons a nozzle could fill a large container within one minute. The result is the GPM.
1" Male Hose
Inside diameter of a male hose - 1 inch
Outside diameter of a male NH / NST adapter - 1.375 inches (8 Threads per inch)
Outside diameter a male NPSH or NPT adapter - 1.295 inches (11.5 Threads per inch)
