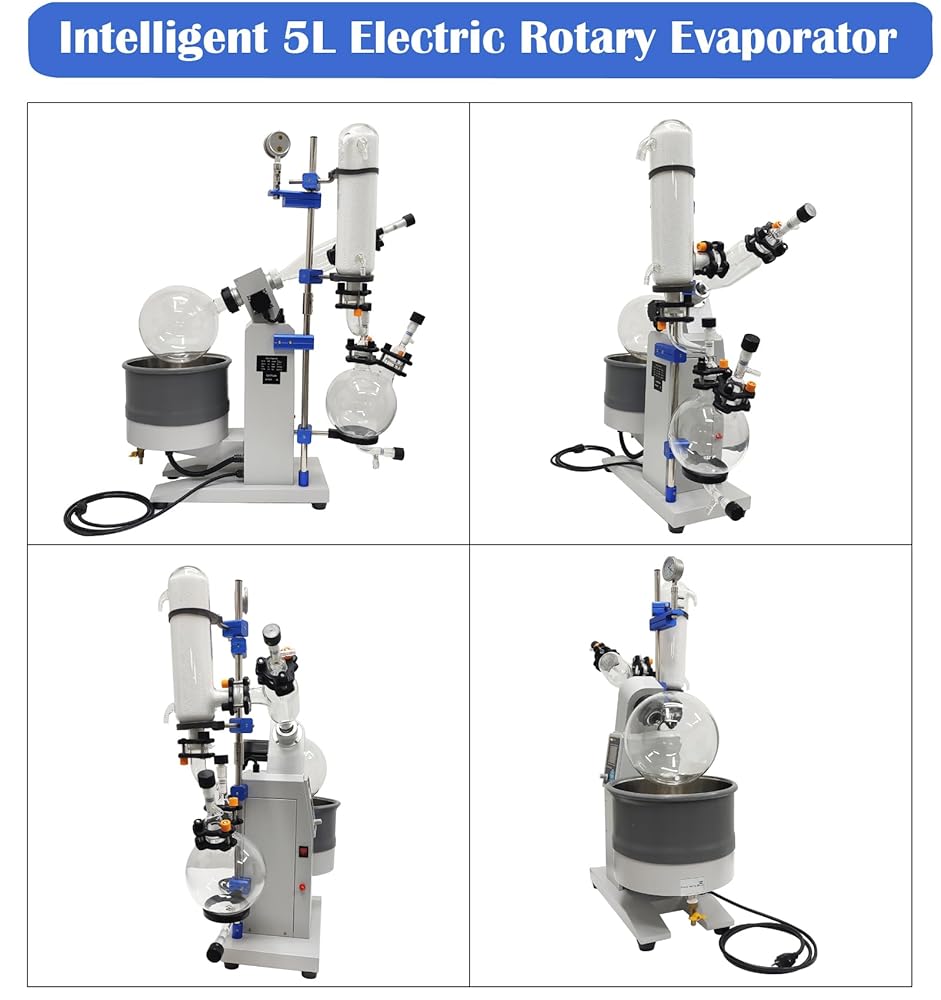

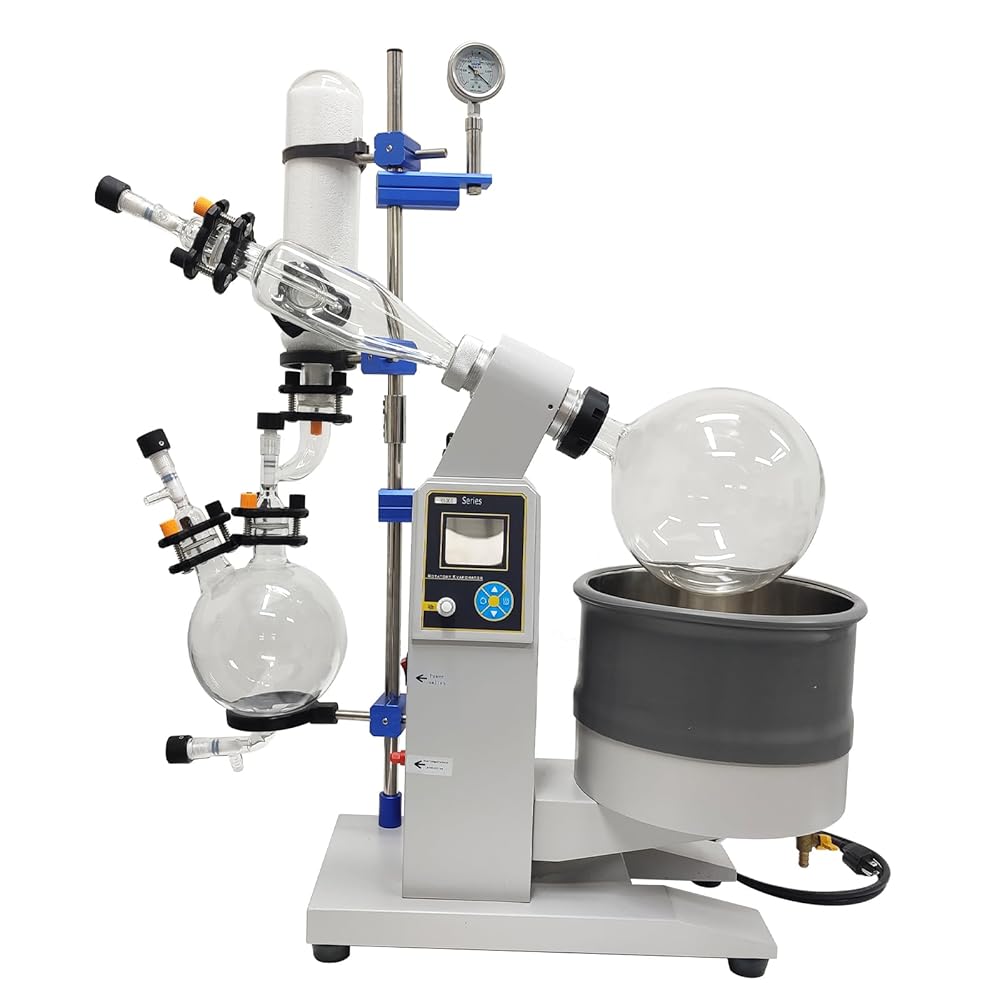

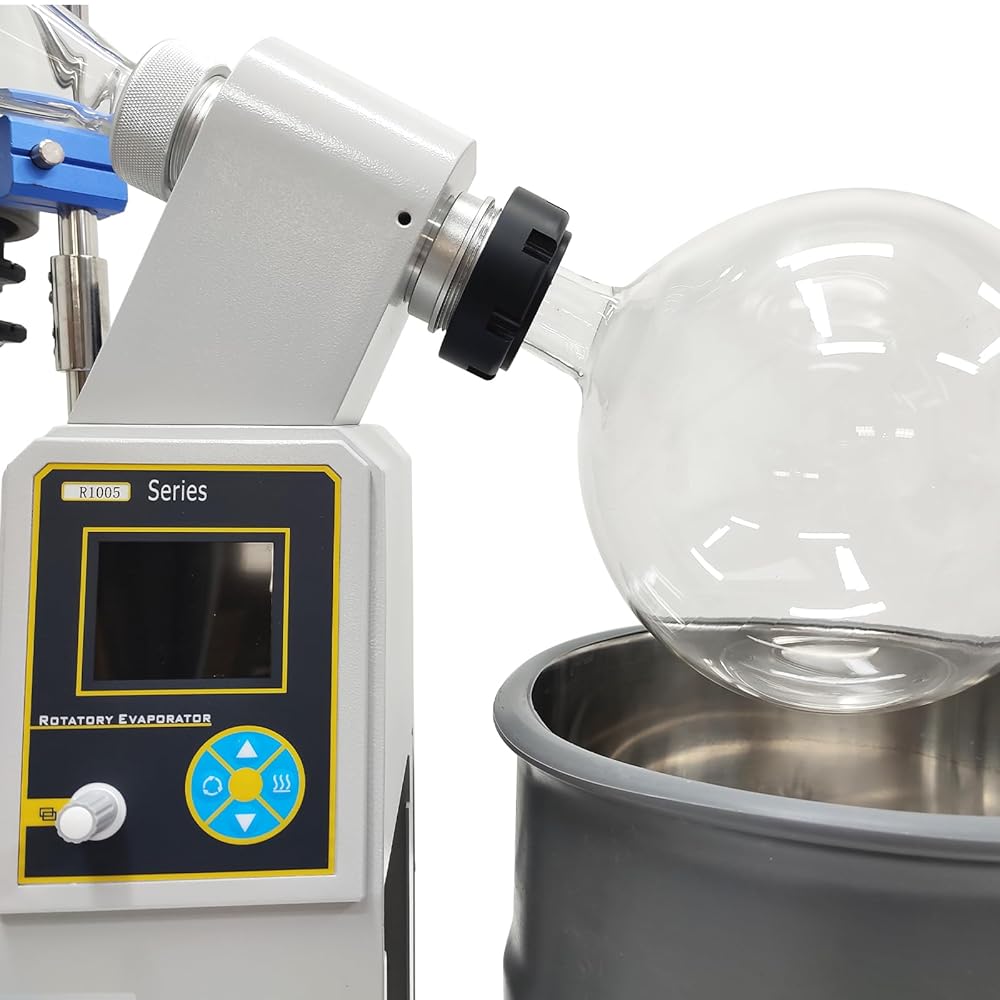

5L Rotary Evaporator Rotavapor, Motorized Lifting Lab Rotavapor, with Intelligent Temperature Control System, Stepless Speed Regulation Vacuum Vaporizer for Efficient Evaporation of Solvents

KWD 860.500
Brand
EQCOTWEA
Weight
31.8 kg
– 1 +

Special Features

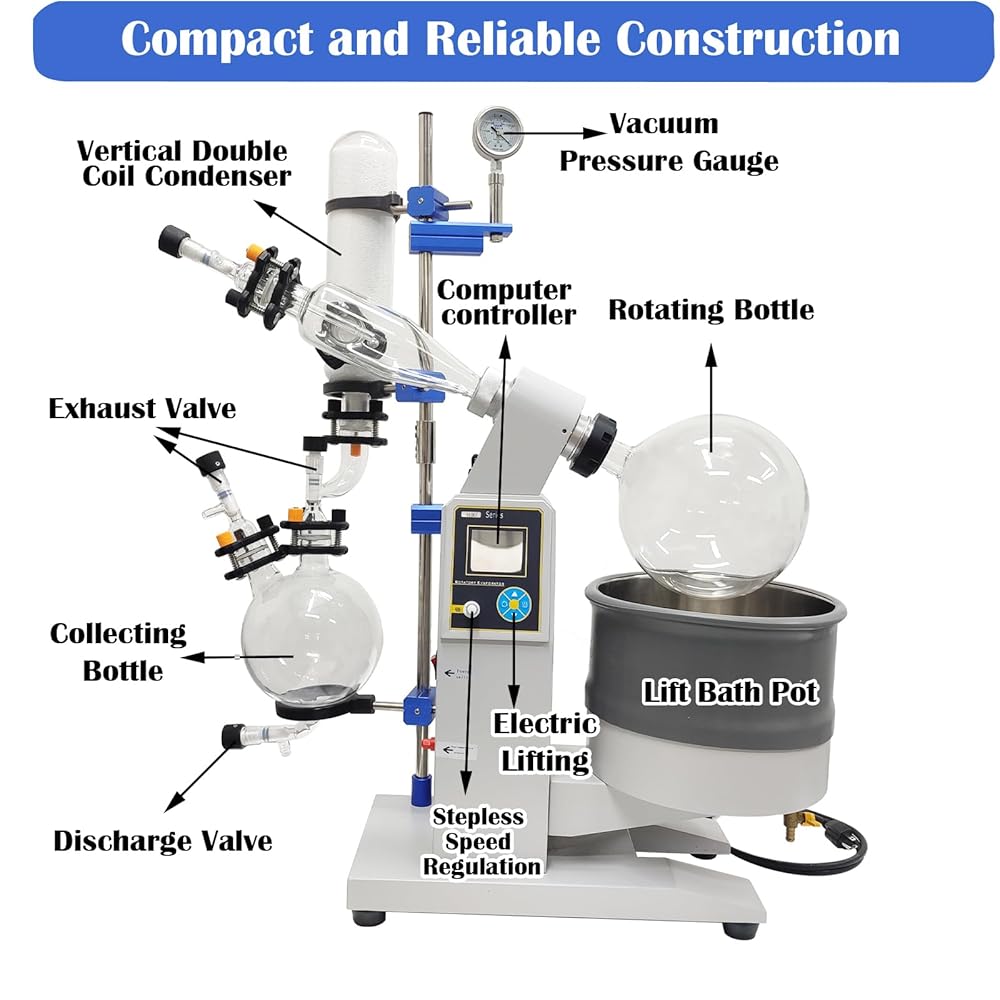

  • Stable Structure: 5L rotovap rotator consist of a group of reliable micro motor and integrated circuit control device, the main body extensively adopt stainless steel and aluminum alloy, compact and robust structure, humanized vertical design, easy to operate.
  • Motorized Lift Rotary Evaporator: Rotary evaporator is micro - motor drive, main engine automatically lift, 0-3.94in (0-100mm) lifting stroke. Stainless steel water bath pot and size is 11.8x11.8x6.7in, electric lift, simple operation.
  • High Evaporating Efficiency: Condensing tube is made of high borosilicate glass, it is high temperature resistance. Vertical double layer serpentine design, improve the condensing efficiency and ensure high recovery rate.

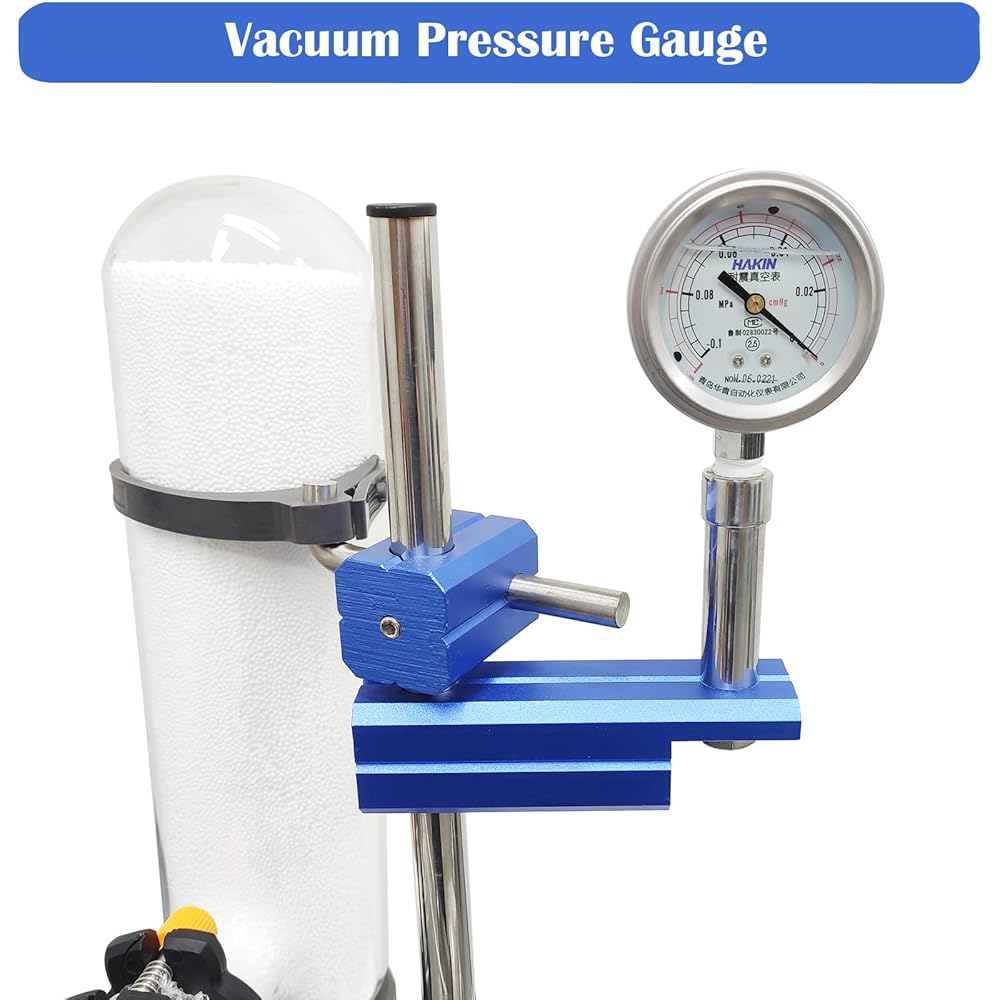

  • Double Composite Seal: Using PTFE and fluorine glue double combination seal, high temperature does not deform to ensure high air tightness and high vacuum of the evaporator. Adopt pressure gauge, the choice of low boiling point materials can choose the best working vacuum.
  • Accurate Temperature Control: The temperature control system, accurate and reliable, Digital display temperature control and uniform heating. Digital frequency conversion stepless speed regulation, main engine speed is 20～100 RPM.
  • Widely Application: Rotary evaporator is mainly used for pharmaceutical, chemical and biological pharmaceutical industries such as concentration, crystallization, drying, separation and solvent recovery.
  • Multifunctional Integrated System: Rotavapor can be used with circulating water type multi-purpose vacuum pump, low temperature cycle (vacuum) pump, circulating cooler, constant temperature cycle, low temperature coolant circulation pump and other ancillary components of the system.

Description

Package included: 1set 5L Motorized Lifting Laboratory Rotavapor, for Efficient Evaporation of Solvents (220568)

Specification

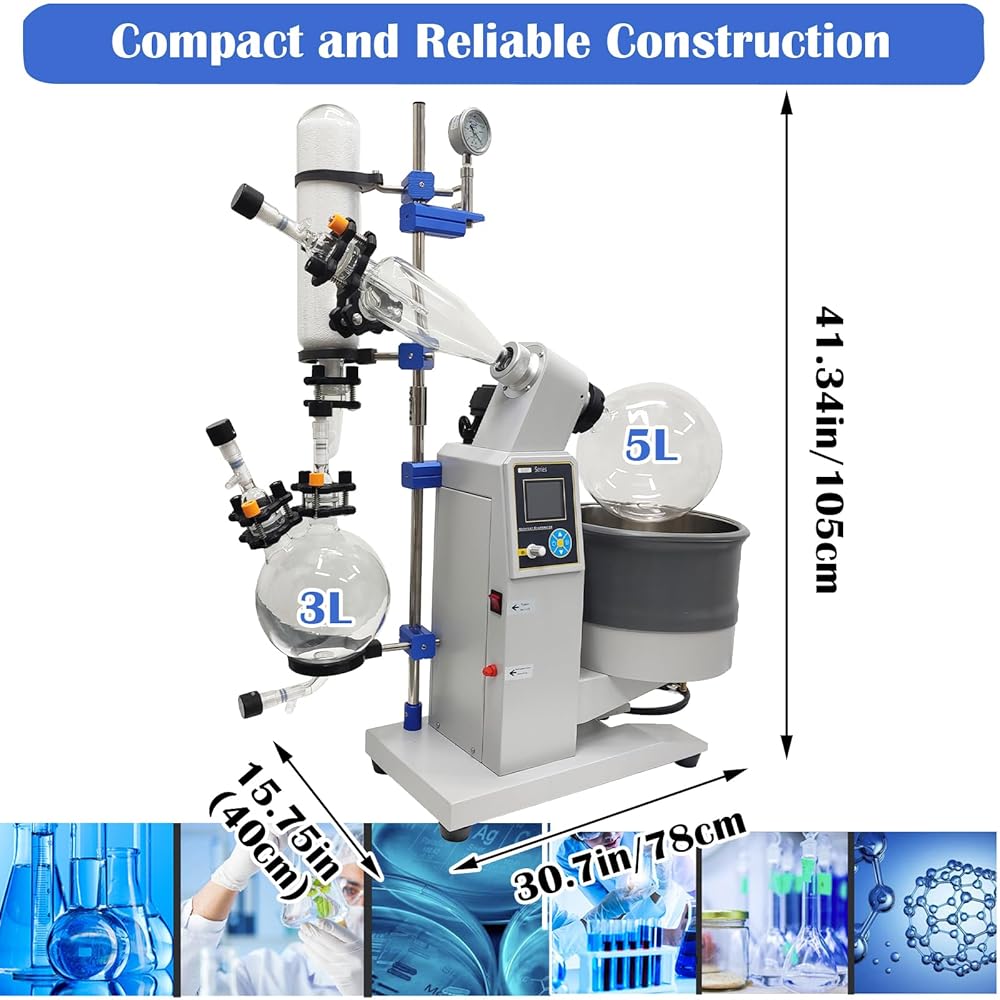

Rotating Flask: 5L

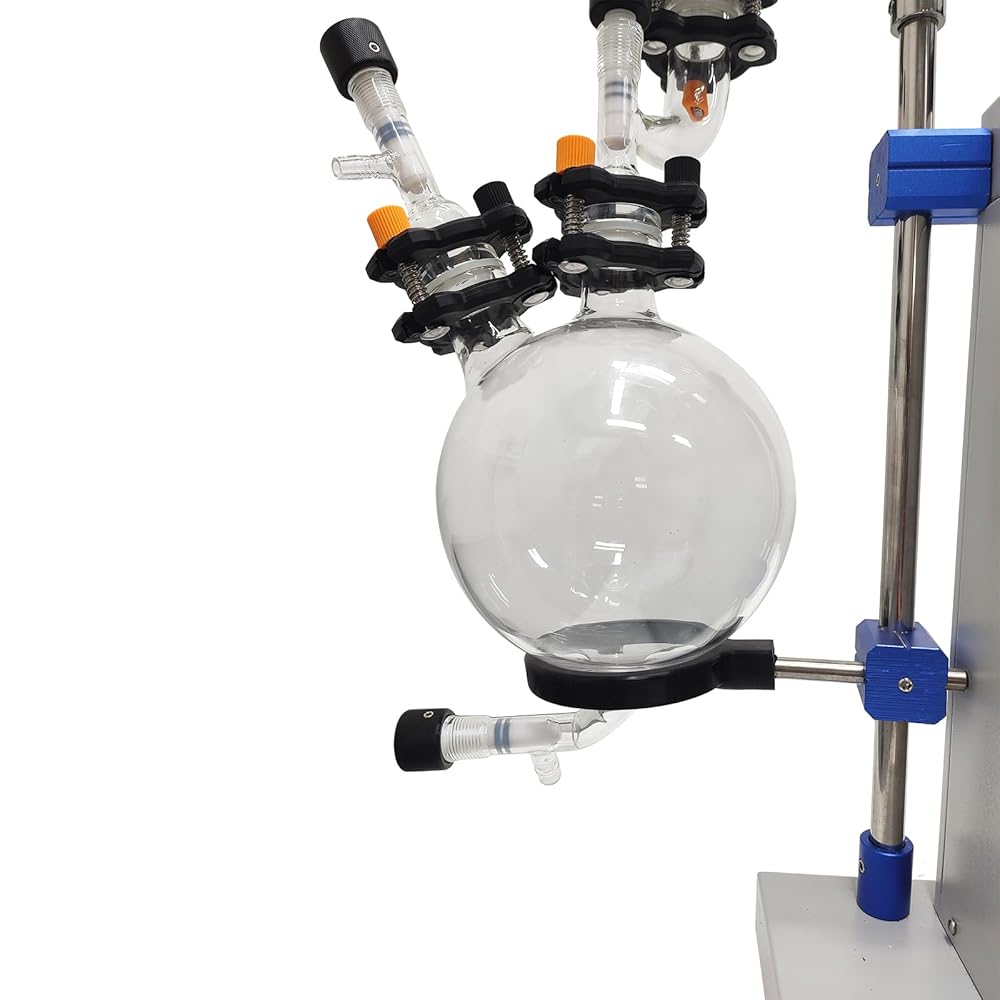

Collecting Bottle: 3L
Evaporation Capacity: The water is more than 2 L/h; Alcohol is more than 4 L/h
Temperature Range: Digital display temperature control, room temperature -99℃
Vacuum: -0.098
Tem. Accuracy: ±1℃
Lifting of Bath: Electric lift
Lifting Distance: 100mm(3.94in)
Supply Voltage: 110V 60Hz
Main Engine Speed Control: Digital Frequency Conversion Stepless Speed Regulation
Main Engine Speed:20～100 RPM
Rotary electric machine: 100W
Whole Power : 2KW

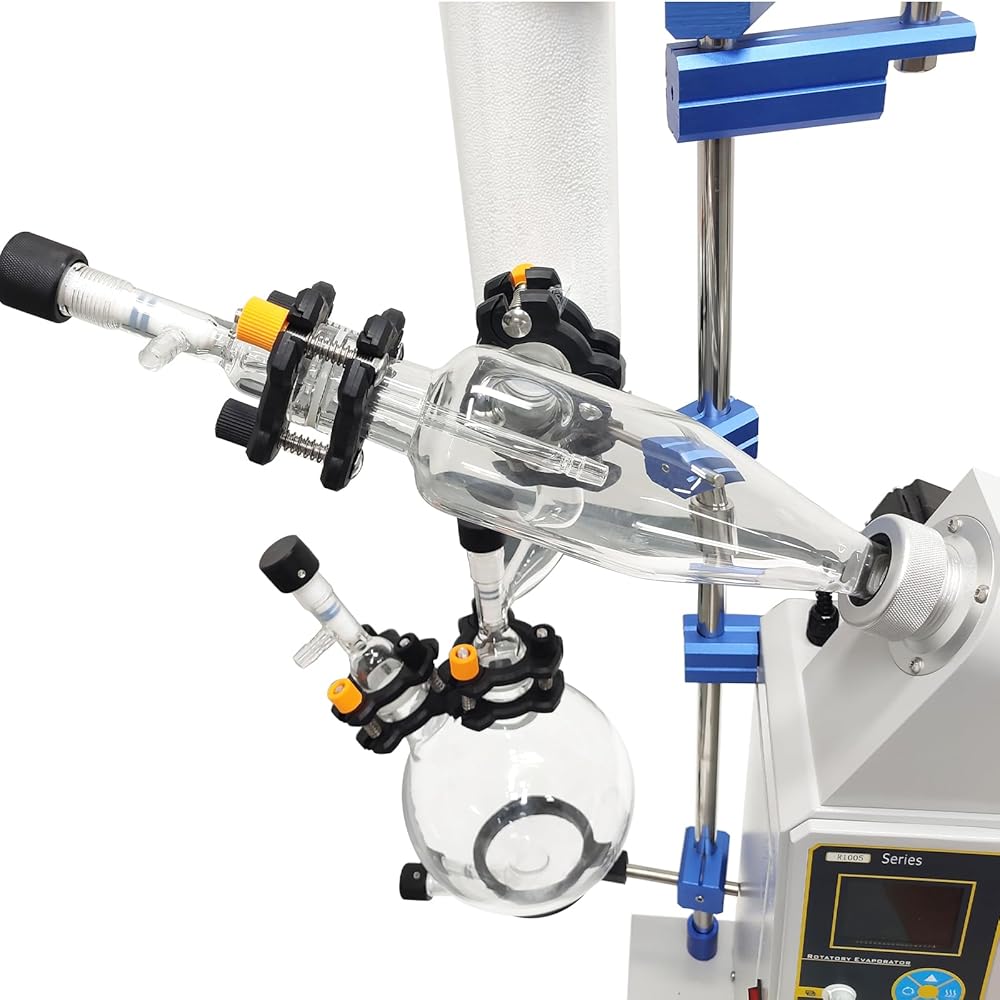

Condenser Tube: Vertical Double Coil
Glass Material: High Borosilicate GG3.3 Glass
Water Bath Pot Material: Stainless Steel

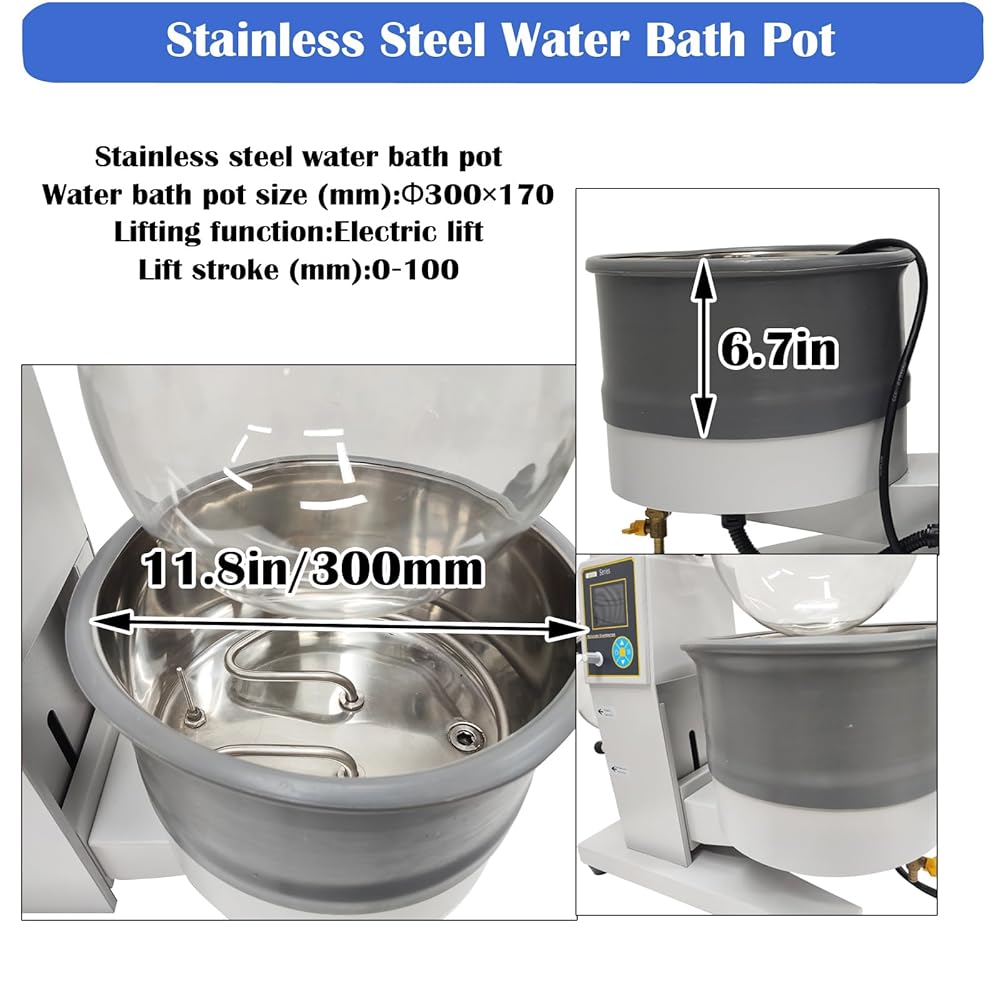

Water Bath Pot size:Φ300×170 mm
Temperature Control Mode: PID intelligent temperature control, temperature digital display

Features:
1. PTFE and fluorine rubber double rotating seal, to ensure high vacuum.
2. The temperature control system, accurate and reliable.
3. In does not affect the system and solution under the condition of vacuum distillation, continuous collection.
4. The PTFE discharge valve.
