Wide Applicaiotn:
This Rotary Evaporator can be used with circulating water type multi-purpose vacuum pump, diaphragm vacuum pump, low temperature cycle (vacuum) pump, circulating cooler, constant temperature cycle, low temperature coolant circulation pump and other ancillary components of the system.

Parameters
Optimum ambient temperature: 5-35℃
Working power supply: 110V60Hz

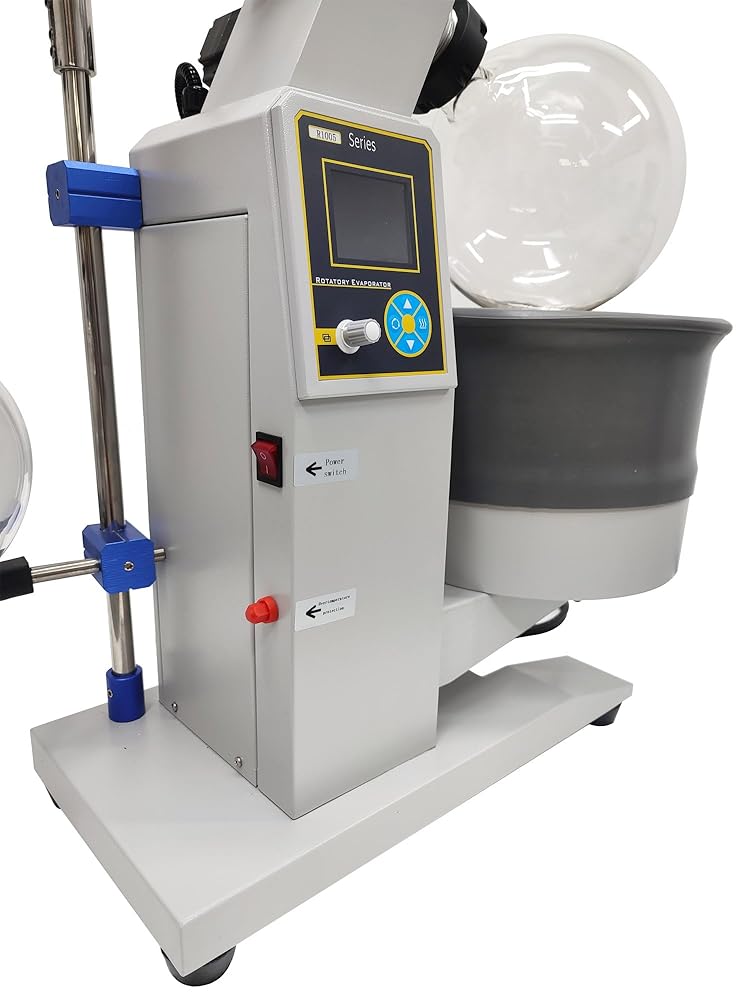

Main engine speed control: Digital frequency conversion stepless speed regulation
Main engine speed (RPM): 20～100
Rotary electric machine (W): 100
Temperature control (c): Digital display temperature control, room temperature -99℃
Maximum vacuum (Pa): 399.9 (Below 3mmHg)

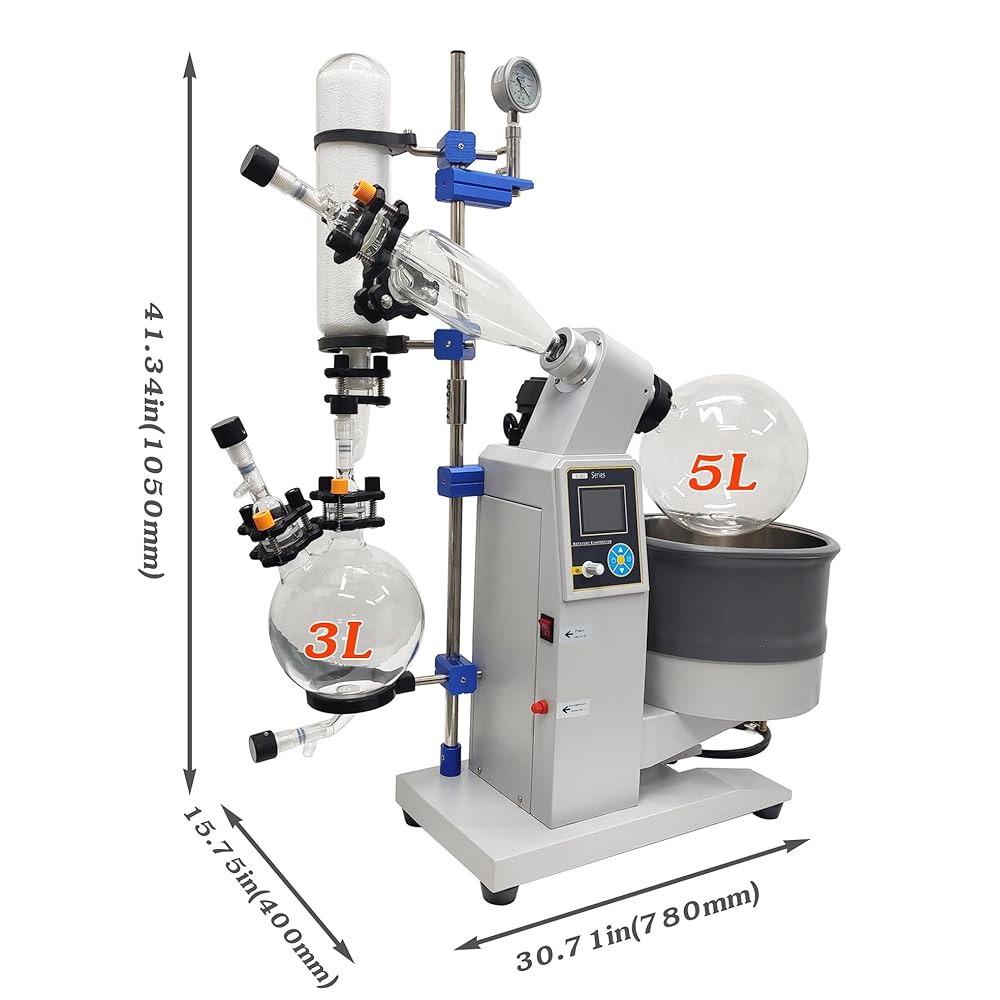

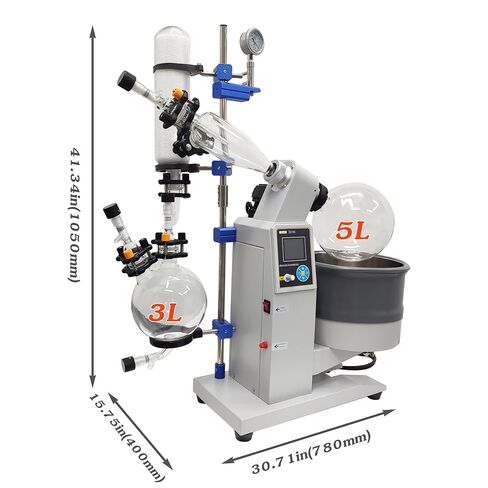

Rotating bottle (L): 5 (Flange 50)

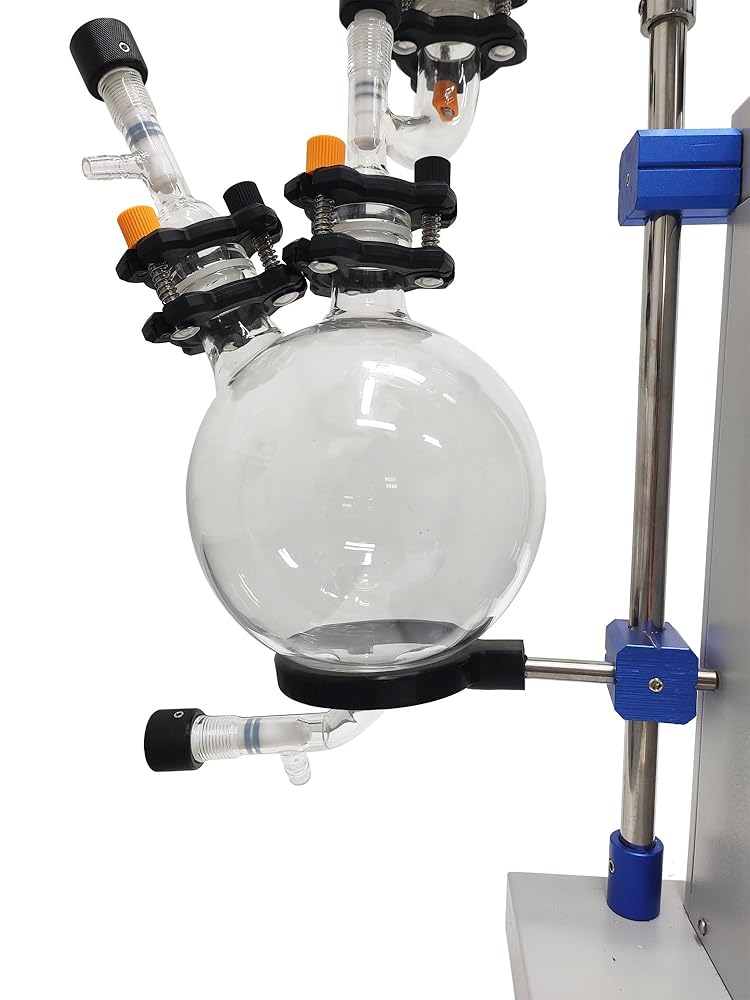

Collecting bottle (L): 3

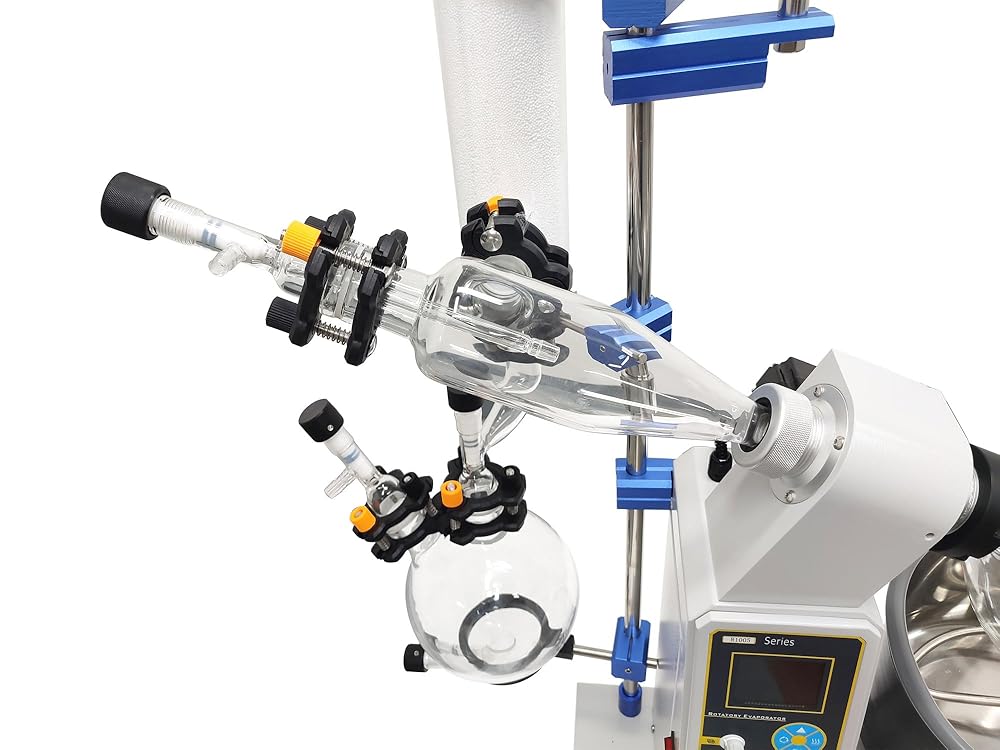

Condenser tube: Vertical double coil
Evaporation capacity (L/h):The water is more than 2; Alcohol is more than 4

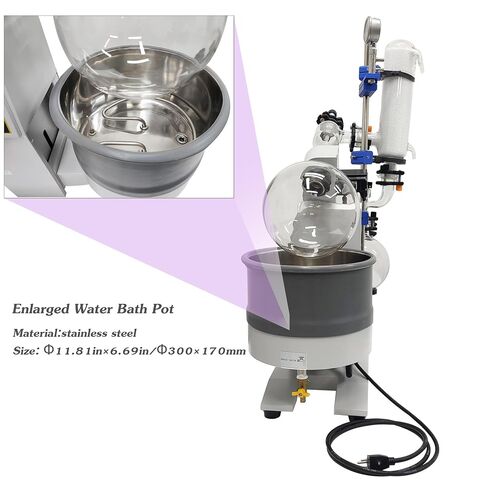

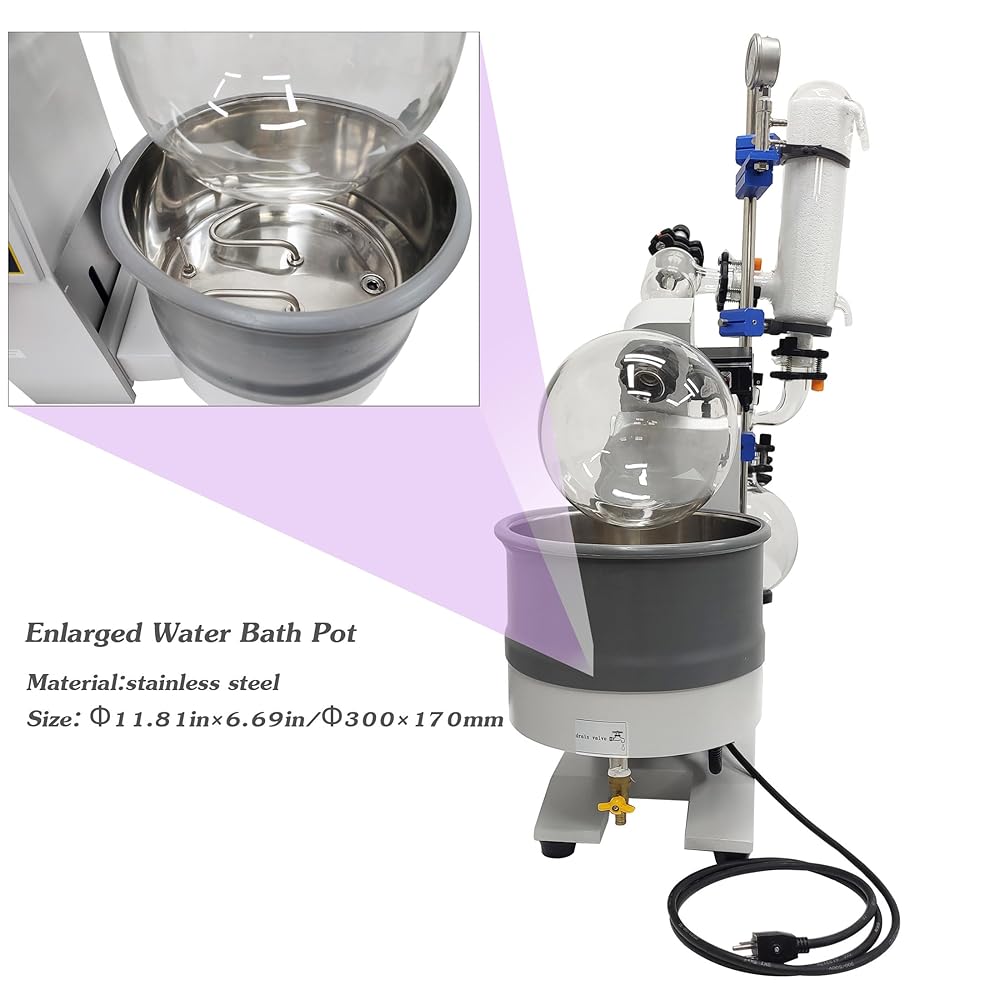

Water bath pot material: stainless steel
Water bath pot size (mm): Φ300×170
Lifting function: Electric lift
Lift stroke (mm): 0～100
Whole power (Kw): 2

Notice:
1.please connected properly (see technical parameters), and ensure a good grounding!
2.work, cooling water pipe and exhaust pipe should be kept unobstructed, no dead corner.

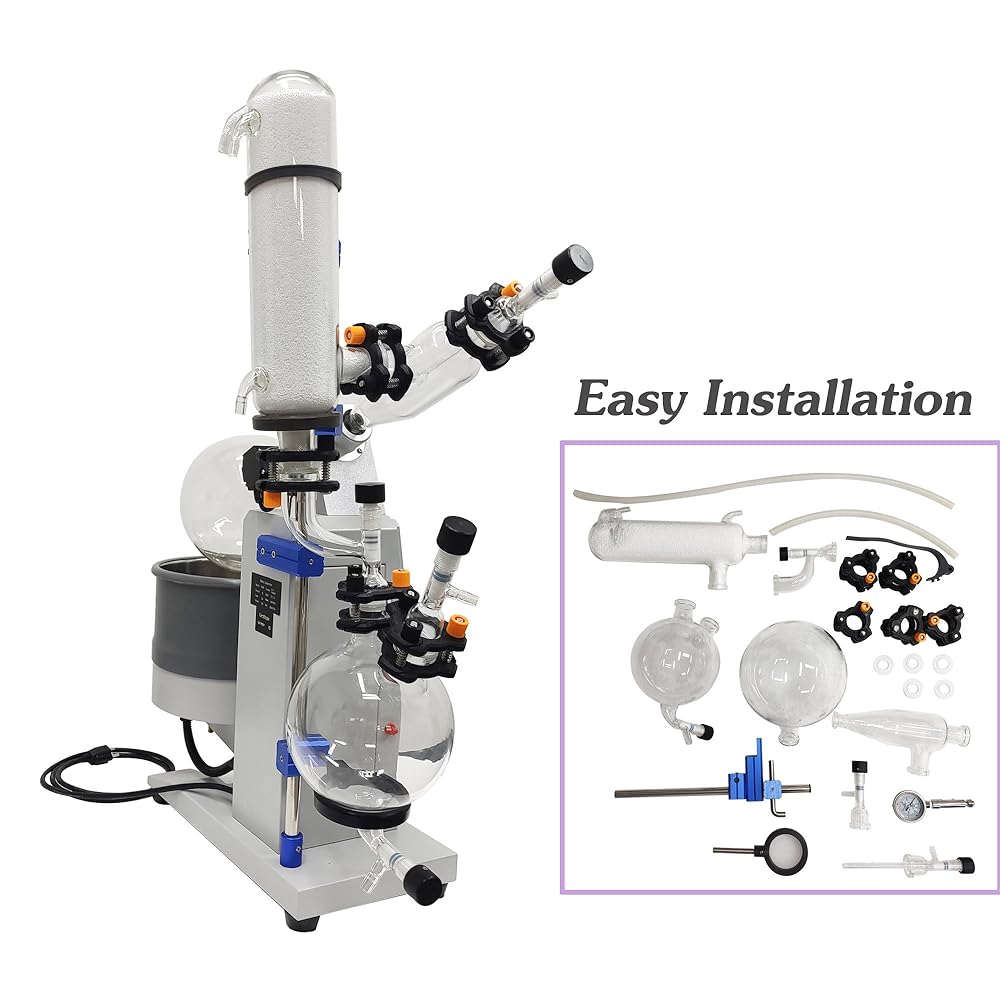

3.The glass component installation pipeline, should adopt the method of rotating push installation, so as not to damage the glass parts.
4.The use of flammable materials or organic solvents, please don't let the solution splash overflow, away from the fire and ready to take emergency measures.
5.cleaning stubborn stains on the glass device, wipe clean with a rag, don't knock the glass with a hard object.
