Features:
It can be widely used to detect NPN and PNP transistor, capacitor, resistor, diode, triode, N-channel and P-channel MOSFET, IGBT, JFET, triac and battery .
It can also be used to detect infrared wave forms.
It also can detect zener diode and has the function of self-calibration.
After detection, for align the infrared remote control with the "IR" light, then press the button in the remote control, if the detector successfully de it, it will display the data and infrared wave form.
1 button , automatically detect and shutdown, and you can press the multi-functional button to close the detector too.

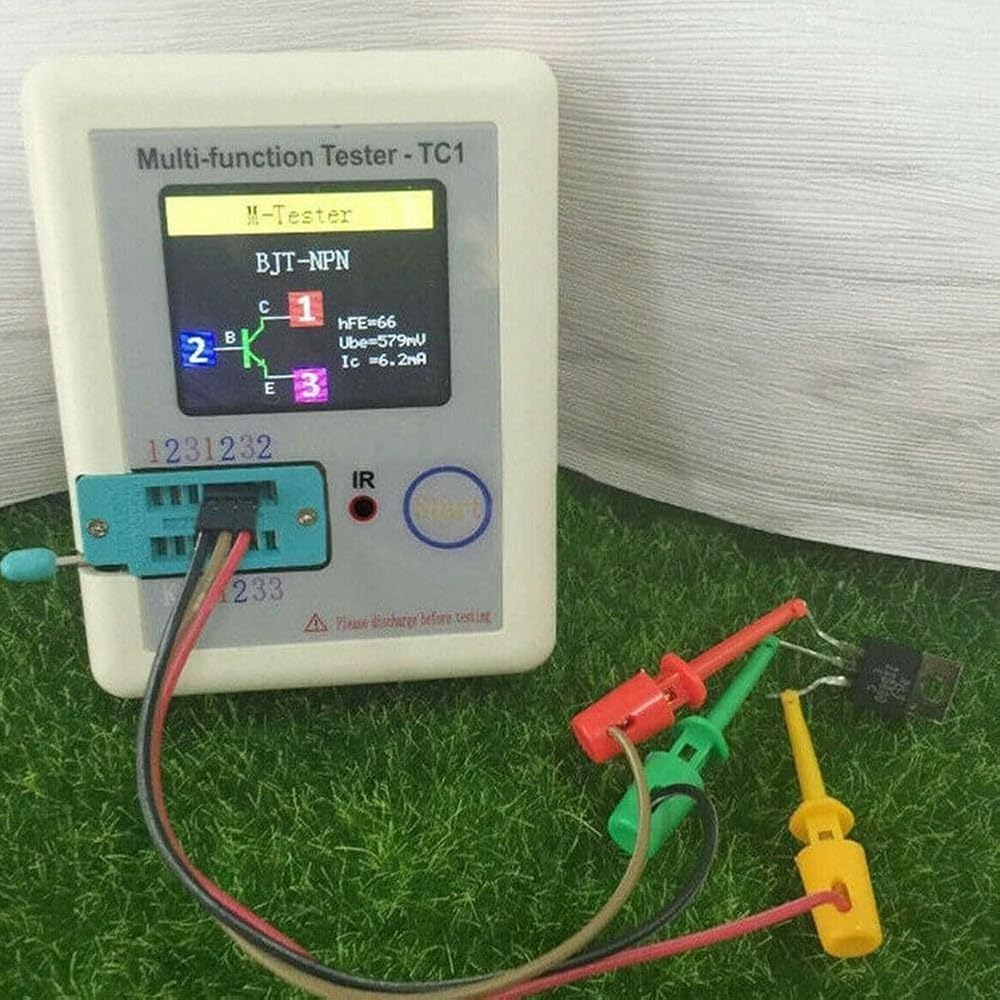

Put the pins of component in corresponding area, then for dial the little handle and the detector will test it automatically, finally the results will display on the back light TFT screen clearly.

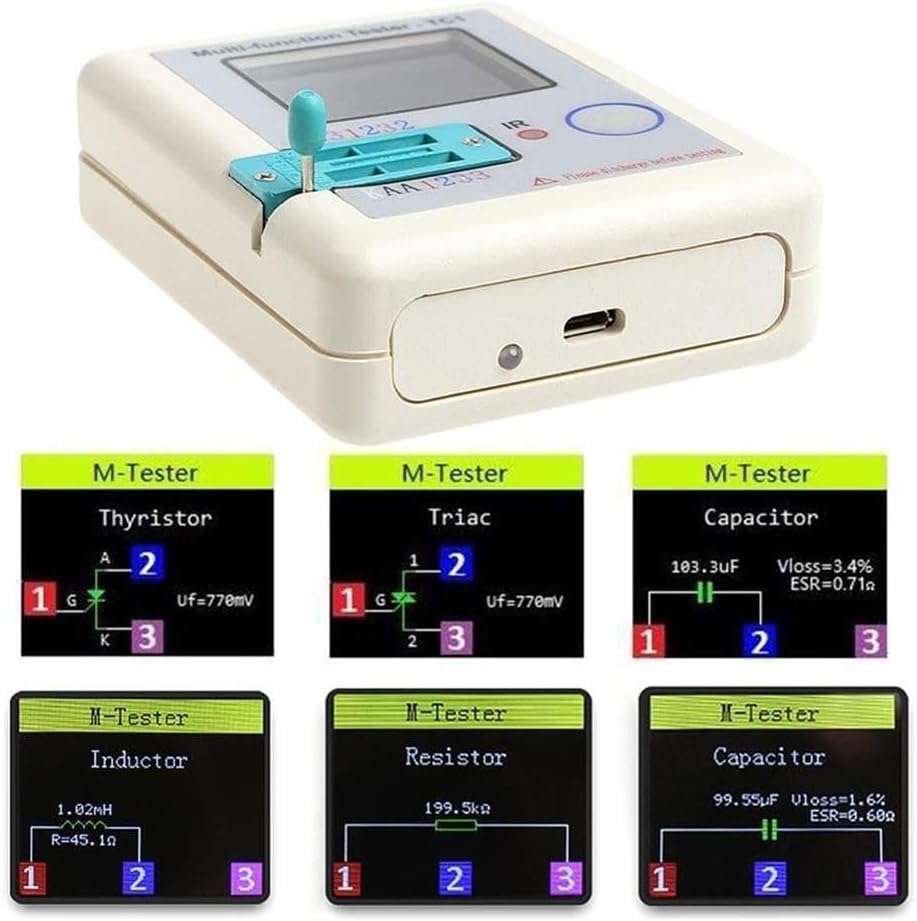

Not like the usual black and white display, this detector will show results in color.

Specifications:
Display:1.8inch TFT Screen
Diode Range: Zener Diode:Transistor Detect Area: 0.01-4.5V
Zener Diode Detect Area: 0.01-30V
Triac Range: for IGT Capacitance: 25pF-100mF
Resistor: 0.01-50MΩ
Inductance: 0.01mH-20H
Battery:0.1-4.5V
Power Mode: Rechargeable Lithium Battery ( INCLUDED)
Item Size: 8.8 x 8 x 2.8cm / 3.47 x 3.15 x 1.10in
Item Weight: 111.5g / 3.94oz
Package Size: 14.5 x 12 x 2.7cm / 5.71 x 4.73 x 1.06in
Package Weight: 114g / 4.02oz

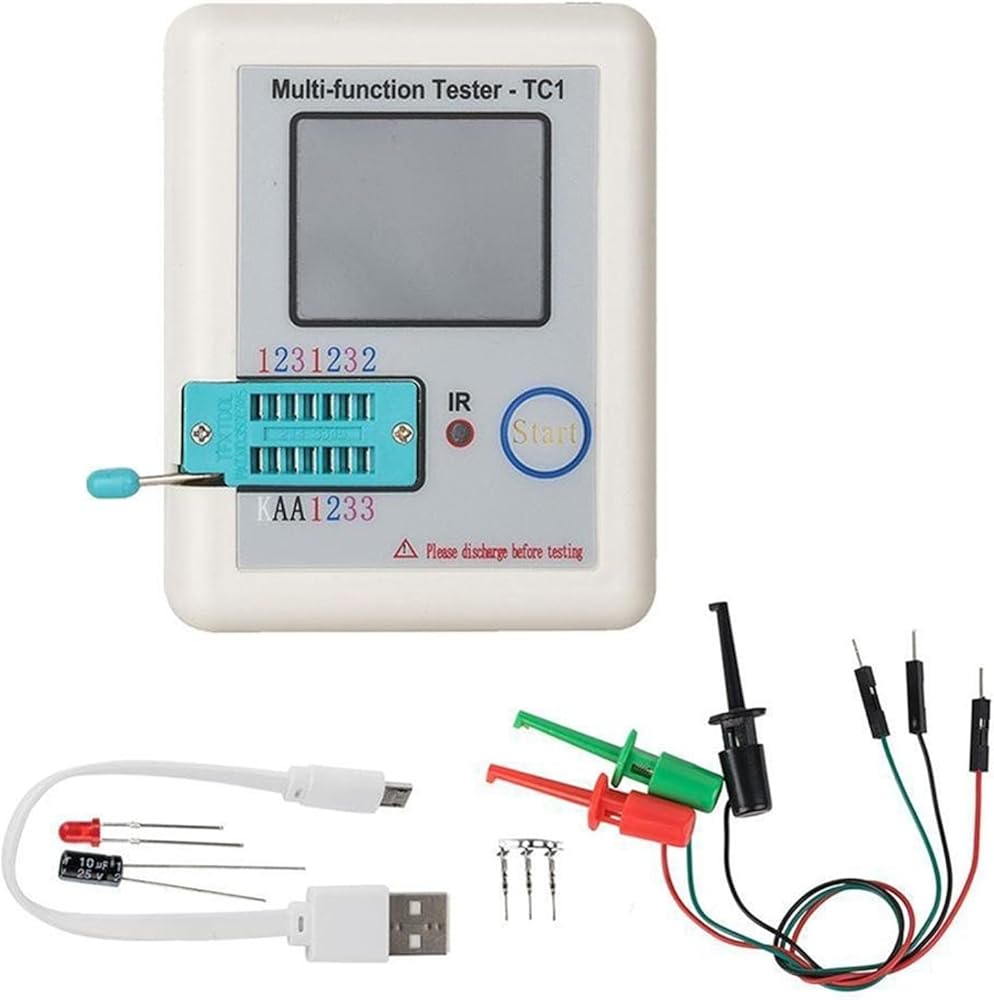

Packing included:
1*Multi-functional TFT Transistor tester

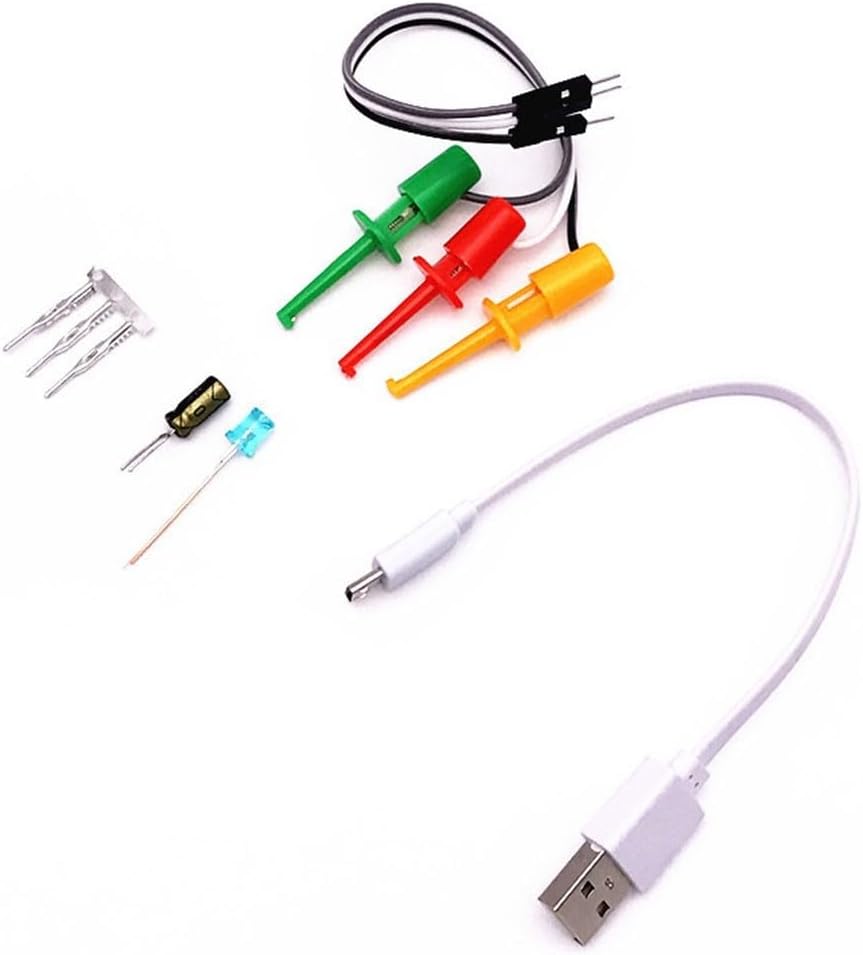

1*Electronic component set(Send Randomly)
