1X Sliding table
1X Coupling with
Product specifications:
1.Model:QMF165
2.Module material: Aviation aluminum6061
3.Stroke:100-1000MM for Choose (Effective Travel)
4.Horizontal load: 200KG (Max)
5.Vertical load: 100KG(Max)
6.Motor Bracket:
86mm/110mm Stepper Motor
60M/80mmServo motor Brackets Can Match.
7.Mobile panel size: 150mmX170mm8.Slide height: 110mm9.Module width: 150mm10Repeat positioning accuracy: 0.02mm-0.03mm

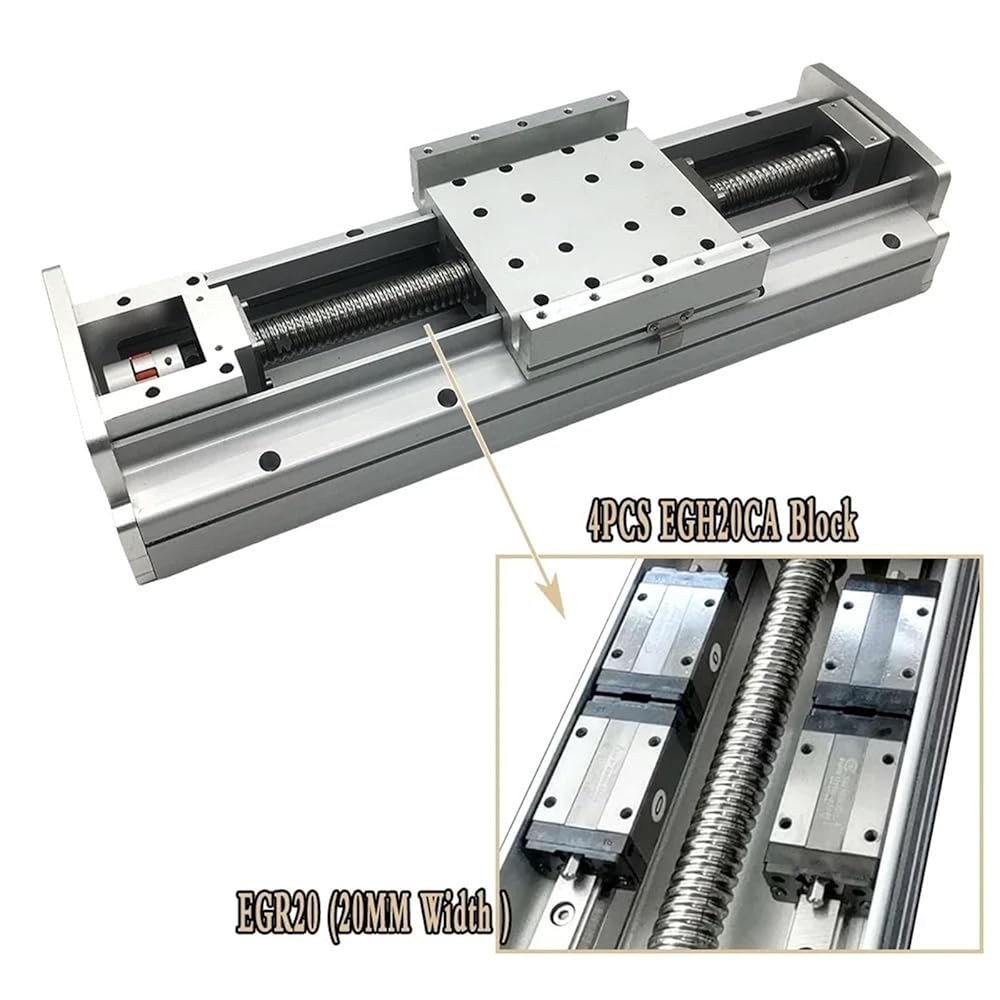

11.Guide:2XEGR20 (20MM Width )
12.Block:4X EGH20CA
13.Ballscrew type: SFU2505/2510/2525
(Tips:SFU2505 means:Screw Diameter 25mm, Pitch 5mm,The screw rotates Once, the slide table moves 5mm)
14.Ball screw accuracy: C7
15.Max.moving speed:
SFU2505:250mm/s
SFU2510:500mm/s
SFU2525:1250mm/s
Origin : Mainland China
Model Number : QMF165-2505
Slide height : 110mm
Module material : Aviation aluminum
Guide : 2XEGR20
Block : 4X EGH20CA
Type 1 : Fully Enclosed Linear Rail
Type 2 : Slide with dust cover
Type 3 : Linear Sliding Rail
Type 4 : Linear Guid Rail
Type 5 : CNC Guide Rail
Type 6 : Automations Linear Bearings
Type 7 : Linear Slide Bearing
Type 8 : Linear Guide Rails
Type 9 : Linear Slides
Type 10 : Home Automation to
Type 11 : Industrial Automation
