Features:
1. Enhanced safety with intelligent anti-burn design: The capacitor is automatically discharged after insertion, integrating a protection mechanism to help prevent damage and support a smooth testing process.
2. Convenient data export: Easily connect the tester to your computer to export measurement results, streamlining detailed data review and analysis for efficient workflow management.
3. Versatile testing via measurement replacement mode: Equipped with innovative replaceable test boards that adapt to various electronic components, optimizing flexibility and efficiency for different measurement needs.
4. Quick and precise component identification: Experience one-touch recognition of component parameters through a user-friendly plug-in and unplug system, saving valuable time in your electronic projects.
5. Accurate Zener diode testing: Dedicated measurement channel enables reliable readings for diodes within a range of 0.01-32V, achieving precise results with advanced power handling circuitry.

Specifications:

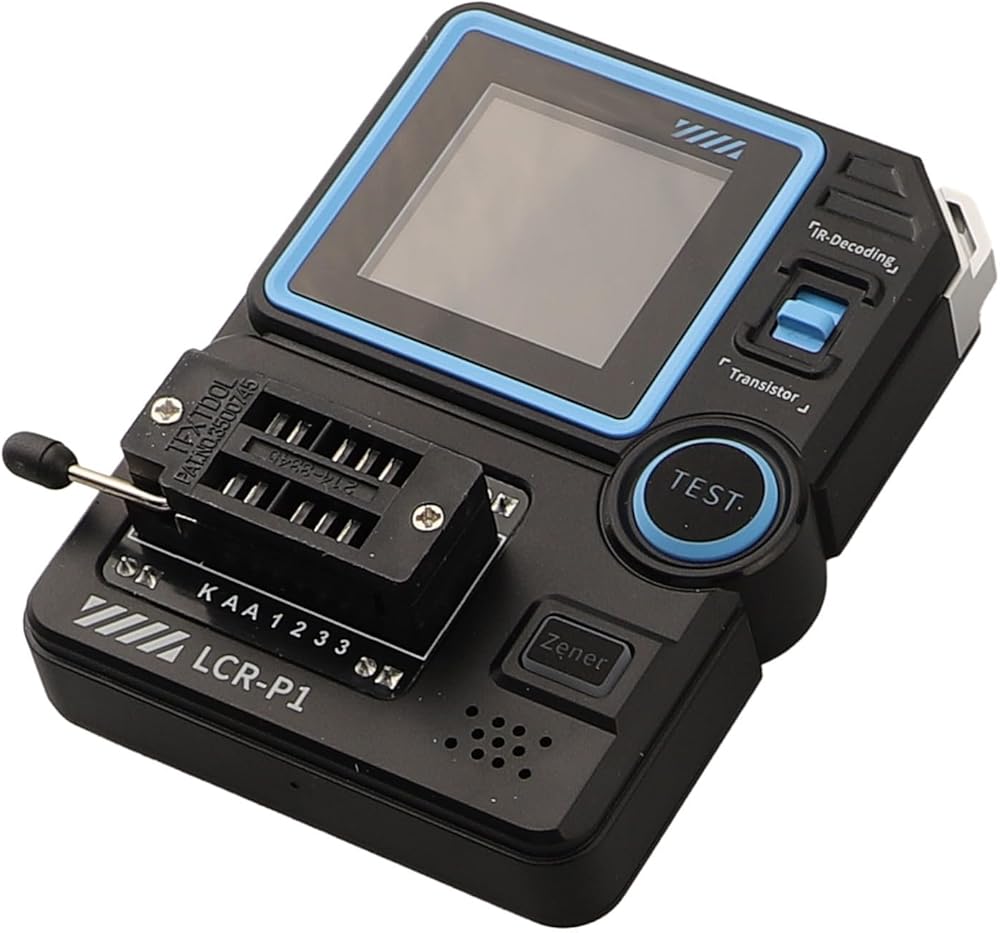

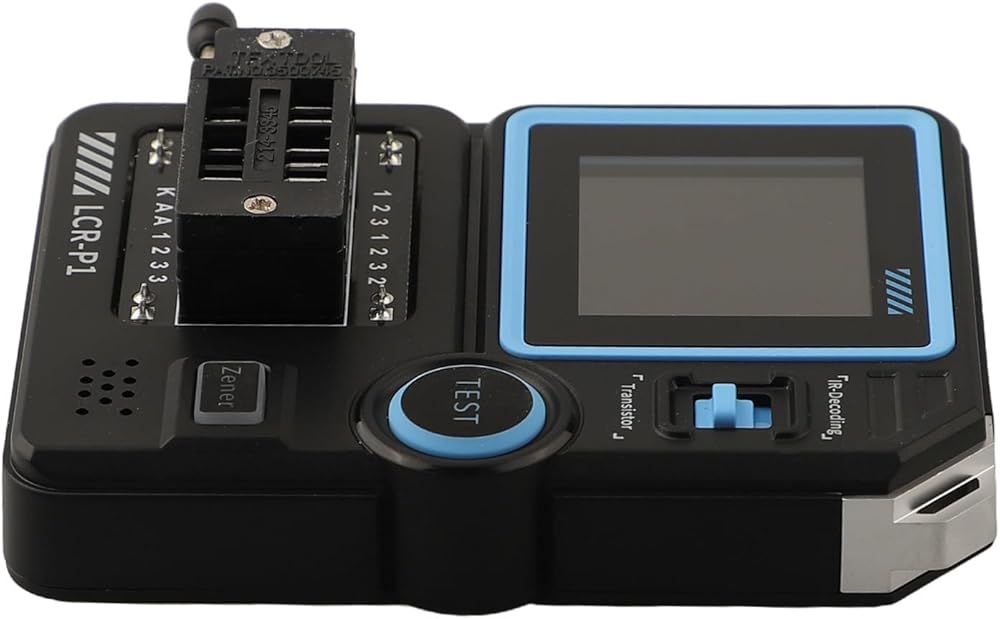

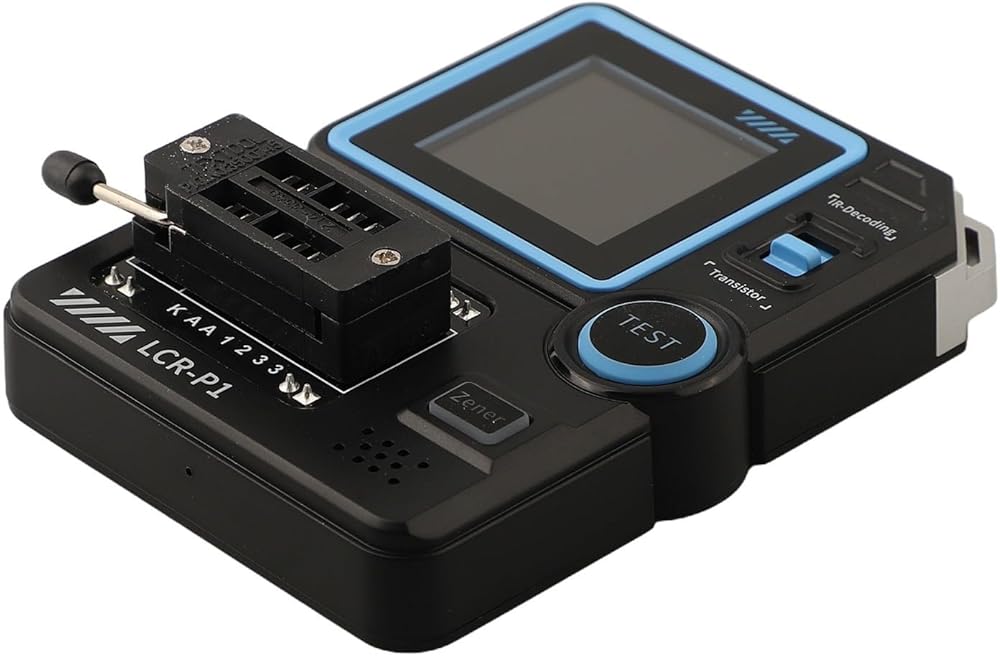

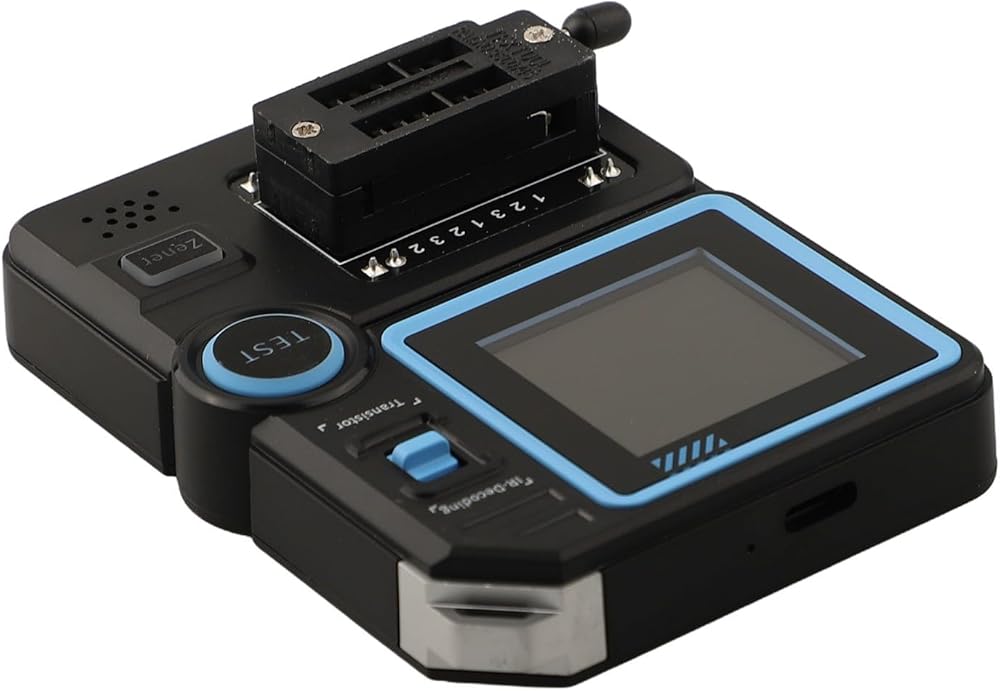

Name: LCR-P1 Transistor Tester
Size: as shown
Material: PVC
Color: black
1. Product model: LCR-P1
2. Screen display: 1.44-inch color display
3. Charging specifications: USB, 5V/1A
4. Power supply: 300mAh lithium battery
5. Operating temperature: 0～40℃
6. Resistance testing range: 0.01Ω-50MΩ
7. Capacitance testing range: 25pF～100mF
8. Inductance testing range: 10uH-1000uH
9. Transistor test: β between 10 and 600
10. Diode: forward voltage drop less than 4.5V
11. Zener diode testing: 0.01-4.5V, 0.01-32V
12. Field effect transistor support: JFET, IGBT, MOSFET
13. Unidirectional/bidirectional thyristor: turn-on voltage less than 5V, gate trigger current less than 6mA
14. Battery testing: 0.1-4.5V
15. IR remote decoding: supports protocol infrared code
16. Battery capacity: 300mAh lithium battery
17. Anti-scalding safety feature: Yes
18. Data export capability: Supported
19. Firmware updates: Supported

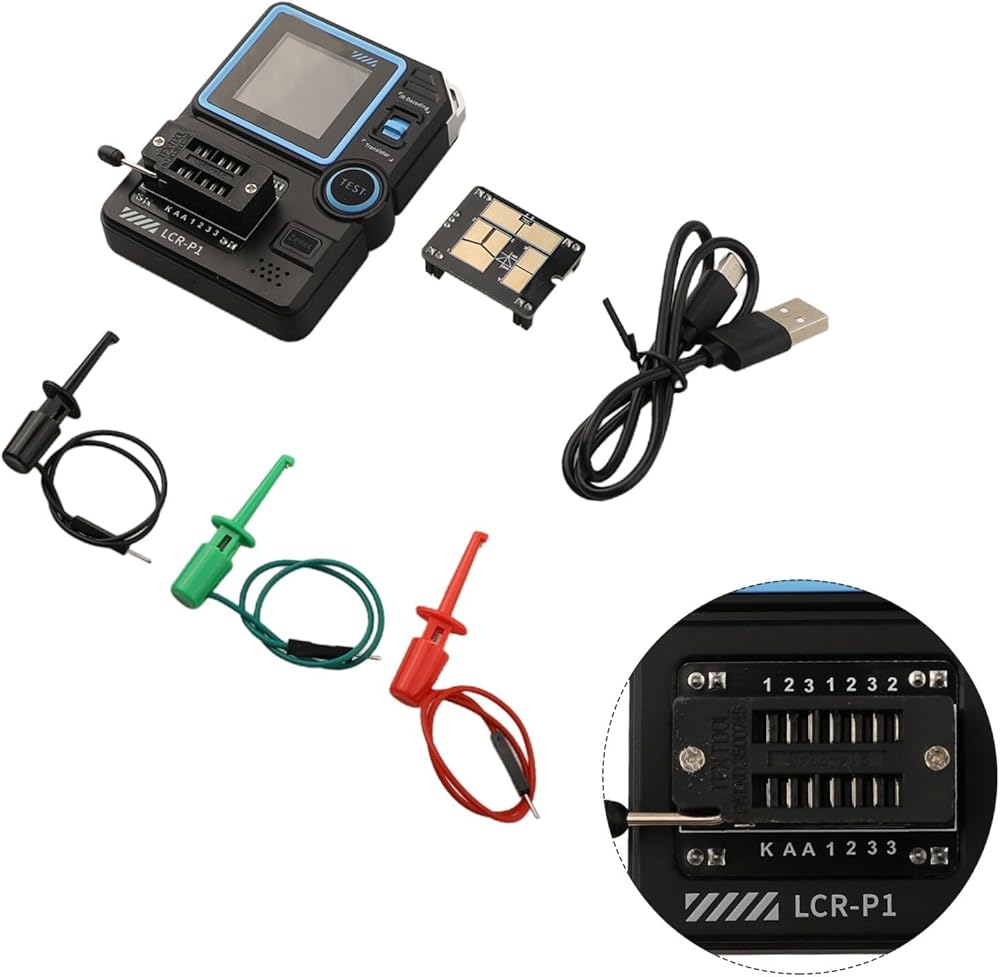

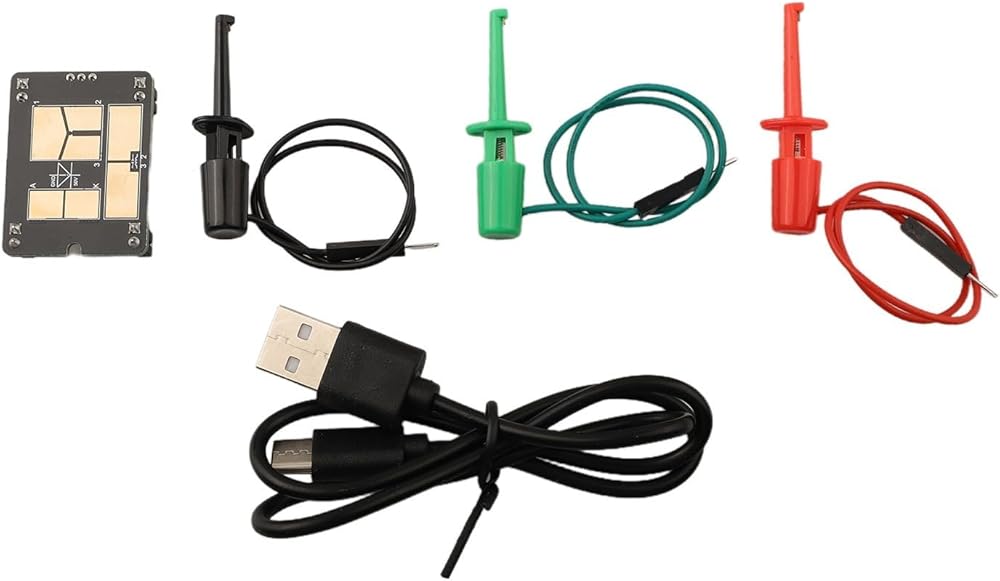

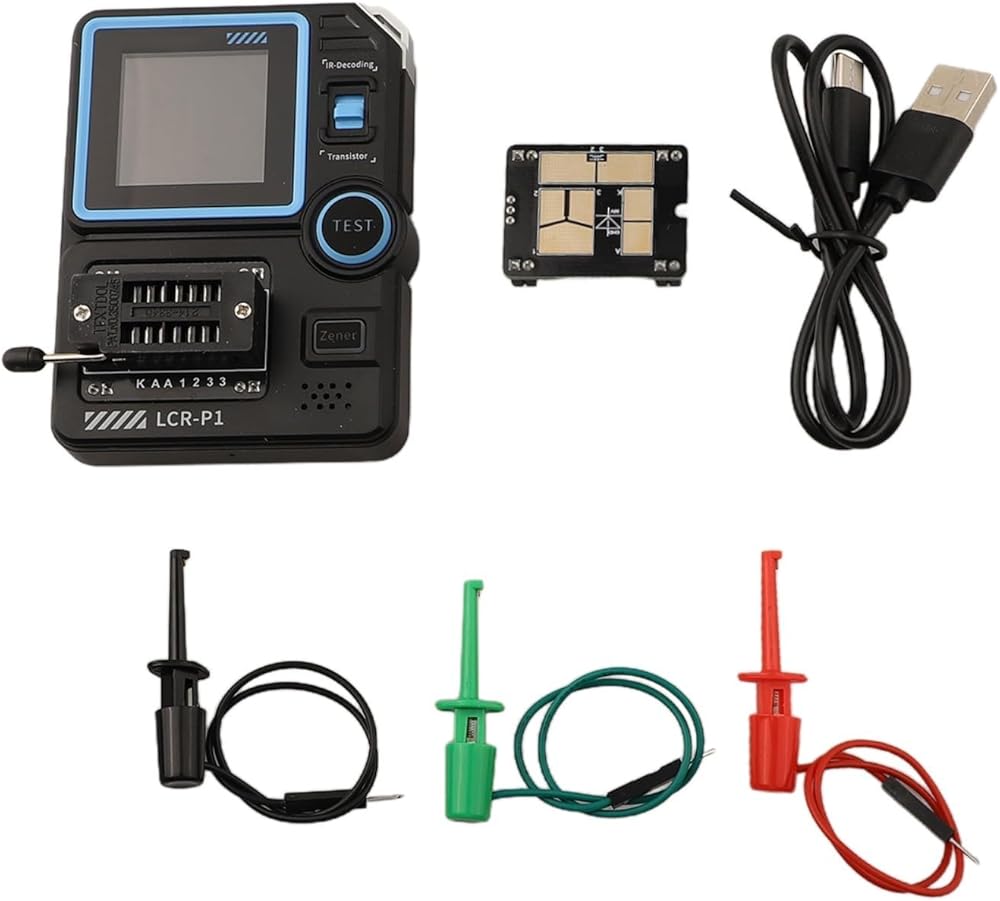

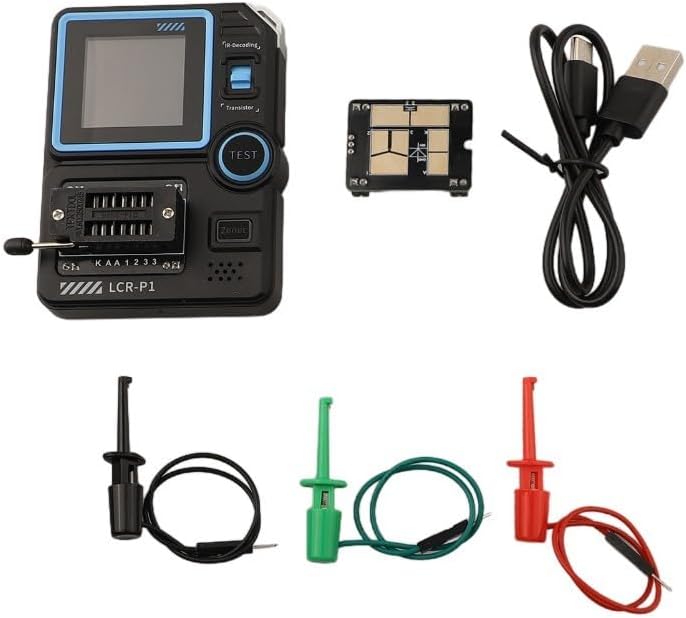

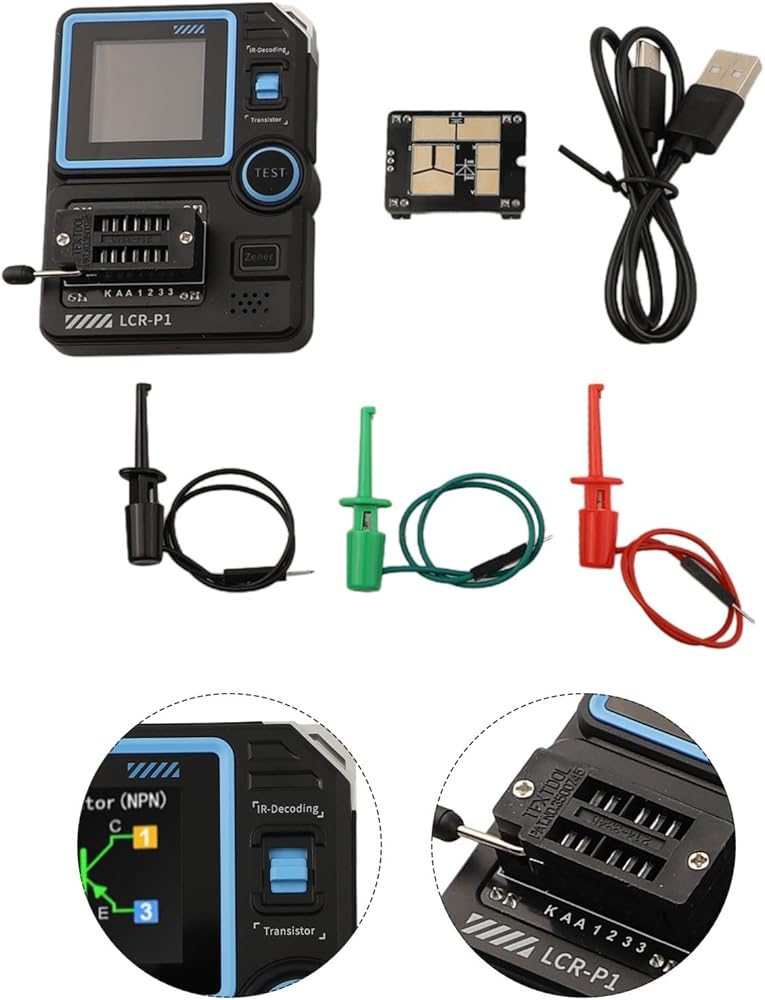

Package contents:
1. LCR-P1 Host
2. Replaceable test board
3. USB data cable
4. User manual
5. Packing box
6. Test hook x3
