Technical data:
Model
ETCR1000C
Functions:
Phase detection (positive phase, reverse phase and phase loss), live line testing, easy current detection, breakpoint location, and line maintenance.
Power supply.
DC 3V2*AA alkaline dry battery, continuous operation for 70 hours.
AC voltage range (V)
AC 70 - 1000 V, 40/65 Hz (continuous sine wave input).

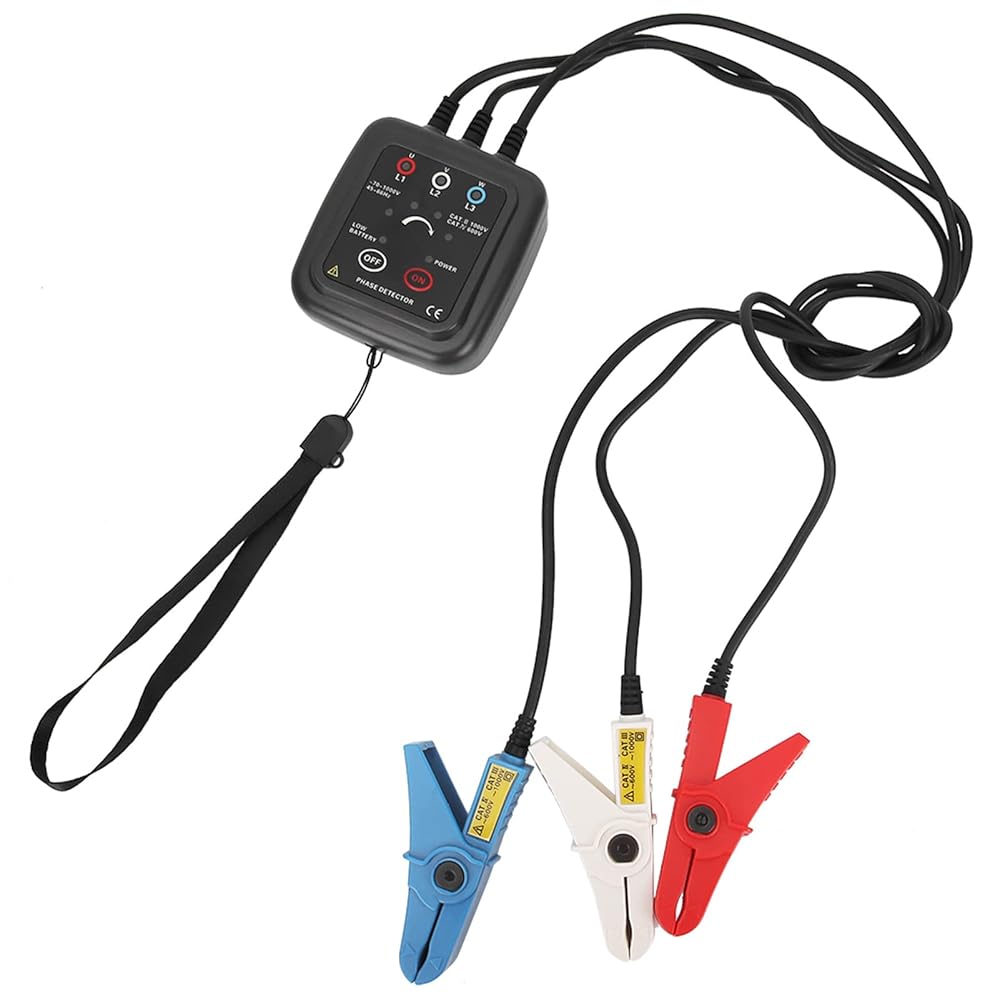

Clamp Wire Size
Outer diameter 1.6-16mm

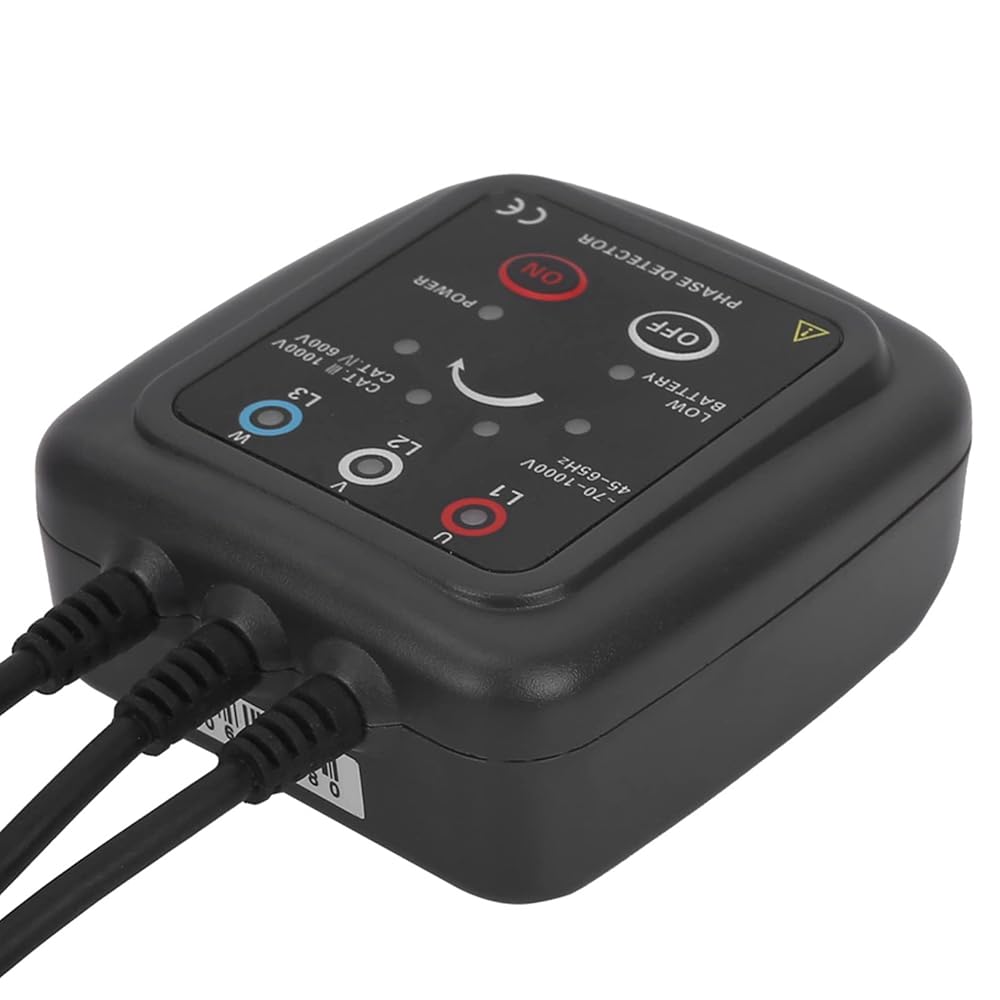

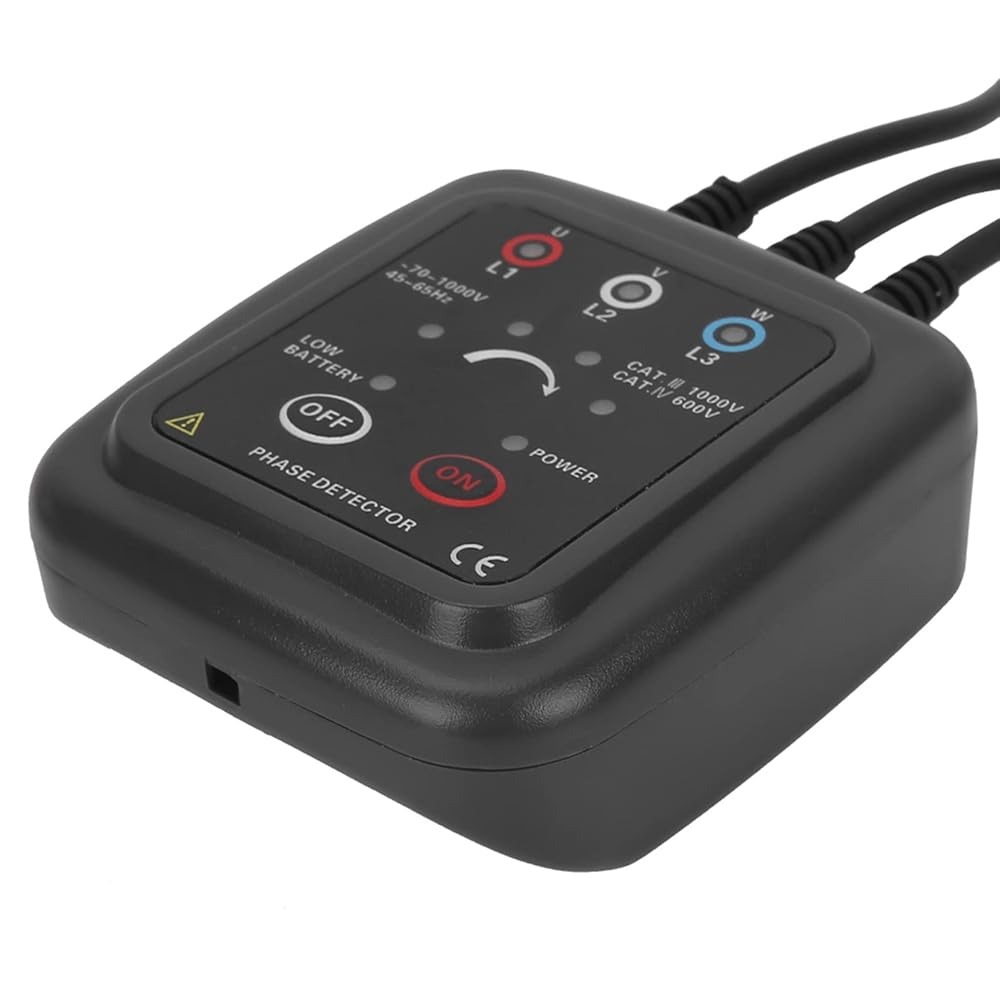

LED indicator.
(Positive phase sequence)
The four phase follow lamps light up in turn (clockwise).
(Negative phase sequence)
The four phase follow lamps light up in turn (counterclockwise).
(Live Power) The lamps L1, L2, L3 turn on in the voltage adjustment range.
(phase loss) L1 or L2 or L3 does not turn on.
(Short circuit) L1 or L2 or L3 does not turn on.
Buzz
(Positive phase) The instrument emits short, intermittent beeps;
(Reverse phase) The instrument emits a long continuous tone.
Power indicator.
The power indicator light lights up; low power consumption, low battery indicator lights up.

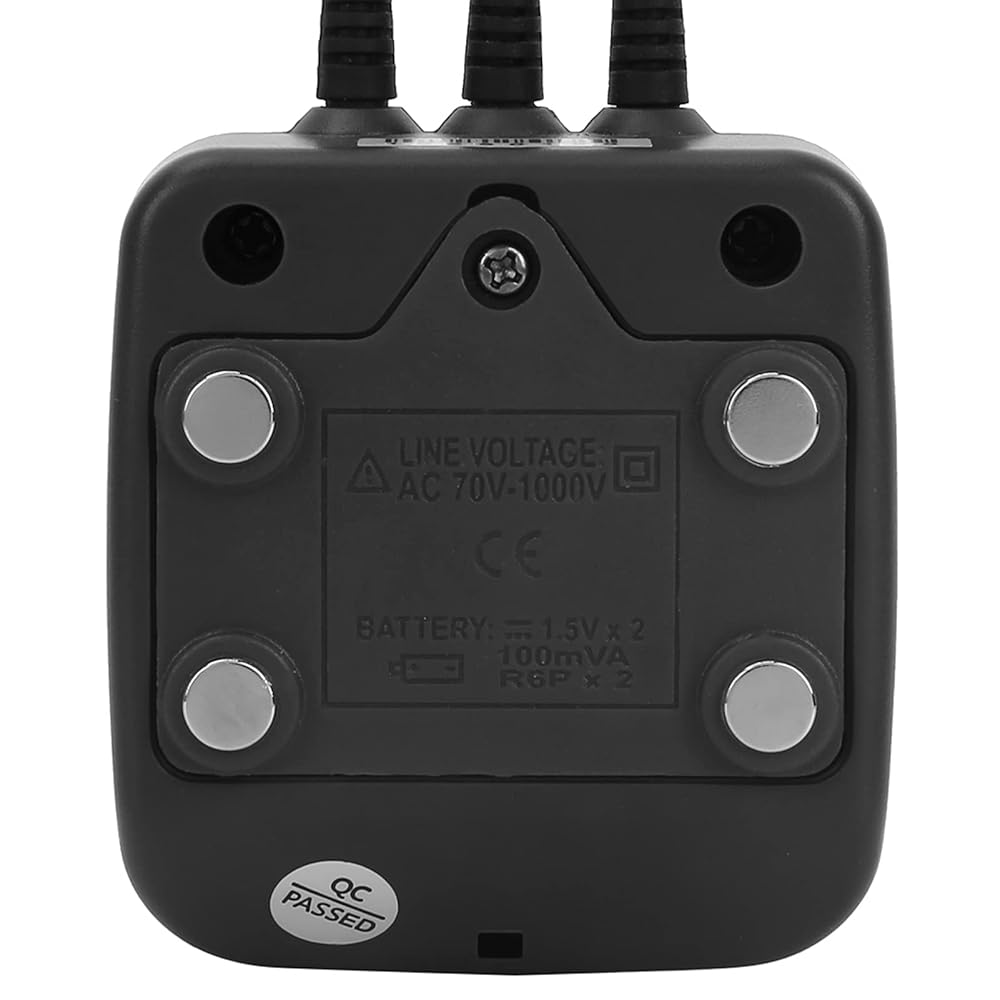

magnetic force
Four magnets on the back of the gauge that attach to the junction box and can carry a 800g quality.
Automatic shutdown.
After 5 minutes, the meter automatically interrupts the power supply.
Meter measure.
Width, height, thickness: 70 mm x 75 mm x 30 mm.
Clamp Cable Length
0.6 m.
Weight
317 g.

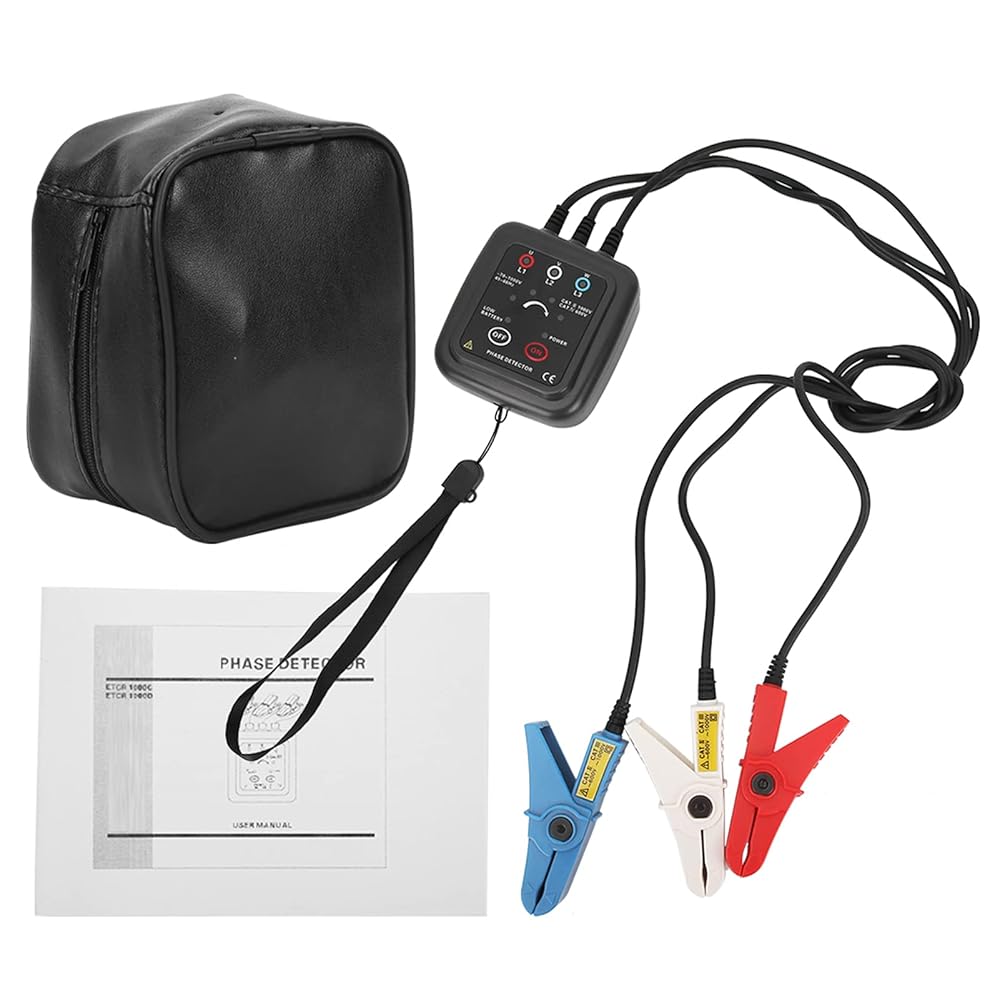

Package list:

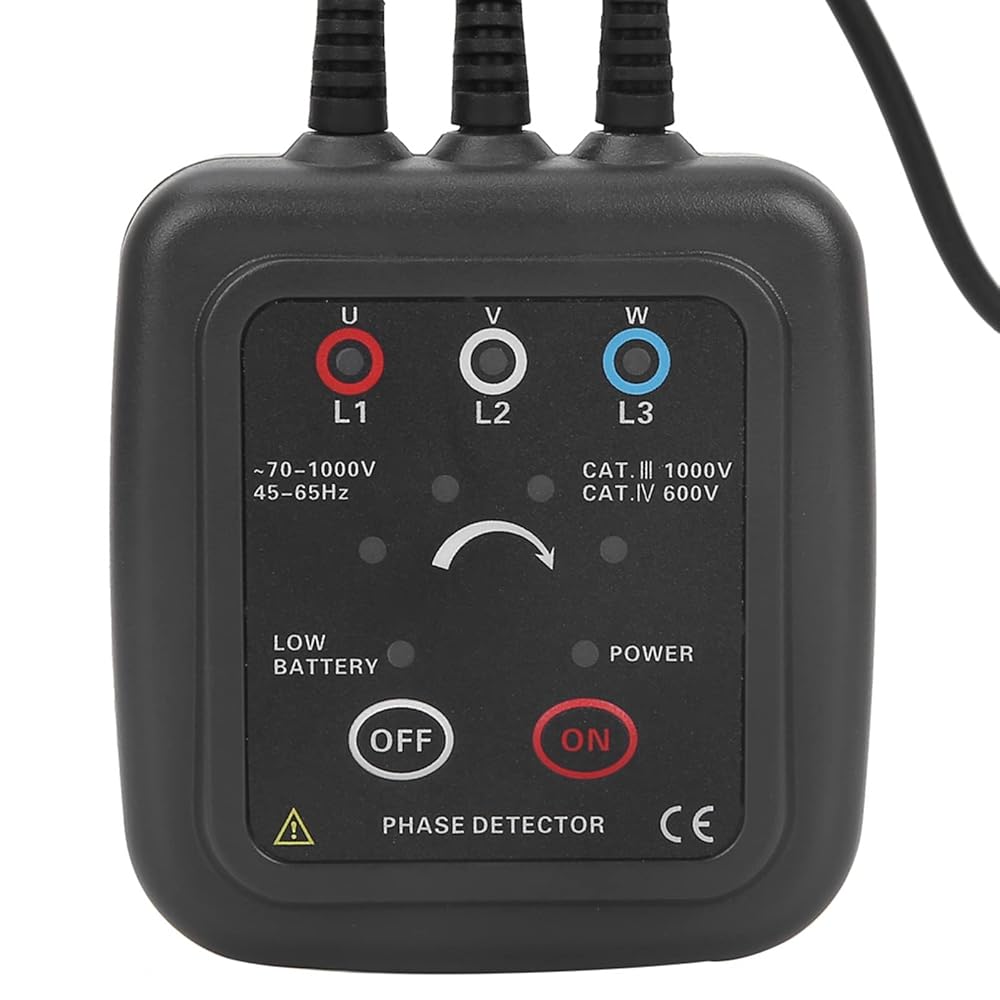

1 x non-contact phase sequence detector.
1 x user manual (English language not guaranteed).

Note:
The actual colour of the item may vary from the photo due to the light.
There may be slight deviations in the measurement of the product.
