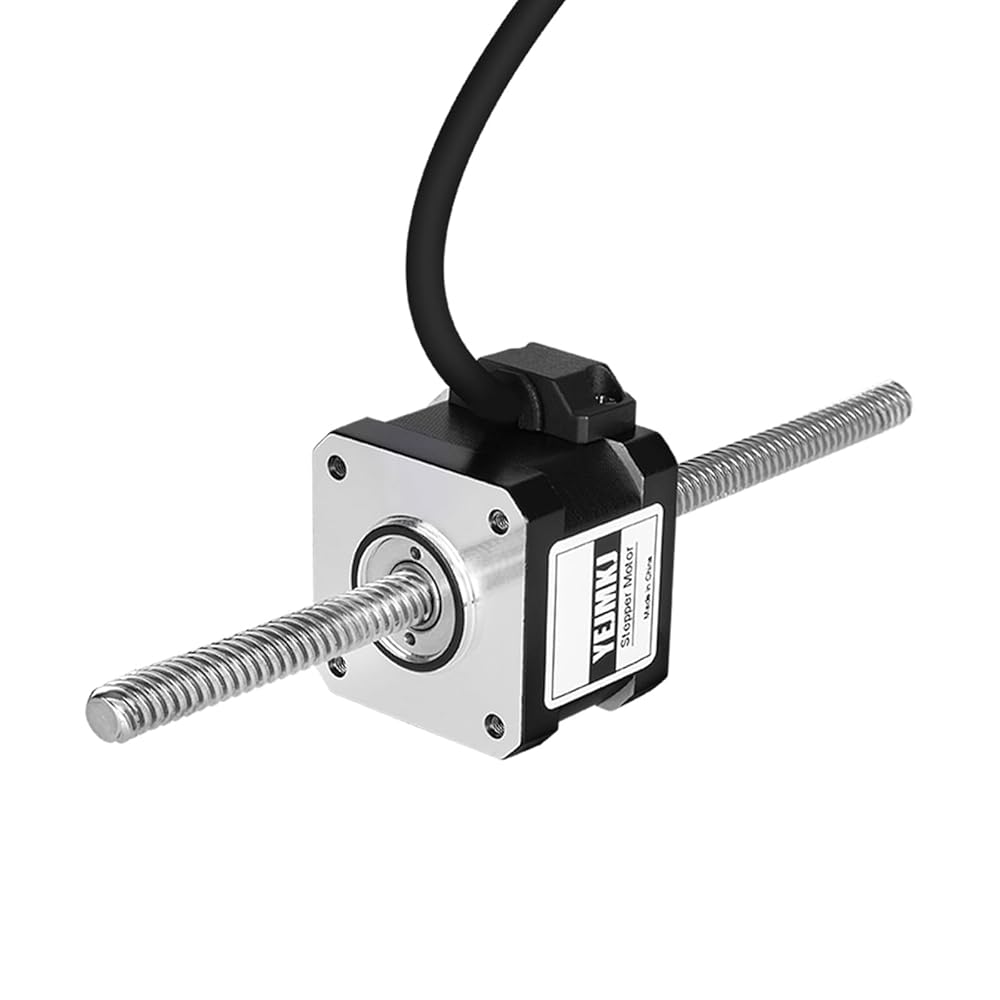

Through Shaft Nema 17 Stepper Motor TR8x8 200mm 2 Phase 1.8° High Torque 0.3Nm(42.48oz·in) Bipolar 1.5A 2.7Ω 34mm 42 Step Motor with T8 200mm Cable 1M for 3D Printer DIY Robot CNC

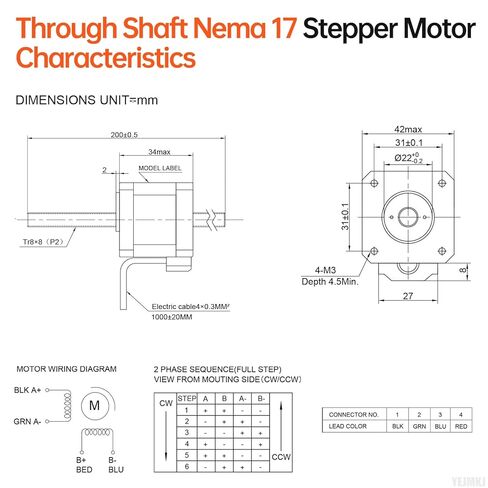

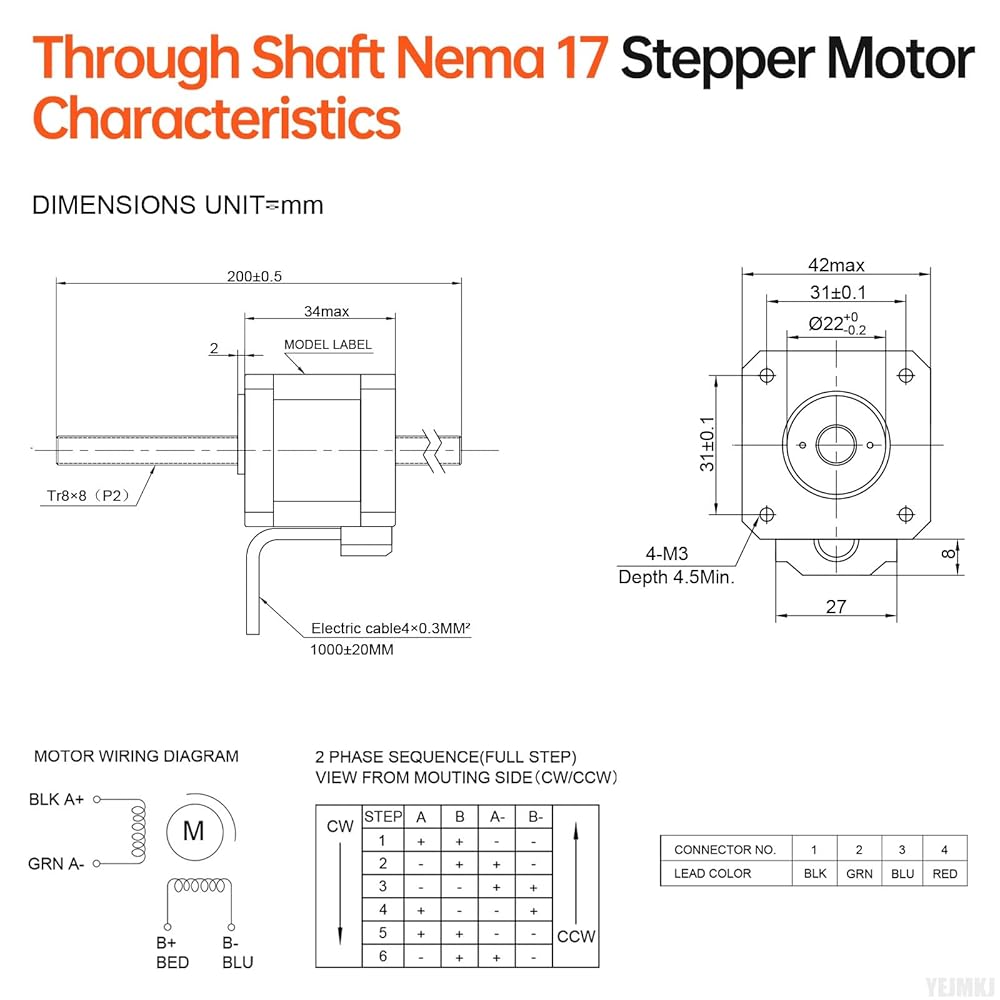

Specifications: Dimensional parameters of Through-shaft Nema 17 stepper motor are as follows. Body size 42x42x34mm (1.66x1.66x1.34in), TR8x8 200mm, Installation hole distance 31mm, 4-Wire, Black (A+) Green (A-) Red (B+) Blue (B-), Cable 1M, Weight 312g.

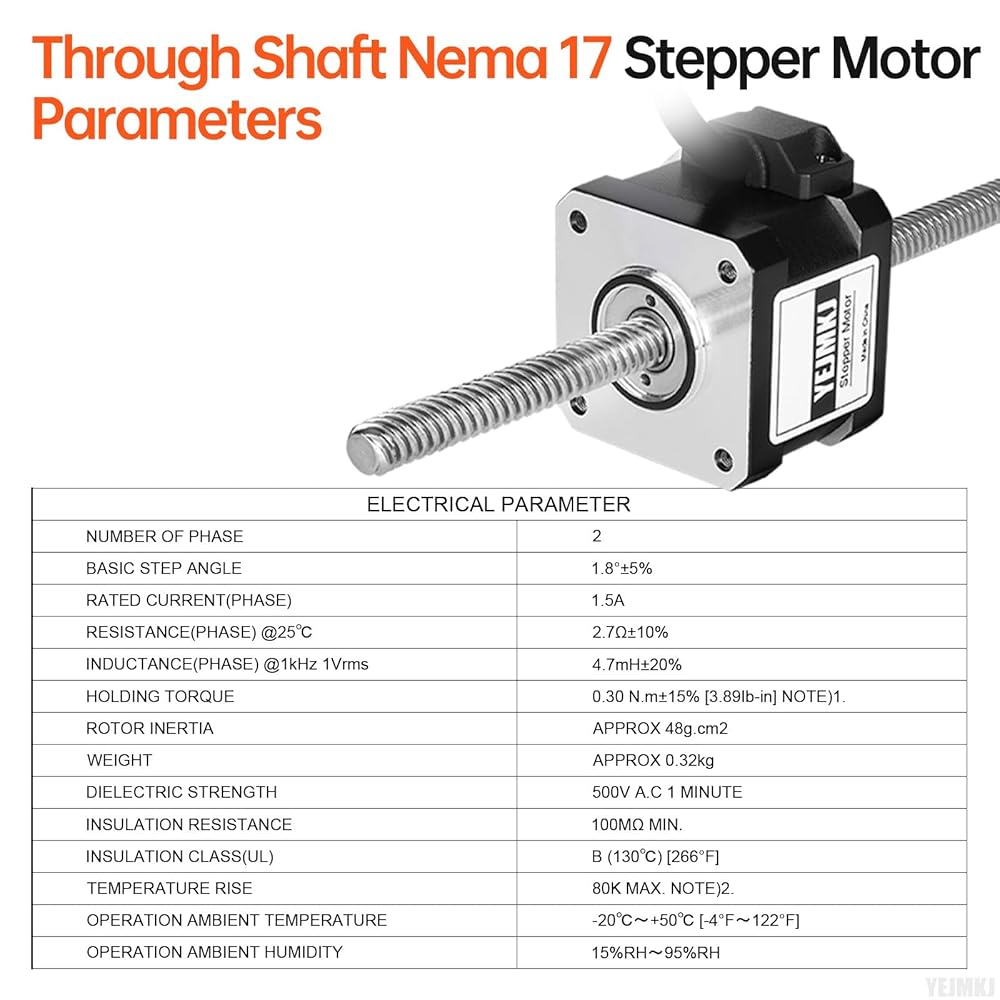

Parameters: Nema 17 through-shaft linear stepper motor with integrated 200mm t8 , Step angle 1.8dge(200 steps/rev), 2 Phase Holding torque 0.3Nm (42.48oz·in), Resistance 2.7Ω, Rated current 1.5A, Inductance 4.7mH±20%, Rotor inertia approx 48g.cm².
Safety Data: This Nema 17 non-captive stepper motor boasts safe and reliable operation, with the following key safety parameters. Dielectric strength 500V A.C 1 MINUTE; Insulation resistance 100MΩ MIN; Insulation class(UL) B (130℃) [266°F]; Operation ambient temperature -20℃～+50℃ [-4°F～122°F]; Operation ambient humidity 15%RH～95%RH; Temperature rise 80K MAX.

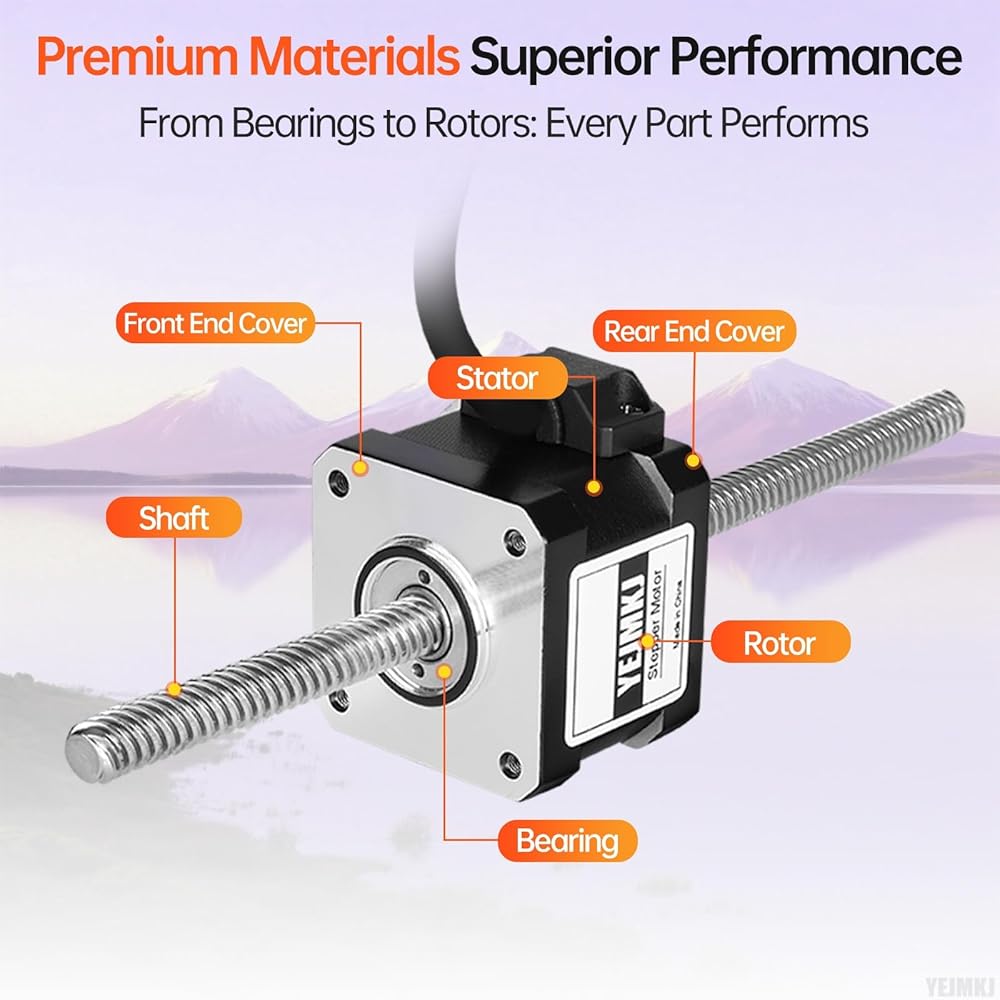

Elevate Your Equipment: Choose our upgraded Nema 17 Stepper Motor for increased holding torque and remarkably quiet function. Re-engineered steel cores and precision windings minimize noise, contributing to smoother overall system operation with less environment disruption.
Key Points: Faster speeds reduce torque, with operation recommended at 0–600 RPM. Lower current reduces torque and temperature rise, and lower voltage also reduces torque (ideal voltage range: 12–24V DC). Widely used in 3D printers, DIY robots, CNC machines, and other automated systems, the 42mm Stepper Motor with T8 offers compact size and high torque for tough tasks.
