-11%
Ratio 10:1 Planetary Gearbox for Nema 23 Stepper Motor 57-67mm Backlash 15 arcmin Input Shaft 21mm φ8mm Planetary Reducer for 57 Step Motor incl. 4 Screw 2 Plug 1 Key CNC 3D Printer Lathe in Kuwait Ratio 10:1 Planetary Gearbox for Nema 23 Stepper Motor 57-67mm Backlash 15 arcmin Input Shaft 21mm φ8mm Planetary Reducer for 57 Step Motor incl. 4 Screw 2 Plug 1 Key CNC 3D Printer Lathe in Kuwait Ratio 10:1 Planetary Gearbox for Nema 23 Stepper Motor 57-67mm Backlash 15 arcmin Input Shaft 21mm φ8mm Planetary Reducer for 57 Step Motor incl. 4 Screw 2 Plug 1 Key CNC 3D Printer Lathe in Kuwait Ratio 10:1 Planetary Gearbox for Nema 23 Stepper Motor 57-67mm Backlash 15 arcmin Input Shaft 21mm φ8mm Planetary Reducer for 57 Step Motor incl. 4 Screw 2 Plug 1 Key CNC 3D Printer Lathe in Kuwait Ratio 10:1 Planetary Gearbox for Nema 23 Stepper Motor 57-67mm Backlash 15 arcmin Input Shaft 21mm φ8mm Planetary Reducer for 57 Step Motor incl. 4 Screw 2 Plug 1 Key CNC 3D Printer Lathe in Kuwait Ratio 10:1 Planetary Gearbox for Nema 23 Stepper Motor 57-67mm Backlash 15 arcmin Input Shaft 21mm φ8mm Planetary Reducer for 57 Step Motor incl. 4 Screw 2 Plug 1 Key CNC 3D Printer Lathe in Kuwait

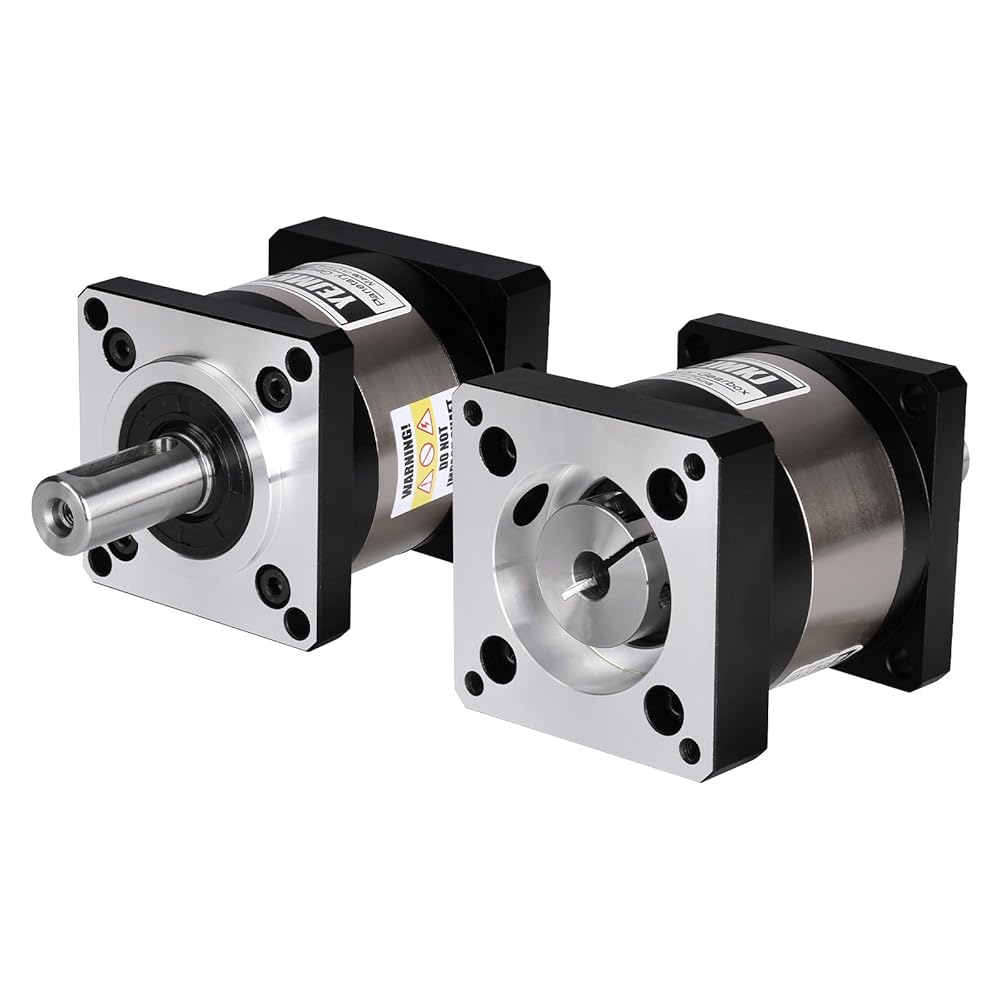

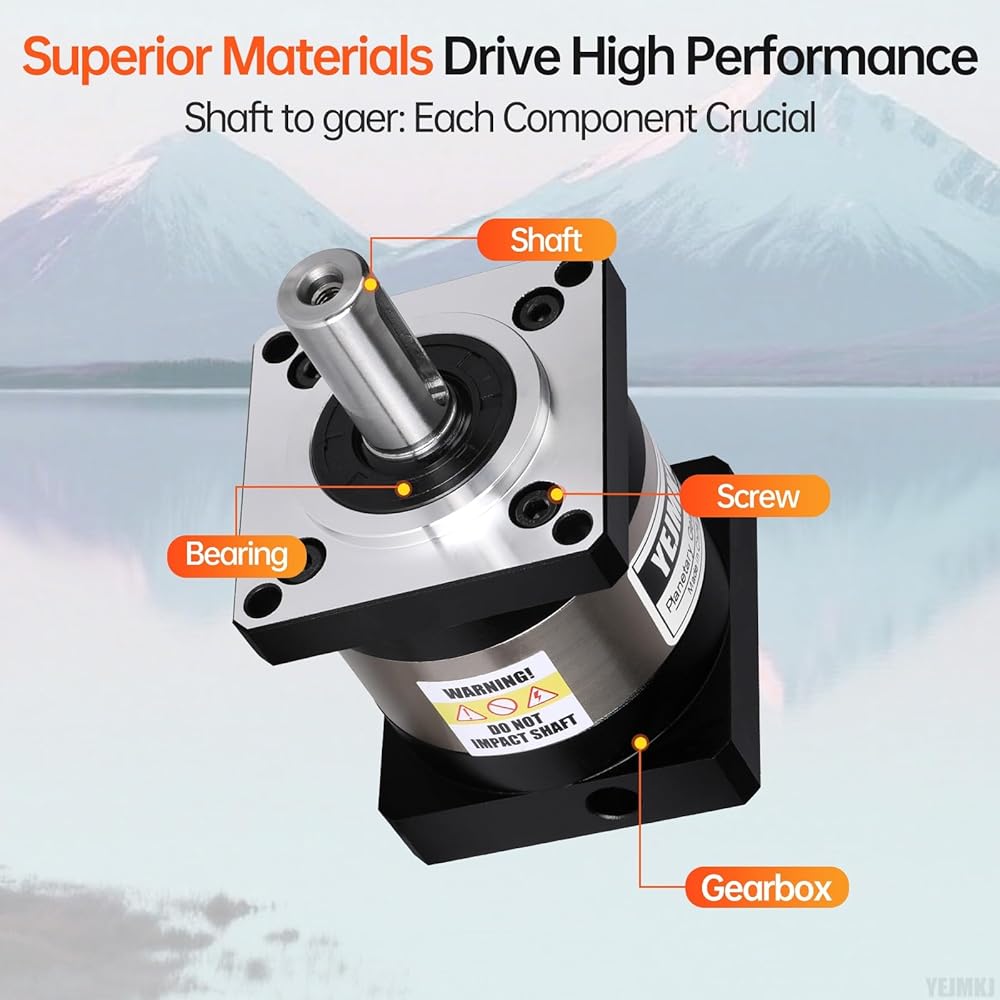

Ratio 10:1 Planetary Gearbox for Nema 23 Stepper Motor 57-67mm Backlash 15 arcmin Input Shaft 21mm φ8mm Planetary Reducer for 57 Step Motor incl. 4 Screw 2 Plug 1 Key CNC 3D Printer Lathe

KWD 20
KWD 22.500
Brand
YEJMKJ
Weight
0.9 kg
– 1 +

Special Features

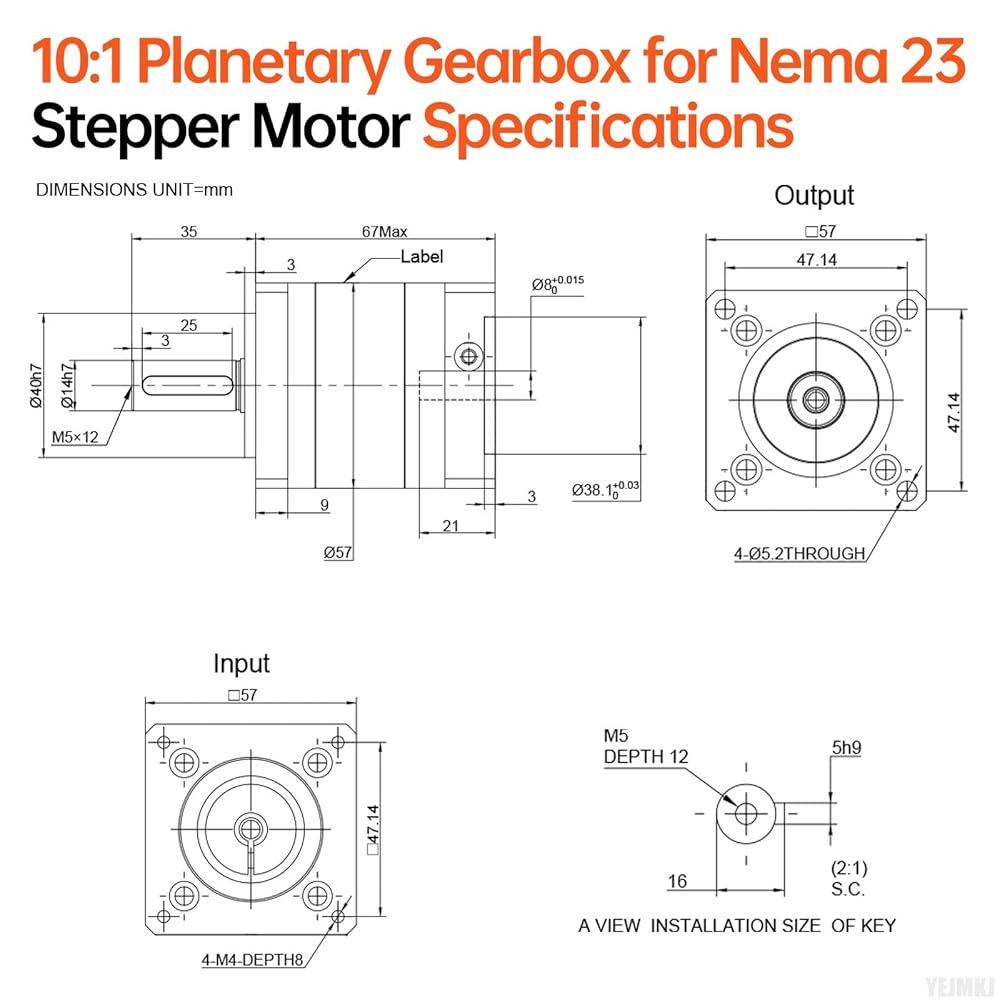

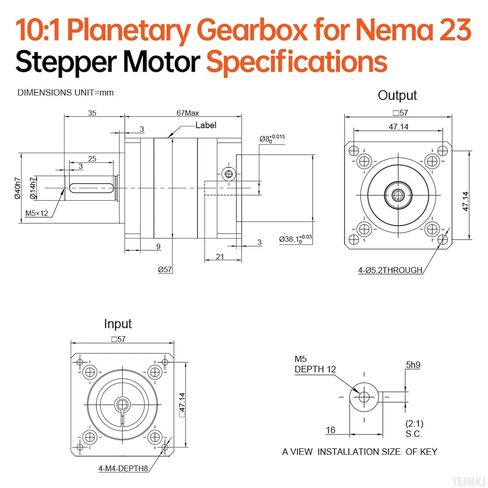

  • Specifications: Ratio 10:1 Planetary Gearbox for Nema 23/24 Stepper Motor Ø8mm-21mm/Ø38.1mm-2mm/F47.14mm-M4(Compatible shaft length range: 8-21mm), Body length 57-67mm (2.25-2.64in), Input shaft diameter Φ8 mm, Input shaft length 21mm, Output shaft diameter Φ14 mm, Output shaft length 35 mm, Installation hole distance 47.14mm, Weight 235g.

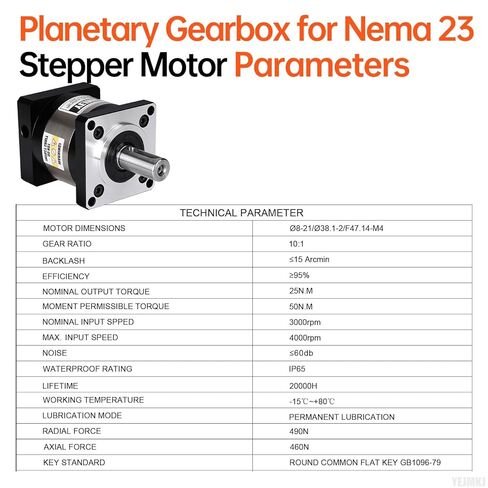

  • Parameters: Nema 23 planetary gearbox, Backlash ≤ 15 arcmin, Efficiency ≥95%, Nominal output torque 25Nm (3540.3oz·in), Moment permissible torque 50Nm (7080.6oz·in), Nominal input speed 3000rpm, Max. input speed 4000rpm, Radial force 490N, Axial force 460N.
  • Reliability Specifications: Engineered for precision and endurance, this Nema 24 23 planetary reducer meets the following critical specifications: Noise ≤60db, Working temperature -15℃~+80℃, Waterproof rating IP65, Lifetime 20000H.
  • High Performance: With strong torque output and smooth motion, this planetary gear for Nema 23/24 is a dependable choice for applications requiring longevity, offering a service life of up to 20,000 hours and quiet performance.
  • Application: Specially engineered for high-torque, low-speed operations, this planetary gearbox enables flawless performance in robotics, CNC machines, and other demanding equipment.
