Special Features

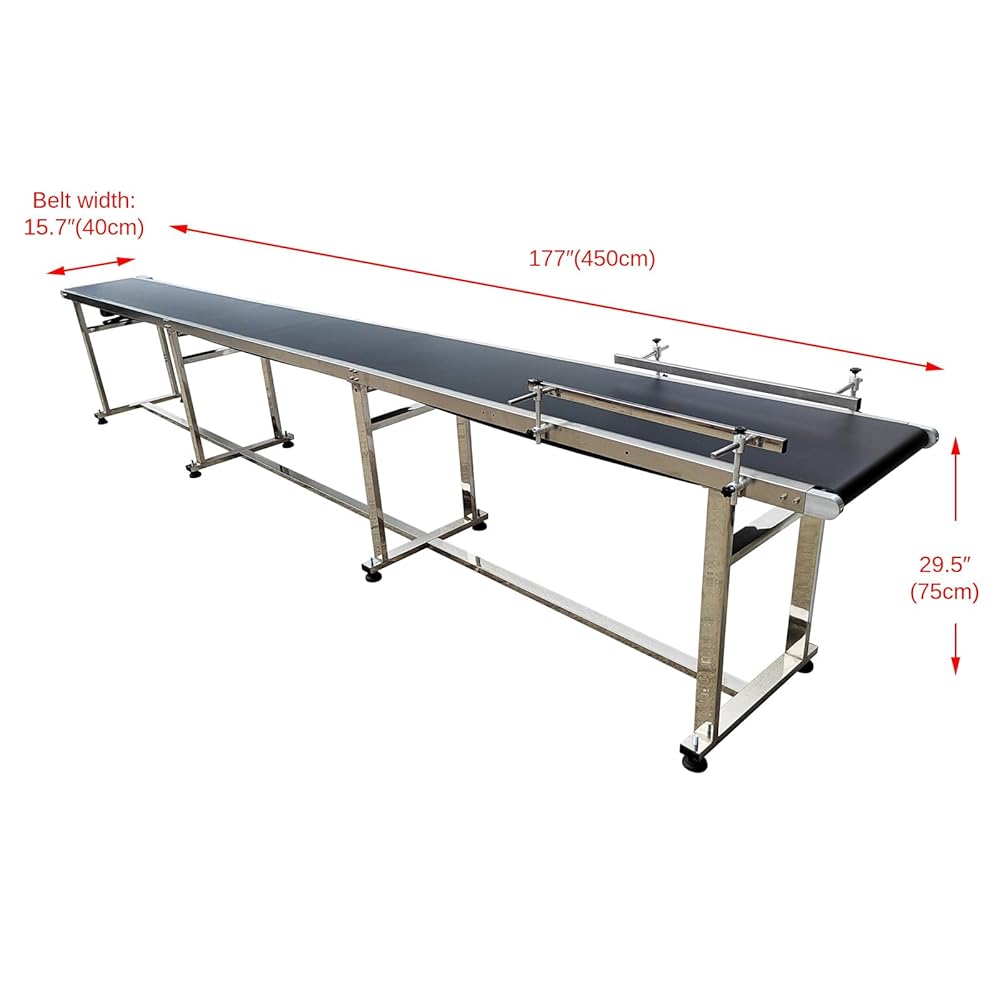

Large Size & 50KG Max Load: 177inch(4.5m) length × 15.7inch(0.4m) width × 29.5inch(0.75m) height, supports up to 50KG loads, ideal for conveying glass/plastic bottles, cartons, metals, and labels in factories.

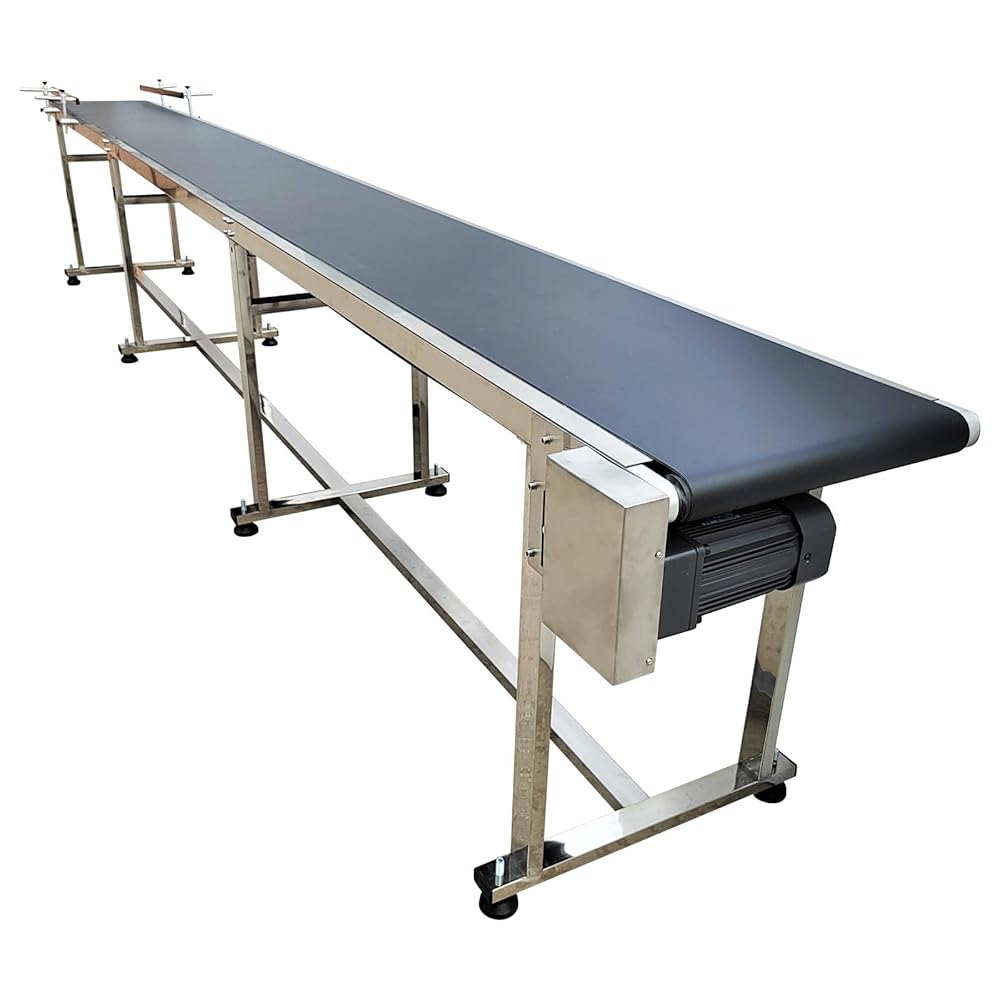

110V 370W Adjustable Speed Motor: 4-18 m/min adjustable speed, equipped with electronic speed regulator (auto speed stabilization) for stable operation; high-quality motor ensures long service life.
Excellent Black PVC Belt: Wear-resistant, anti-slip, and anti-static PVC industrial belt, not easy to deform; suitable for frequent use in production line scenarios (compatible with labeling machine/paste liquid filling machine).

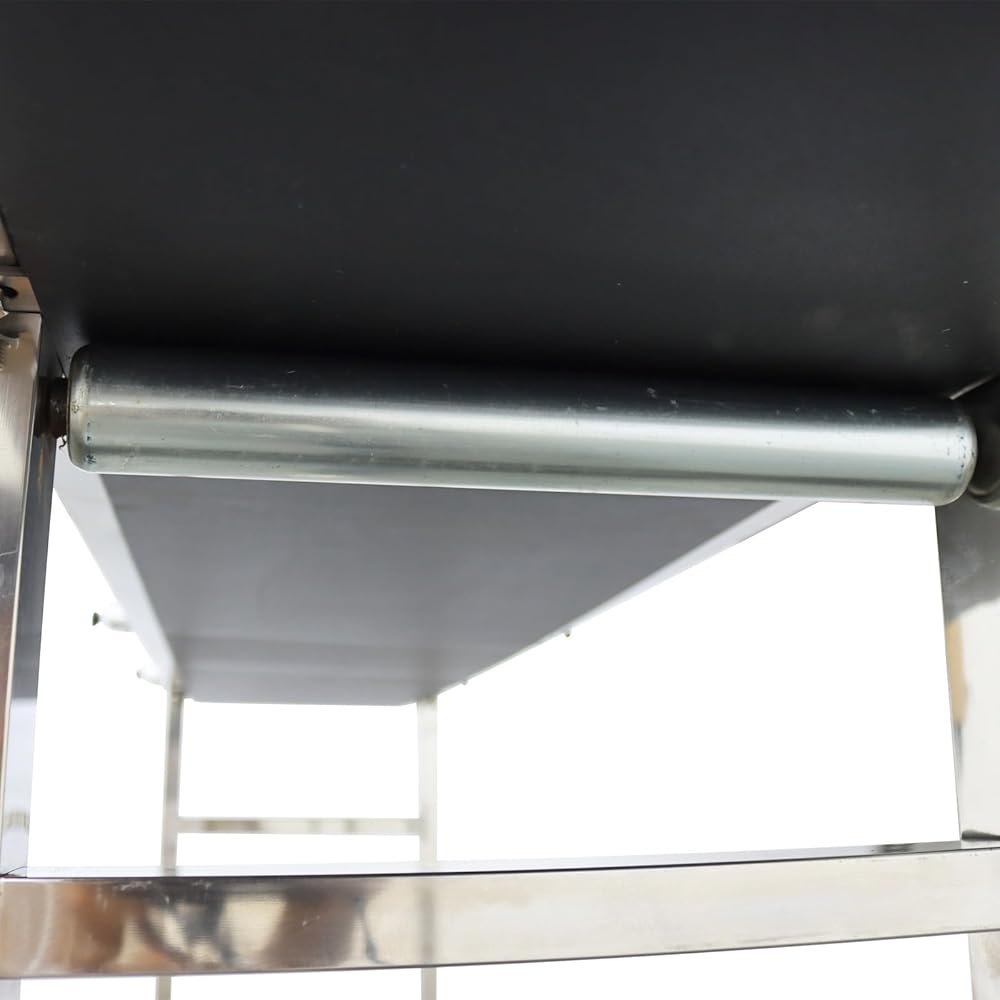

Sturdy Stainless Steel Frame: Stainless Steel Frame with anti-slip wear-resistant rubber bases (10cm threaded rods for leveling work surfaces); middle support roller enhance overall stability of the fuselage.

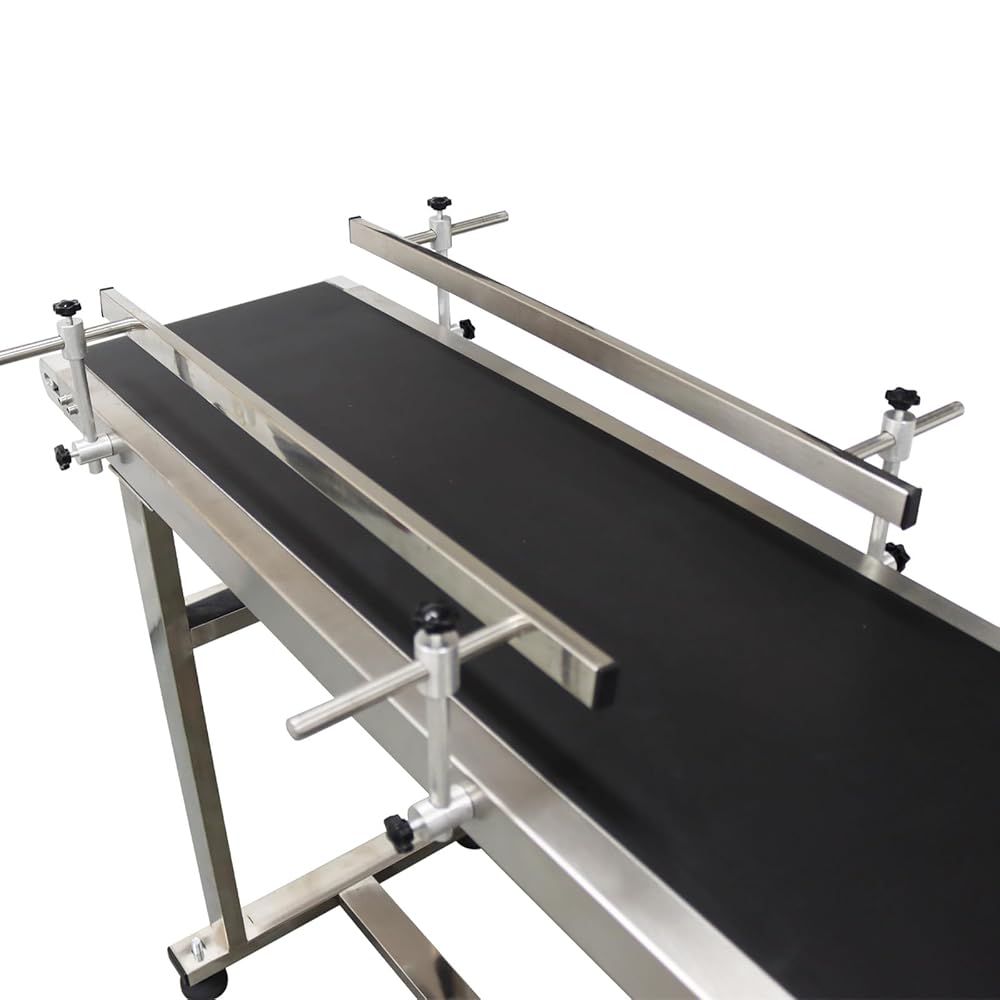

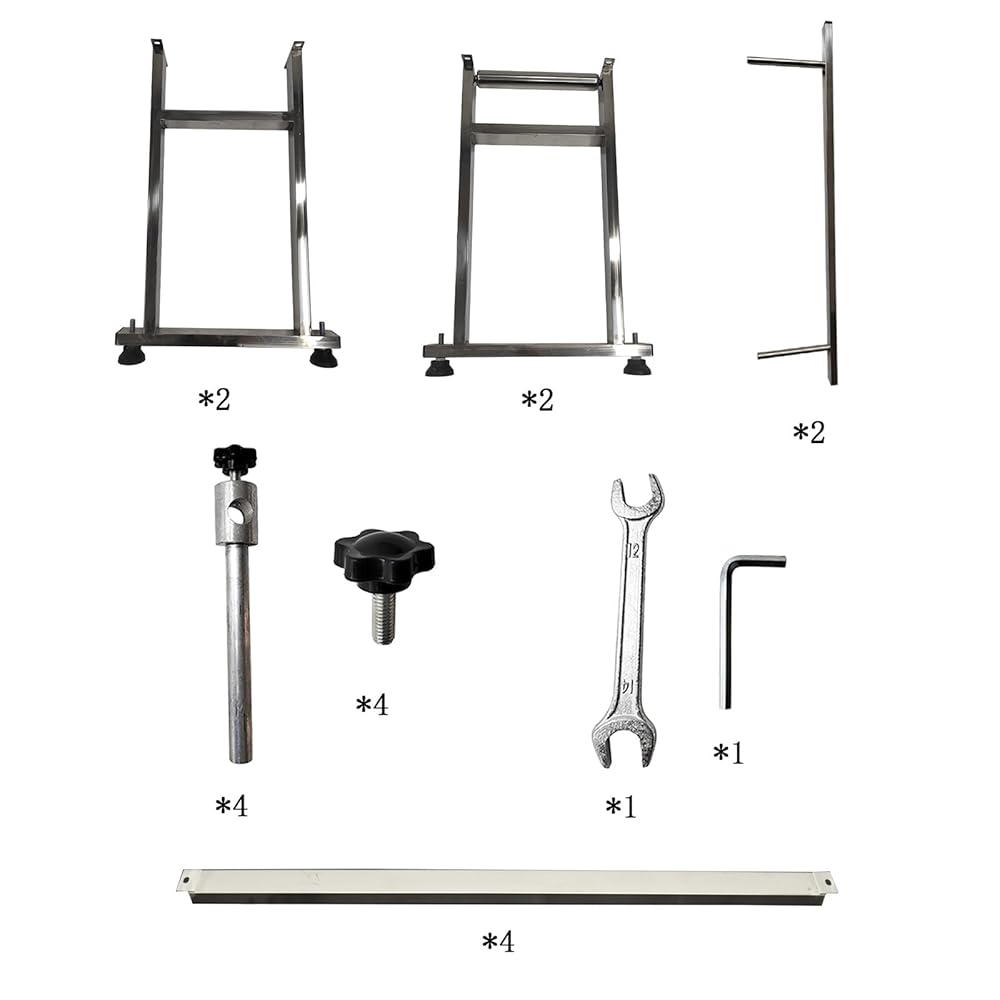

Adjustable Guardrail & Easy Setup: The guardrail can be adjusted at a distance of 4.3in in both horizontal and vertical directions; simple assembly—connect legs, crossbeams, rollers, and speed controller to start using.

Description

Specification
Length: 177inch(4.5m)
Width: 15.7inch(0.4m)
Height: 29.5inch(0.75m)
Speed: Adjustable from 4 to 18 meters per minute
Motor: Adjustable speed motor
Motor Power: 370W
Rated Voltage: 110V/60Hz
Max Load Capacity : 50KG
Usage Instructions
After receiving the machine, connect and secure the machine legs, crossbeam, rollers, etc. to the work surface. Connect the speed controller to the motor (ensure correct orientation during connection). Before starting the machine, set the speed controller to high speed first. If low speed is required, gradually adjust from high speed to low speed. The minimum speed must not be less than 4 meters per minute.
