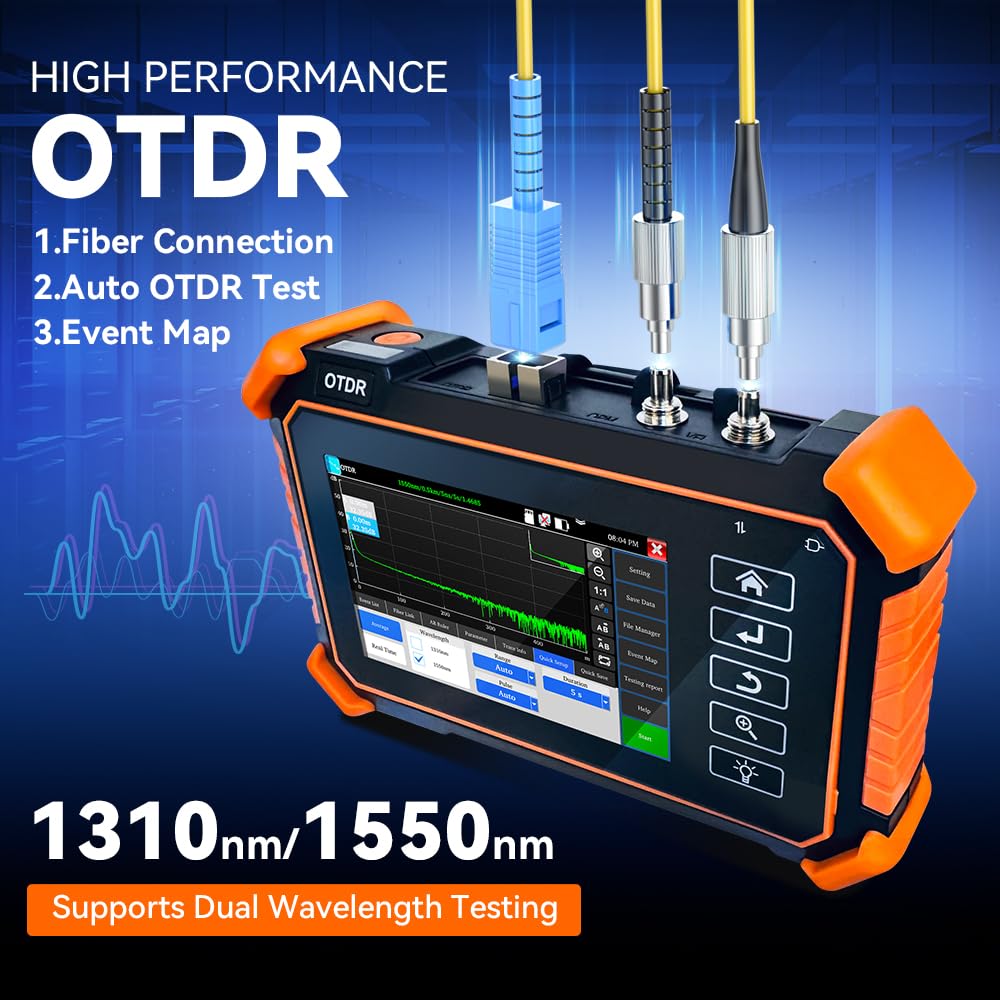

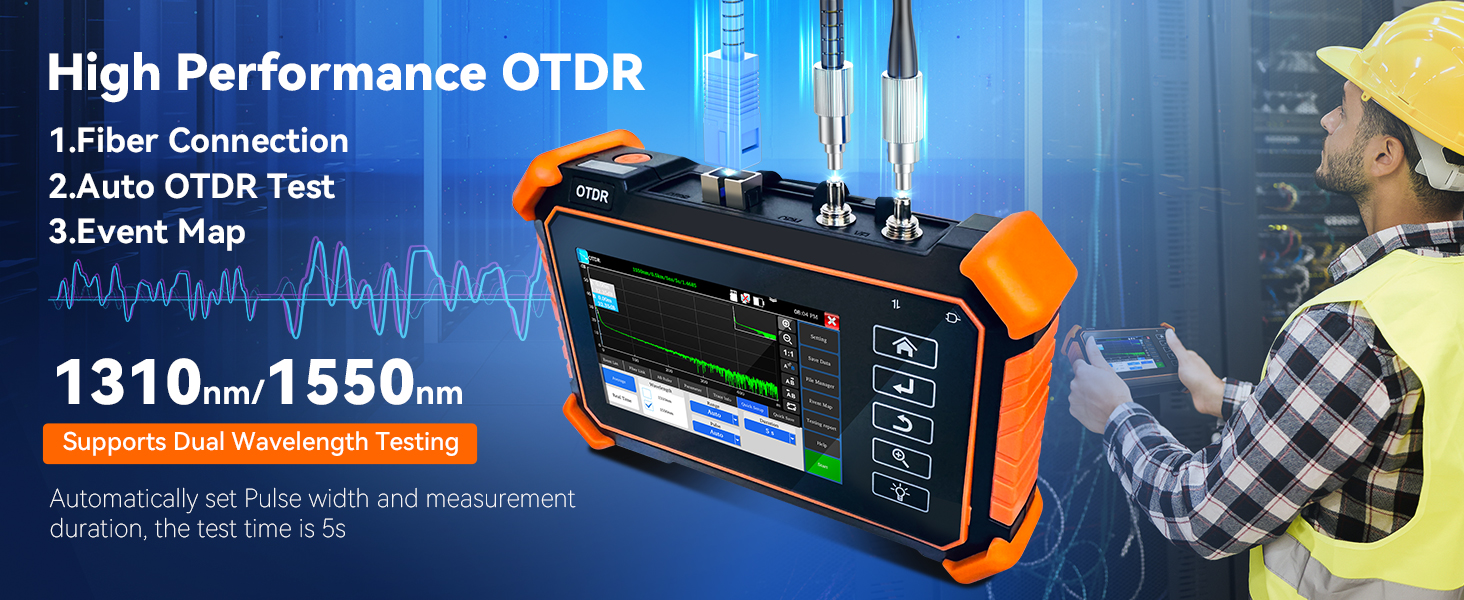

【OTDR Fiber Optic Tester 】OTDR test: wavelength 1310nm/1550nm, dynamic range 26dB/24dB. Quick Setup mode: quickly set wavelength, distance range, pulse width and measurement duration; Parameters Set mode: professional technicians can set the wavelength, distance range, pulse width, measurement mode, IOR, non-reflection threshold, end threshold and other parameters before testing, which will get more accurate curve results

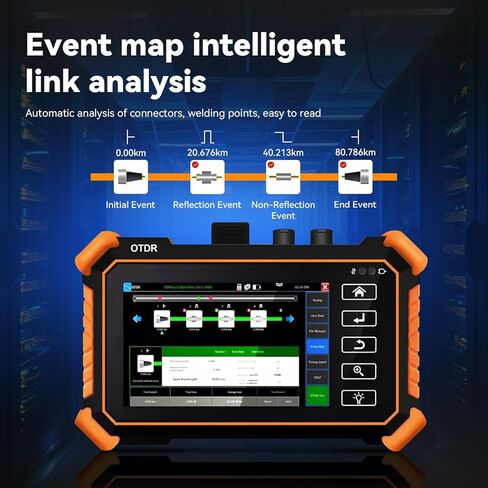

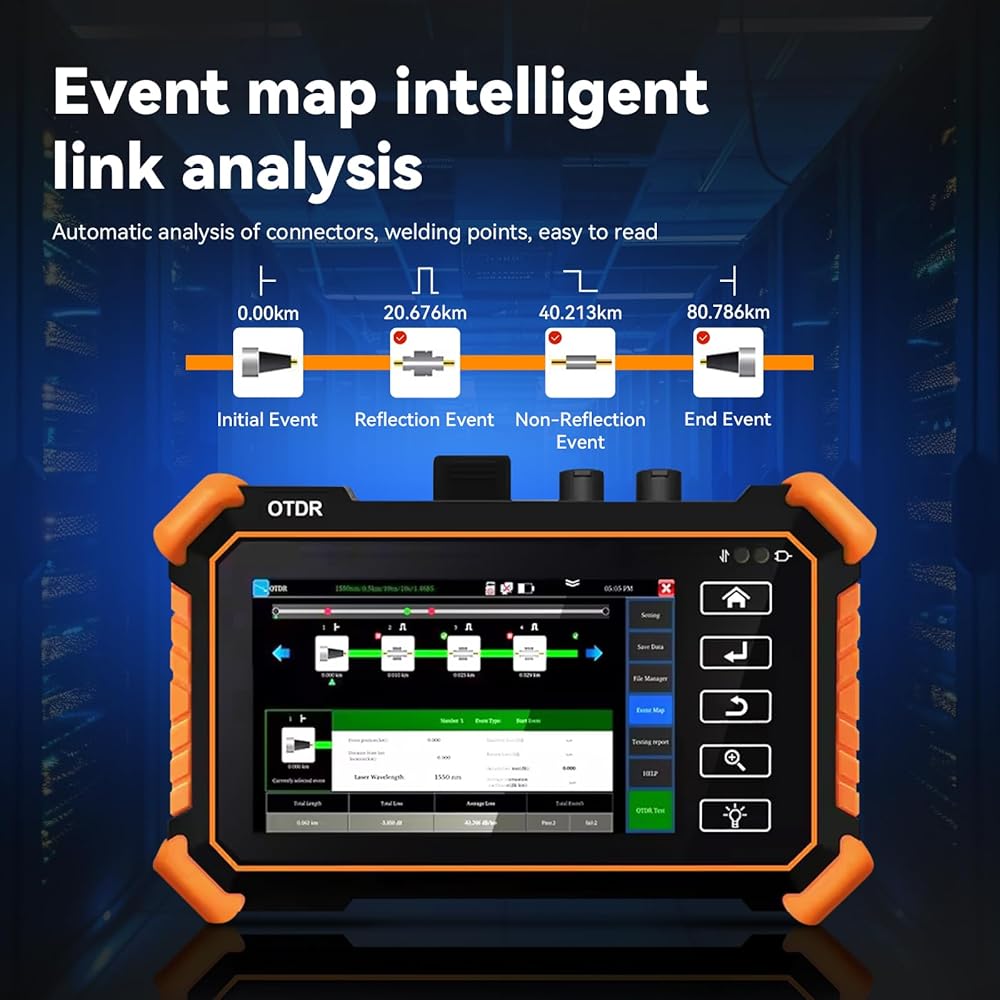

【Event Map & Data Storage】Fiber optic tools can visualize road problems and faults at a glance. Information such as the length of the fibre optic link, type of connector, fusion point or break point is presented in a graphical form that is easier to understand. Save and view the testing curves, support zoom and move curves, view details. (Event Blind Zone <1.6 m, Attenuation Blind Zone<8 m.) OTDR tester support create testing report, including curve trajectory graphs, parameter settings, fiber event information, and fiber link information.

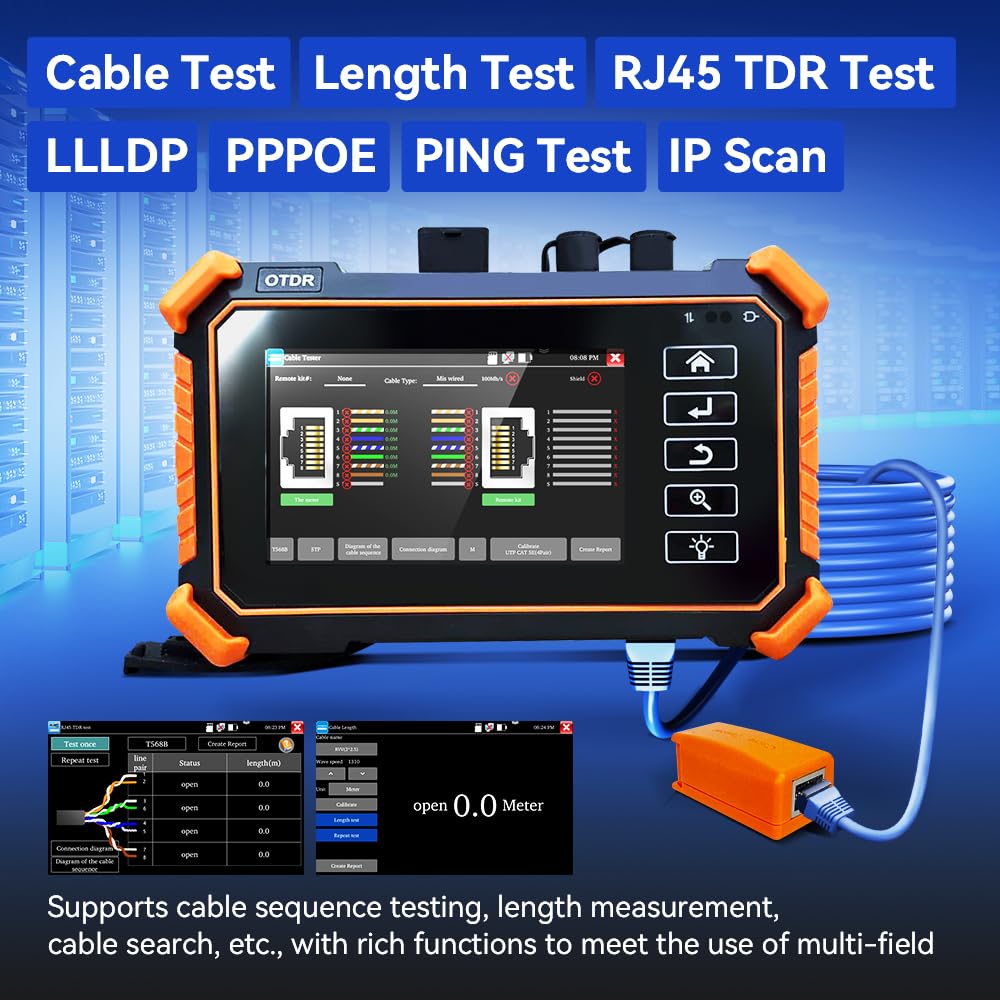

【RJ45 Cable Tester & TDR Cable Length Test】RJ45 CABLE Test: it can test cable pair status(open, cross, straight through, or shortcuirt); UTP Cable Tester can measure special shielded network cable (UTP/STP), support detect the near-end, mid-end and far-end fault point of the RJ45 cable plug; Cable Length Test: Measure the breakpoint position of (open circuit status) BNC cables, RJ45 network cables, RJ11 cables, test length max 3000 meters. Network Test: IP address scan, PING test, LLDP, PPPOE, FTP file management,etc

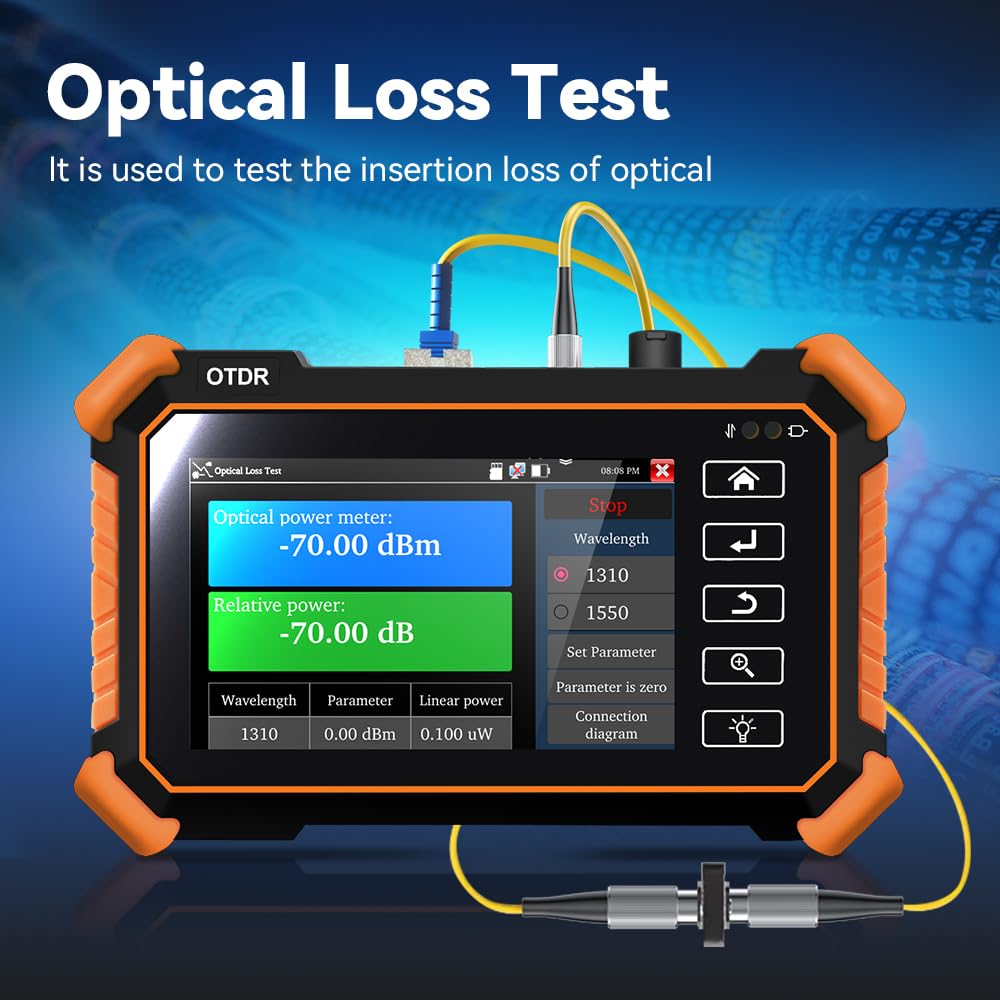

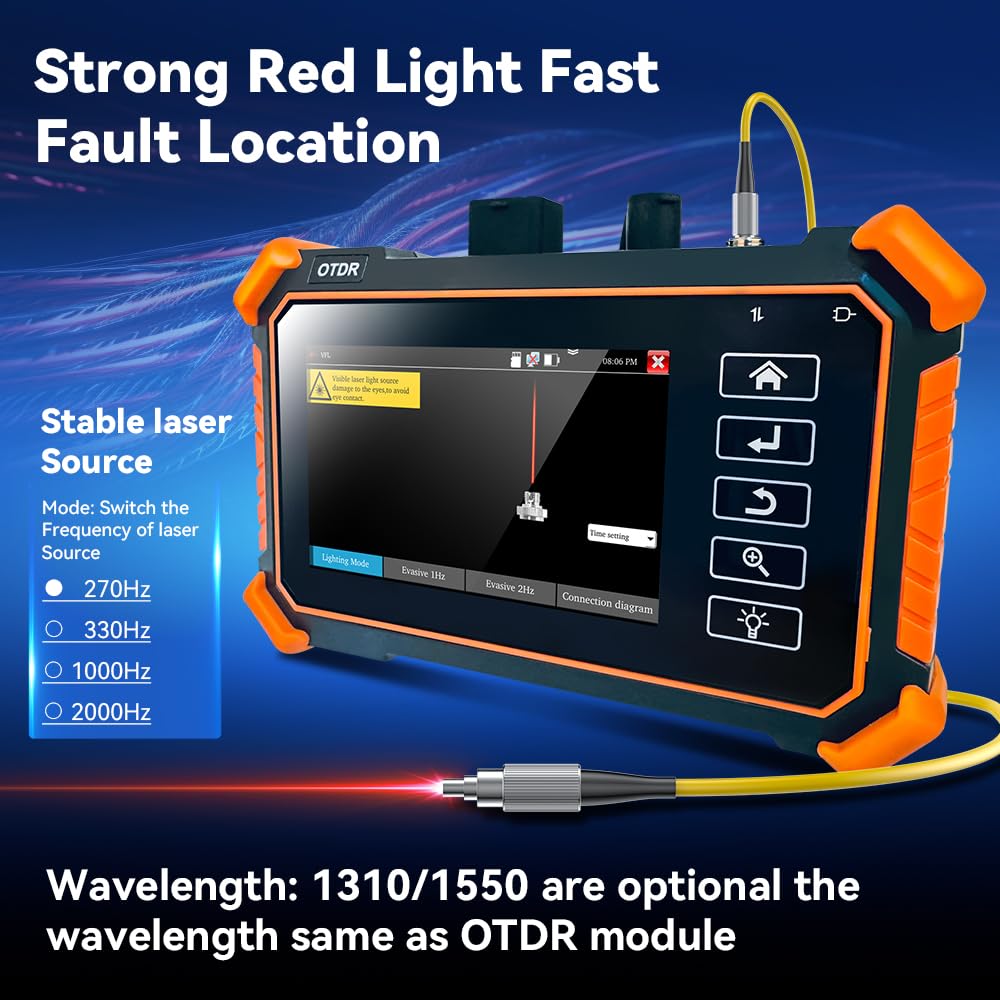

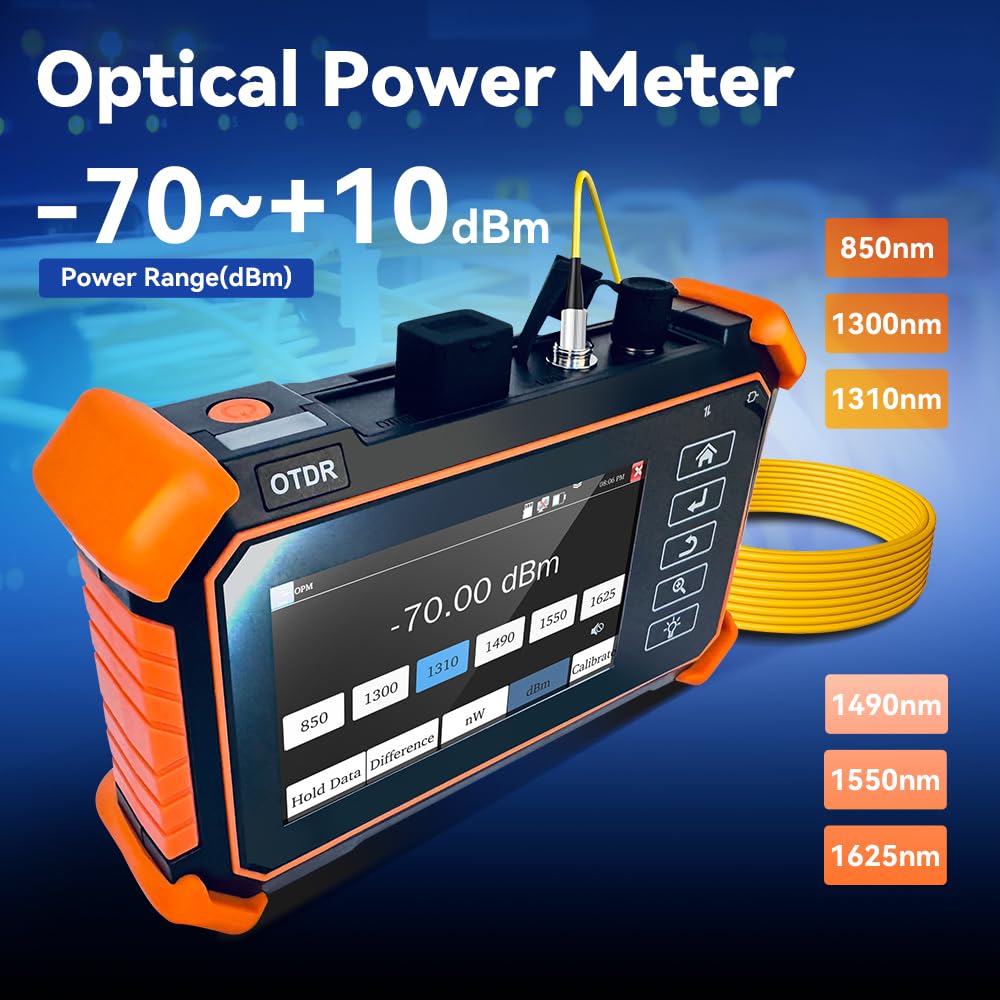

【OPM VFL LS OLS】NF-983 1550nm 24dB combines necessary fiber optic testing in one handheld device. OPM (Optical Power Meter: Calibrated Wavelength 850/1300/1310/1490/1550/1625nm); VFL (Visual Fault Locator: 650nm wavelength, max test range 8 KM); LS (Light Source:mode CW/270 Hz/330 Hz/1 kHz/2 kHz); OLS(Optical Loss Test: It is used to test the insertion loss of optical passive devices)

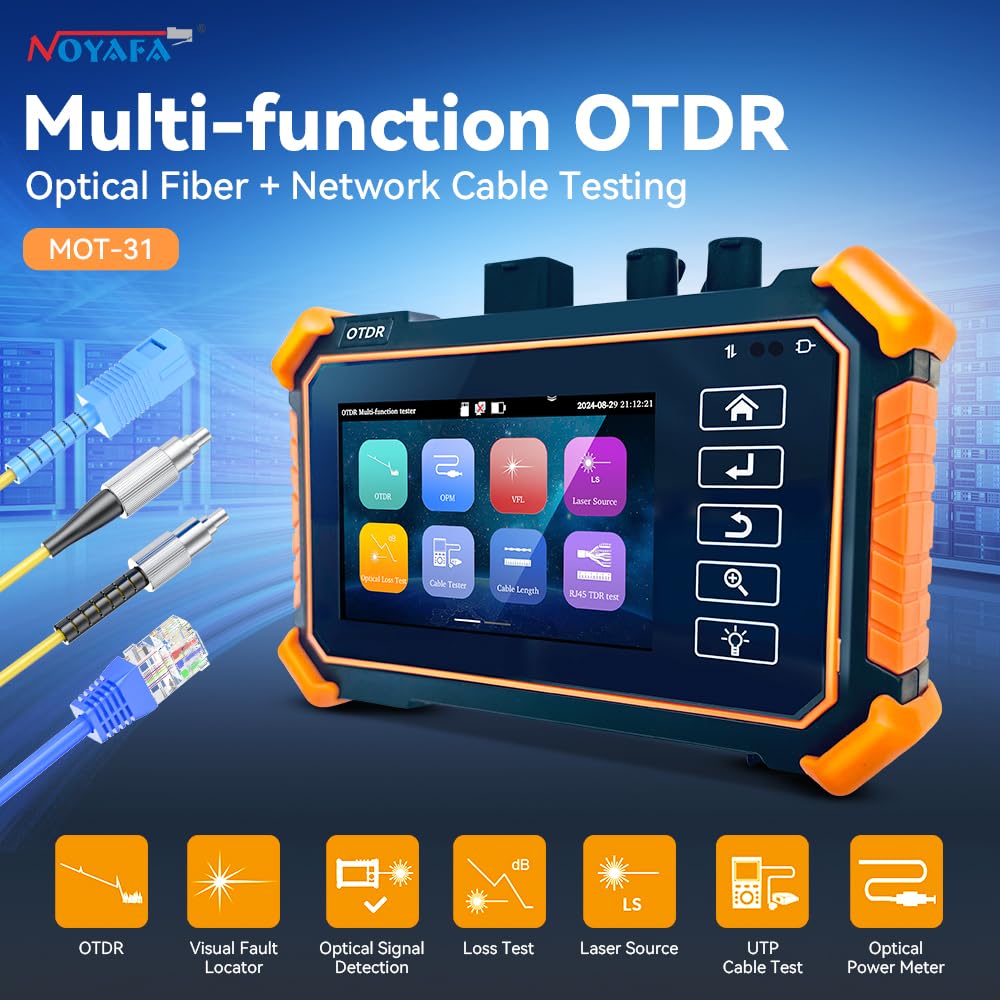

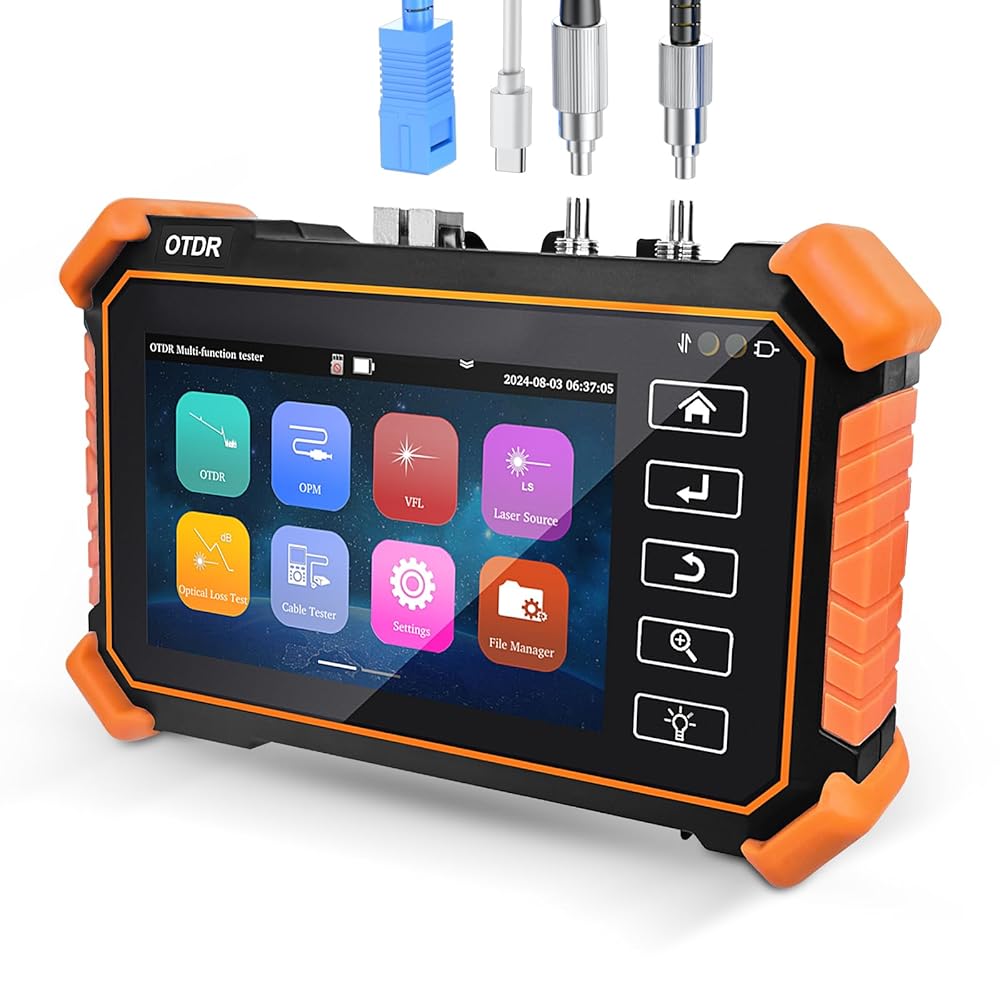

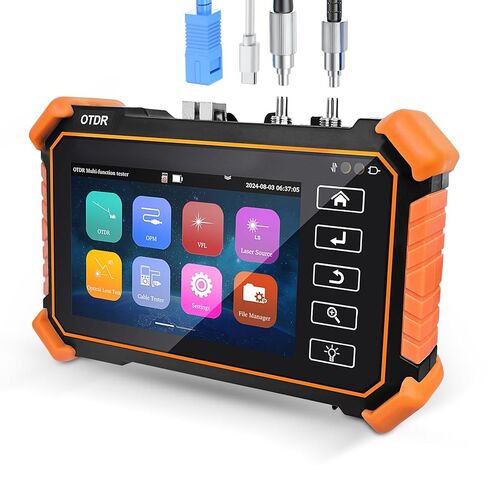

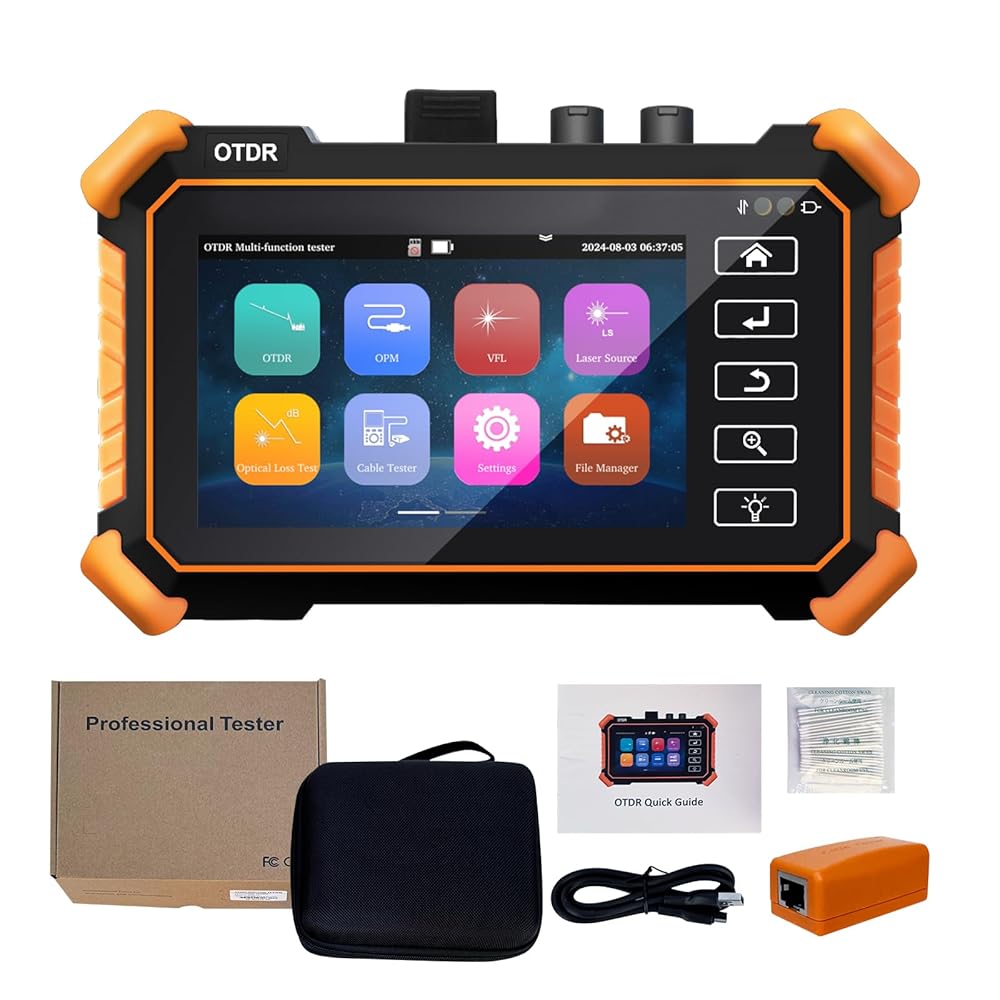

【4 inches Intelligent and Multi-functional Fiber Optic Tester】containing expert OTDR, automatic OTDR, event map, 10G split-wave power meter, general optical power, end state verification, multi-core test, intelligent line diagnosis (optional), loss test, RJ45 line length/line sequence/seeking line, red light, stable light source, illumination. Touch screen and button double design, simple operation, friendly interface, is the optical cable construction installation, engineering acceptance and on-site repair of the right hand.
【Battery and Quality Assurance】Fiber light meter equipped with a new high-performance chip, smooth operation and accurate measurement. Built-in high-capacity 3.7V lithium polymer battery, 4000mAh, 14.8Wh, with stable current and long-lasting battery life, which can guarantee your safety (standby time > 20 hours, measurement time > 12 hours). Fiber optic tester also adopts the mainstream type-c charging interface in the market, which can meet your different power supply needs. If you have any questions, please feel free to contact us.
